Основні особливості

IFP6560-predatasheet
Опис товару

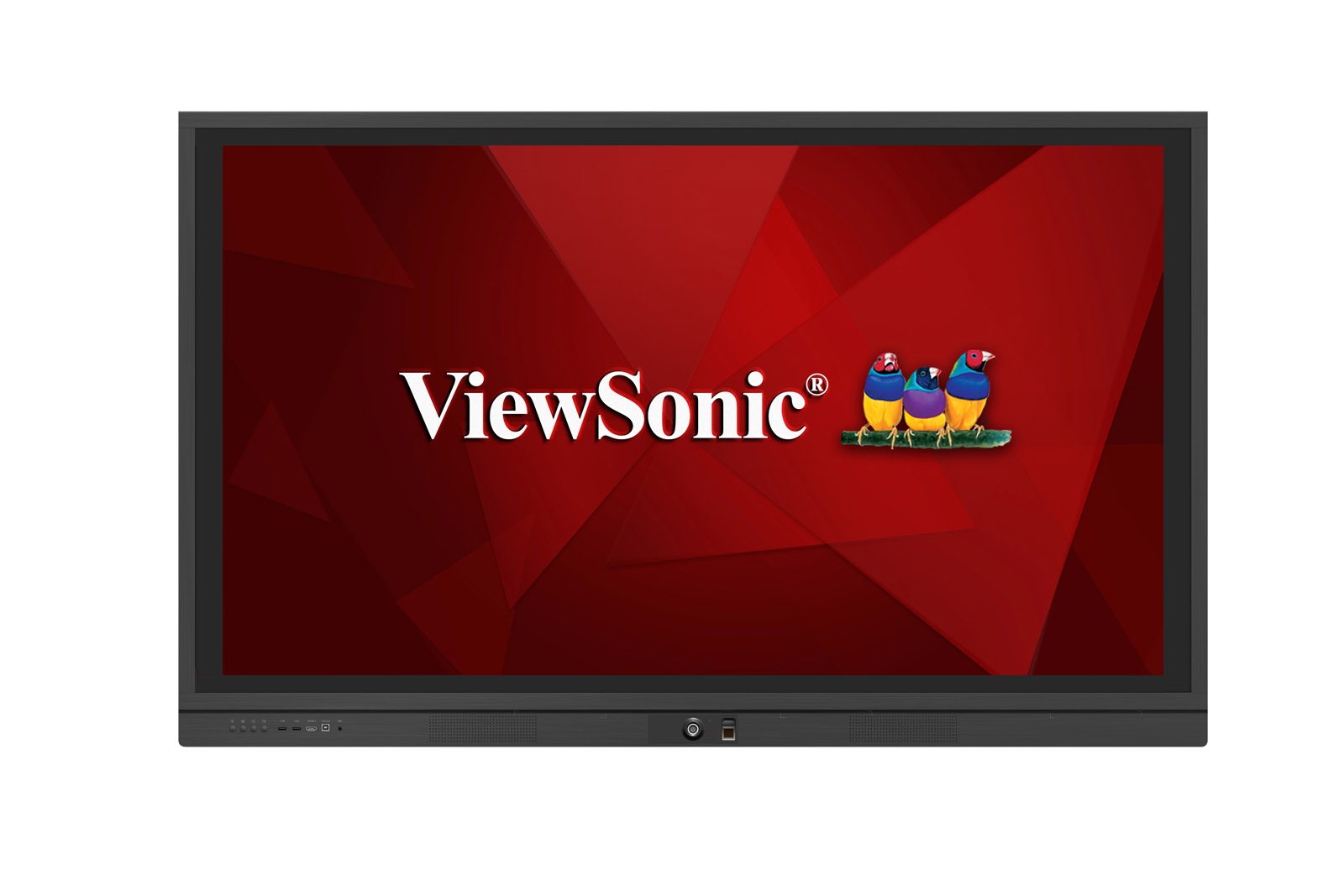

The ViewBoard® IFP6560 is a 65” 4K (3840 x 2160) interactive flat panel display with an open platform design and diverse collaborative capabilities. ViewBoard® IFP6560 is fit for integration into Google-based & Chrome environments, offers seamless Windows accessories & office365 compatibility, and comes equipped with Mac multi-touch gesture mirroring (driver needed). InGlass™ technology delivers a more accurate and sleek touchscreen experience with lag-free writing and drawing in two colors with different thicknesses. Pairing ViewBoard® IFP6560’s 20-point touch display with pre-installed tools, such as vBoard for annotation, ViewBoard® Cast for content sharing, and Zoom conference software, allows multiple users to remotely write, share, and interact simultaneously. Connecting to more powerful computing platforms is possible via the board’s dual PC slots for the optional Intel United® certified OPS* (Open Pluggable Specification) which allows users to switch their system to Windows OS. Connecting to the board is made easy through SmartPort™ shared front USB ports for internal and external PCs. Finger print recognition bolsters security and enables easy login to Windows or myViewBoard™ for your digital whiteboard in the cloud. Versatile connectivity to a multitude of devices combined with VESA-compatibility and a trolley design allows for flexible installation anywhere, no matter the occasion.
*ViewSonic OPS VPC12-WPO
  1. Internal Speakers
  2. Menu Controls
  3. USB 2.0 x2
  4. HDMI 1.4 In
  5. MIC
  6. USB B Touch Port
  7. VESA® Compatible Wall Mount 600 x 400 mm
  8. Power Switch
  9. AC In
  10. Audio Out 3.5 mm
  11. HDMI Out
  12. USB 2.0
  13. USB 3.0 x2
  14. USB B Touch Port
  15. HDMI 2.0 In x2
  16. DisplayPort
  17. Audio In
  18. VGA In
  19. LAN
  20. RS232 In
  21. SPDIF
Відвідайте нас
  • www.viewsonic.com
  • LCD PANEL
    Розмір панелі: 65"
    Тип/ Технологія: TFT LCD Module with DLED Backlight
    Площа екрана (мм): 1428.48(H) x 803.52(V) mm (64.5” diagonal)
    Співвідношення сторін: 16:09
    Роздільна здатність: 3840 x 2160
    Colors: 1.07B (8Bit+FRC)
    Яскравість: 350 nits (typ.)
    Коефіцієнт контрастності: 4000:1 (typ.)
    Час відповіді: 8 ms
    Кути перегляду: H = 178, V = 178 (typ.)
    Backlight: DLED
    Термін служби підсвітки: 30,000 Hours Min.
    Hardness: 7H
  • TOUCH
    Тип/ Технологія: Flatfrog InGlass IR
    Сенсорна роздільна здатність: 22855 x 12856
    Точка дотику: 20 points touch, 10 points writing
    Час відповіді: 6.7ms
    System: Win 7pro/Ultimate/8/8.1/10, Chrome OS Linux kernel 3.15 or later, Android 4.4 with linux kernel 3.15 or later, Linux OS kernel 3.15 or later, Mac OS 10.10 or later
  • INPUT
    HDMI: 1 x HDMI 1.4a, 4K@30Hz, support CEC on/off, HDCP 1.4
    2 x HDMI 2.0, 4K@60Hz, support CEC on/off, HDCP 2.2
    RGB / VGA: x 1
    DisplayPort: x 1 (4K@30Hz)
    Аудіо: x 1 PC audio (3.5mm)
    CVBS (AV): x 1
    RS232: x 1
    PC Slot: x 1 (Intel OPS)
  • OUTPUT
    HDMI: x 1 HDMI 2.0, 4K@60Hz, no CEC support
    Audio (Earphone out): x 1
    SPDIF: x 1
    RS232: x 1
  • LAN
    RJ45: x 1
  • USB
    2.0 Type A: x 3 (front x 2, for both embedded player and slot-in PC)
    3.0 Type A: x 2
    2.0 Type B (For touch): x 2 (front x 1 for HDMI 1.4; back side x 1 for HDMI2.0, DP, VGA)
  • ДИНАМІКИ
    10W x 2
  • BUILT-IN PC
    Процесор: ARM Cortex A53 Quad Core 1.4G Hz CPU
    Graphic: ARM Mali-450 MP4 Quad Core
    Пам'ять: 2GB DDR3
    Зберігання: 16GB eMMC
    Networking: 10/100M auto-identification and DHCP
  • COMPATIBILITY
    VGA: Refer to timing table
    HDMI: 3840x2160
    DP: 3840x2160
  • POWER
    Напруга: 100V-240V,50/60Hz (AC)
    Споживання: 210 W (without OPS)
    270 W (With OPS)
  • ERGONOMICS
    Настінне кріплення (VESA® ): 600 x 400mm; Screw: M8 x 25mm
  • OPERATING CONDITIONS
    Температура (º C): 32°F to 104°F (0°C to 40°C)
    Вологість: 20% ~ 80% non-condensing
  • DIMENSIONS
    Physical w/o Stand (mm / inch): 1565.5 x 967.1 x 94.5 mm / 61.63 x 38.07 x 3.72 inch
    Packaging (mm / inch): 1715 x 1100 x 280 mm / 67.52 x 40.31 x 11.02 inch
  • WEIGHT
    Net w/o Stand (kg / lb): 48.5kg/106.9lb
    Gross (kg / lb): 61kg/134.5lb
  • WHAT'S IN THE BOX?
    1. HDMI cable(1.5 meters)
    2. Power cable(3 meters) x 4 (A+E+M+U)
    3. Remote control with AA battery
    4. USB cable(1.8 meters)
    5. Touch pen x 2
    6. Quick Start Guide & Compliance statement
    7. Webcam Plate
    8. Wall mount Screw x 4
