ViewSonic SD-Z245 Perfect Solution for a Seamless Desktop Experience

Основні особливості

Опис товару

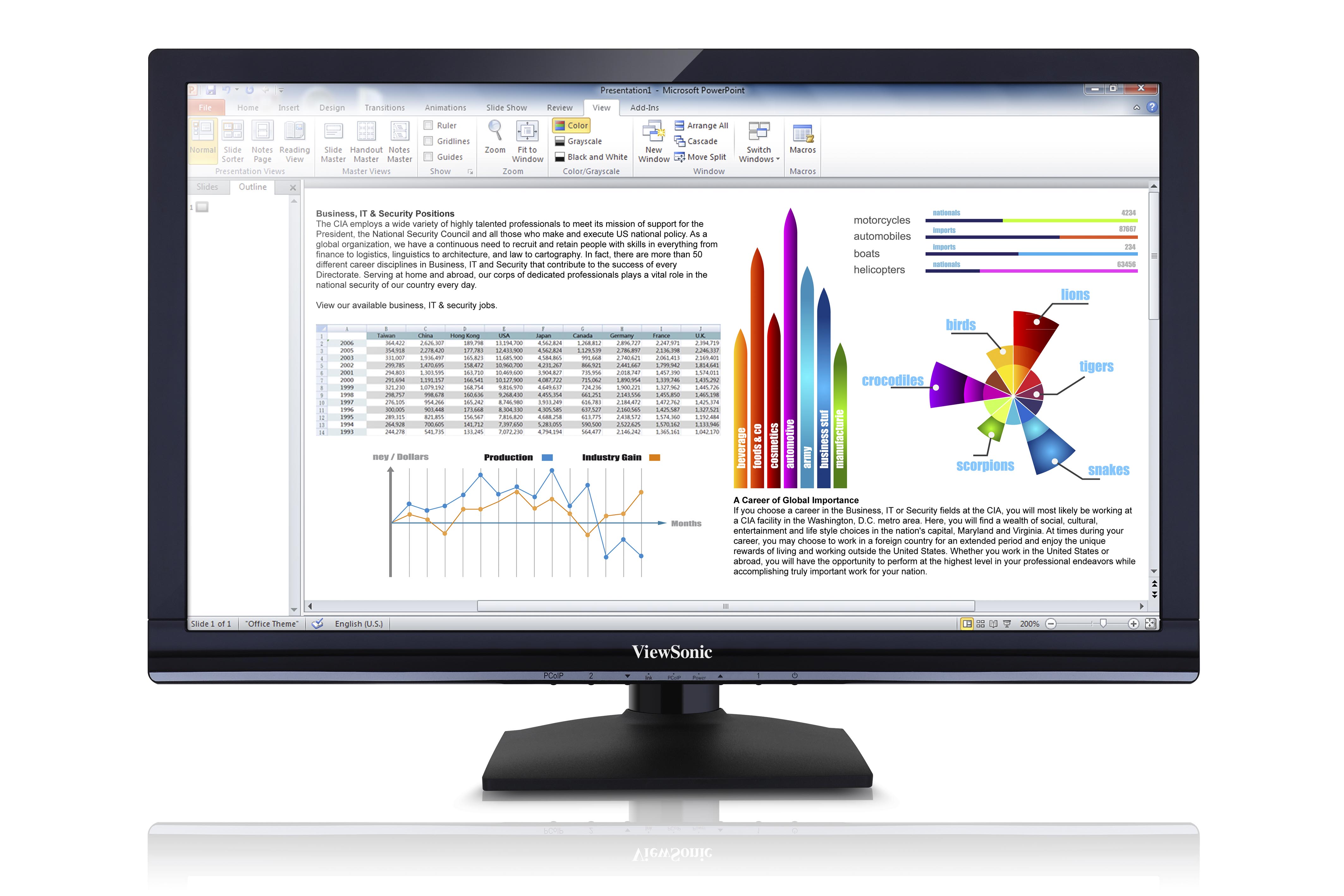

The ViewSonic® SD-Z245 24" (23.6" viewable) zero client monitor is based on Teradici™ Tera 2321, with hardware accelerated PCoIP™ support. The SD-Z245 zero client is the perfect solution for companies seeking a seamless desktop experience, with ultra-high security and reliability in networks based on VMware ® technology. The SD-Z245 is a true zero client and features no local memory or moving parts for the ultimate in energy savings and reliability. The VMware certified design guarantees performance and compatibility in your network. With the additional DVI output, flexible support is provided for dual monitor productivity. The eco-friendly design with LED display uses up to 80% less energy consumption than standard PCs.

Відвідайте нас

www.viewsonic.com

LCD

Тип:	24" (23.6" viewable) Wide Colour TFT Active Matrix LED
Effective Viewing Area:	170º horizontal, 160º vertical
Коефіцієнт контрастності:	1000:1 (typ.)
Display Area:	20.5" horizontal x 11.5" vertical; 23.6" diagonal
Optimum Resolution:	1920 x 1080
Час відповіді:	5ms (typ.)
Panel Surface:	Anti-glare, hard-coating (3H)
Яскравість:	250 cd/m2 (typ.)
Динамічний коефіцієнт контрастності:	20,000,000:1
Backlight:	White-light LED
Термін служби підсвітки:	30,000 hours (min.)

COMPATIBILITY

PC: PC compatibles (VGA up to 1920x1080 non-interlaced)

Mac®: Up to 1920x1080

DIMENSIONS

Physical With Stand:	22.3 x 15.5 x 7.5 in. / 566.4 x 392.7 x 189.9 mm
Physical Without Stand:	22.3 x 13.6 x 1.9 in. / 566.4 x 345.4 x 48 mm
Packaging:	24.8 x 18.4 x 6.2 in. / 630 x 467 x 158 mm

ВМІСТ УПАКОВКИ

1.SD-Z245 Zero Client Monitor

2.power cord

3.power adapter

4.VGA cable

5.Quick Start Guide

6.ViewSonic Wizard CD

CONNECTOR

Живлення:	External power adapter
Відео вхід:	15-pin mini D-sub (VGA)
Video Output:	DVI-I (x1)
USB:	USB 2.0 (x4)
Headphone:	3.5mm mini jack (x1)
LAN:	RJ45 (x1)
Audio line in:	3.5mm mini jack (x1)
Вхід мікрофона:	3.5mm mini jack (x1)

POWER

Напруга: AC 100-240 V (universal), 50/60 Hz

Споживання: 28W (typ)

CONTROLS

Basic:	PCoIP, 2, Down, Up, 1, Power
OSD:	Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Colour Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall (See user guide for full OSD functionality)

OPERATING CONDITIONS

Температура: 32–95ºF (0–35ºC)

Вологість: 15–90% (non-condensing)
WEIGHT

Net With Stand: 11.2 lb. / 5.1 kg

Net Without Stand: 8.6 lb. / 3.9 kg

Брутто: 14.6 lb / 6.6 kg
VESA® MOUNT

100mm x 100mm
MEMORY

System: DDR3 512MB @ 1066MHz

Зберігання: None
VIDEO INPUT

Analog/Digital: RGB analog (0.7 / 1.0 Vp-p, 75 ohms)

Frequency: Fh: 24~82kHz, Fv: 50~75Hz

Sync: Separate Sync
ERGONOMICS

Нахил: Forward 5º / Back 20º
CORE

Центральний процесор: Teradici Tera2321

Image Performance: 50Mpps (DVI out)
GRAPHICS

Chipset: None

Роздільна здатність: 1920 x 1200 (for single display)
COMMUNICATION

Ethernet LAN: 10/100/1000 MB
SOFTWARE

Protocols: VMware PCoIP
AUDIO

Speakers: 2-watt (x2)

PC:	PC compatibles (VGA up to 1920x1080 non-interlaced)
Mac®:	Up to 1920x1080

Напруга:	AC 100-240 V (universal), 50/60 Hz
Споживання:	28W (typ)

Температура:	32–95ºF (0–35ºC)
Вологість:	15–90% (non-condensing)

Net With Stand:	11.2 lb. / 5.1 kg
Net Without Stand:	8.6 lb. / 3.9 kg
Брутто:	14.6 lb / 6.6 kg

Analog/Digital:	RGB analog (0.7 / 1.0 Vp-p, 75 ohms)
Frequency:	Fh: 24~82kHz, Fv: 50~75Hz
Sync:	Separate Sync

Центральний процесор:	Teradici Tera2321
Image Performance:	50Mpps (DVI out)

Chipset:	None
Роздільна здатність:	1920 x 1200 (for single display)

System:	DDR3 512MB @ 1066MHz
Зберігання:	None
