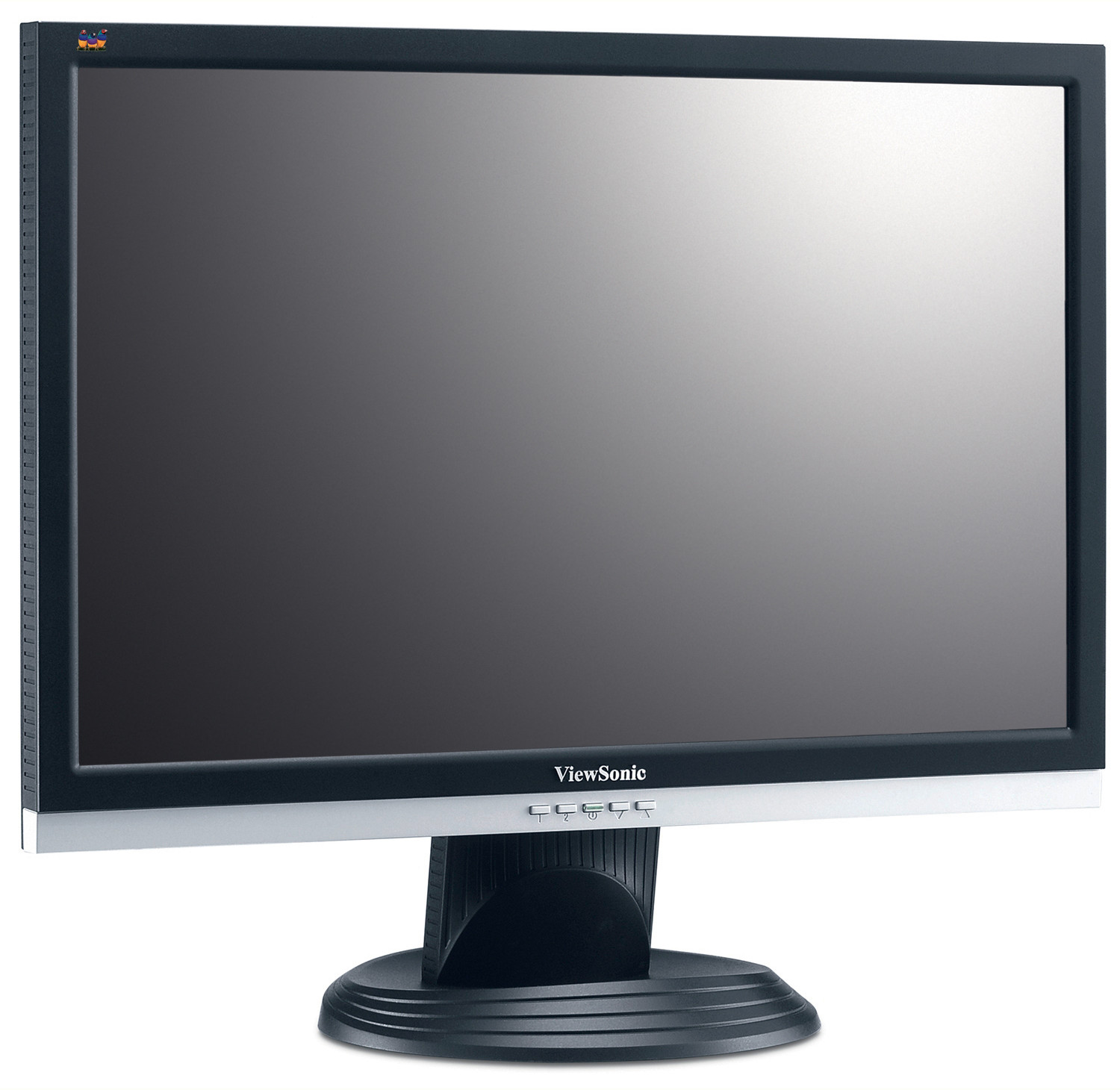

ViewSonic VA2616w 65cm / 25.5" VALUE SERIES WIDESCREEN LCD WITH 5MS VIDEO RESPONSE

LCD

Тип:	65cm / 25.5" color TFT active matrix WUXGA LCD
Коефіцієнт контрастності:	800:1 static (typ), 6000:1 DCR
Кути перегляду:	170° horizontal, 160° vertical @ contrast ratio >10:1 170° horizontal, 170° vertical @ contrast ratio >5:1
Яскравість:	450 cd/m² (typ)
Display Area:	550 x 344mm, 21.7" (51.12 cm) horizontal x 13.5" (34.25 cm) vertical; 25.5" (64.77 cm)diagonal
Optimum Resolution:	1920x1200
Час відповіді:	5ms (typ)
Джерело світла:	Long life, 50,000 hrs. (min)
Panel Surface:	Anti-glare
Pixel Pitch:	0.2865mm
Colour Support:	16.7M (6-bit + 2-bit FRC)
Pixel Clock:	165 MHz

COMPATIBILITY

PC: VGA up to 1920x1200 non-interlaced

Mac®: Power Mac™ G3/G4/G5 up to 1920x1200
DIMENSIONS

Physical With Stand: 596mm x 480mm x 254mm (23.5" x 18.9" x 10.0")

Physical Without Stand: 596mm x 406mm x 93mm (23.5" x 16.0" x 3.6")
ВМІСТ УПАКОВКИ

LCD display, video cable, power cable,
Quick Start Guide, ViewSonic Wizard (DVI and HDMI cables
not included)
RECYCLE/DISPOSAL

The lamp in this product contains mercury. Please dispose of in accordance with local, state or federal laws.
CONNECTOR

Analogue: 15-pin mini D-sub

Живлення: 3-pin AC plug (CEE22
POWER

Напруга: AC 100–240V (universal), 50/60Hz (auto switch)

Споживання: 64W (typ); below 1W in standby mode

CONTROLS

Basic:	Power, 1, down, up, 2
OnView®:	Auto image adjust, contrast, brightness, input select (analog, digital, HDMI), ViewMatch® color adjust (sRGB, 9300K, 6500K – default, 5400K, RGB), information, manual image adjust (H. size, H. position, V. position, fine tune, sharpness, display mode, aspect ratio and ECO mode), setup menu etc.), setup menu (language, resolution notice, OSD position, OSD timeout, OSD background), memory recall

OPERATING CONDITIONS

Температура: 41–95°F (5–35°C)

Вологість: 20–80% (non-condensing)
WEIGHT

Net With Stand: 7.32 kg (16.14 lbs)

Net Without Stand: 5.48 kg (12.08 lbs)

Gross With Stand: 9.76 kg (21.52 lbs)
VIDEO INPUT

Frequency: Fh: 24~82kHz, Fv: 50~85Hz

Sync: H/V separated (TTL)

Analogue: RGB analog (75 ohms, 0.7 Vp-p)
POWER MANAGEMENT

Meets TCO’03 and ENERGY STAR® standards
SECURITY

Kensington security port
VESA MOUNT COMPLIANT

VESA FDMI 100X100mm
ERGONOMICS

Нахил: -5°/+20°

PC:	VGA up to 1920x1200 non-interlaced
Mac®:	Power Mac™ G3/G4/G5 up to 1920x1200

Physical With Stand:	596mm x 480mm x 254mm (23.5" x 18.9" x 10.0")
Physical Without Stand:	596mm x 406mm x 93mm (23.5" x 16.0" x 3.6")

Analogue:	15-pin mini D-sub
Живлення:	3-pin AC plug (CEE22

Напруга:	AC 100–240V (universal), 50/60Hz (auto switch)
Споживання:	64W (typ); below 1W in standby mode

Температура:	41–95°F (5–35°C)
Вологість:	20–80% (non-condensing)
