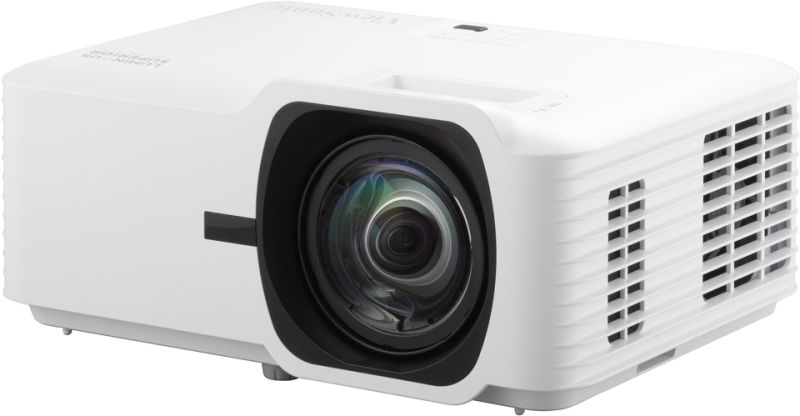

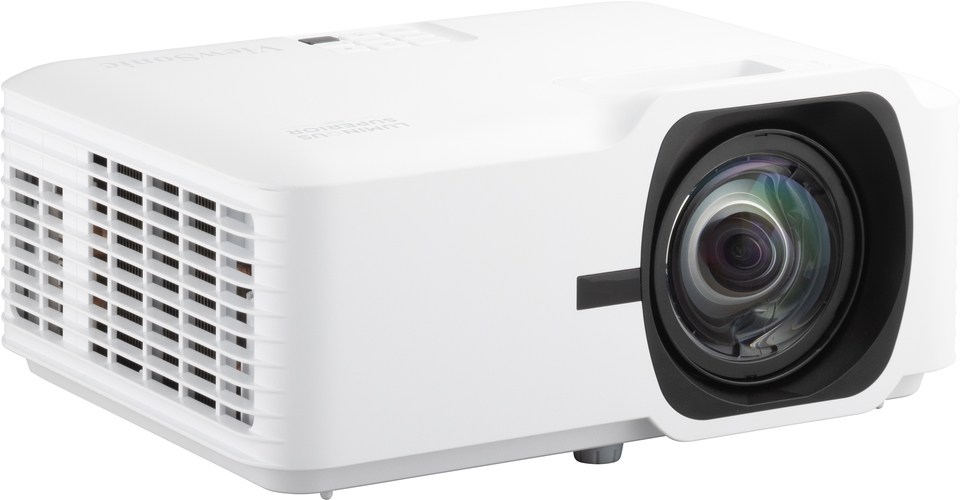

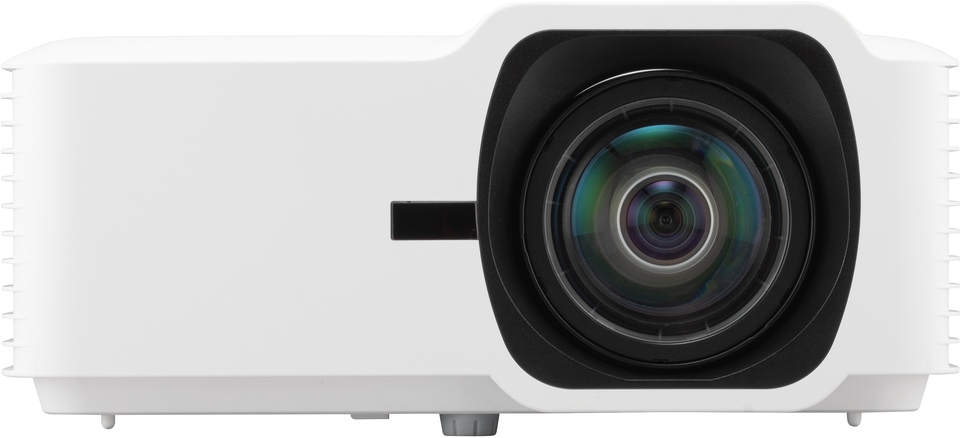

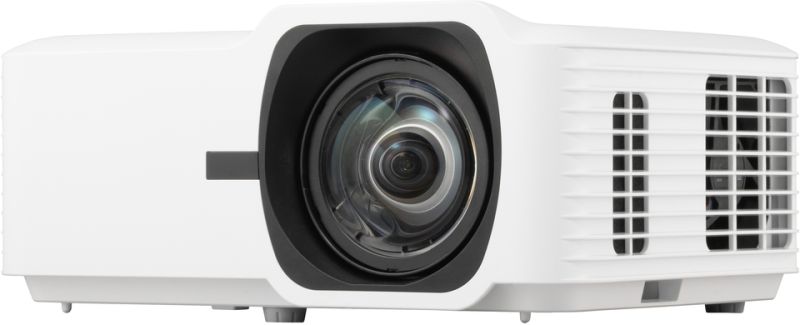

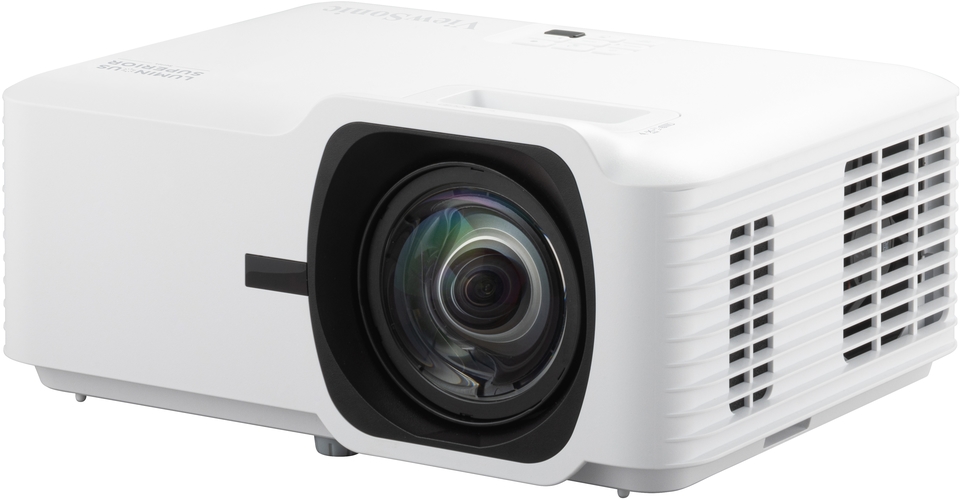

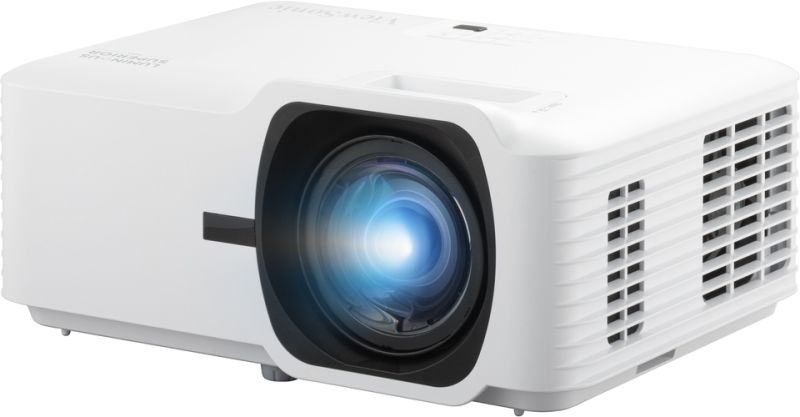

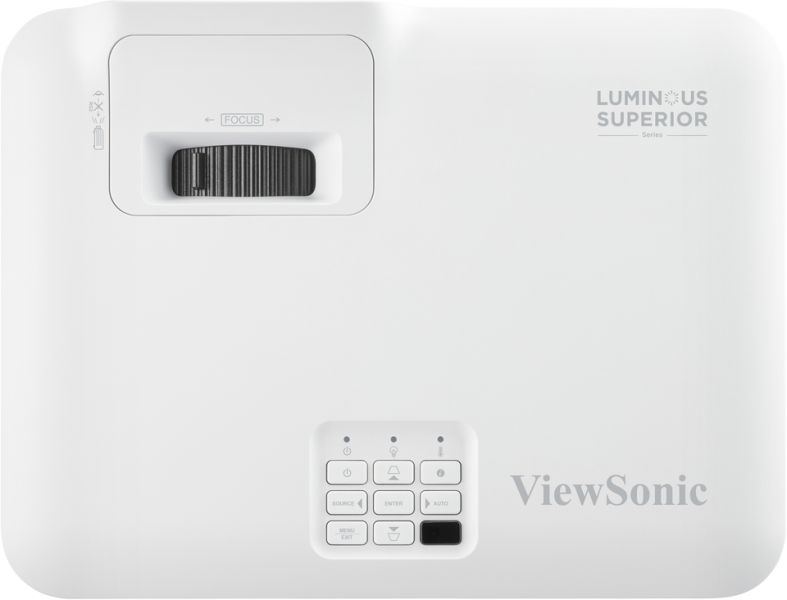

LS711W

4,200 ANSI Lumens WXGA Short Throw Laser Business & Education Projector

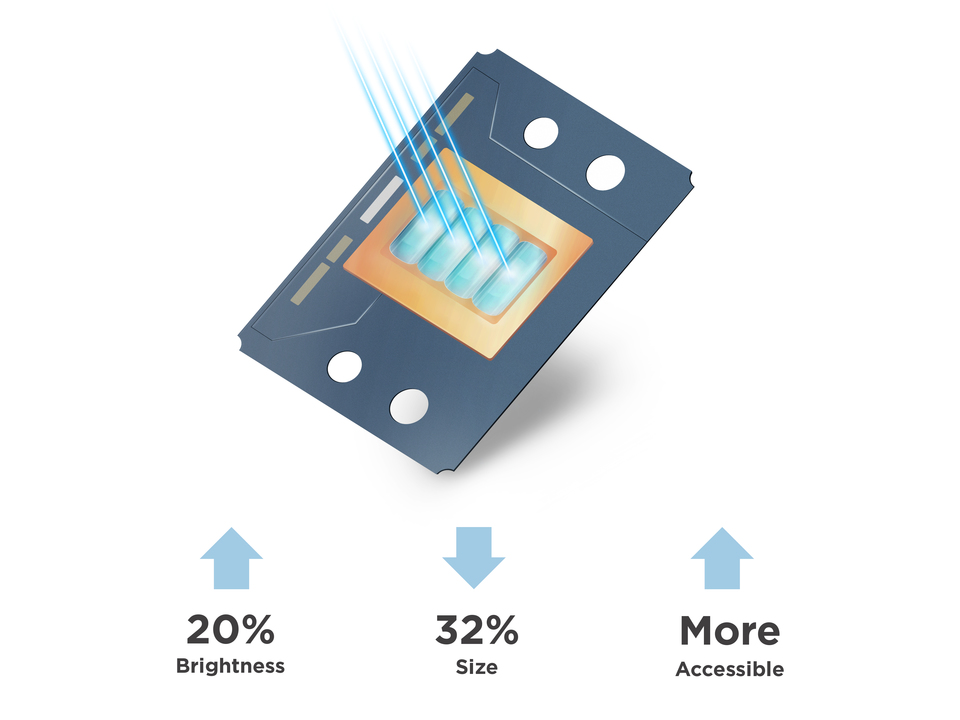

  • 3rd generation laser phosphor technology with up to a 30,000-hour lifespan

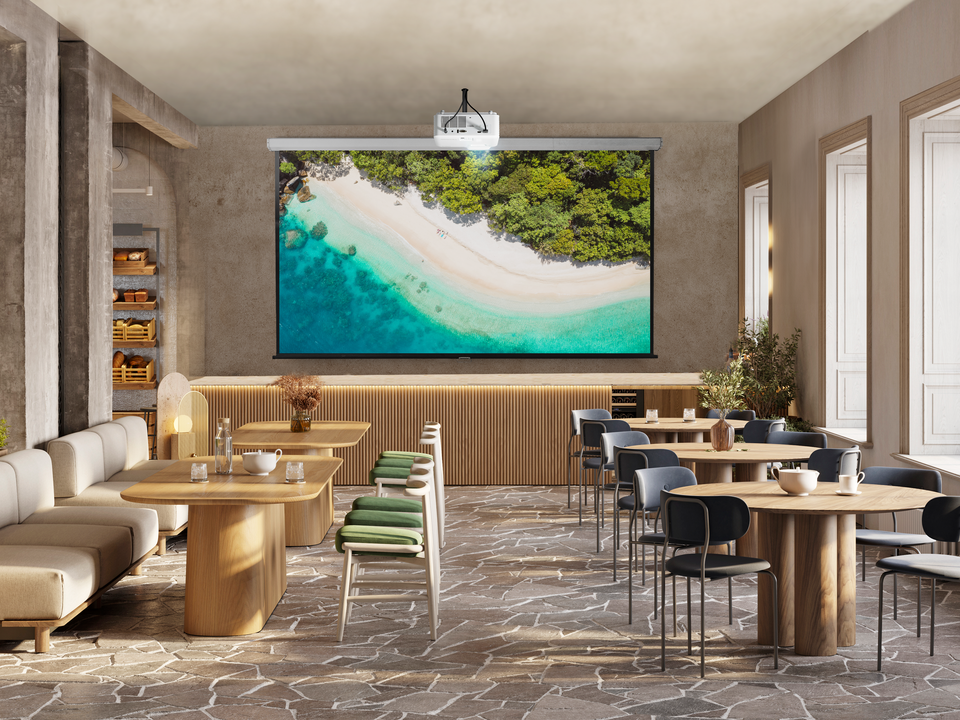

  • 4,200 ANSI Lumens offering bright images in any environment
  • High native contrast ratio achieved through Texas Instruments 0.65" DMD chip

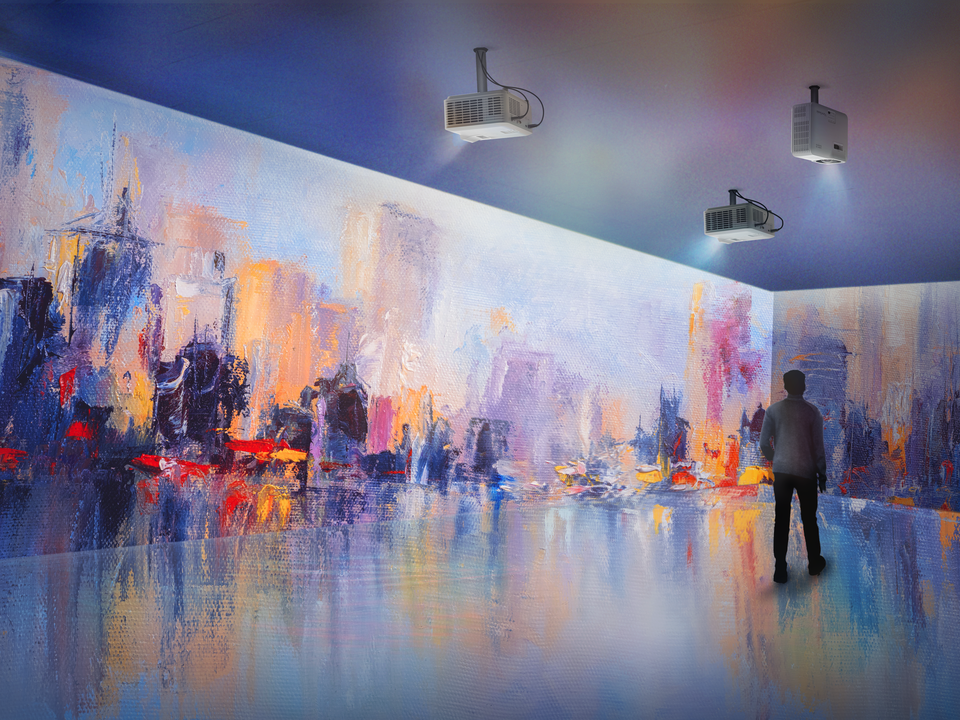

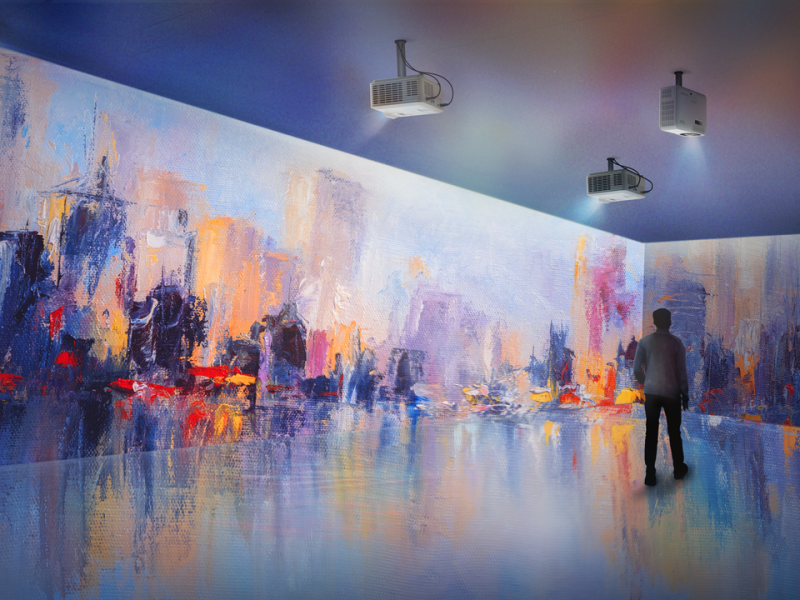

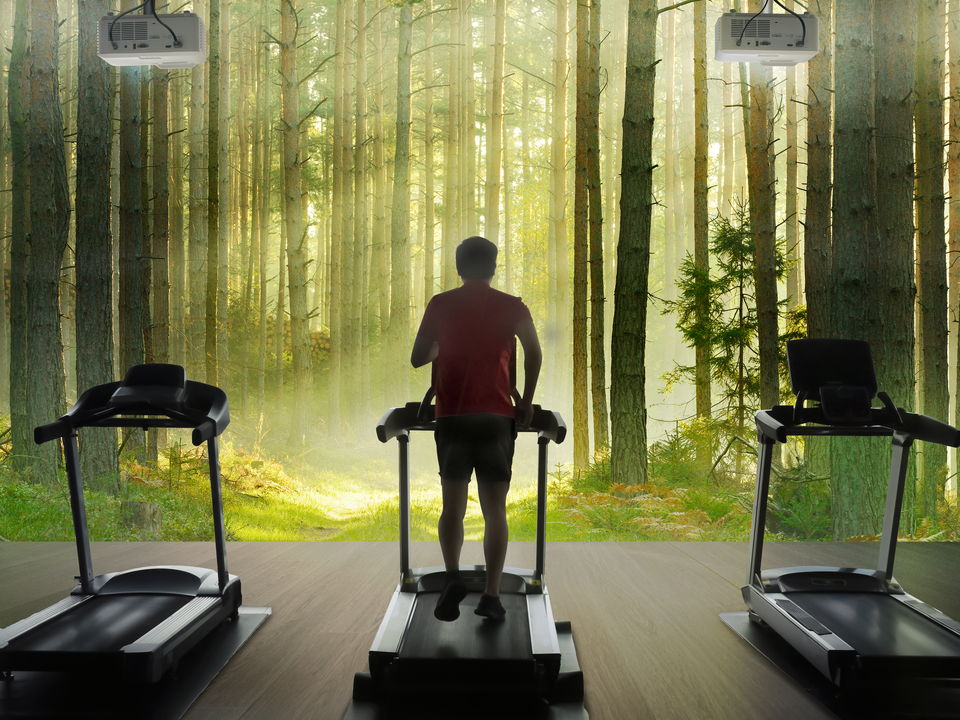

  • 0.52 short throw for seamless edge-blending without shadows
  • Compact size and light weight reducing cost of transportation and installation

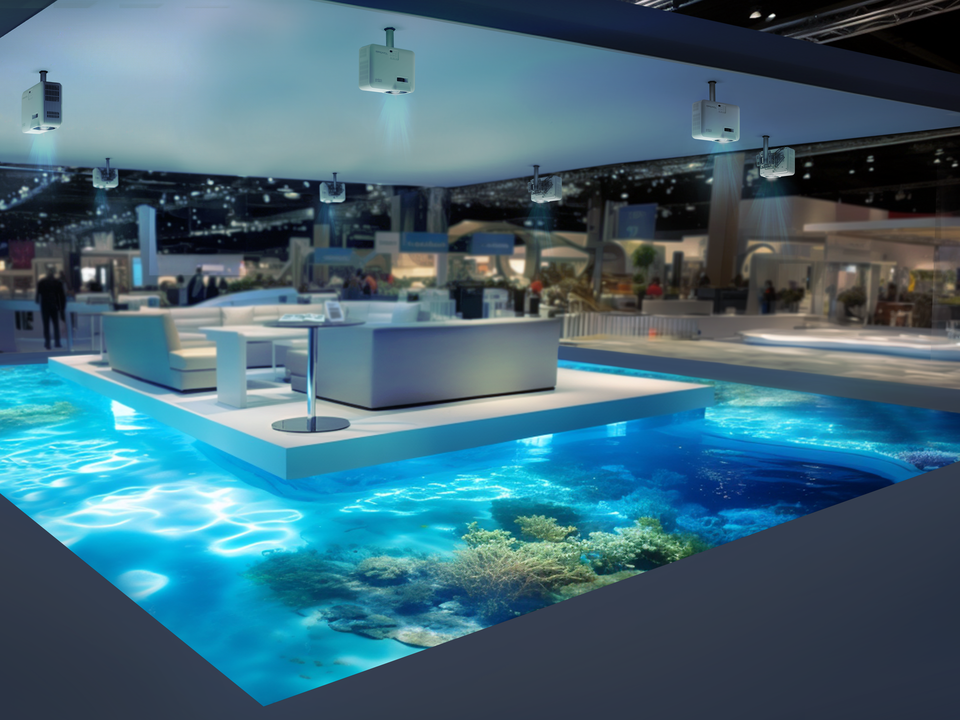

  • Installation flexibility: H/V keystone correction, 360° projection, and portrait mode
Projector Warranty Extension

SPECIFICATIONS


  • Specification
    Projection System: 0.65" WXGA
    Native Resolution: 1280x800
    Brightness: 4200 (ANSI Lumens)
    Brightness (Center Lumens): 5000
    Contrast Ratio: 3000000:1
    Display Color: 1.07 Billion Colors
    Light Source Type: Laser Phosphor
    Light Source Life (hours) with Normal Mode: 20000
    Light Source Life (hours) with SuperEco Mode: 30000 (Eco)
    Lens: F=2.8, f=7.51mm
    Projection Offset: 125%+/-10%
    Throw Ratio: 0.521
    Optical Zoom: Fixed
    Digital Zoom: 0.8x-2.0x
    Image Size: 35"-300"
    Throw Distance: 0.39-3.37m
    (100"@1.12m)
    Keystone: H:+/-15° , V:+/-15°
    Audible Noise (Normal): 30dB
    Audible Noise (Eco): 24dB
    Input Lag: 49.5ms
    Resolution Support: VGA(640 x 480) to WUXGA_RB(1920 x 1200)
    *RB-Reduced Blanking
    HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    Horizontal Frequency: 15K-102KHz
    Vertical Scan Rate: 24-120Hz

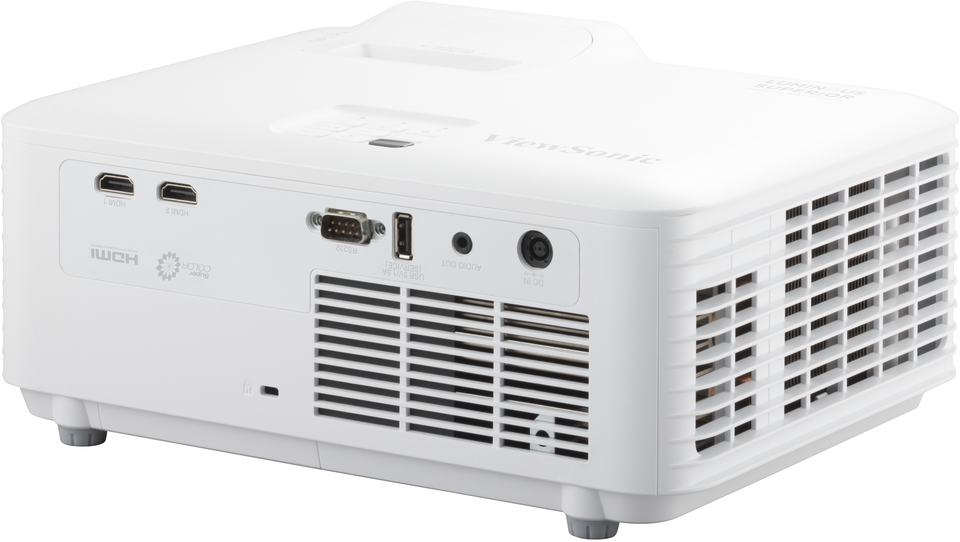

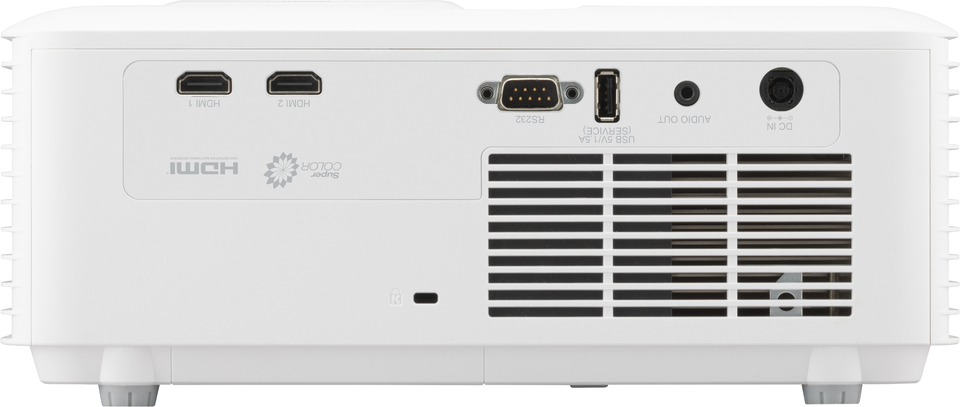

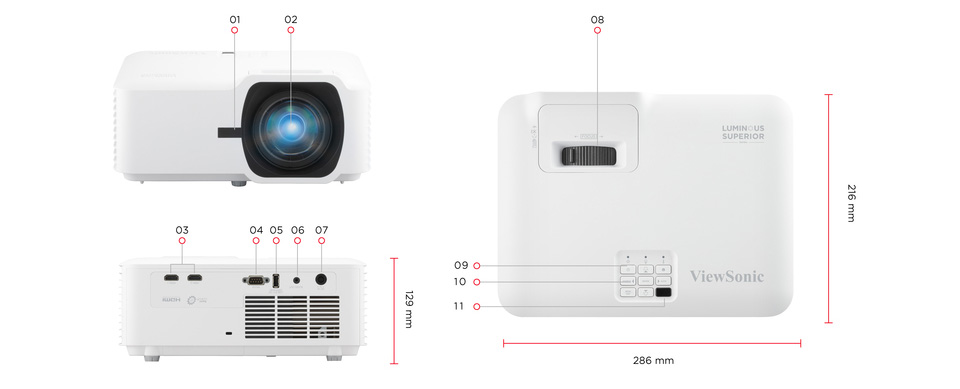

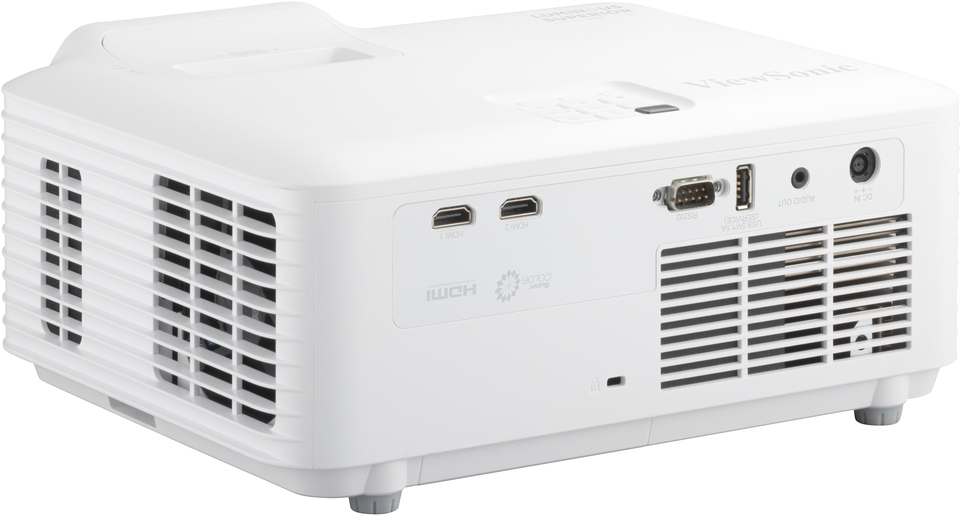

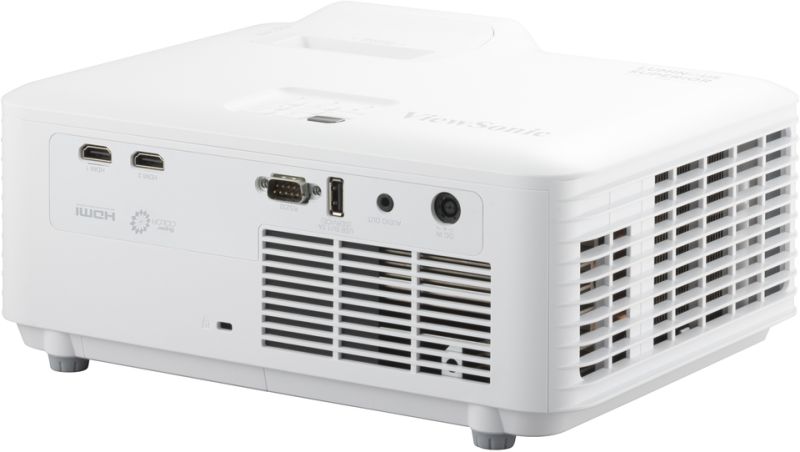

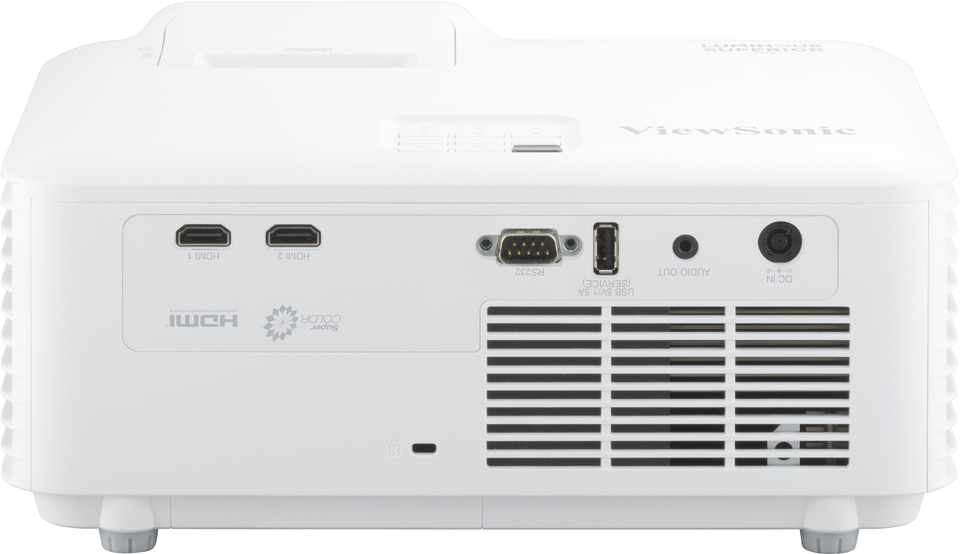

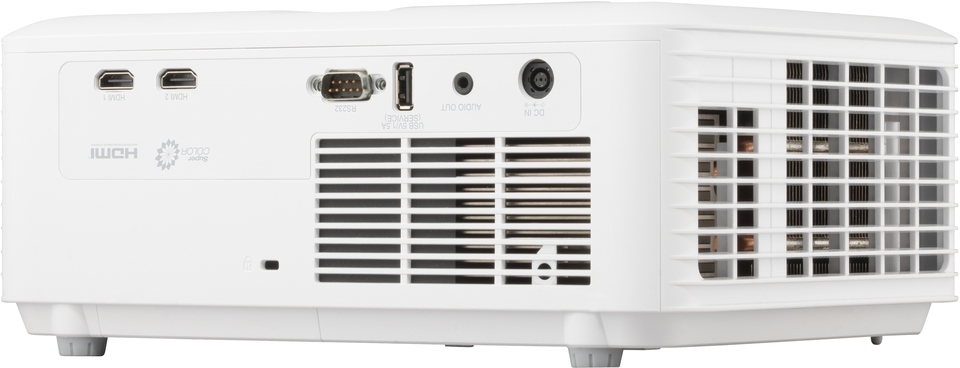

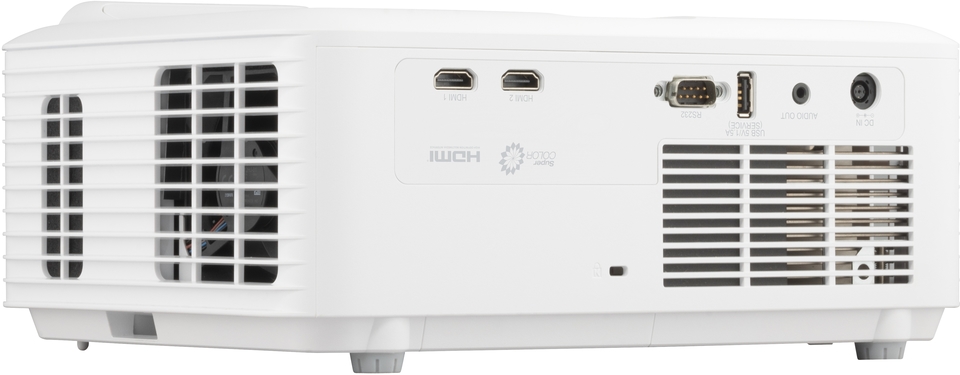

  • Input
    HDMI: 2
    (HDMI 1.4/ HDCP 1.4)
  • Output
    Audio-out (3.5mm): 1
    Speaker: 15W

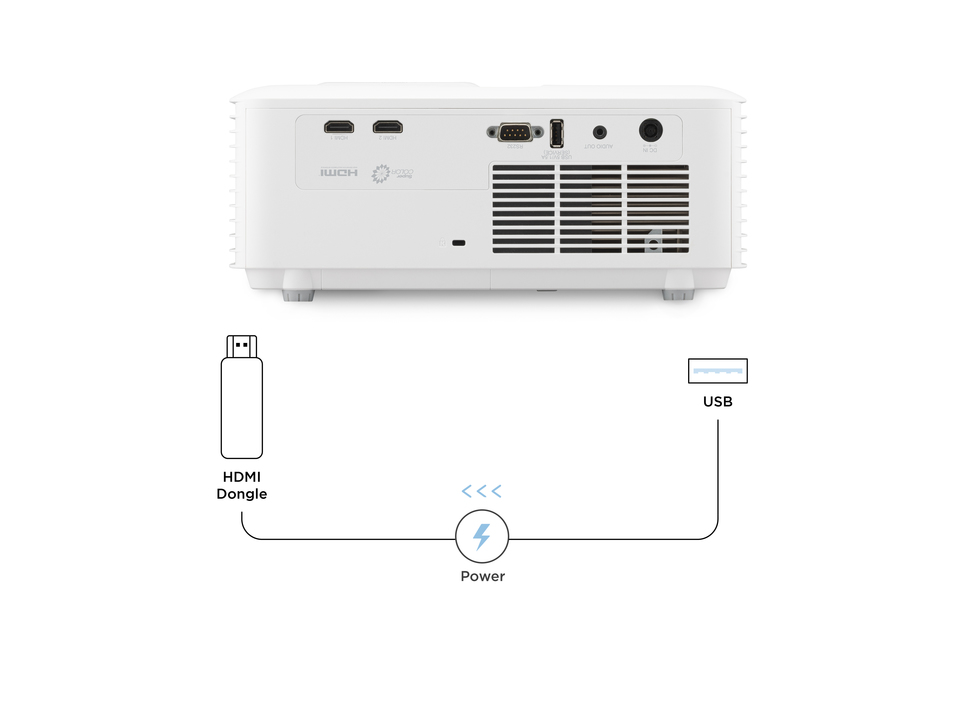

    USB Type A (Power): 1 (5V/1.5A)
