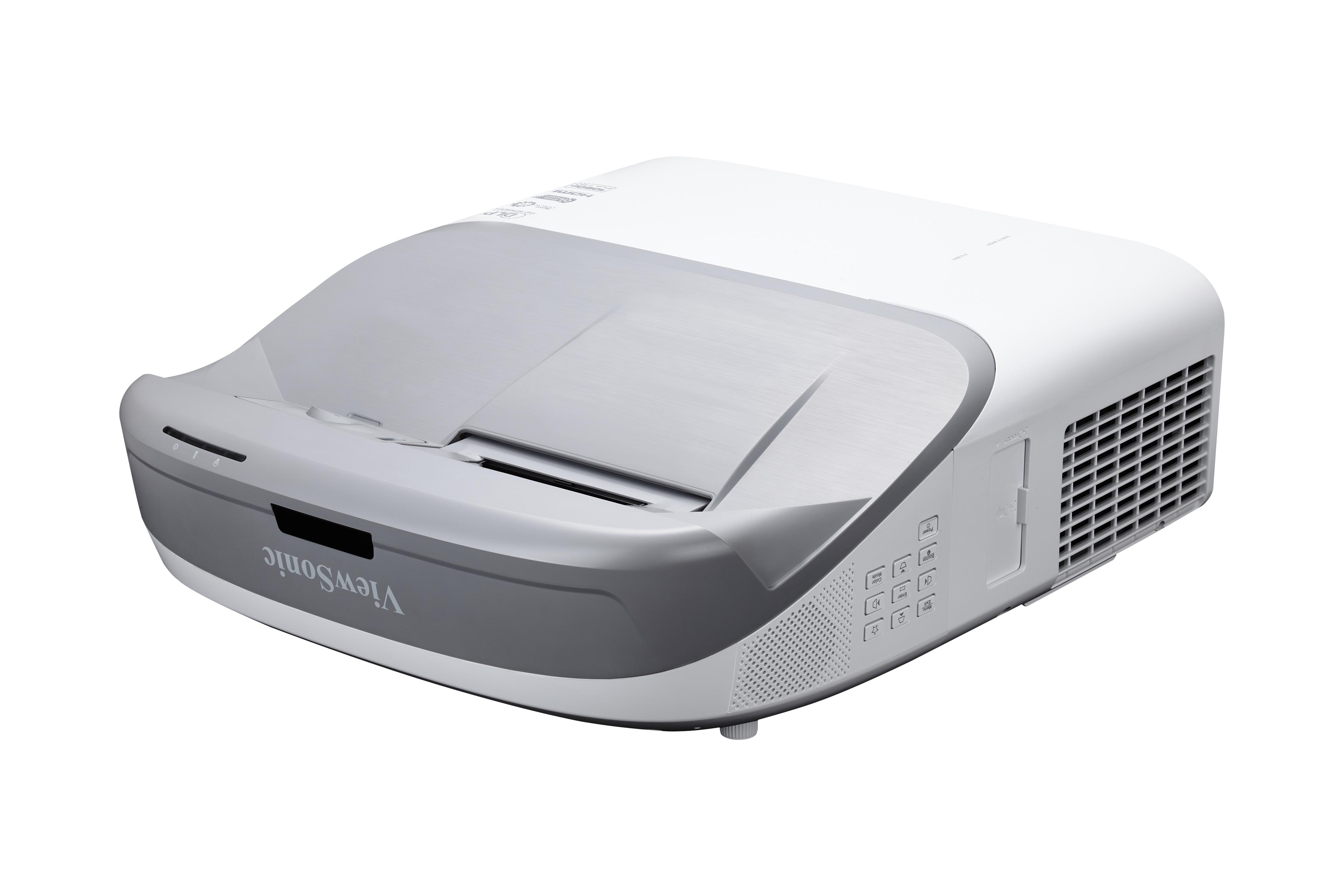

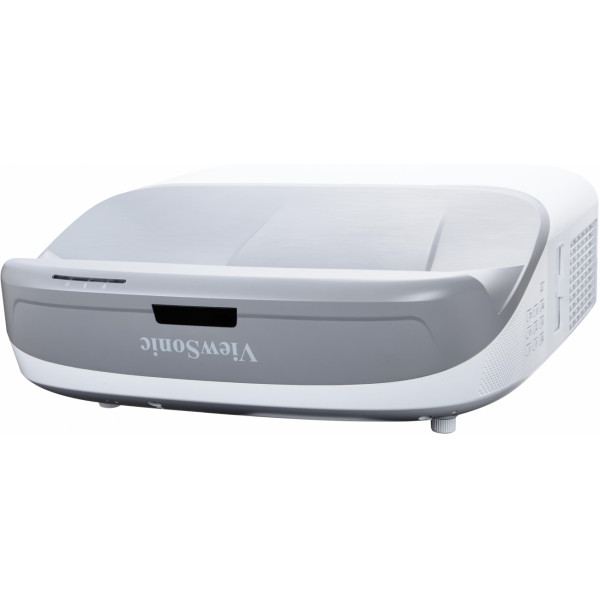

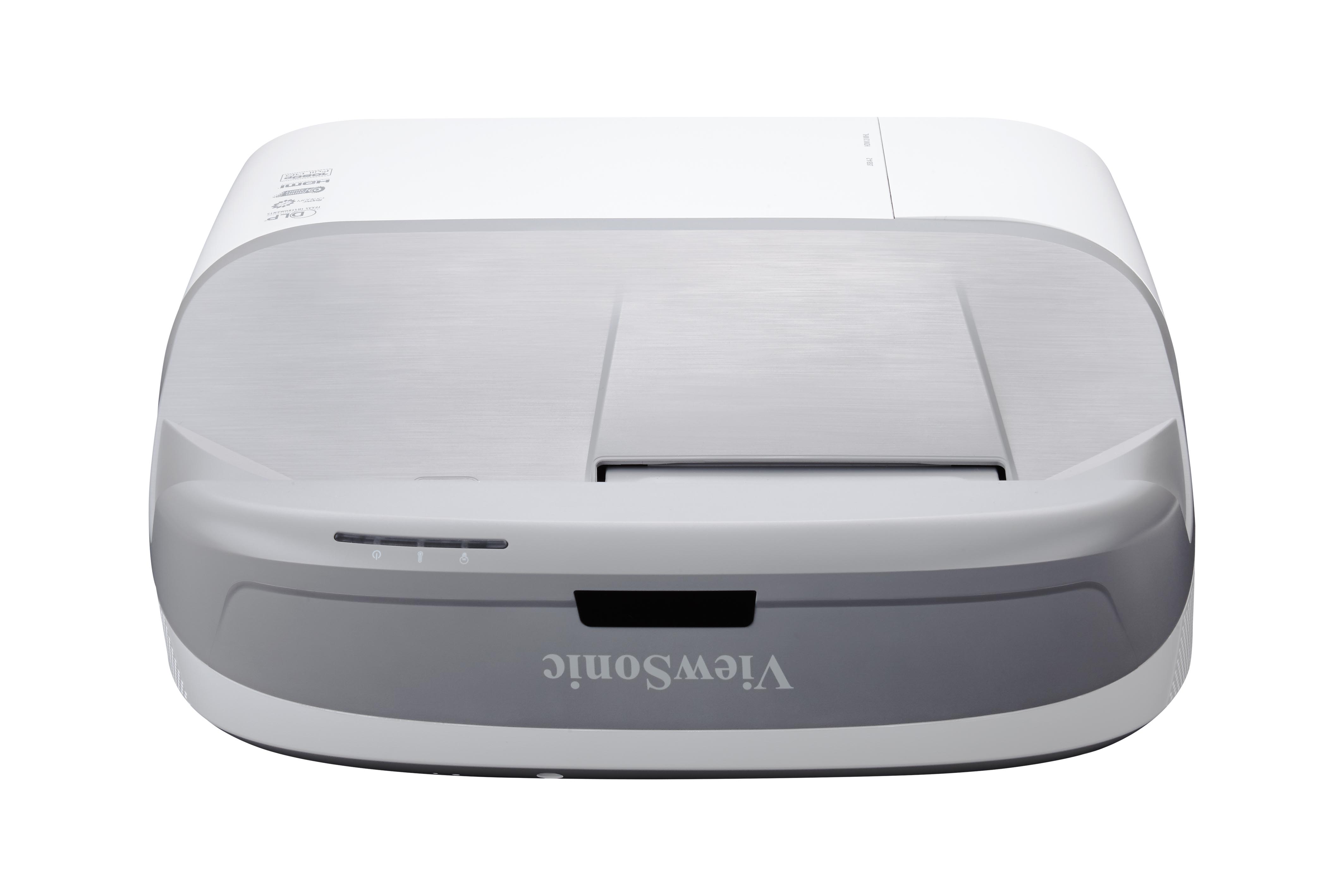

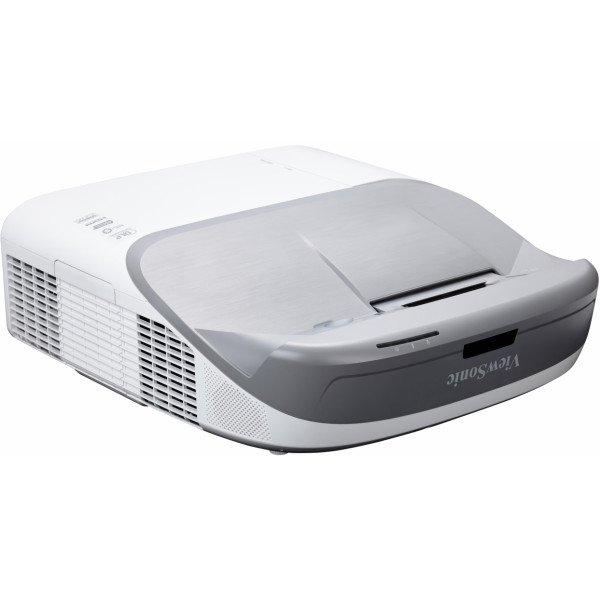

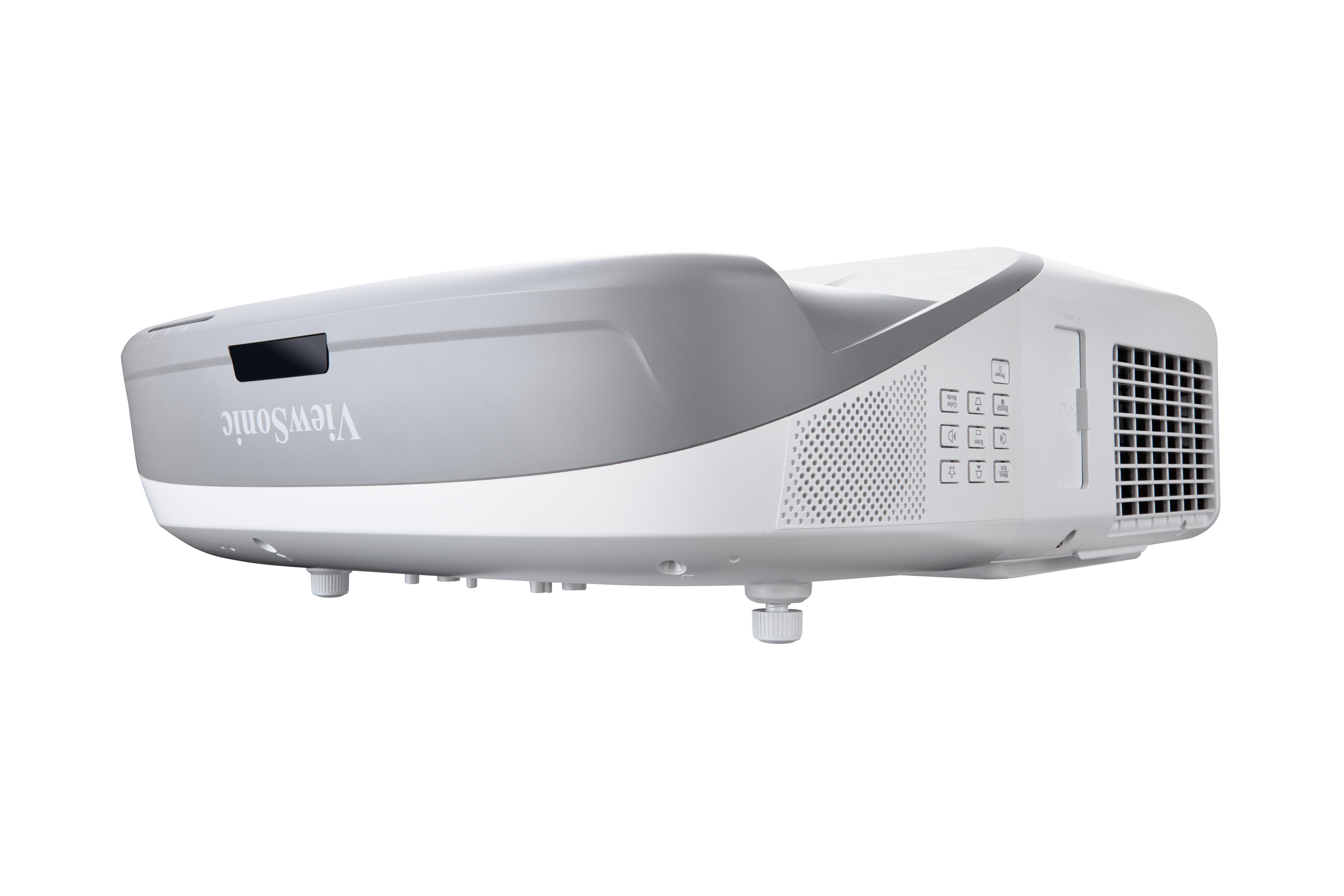

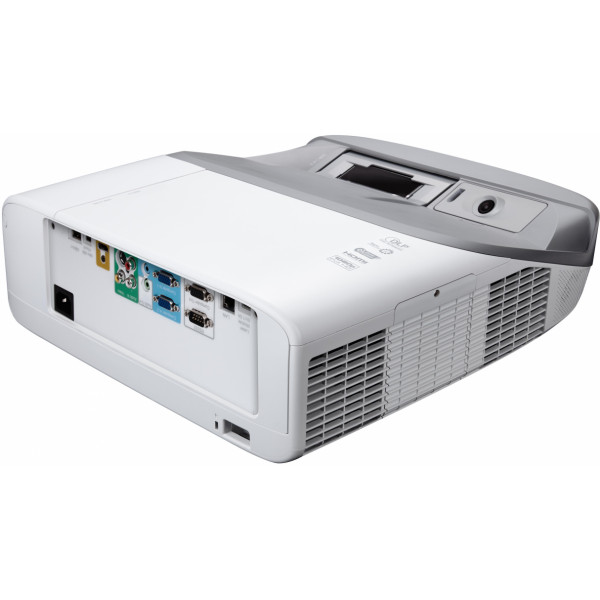

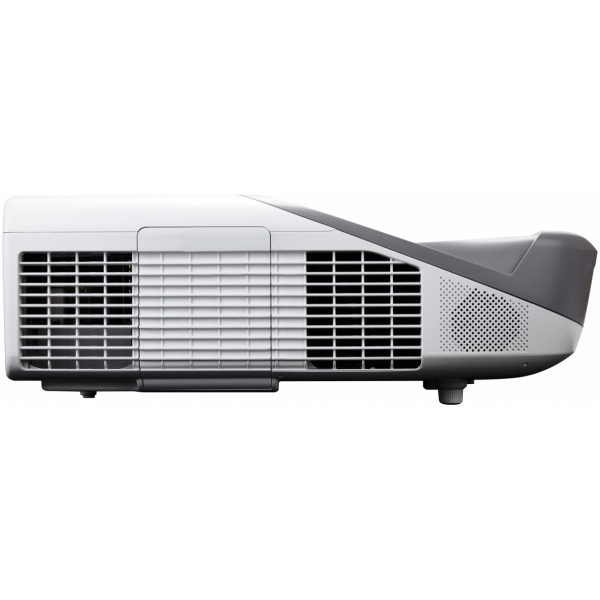

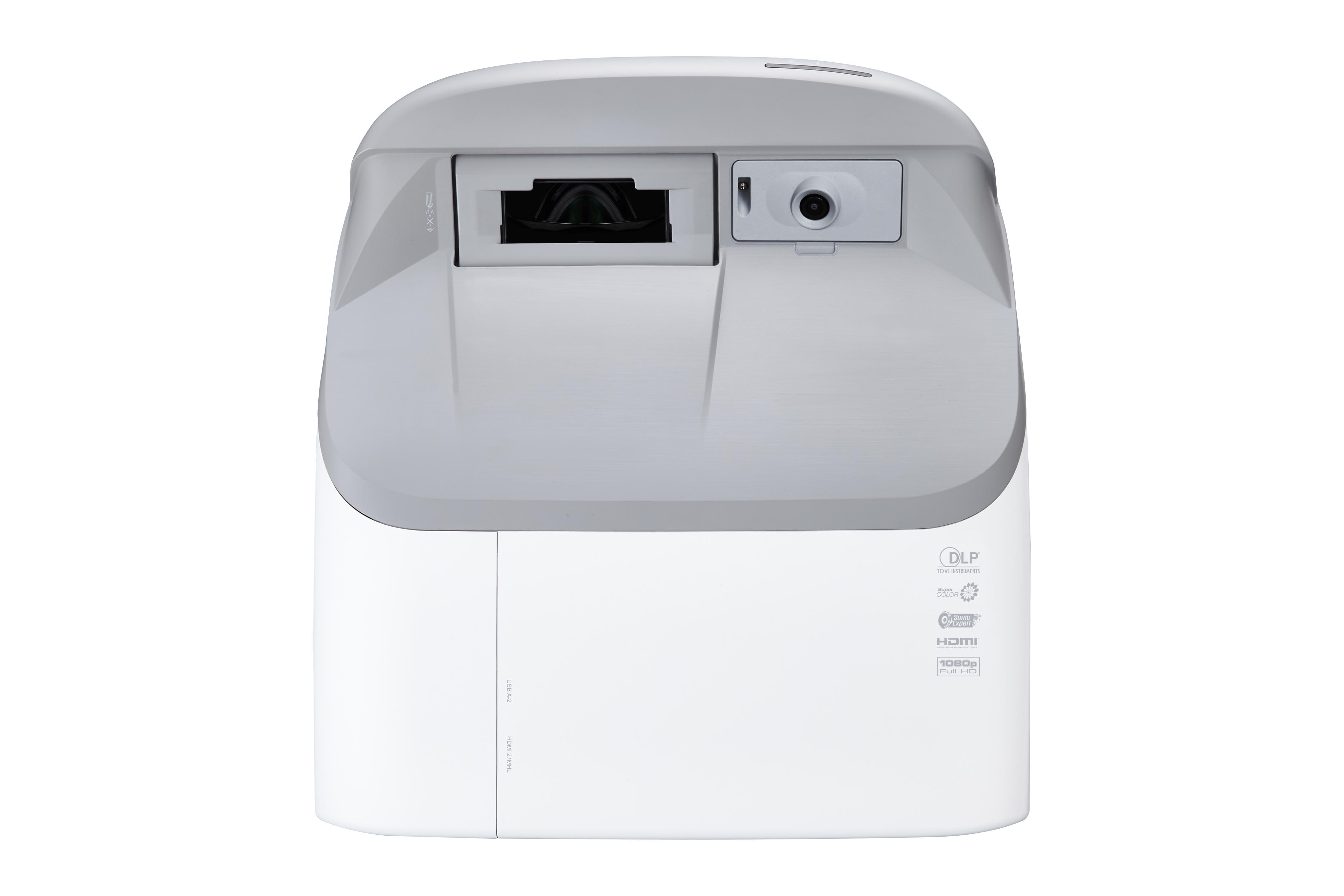

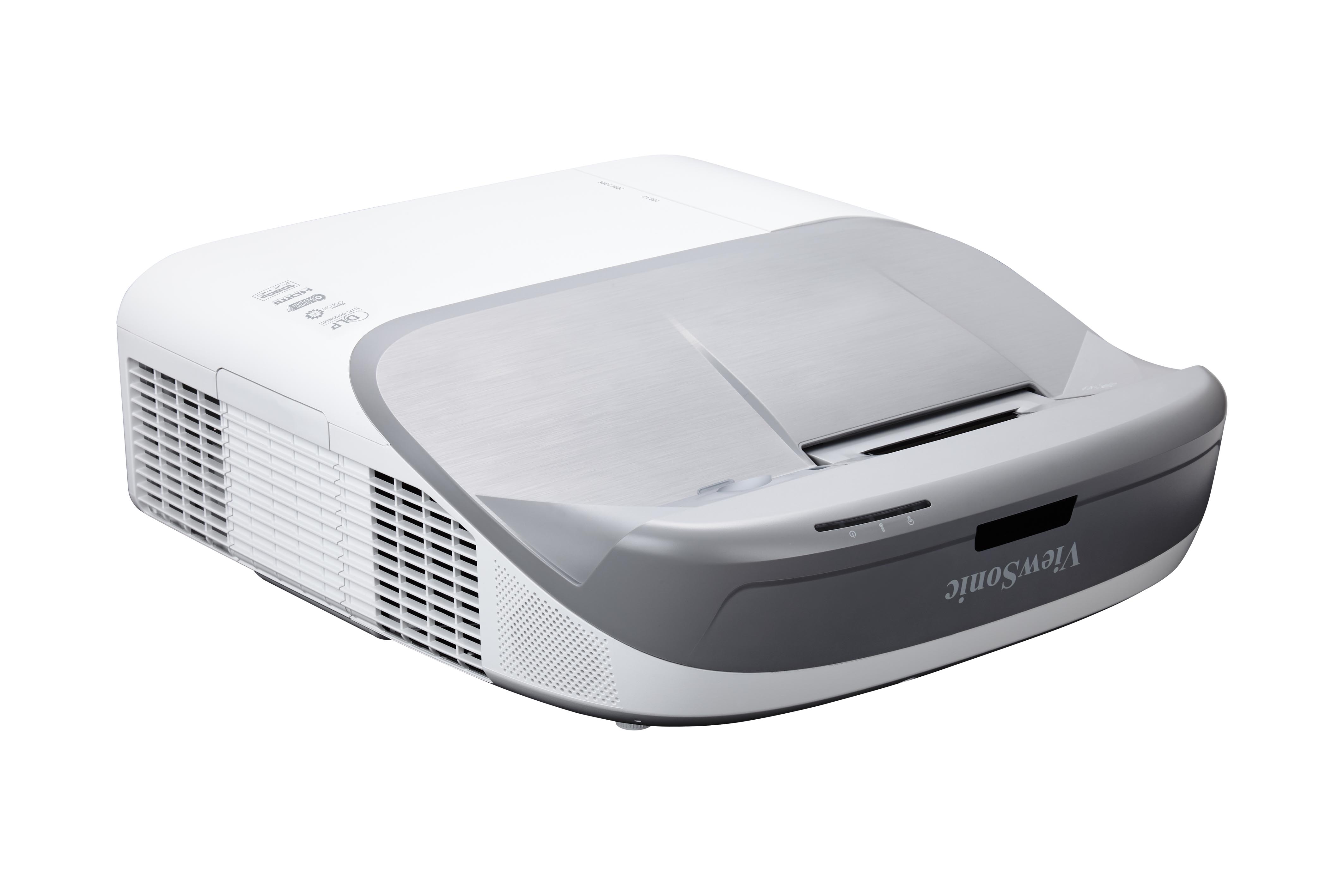

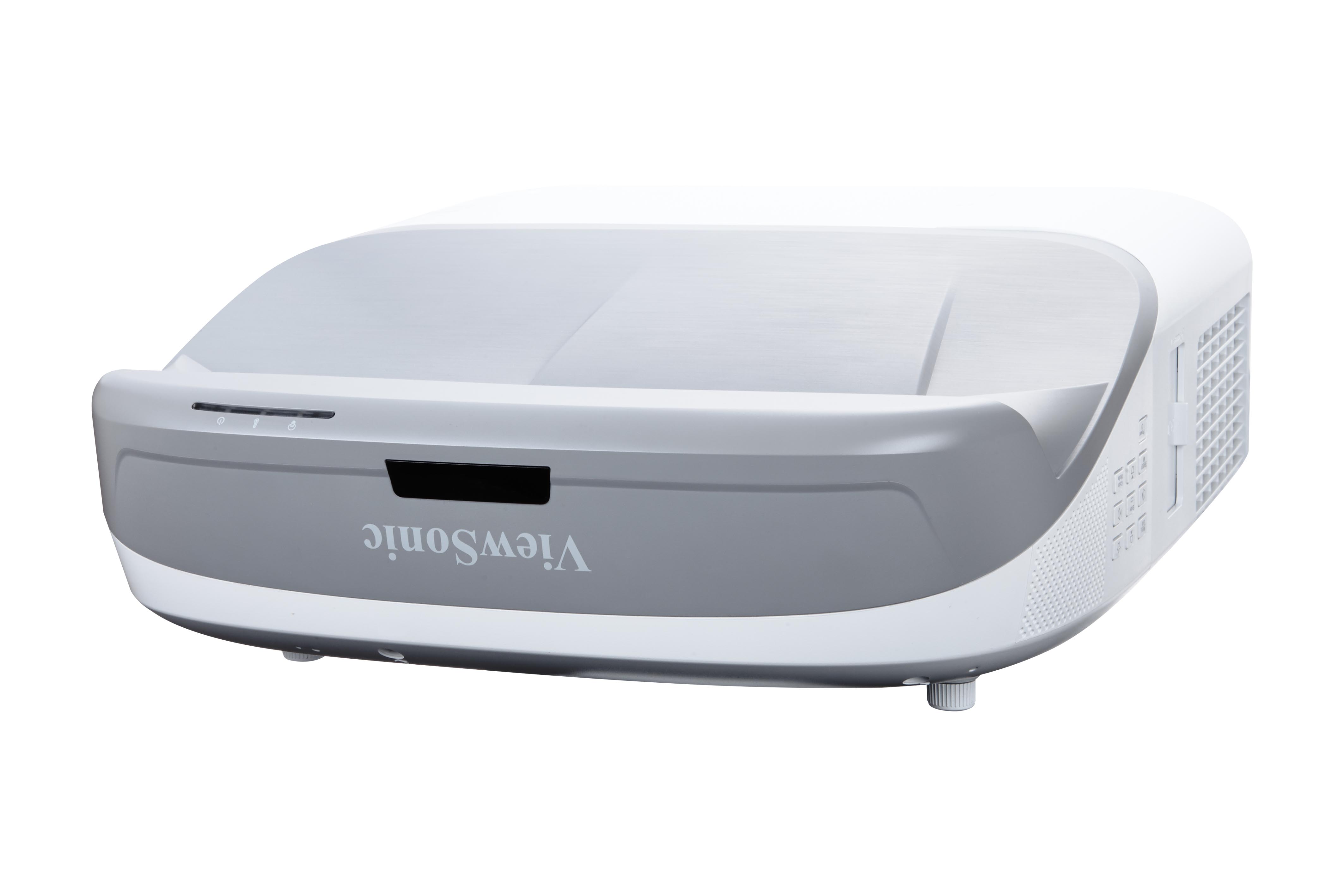

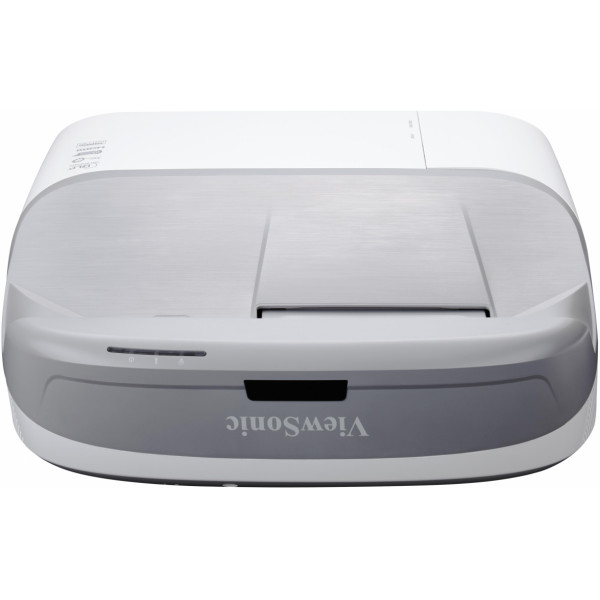

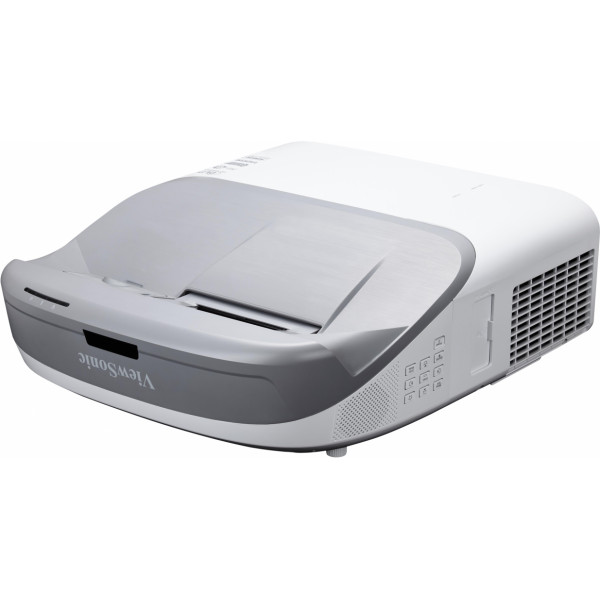

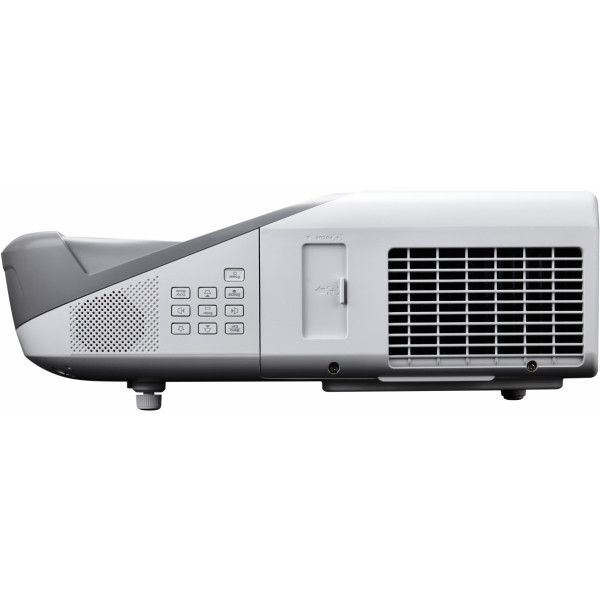

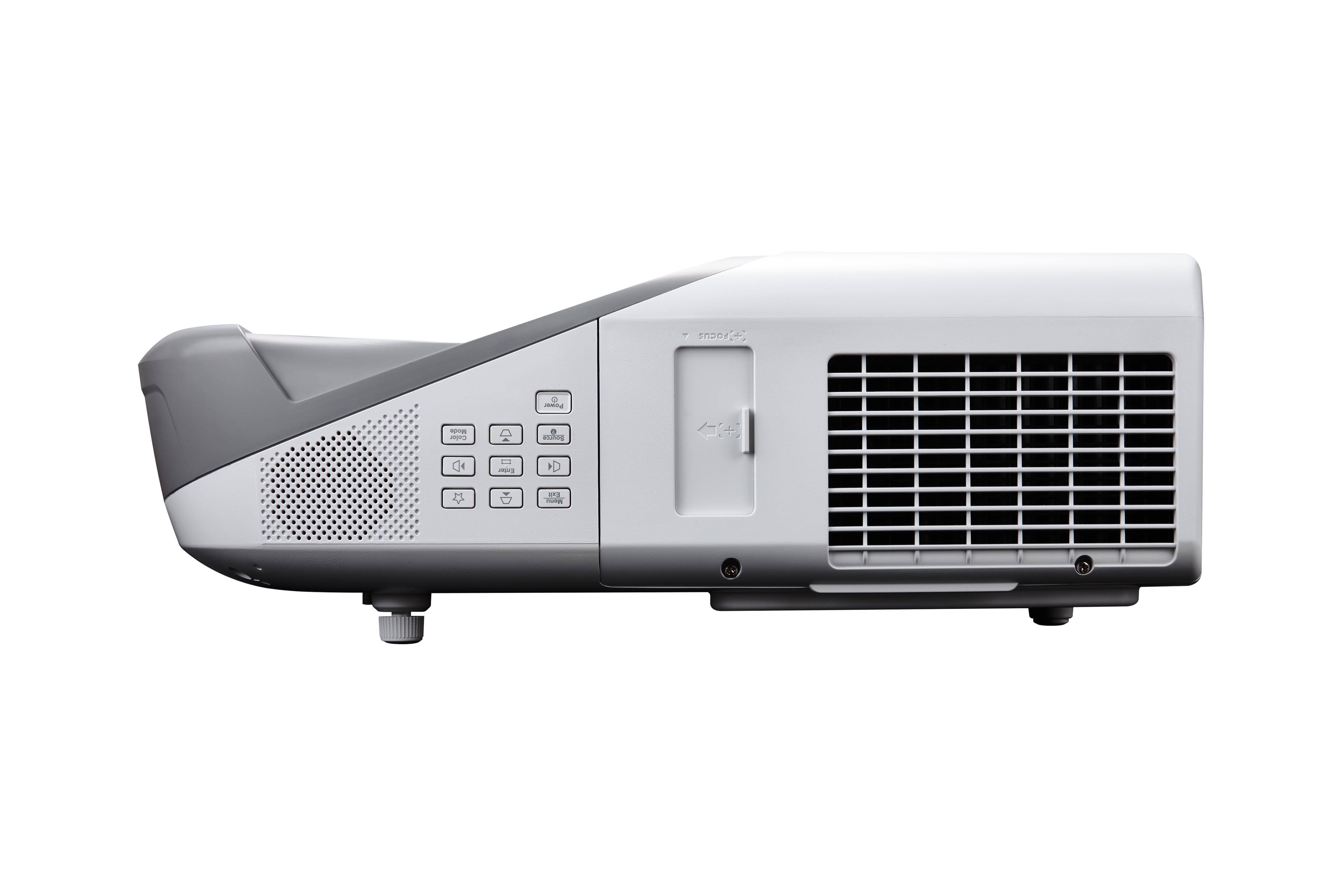

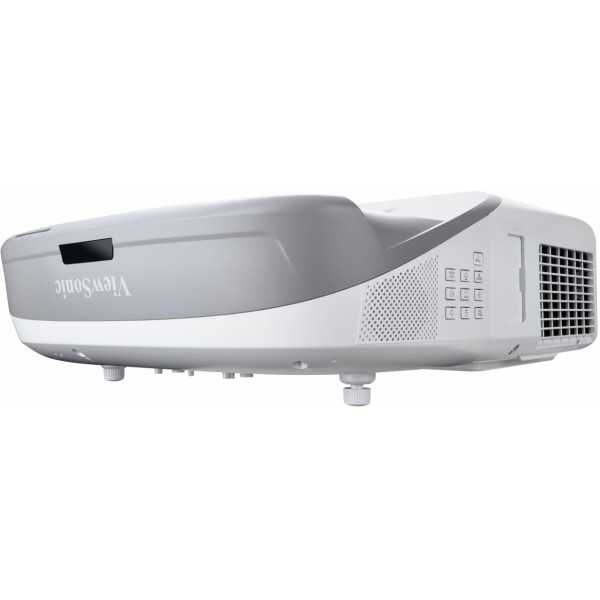

PS750HD
3,300 Lumens 1080p Education Projector

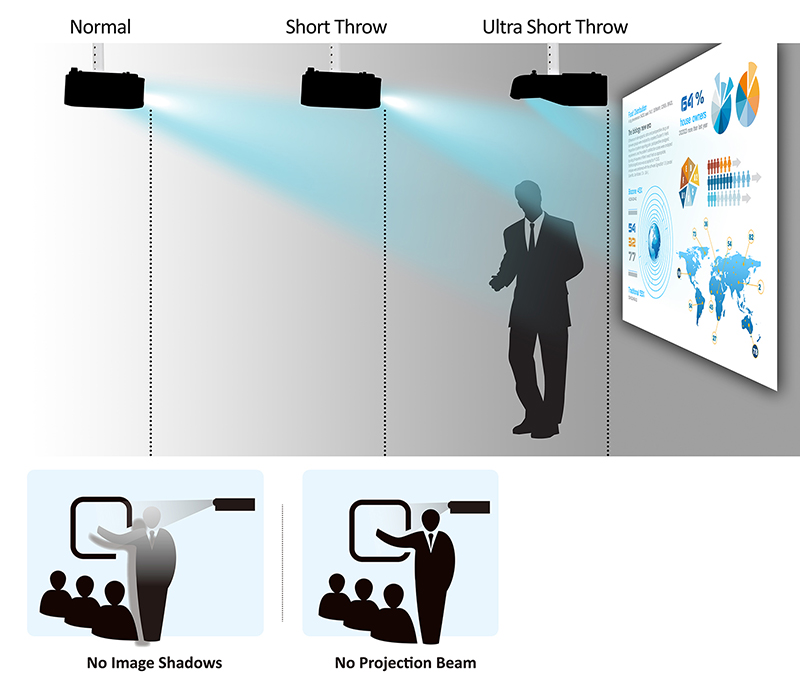

- 0.22 ultra-short throw ratio

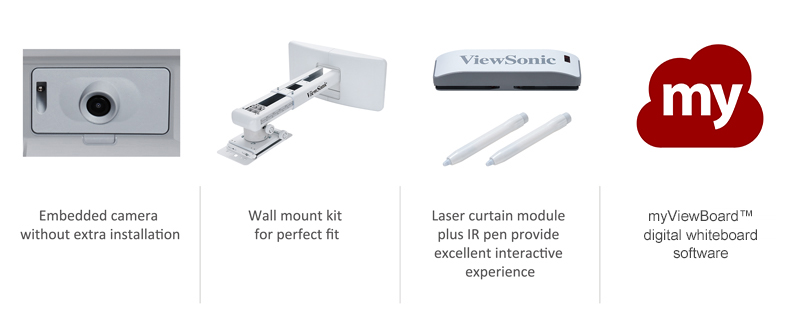

- A total solution for interactive projection
- 10-point touch collaboration and dual pen touch simultaneously

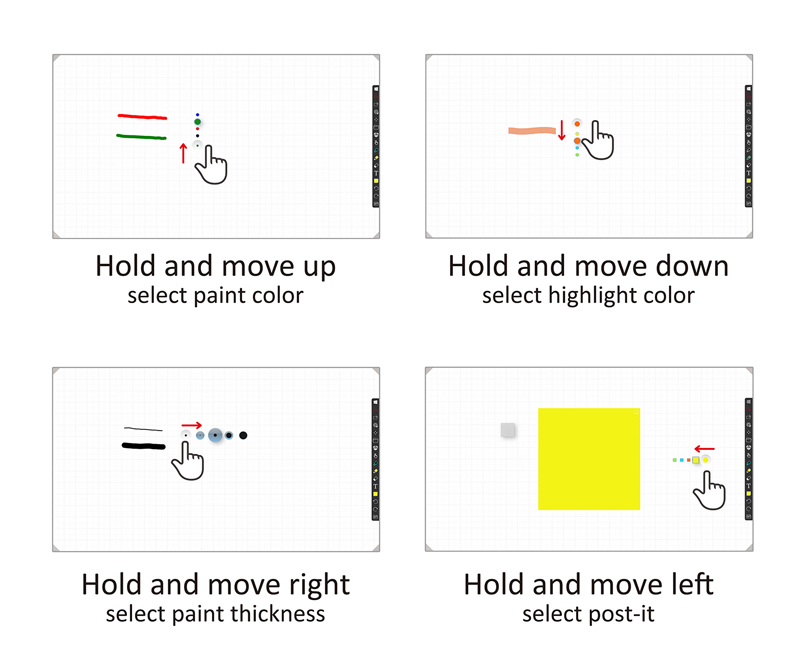

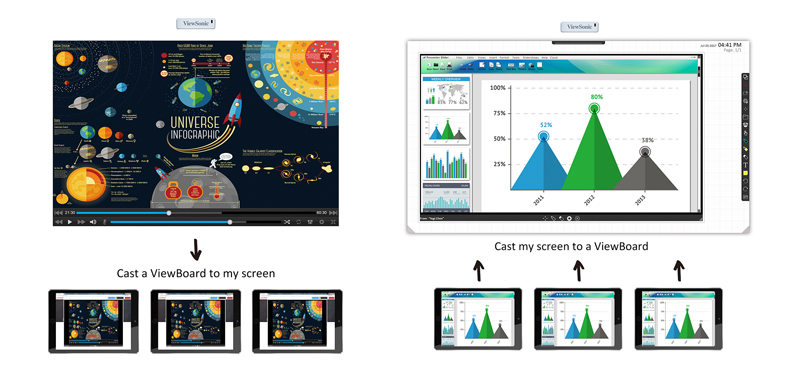

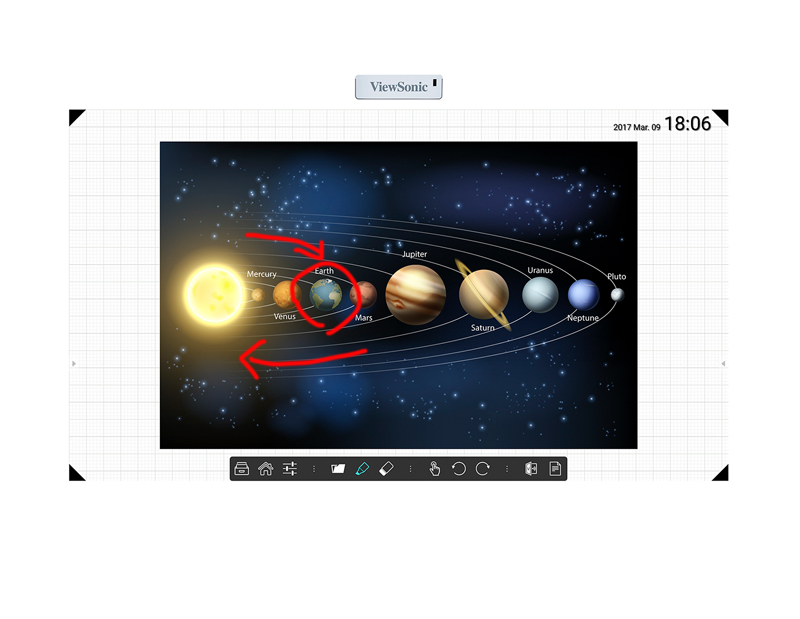

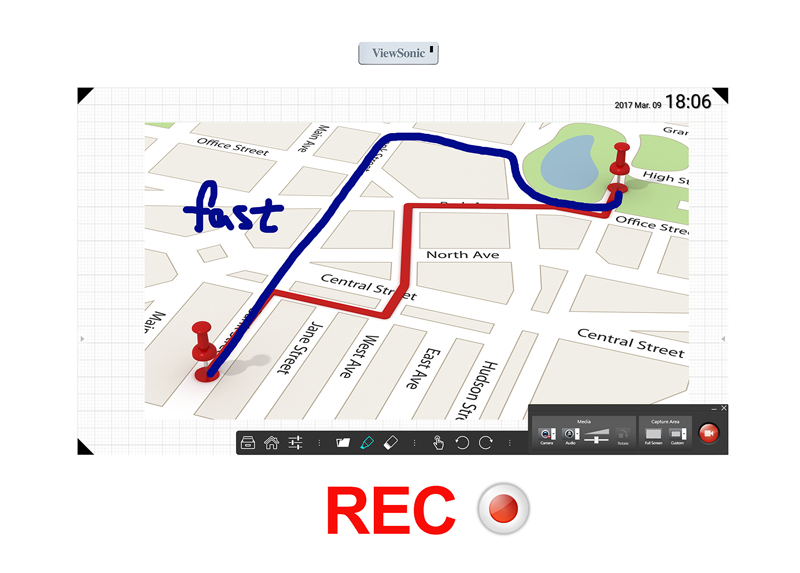

- myViewBoard™ digital whiteboard software

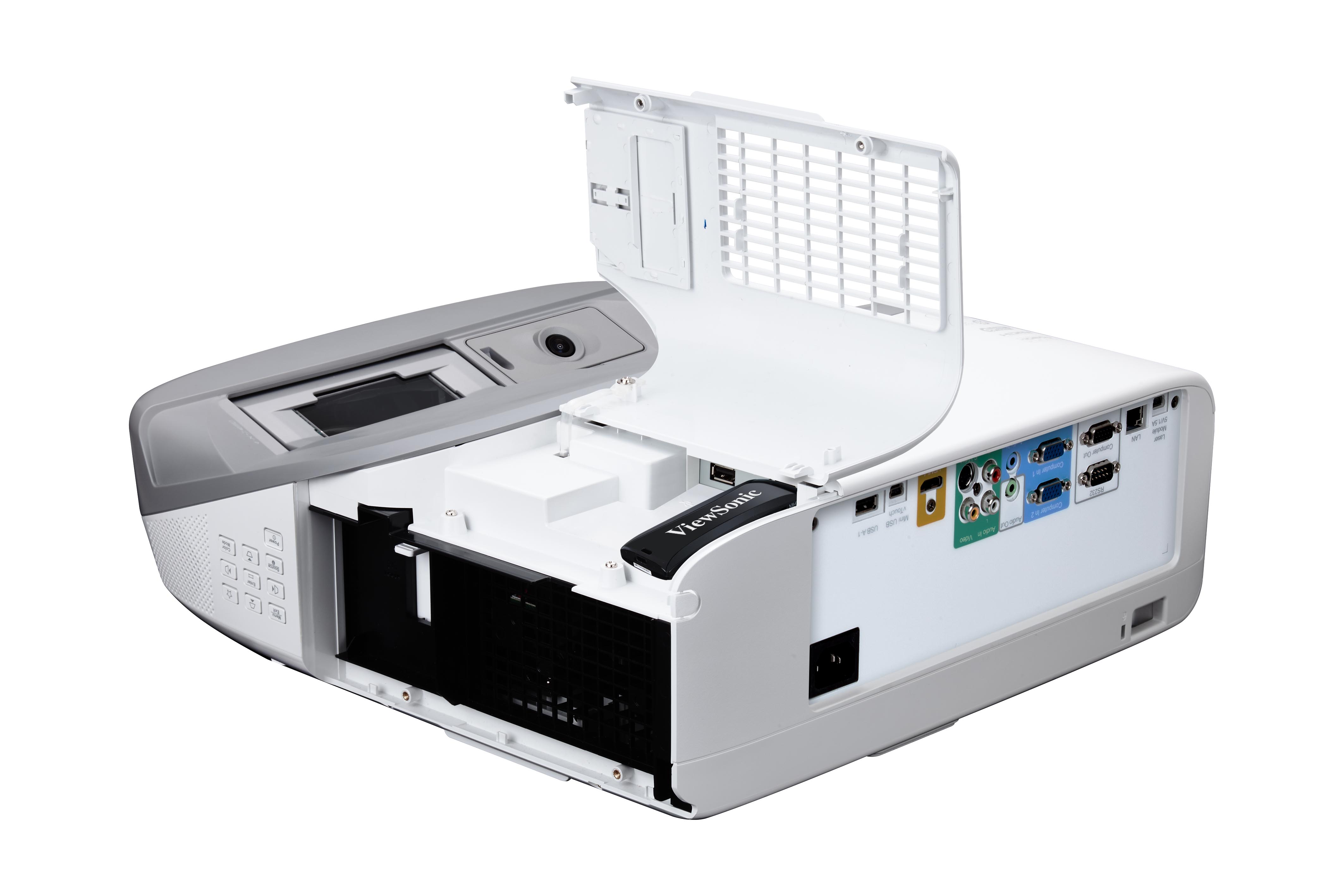

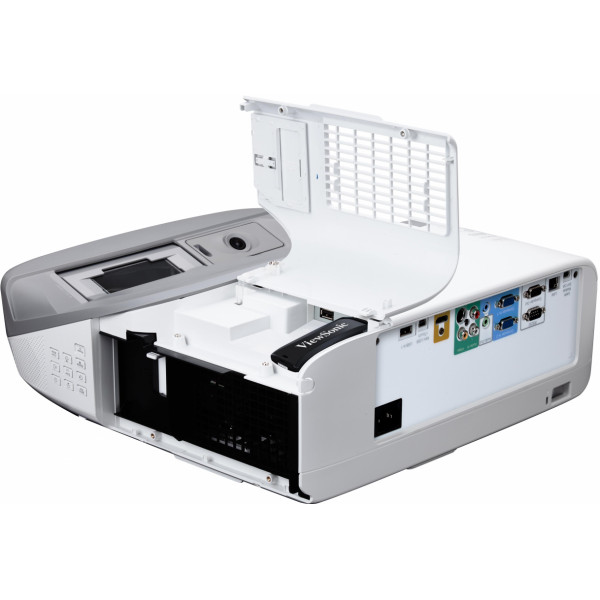

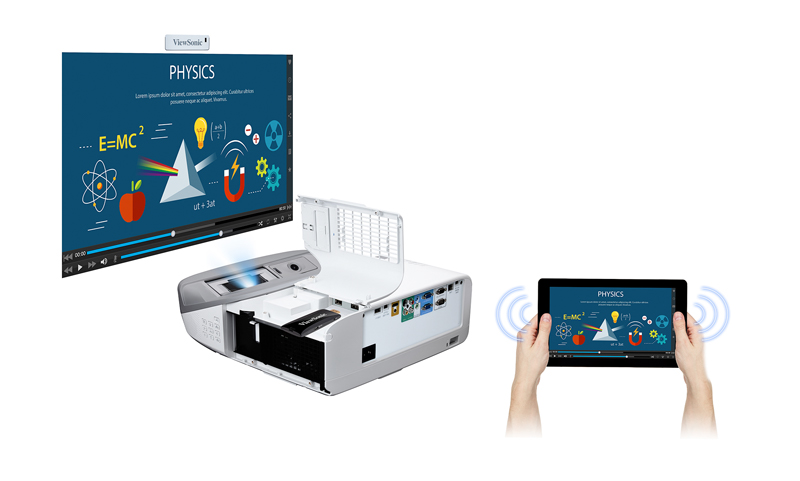

- PortAll® compartment for wireless dongle
SPECIFICATIONS
- SPECIFICATIONProjection system: 0.65" 1080p
Native Resolution: 1920x1080
DC type: DC3
Brightness: 3300 ANSI Lumens
Contrast Ratio with SuperEco mode: 10000:1
Display Colour: 1.07 Billion Colours
Light Source: Lamp
Light source life (Nor/SuperEco): 3000/7500
Lamp Watt: 240W
Lens: F=2.4, f=3.35 mm
Projection Offset: 138%+/-5%
Throw Ratio: 0.22
Image size: 95" - 120"
Throw Distance: 0.12m - 0.25m (100" @ 0.15m)

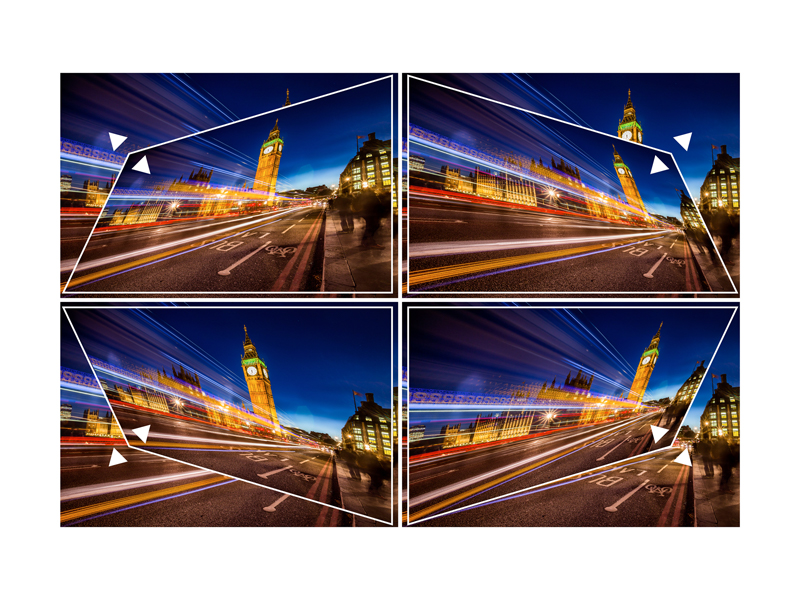

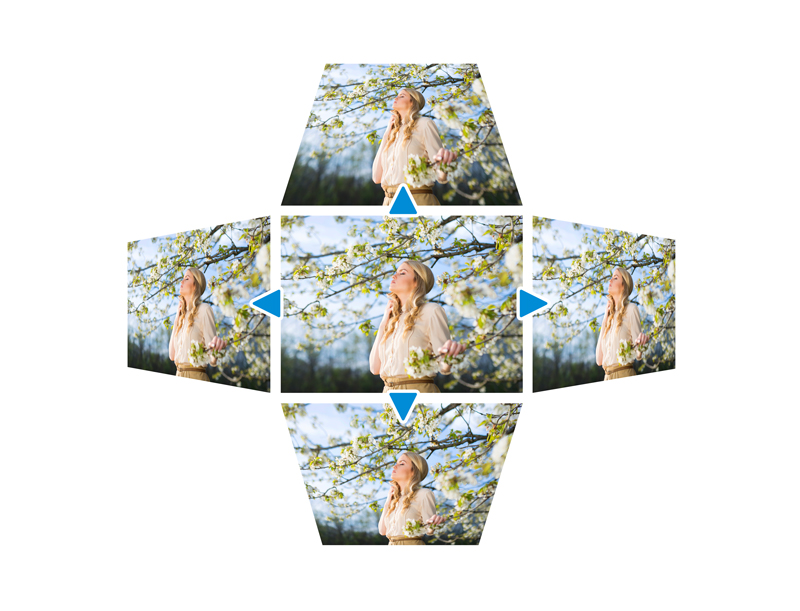

Keystone: H:+/-30° , V:+30°/-12°
Optical Zoom: Fixed
Audible Noise (Eco): 29dB
Resolution Support: VGA(640 x 480) to WUXGA_RB(1920 x 1200)
*RB-Reduced Blanking
HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Video Compatibility: NTSC, PAL, SECAM
Horizontal Frequency: 15K~102KHz
Vertical Scan Rate: 23~120Hz

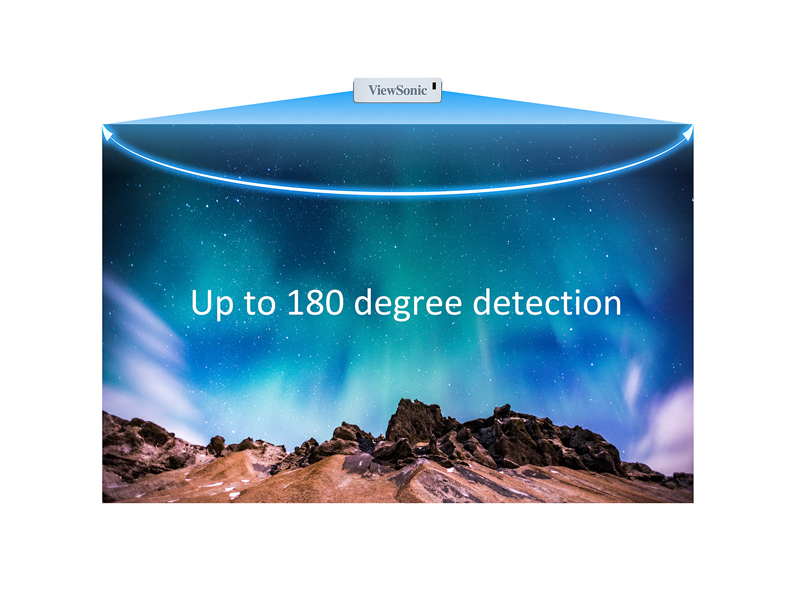

Interactive Camera: Yes

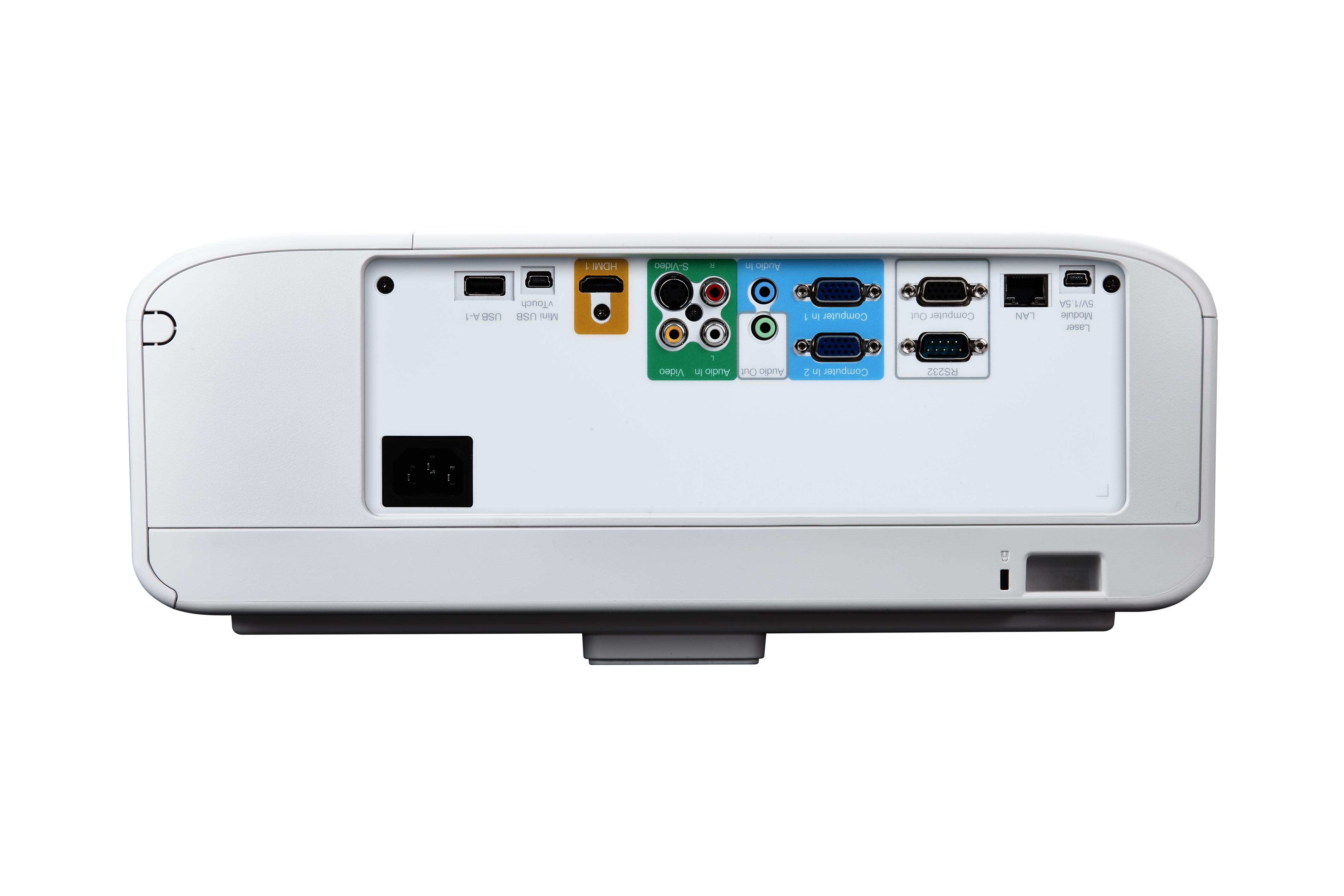

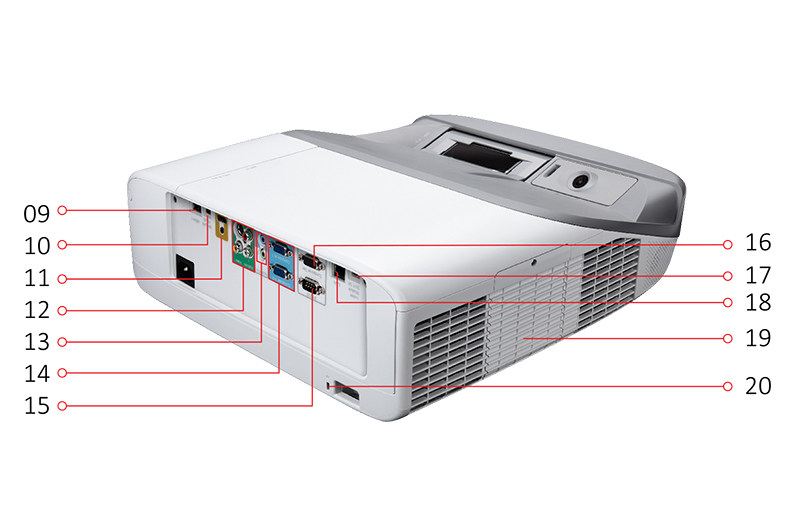

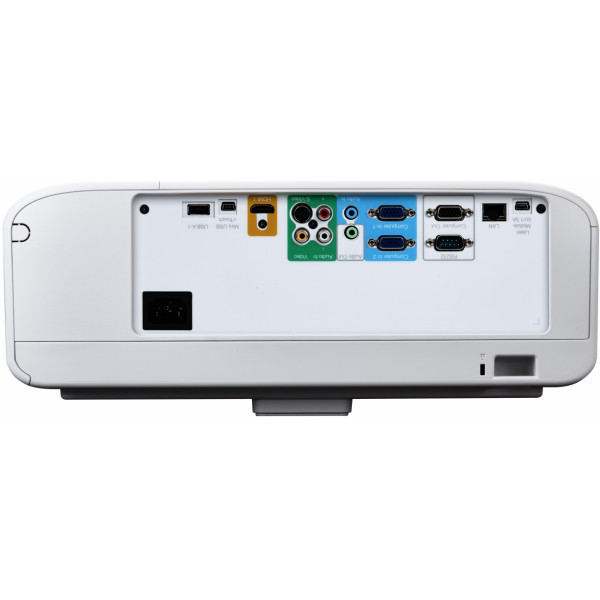

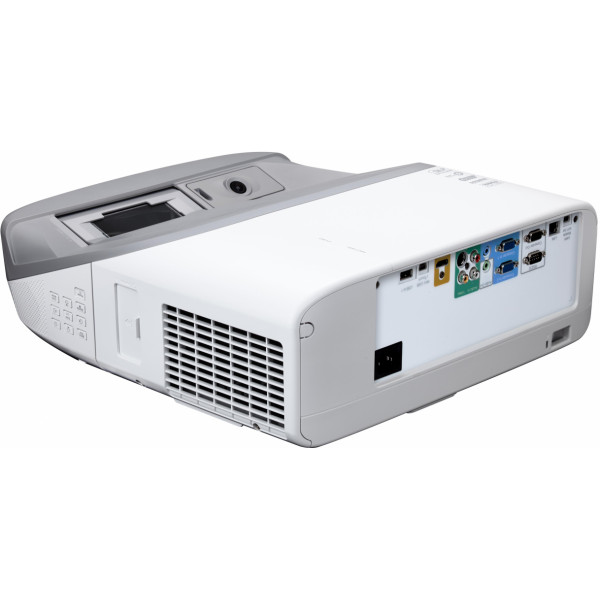

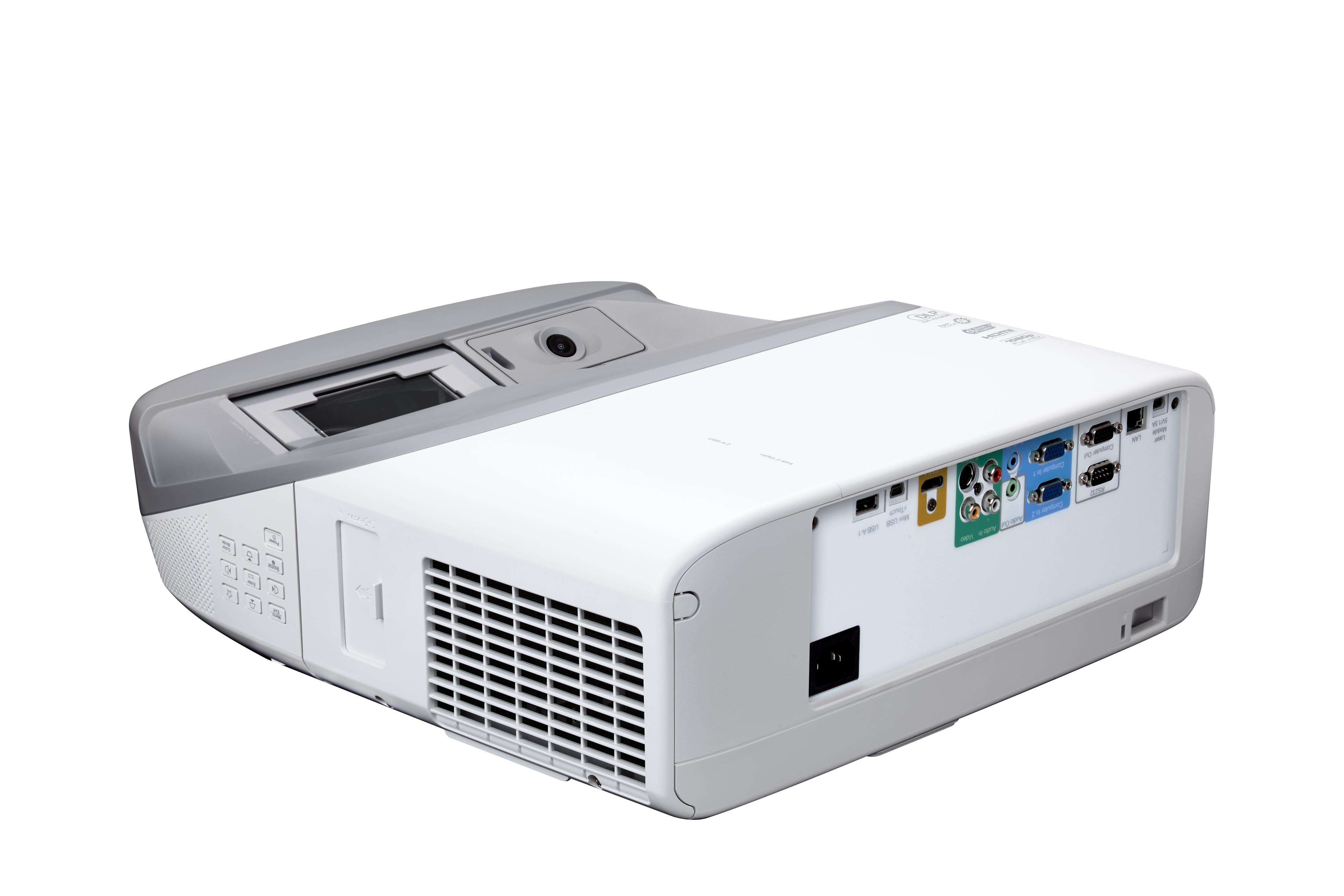

Keystone: H:+/-30° , V:+30°/-12° - InputComputer in (D-SUB 15 pin): 2
Composite: 1
S-video: 1
Audio-in (3.5mm): 1
Audio-in (RCA R/L): 1
HDMI: 1 (Back)
HDMI/MHL: 1 (PortALL) - OutputMonitor out (D-SUB 15 pin): 1
Audio out (3.5mm): 1

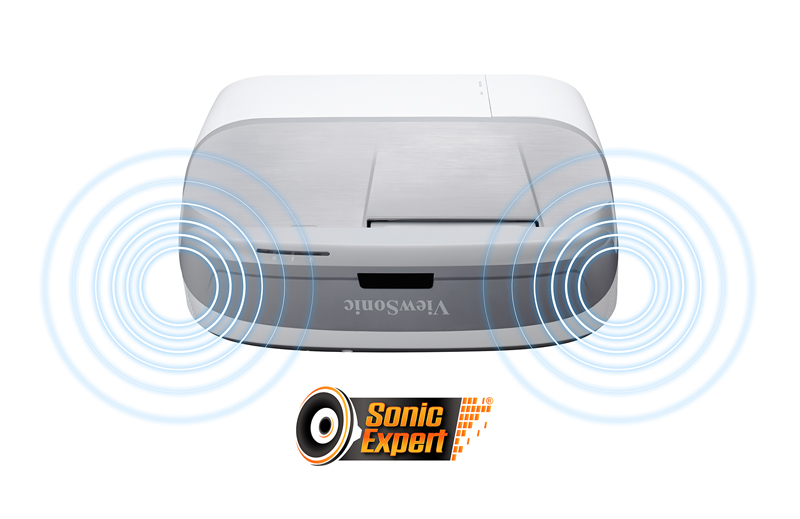

Speaker: 10W Cube x 2
USB type A (Power): 2 (5V2.4A) 1x Back, 1x PortAll
- ControlRS232: 1

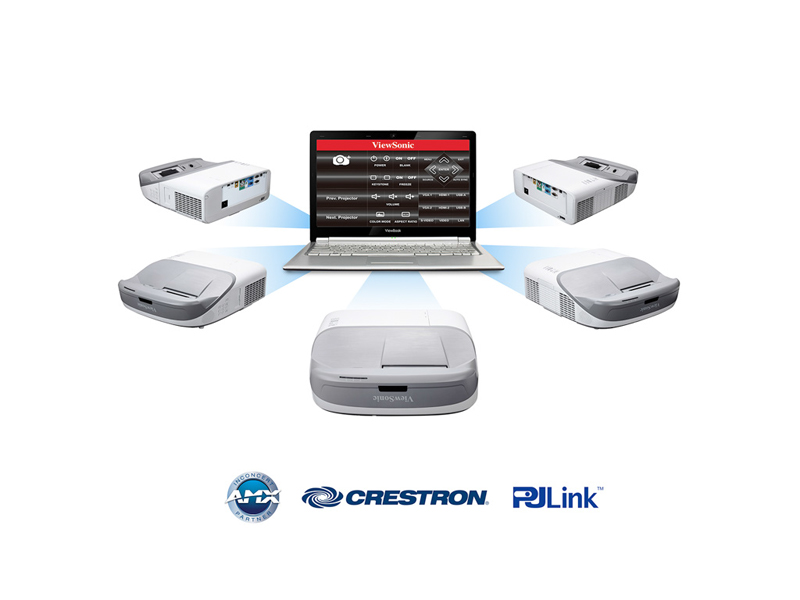

RJ45: 1
USB type mini B (Services): 2 (1x FW Update/Interactive Camera, 1x Interactive Laser) - OthersPower Supply Voltage: 100-240V+/- 10%, 50/60Hz AC
Power Consumption: Normal: 410W
Standby: <0.5W
Operating Temperature: 0~40℃
Carton: Brown
Net Weight: 6.1kg
Dimensions (WxDxH) w/adjustment foot: 434x388x153mm
Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese - Standard AccessoryPower Cord: 1
VGA cable: 1
Remote Control: 1 (w/laser pointer)
QSG & CD: QSG: 1 / CD: 1
Wall Mount: 1
Interactive Module: Yes (PJ-vTouch-50S)
Interactive Software: Yes (vBoard for Windows)
