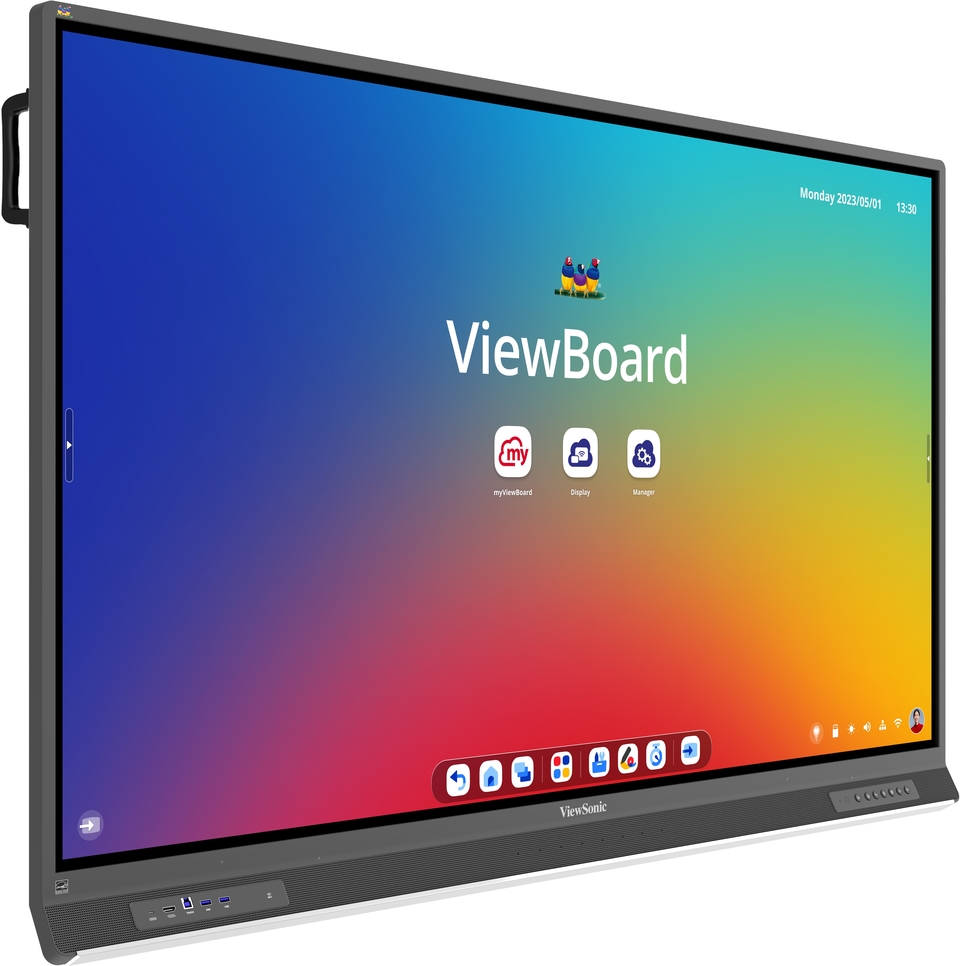

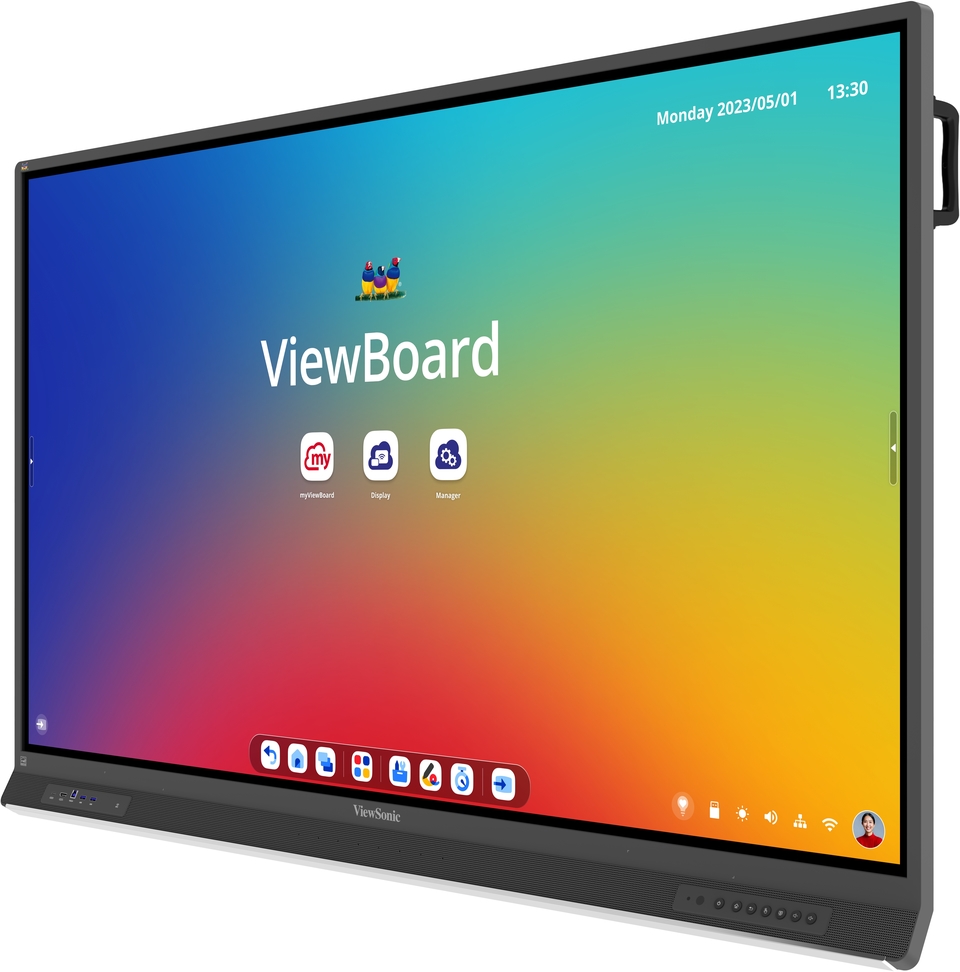

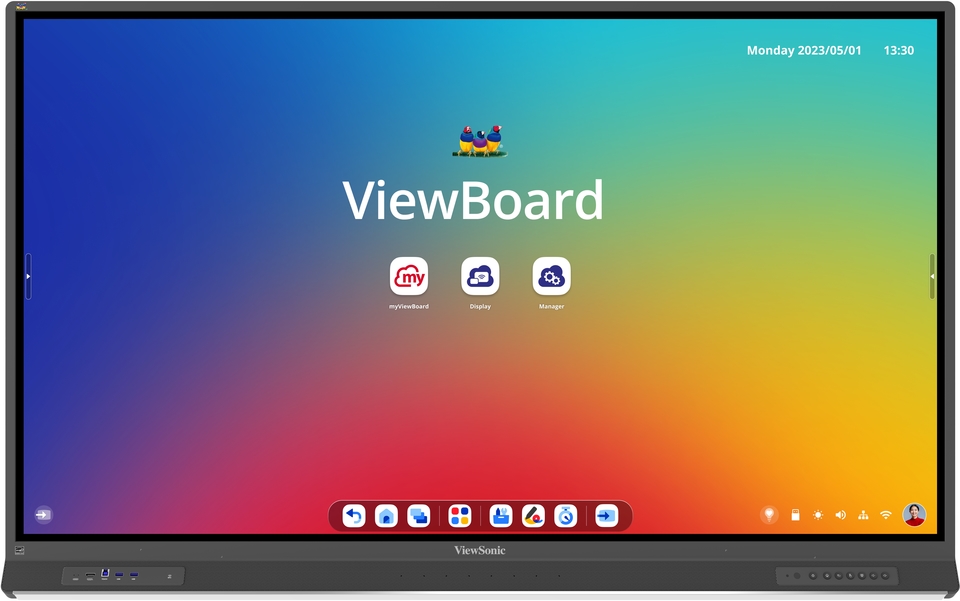

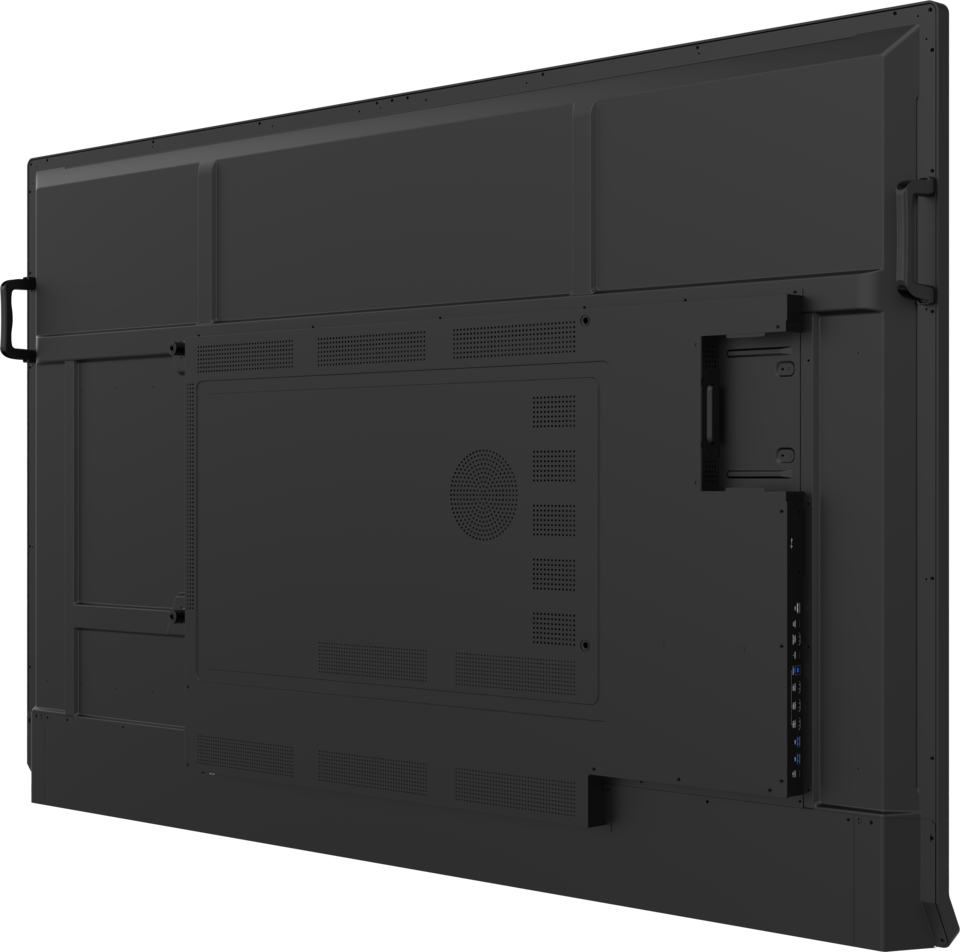

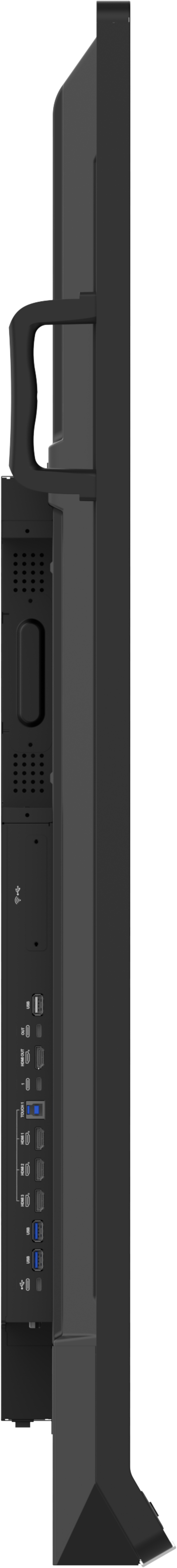

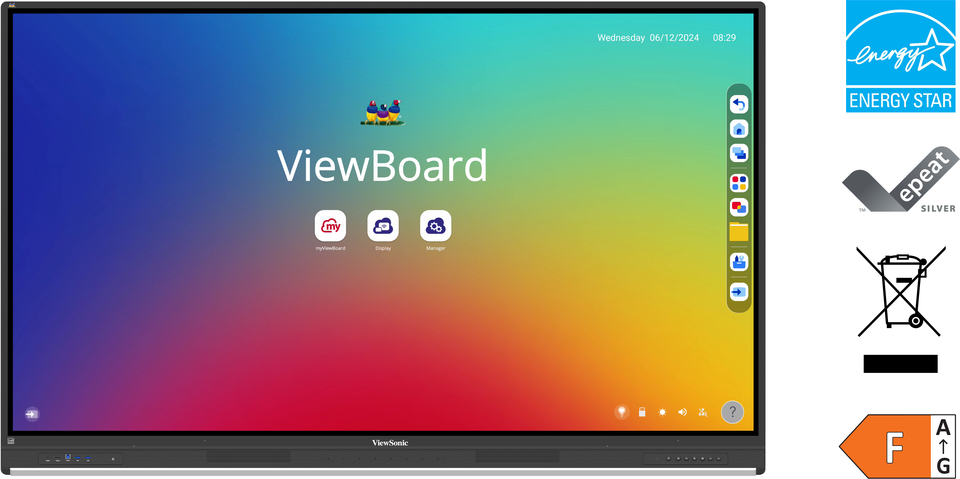

ViewBoard IFP7553

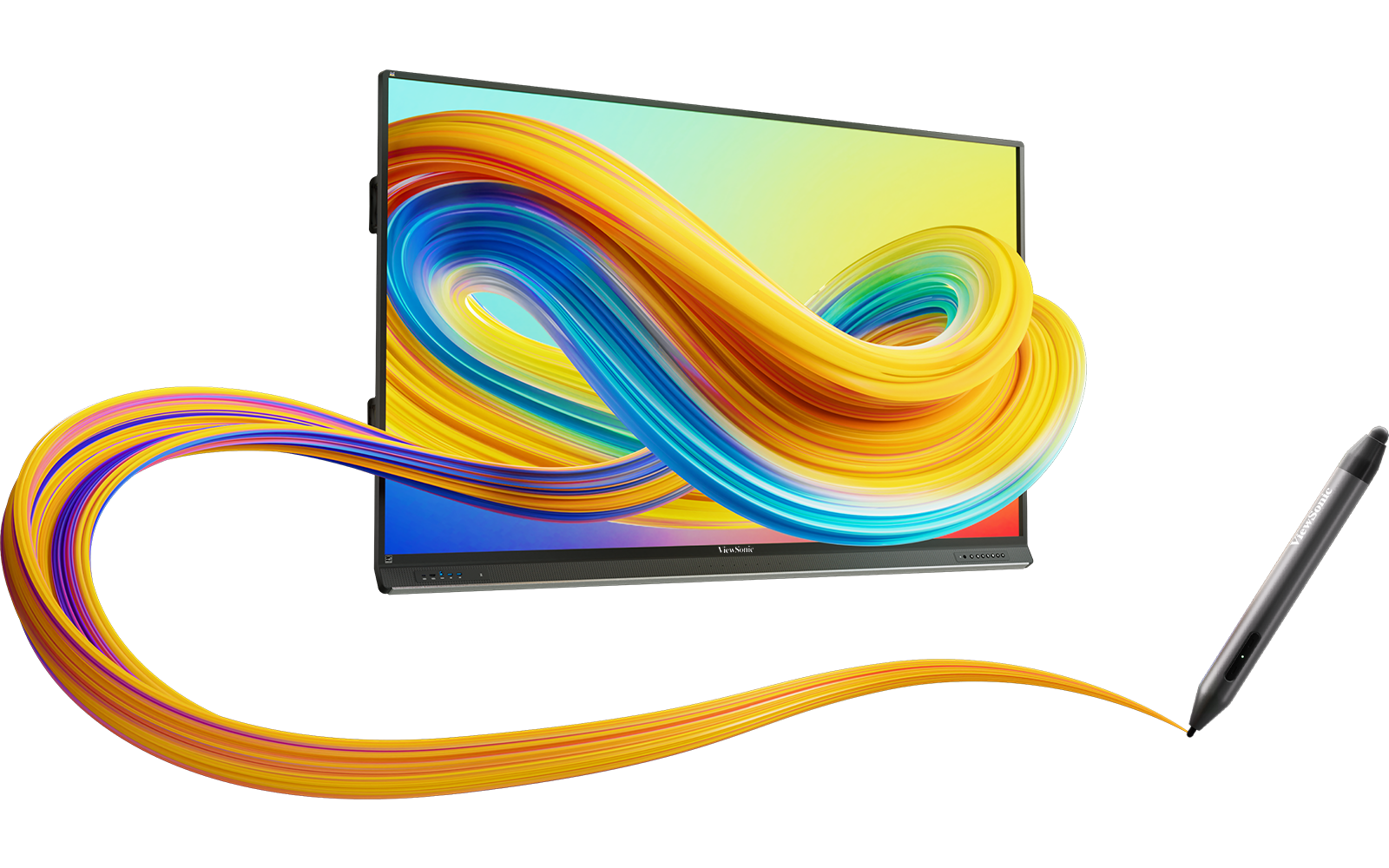

ViewBoard® 75" 4K Interactive Display

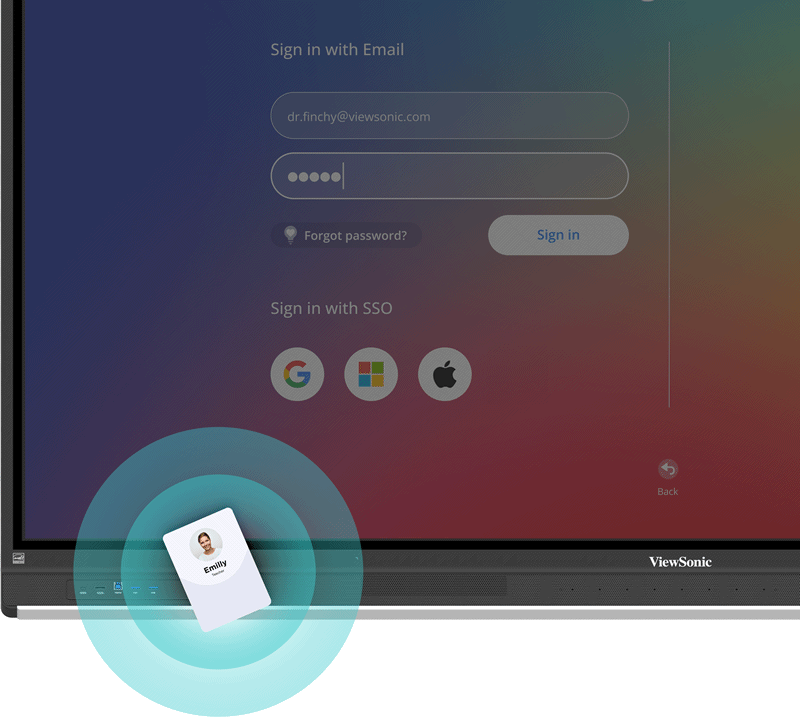

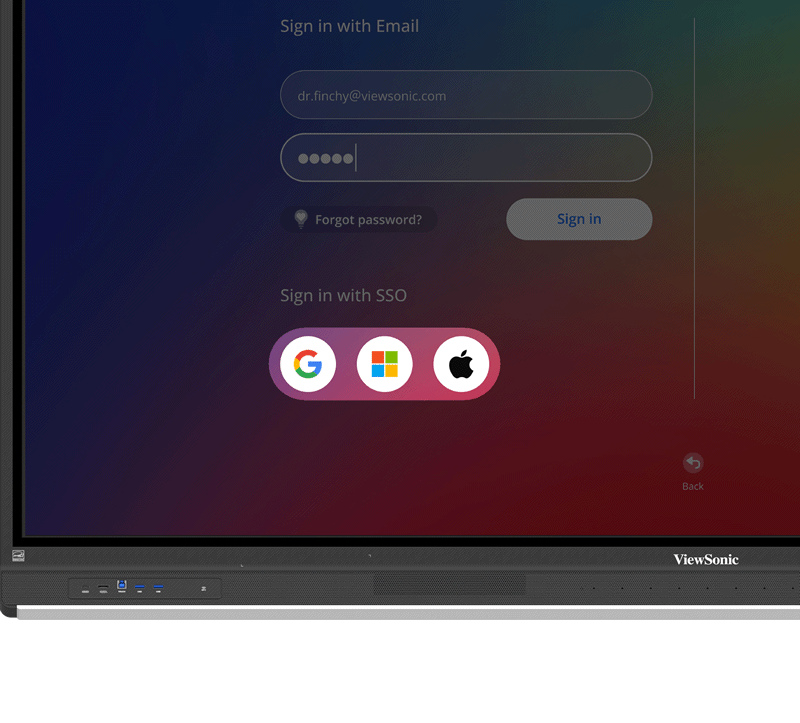

NFC and SSO sign-in for swift access to the intuitive launcher and personal settings
Quick-start annotation, sketching, and four-colour switching with the stylus
Octa-core CPU with 8GB RAM and 8GB virtual memory for smooth multitasking

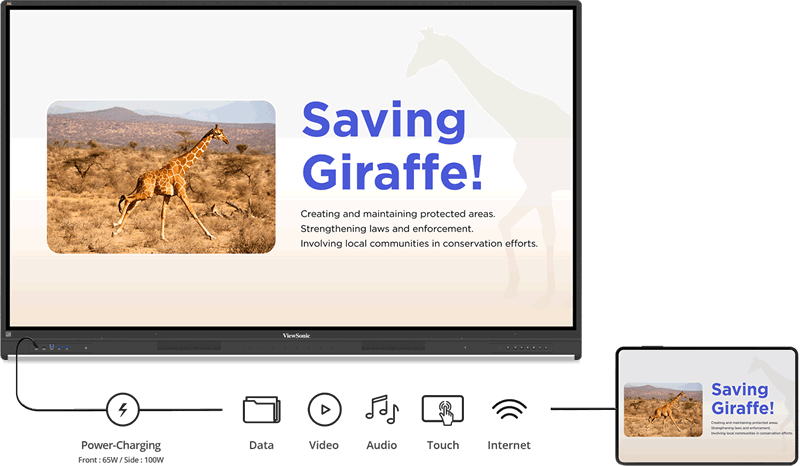

Four USB-C ports ensure seamless connectivity, supporting up to 100W charging
Android 14 with integrated ViewSonic Education Software

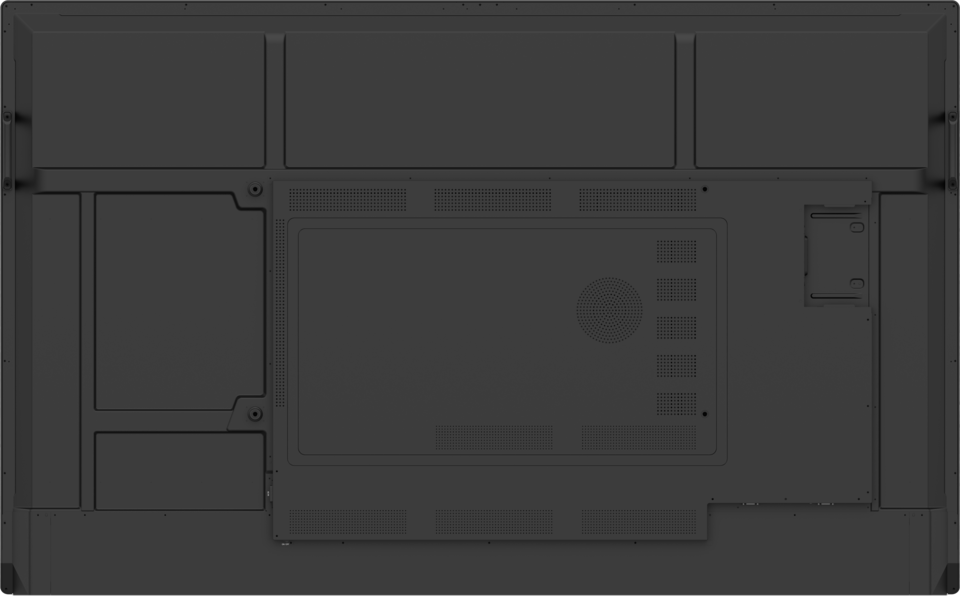

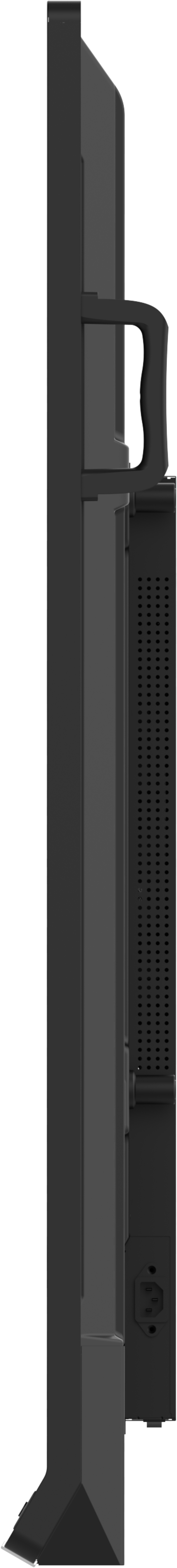

GALLERY

SPECIFICATIONS

Display
Panel Size: 75"
Panel Type: TFT LCD Module with DLED Backlight
Display Area (mm): 1650.24 (H) x 928.26 (V) (74.5" diagonal)
Aspect Ratio: 16:9
Resolution: UHD 3840x2160(Pixels)
Colors: 1.07B colors
Brightness: 450 nits
Contrast Ratio: 5500:1(Typ.)
5000:1(Min. with DCR enabled)
Response Time: 6.5 ms
Viewing Angles: H = 178, V = 178 typ.
Backlight Life: 50,000 hrs
Surface Treatment: Panel Anti-Glare 3H + Anti-Fingerprint (7H Mohs; 9H pencil hardness)
Orientation: Landscape
Platform
Processor: Octa-Core CPU (A73*4 + A53*4)
RAM: 8GB (Physical RAM) + 8GB (Virtual Ram) *
Storage: 128GB
Touch
Type/ Tech: UFT (Ultra Fine Touch) Technology
Touch Resolution: 32767 x 32767
Touch Point: Windows: 40 points touch, Android: 20 points touch
Touch Response Time: ≤5ms

INPUT
HDMI: x4 (Frontx1:HDMI2.1 with CEC ; Rearx3:(HDMI2.1 with CEC)x2 & (HDMI2.1 with CEC,ARC)x1
RGB / VGA: x1
DisplayPort: x1
Audio: x1 (PC audio in)
RS232: x1
OPS: module slot x 1
OUTPUT
HDMI: x1
Audio: x1 (Earphone out)
SPDIF: x1
LAN
RJ45: x2
USB
Type A: USB3.0x4 (Frontx2; Rearx2)
USB2.0x1 (Rear)
Type B: USB 3.0x3(Frontx1; Rearx2)
Type C: Input:x3 (Frontx1 with USB3.0, DP1.2, Ethernet 100M, PD 100W; Rearx1 with USB3.0, DP1.2, Ethernet 100M, PD 65W; Rearx1 with USB3.0, PD 15W)
Output:x1, DP
SPEAKERS
20W x 2 front soundbar + 20W x 1 subwoofer
MICROPHONE
built-in 8-array microphone

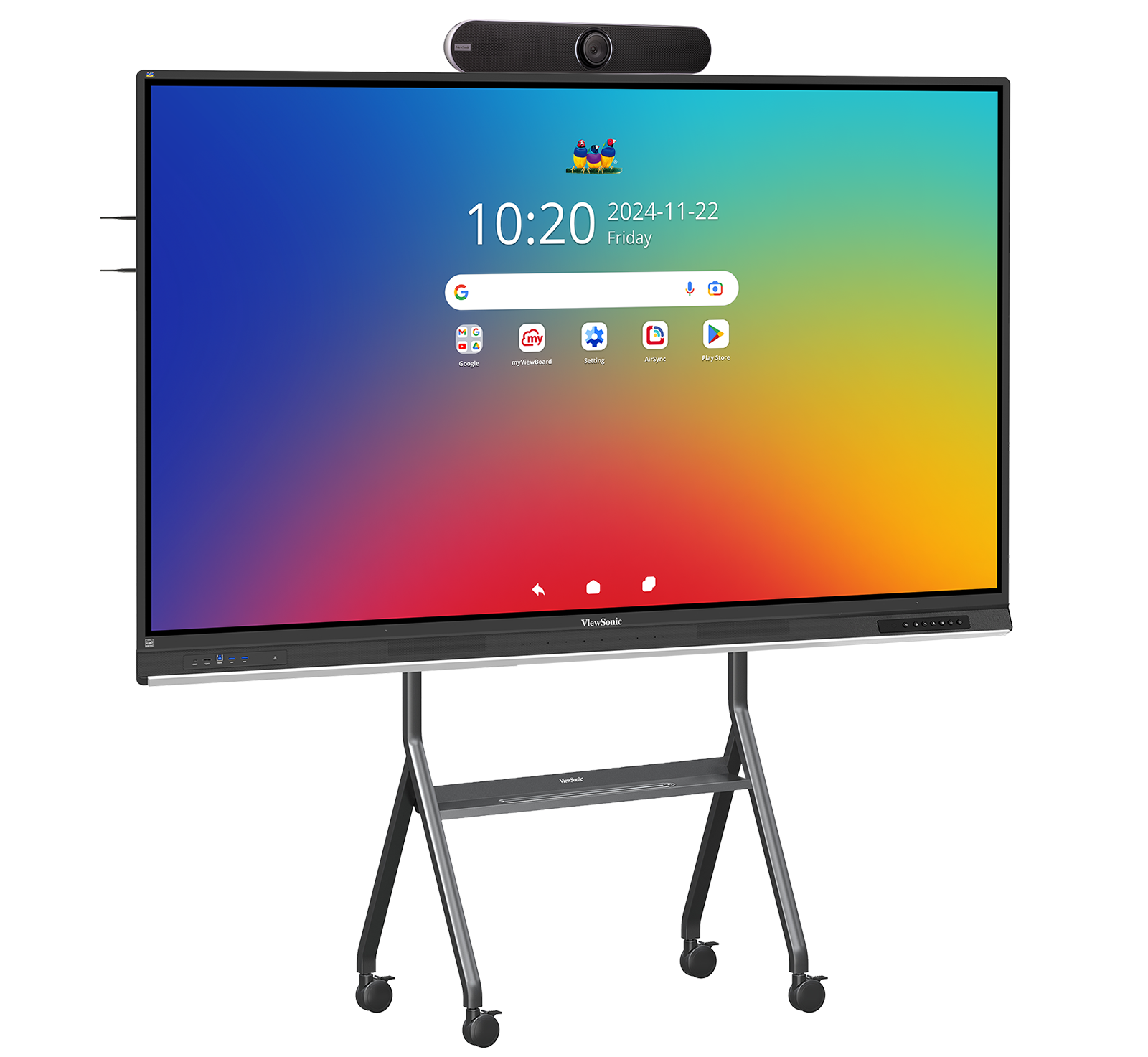

Top Camera Plate
Yes
Embedded OS
Android 14
Bundled Software
Basic Annotation Software: myViewBoard for Android
Pro Annotation Software: myViewBoard for Windows (embedded in VPC)

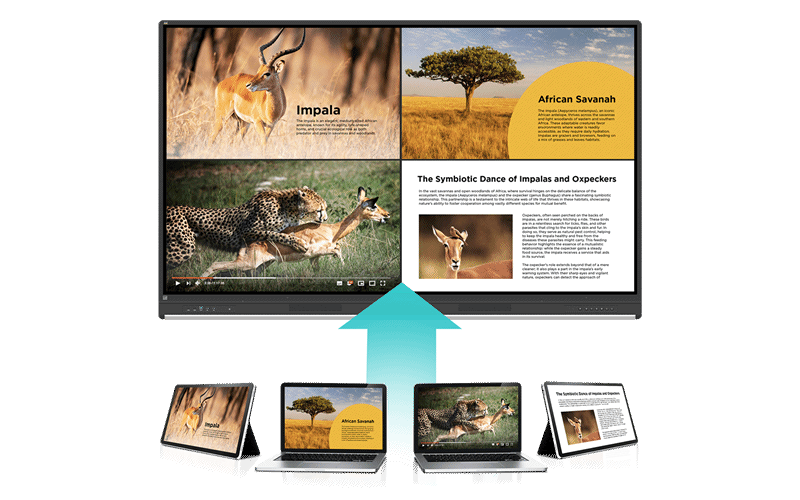

Wireless Presentation: Display, vCast
Device Management: Manager
ViewSonic Launcher: Yes
Special Features
All-in-one USB port: USB 3.0 “SmartPort USB” to all channels.
Simple LAN sharing between IFP and slot-in device: 10/100/1000M (USB Type-C 10/100, Android & PC 10/100/1000)
Light Sensor: Yes
NFC Reader: Yes
Pen Sensor: Yes
Power
Voltage: 100-240VAC +/- 10% Wide Range
Consumption: On:101.77W / Off: <0.5W
ERGONOMICS

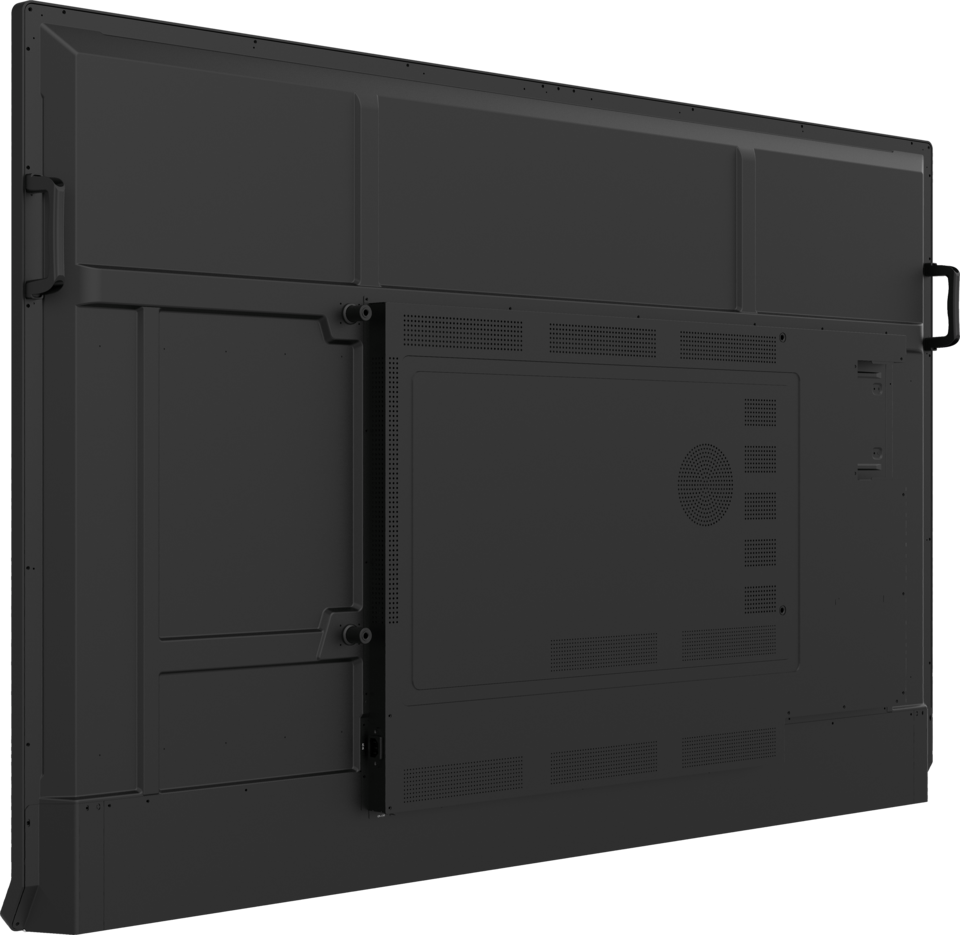

Wall Mount (VESA® ): 800 x 400
OPERATING CONDITIONS
Temperature (º C): 0°C to 40°C
Humidity: 20% ~ 80% RH non-condensing

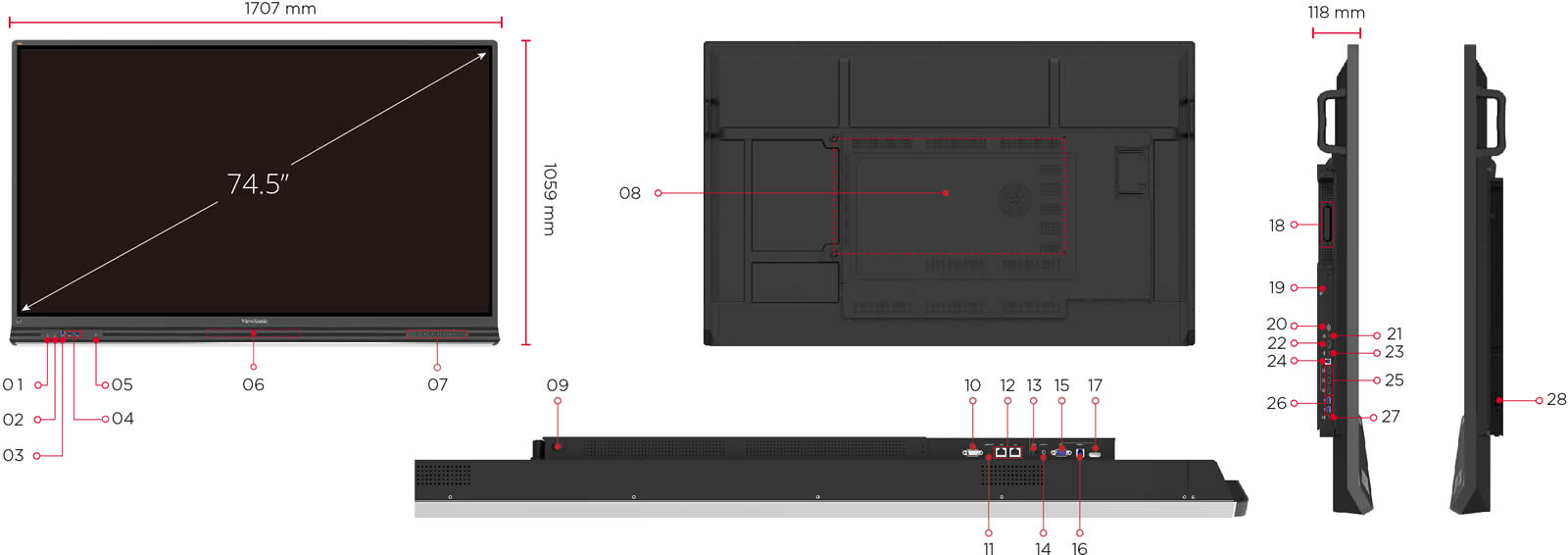

DIMENSIONS (W x H x D)
Physical (inch / mm): 67.21 x 41.7 x 4.66 in / 1707 x 1059.2 x 118.4 mm
Packaging (inch / mm): 74.8 x 45.67 x 8.46 in / 1900 x 1160 x 225 mm
WEIGHT
Net (lb / kg): 113.98 lb / 51.7 kg
Gross (lb / kg): 140.87 lb / 63.9 kg
PACKAGE CONTENTS
1. 3m power cord by ship area
2. Type C cable 1.8m(USB-IF certified)
3. Remote control with AAA battery
(new VS remote control)
4. 3m touch USB cable(USB 2.0)
5. Touch pen x 2 (VB-PEN-002)
6. Quick Start Guide
7. RS232 adapter
8. Clamp x 5
9. Camera Plate
10. Screw x 8 (camera 2+2, wall mount 4)
11. HDMI cable 3m(HDMI LA certified)
12. AAA Battery x 2
13. Compliance statement

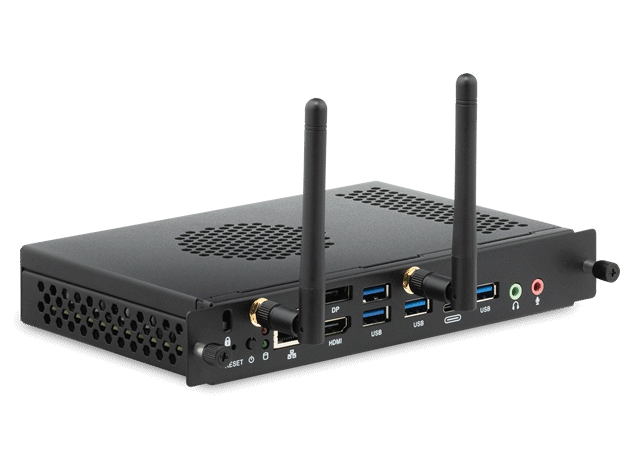

Compatible Slot-in PC
VPCF5-W33-G1
VPC37-W53-G1
VPC35-W53-G1
VPC-A31-O1
Note
*Disclaimer for Virtual RAM Usage:
This device's Virtual RAM uses part of the internal storage to potentially enhance performance. It's not a substitute for physical RAM and might impact storage availability and device longevity. Users should assess their needs before enabling this feature. Note that performance outcomes can vary based on application use and device conditions. The manufacturer may modify or discontinue this feature at any time without notice.
