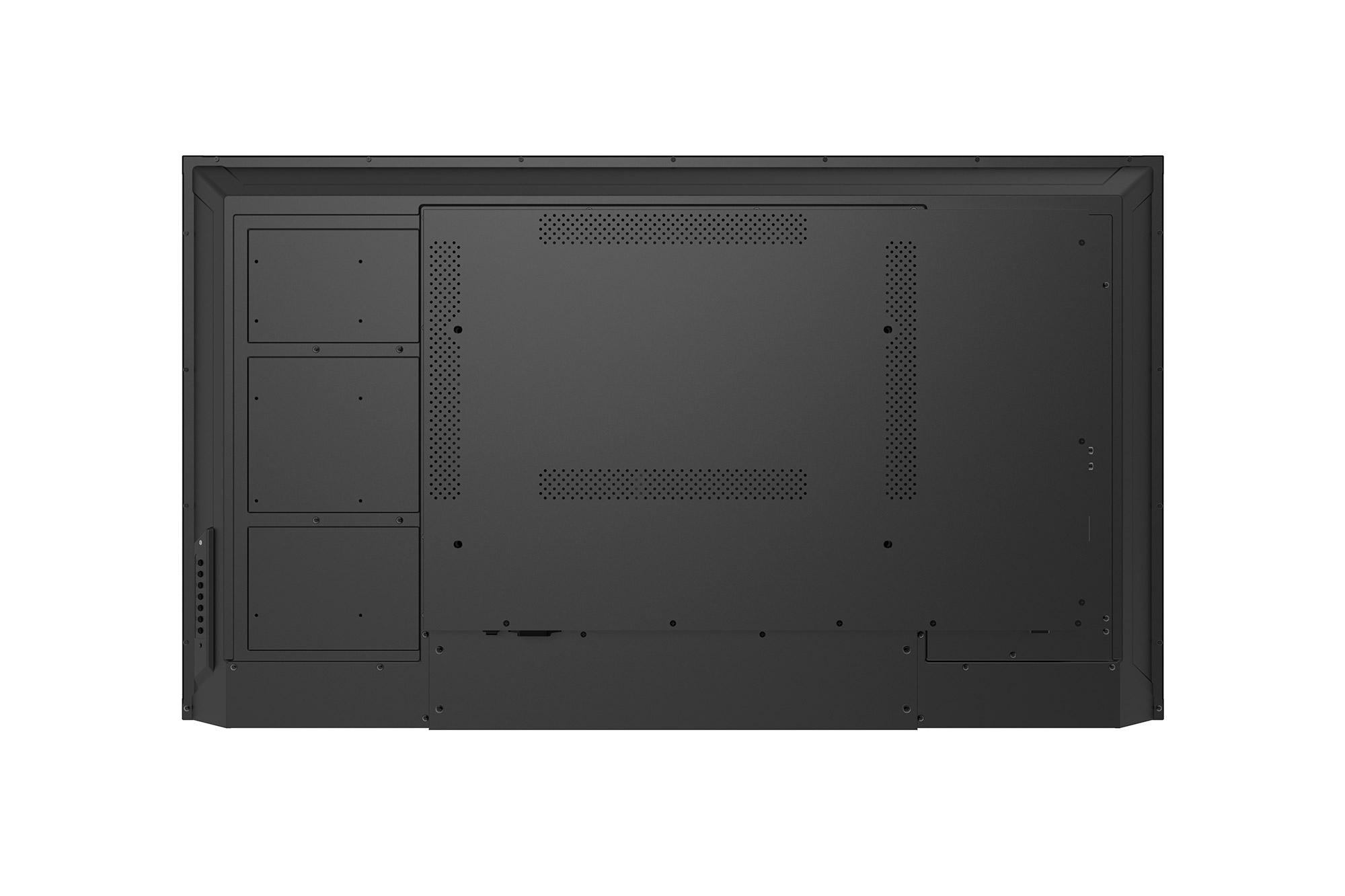

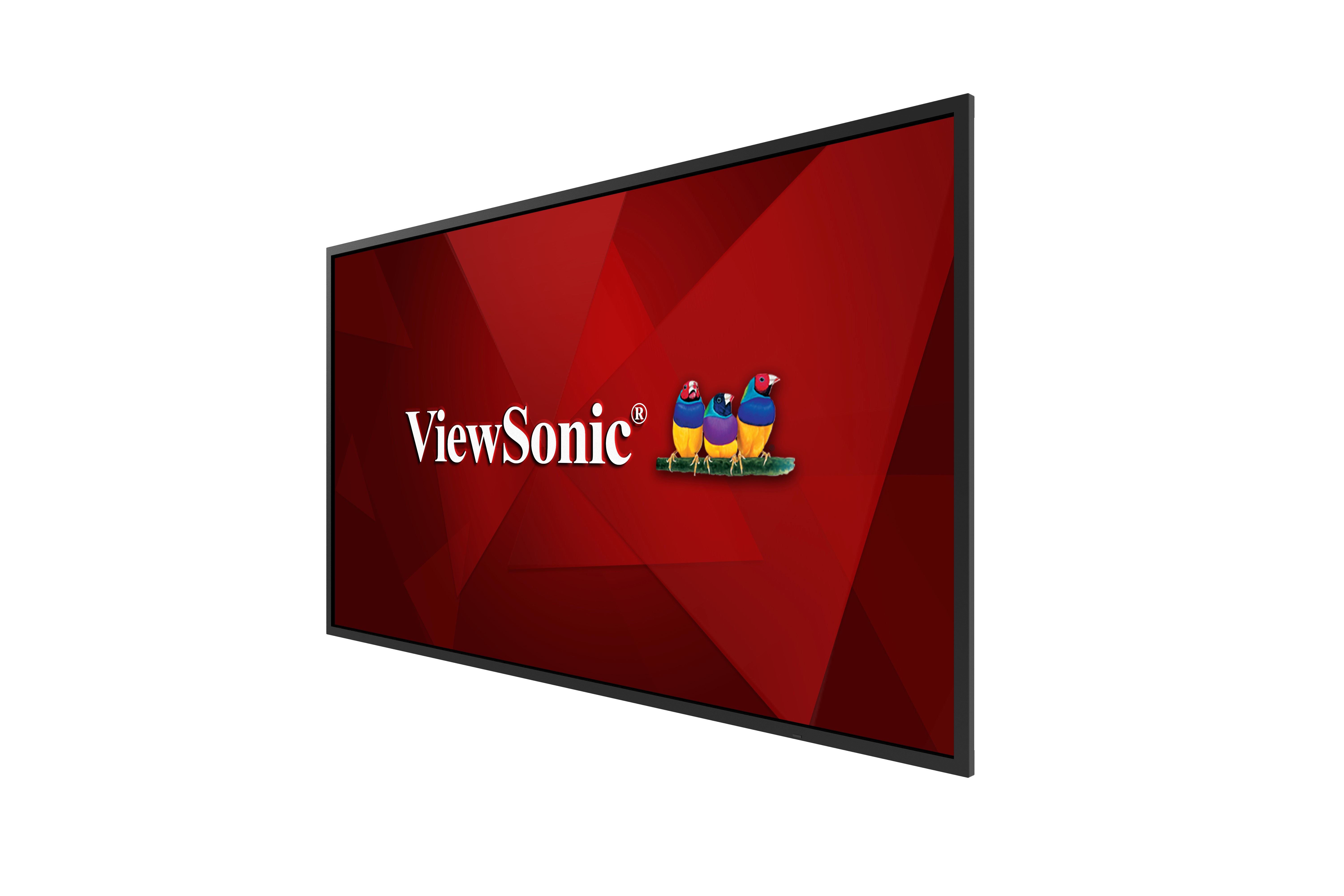

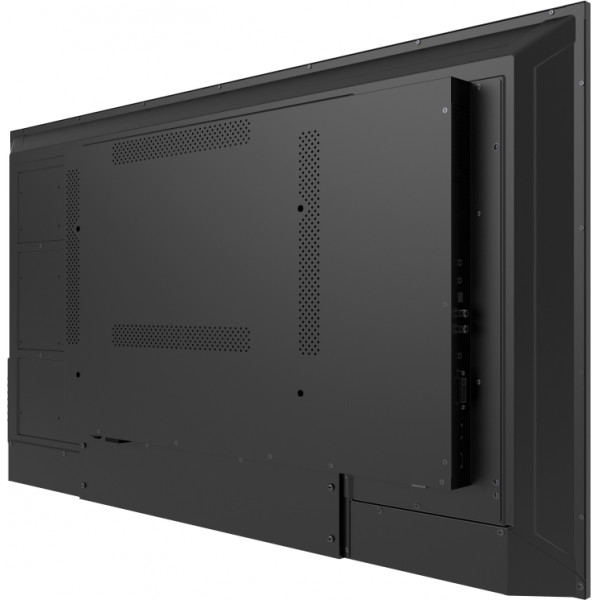

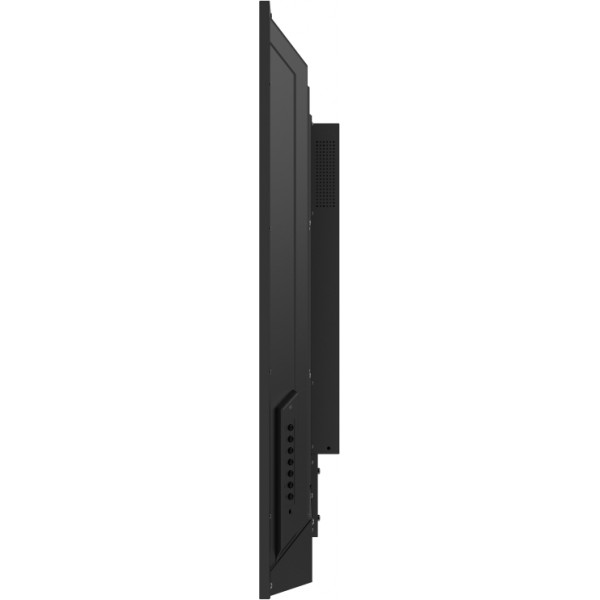

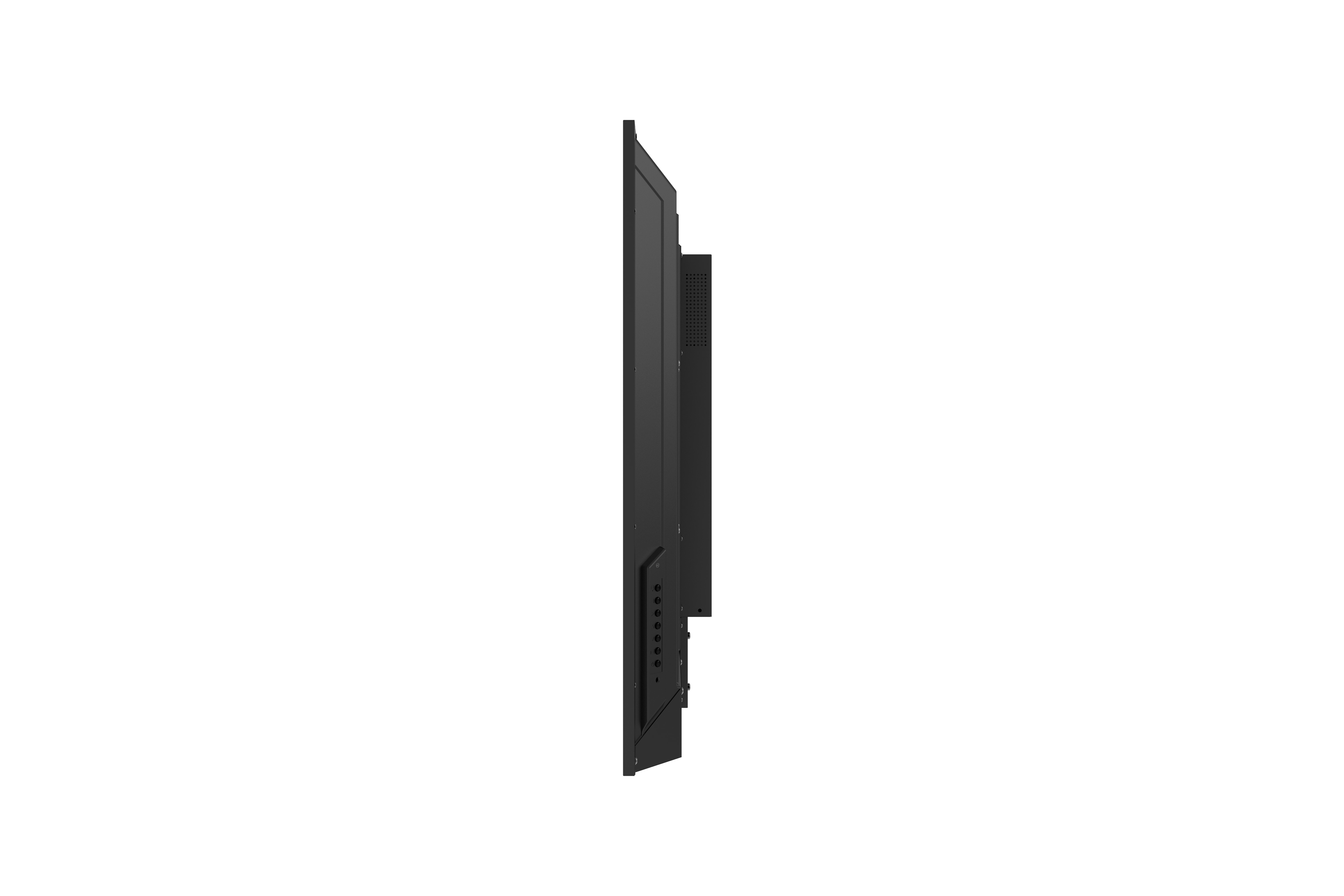

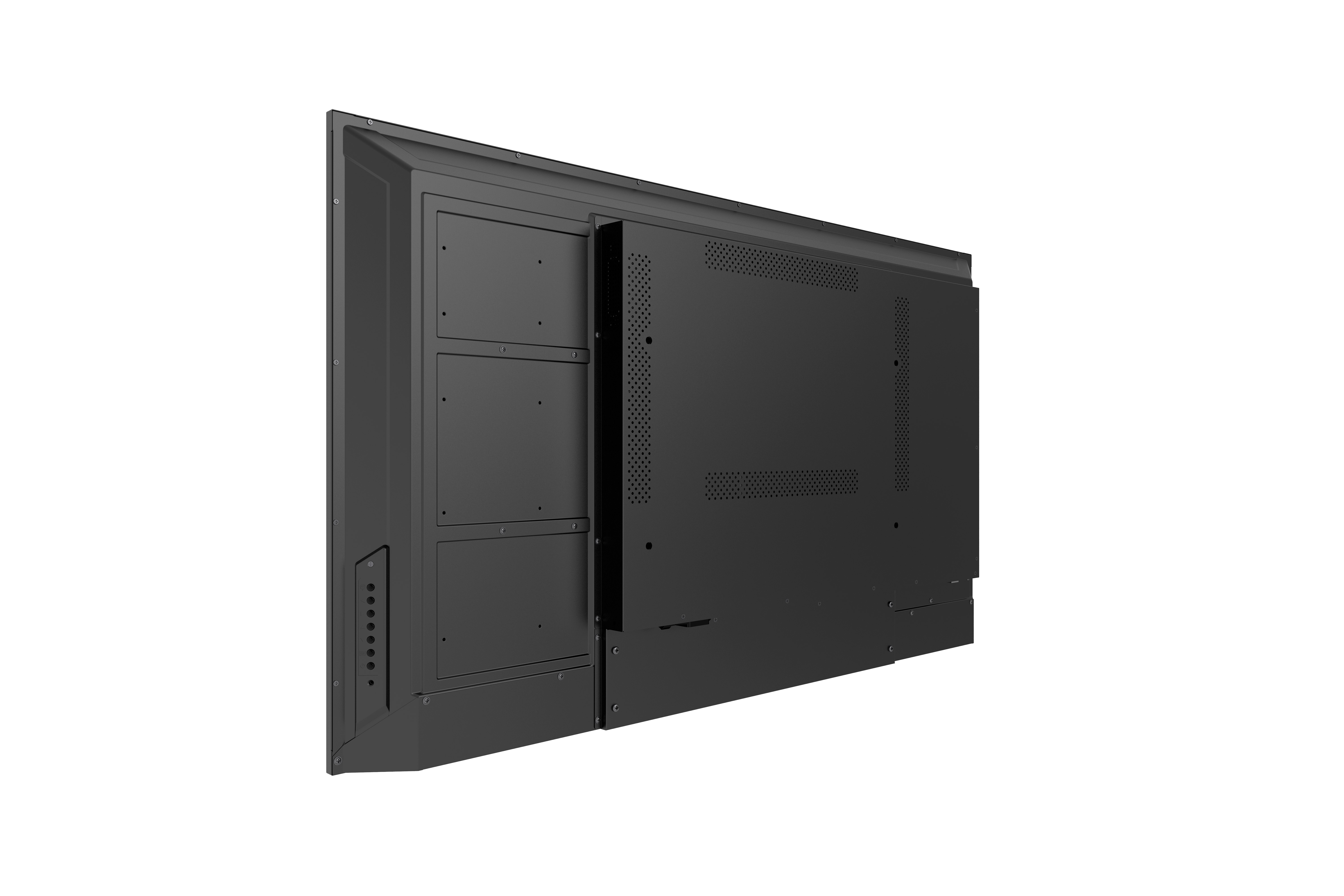

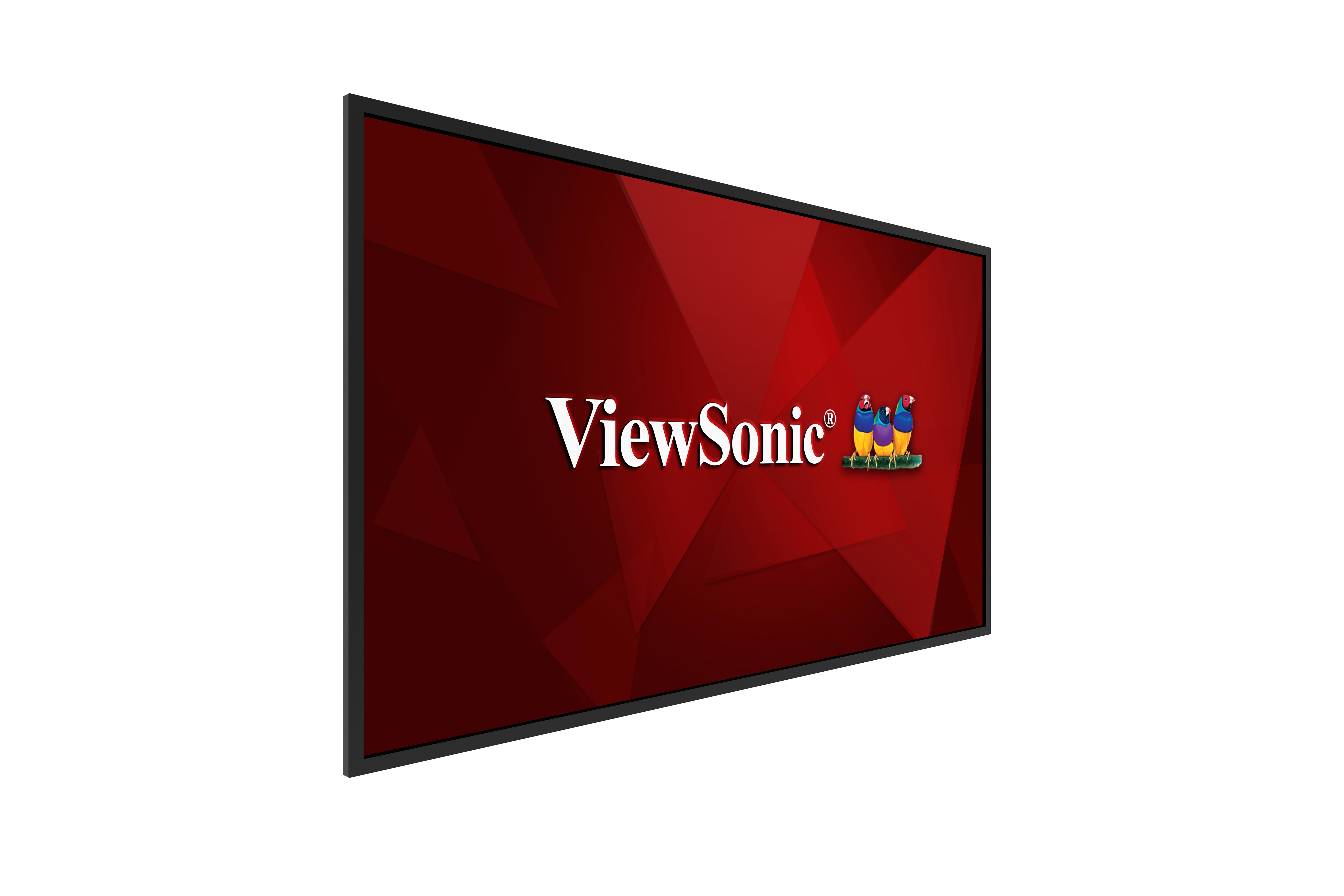

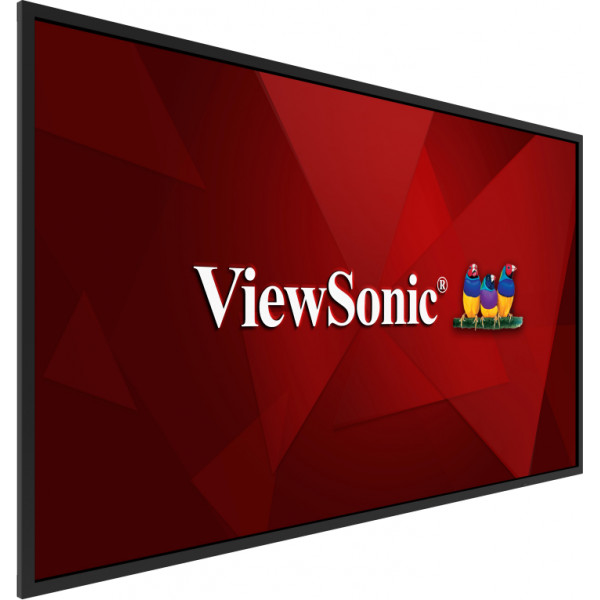

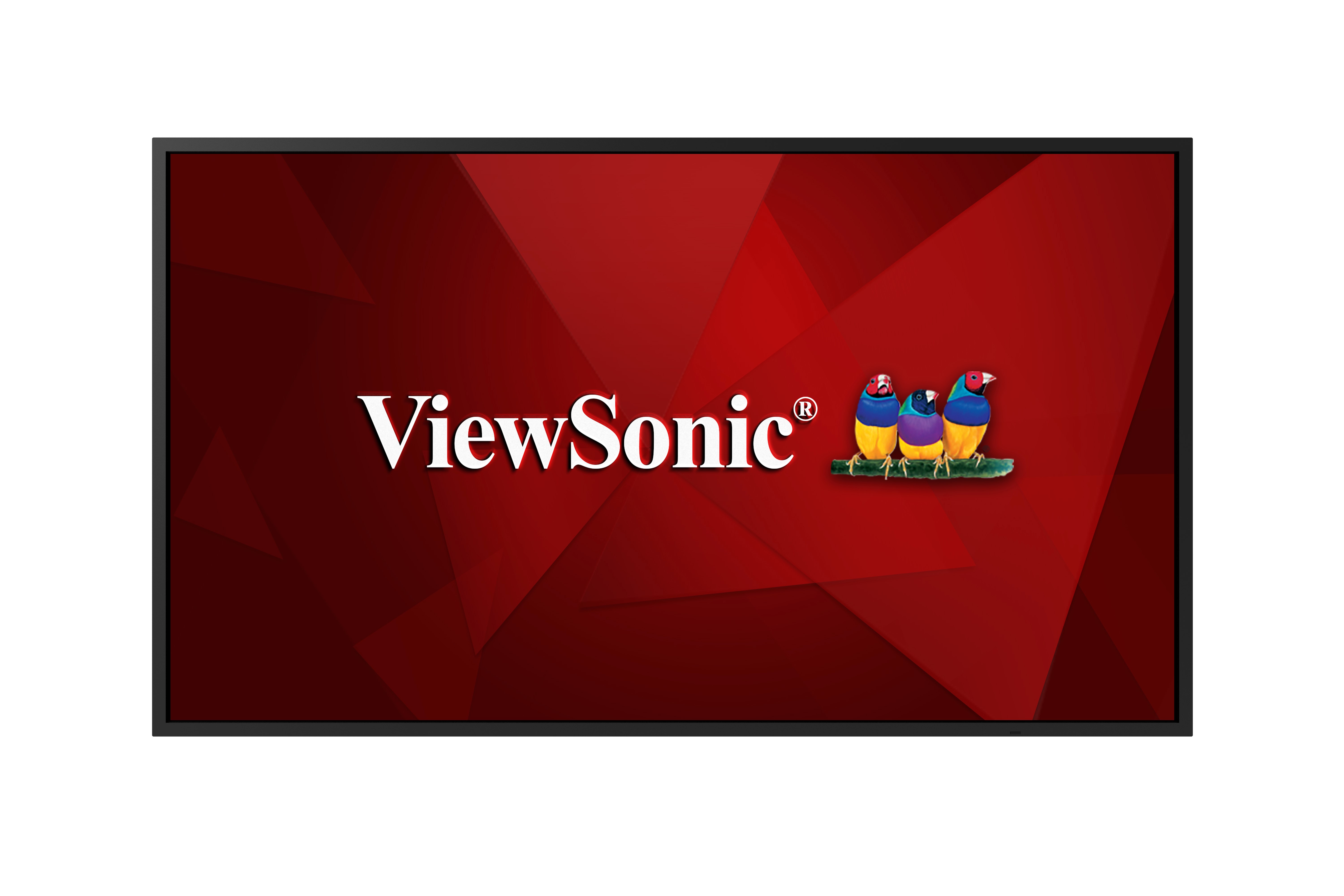

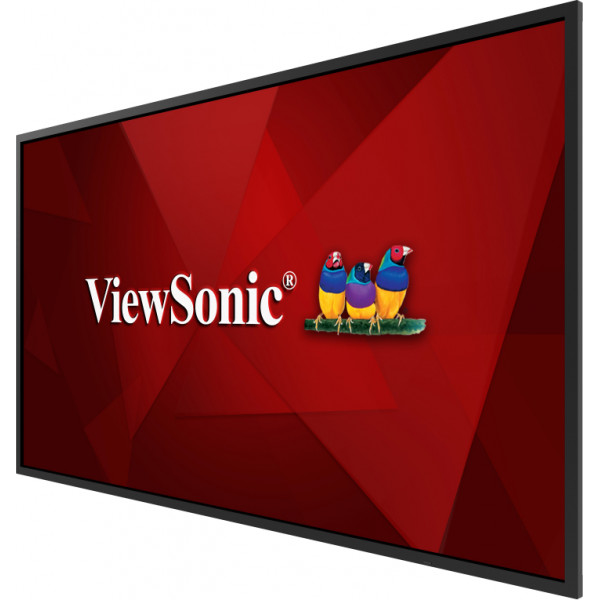

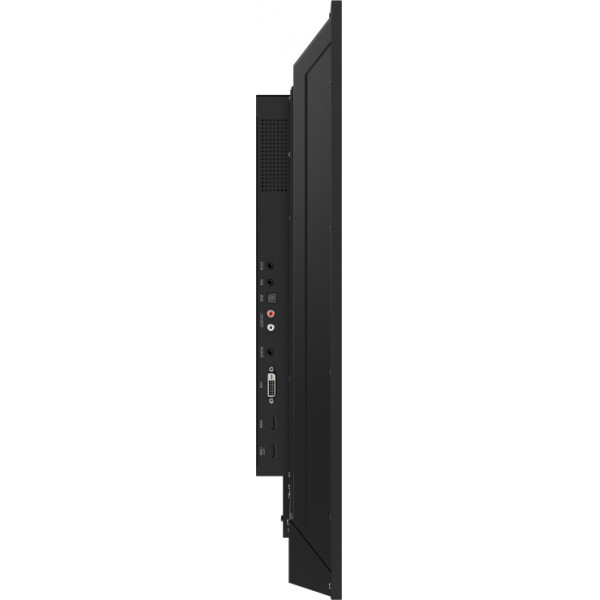

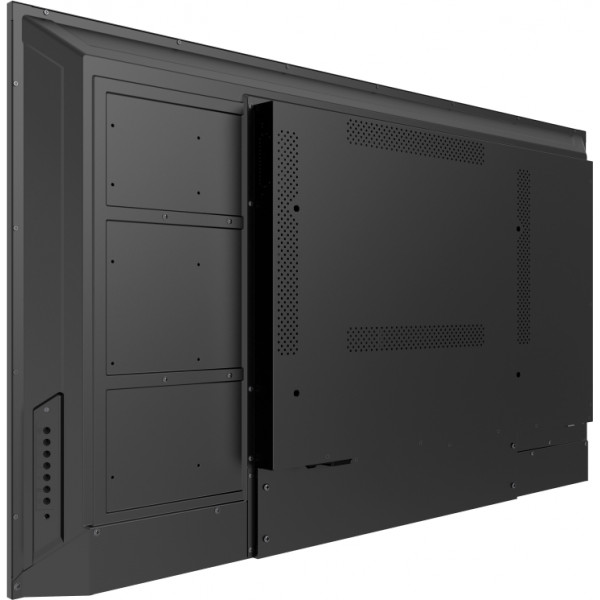

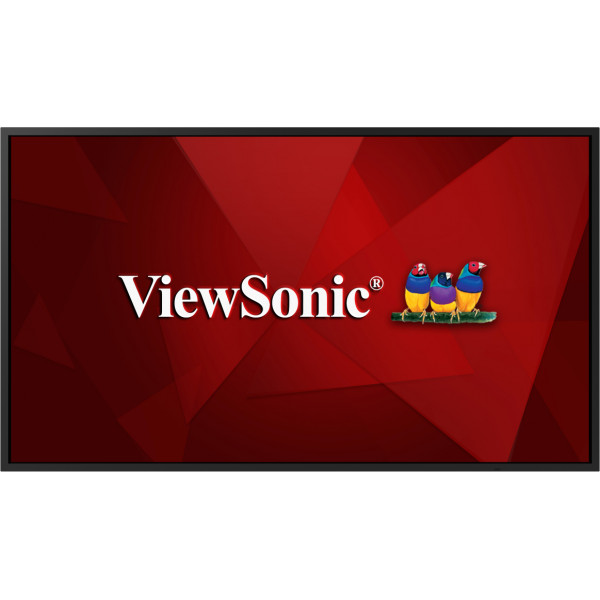

ViewSonic Commercial Display CDE4320

CDE4320

43" 4K Presenation Display

Slim even bezel and chassis
USB playback photos, music & video
Easy Multi-Screen Setups
Remote configuration management
Multiple HDMI devices control

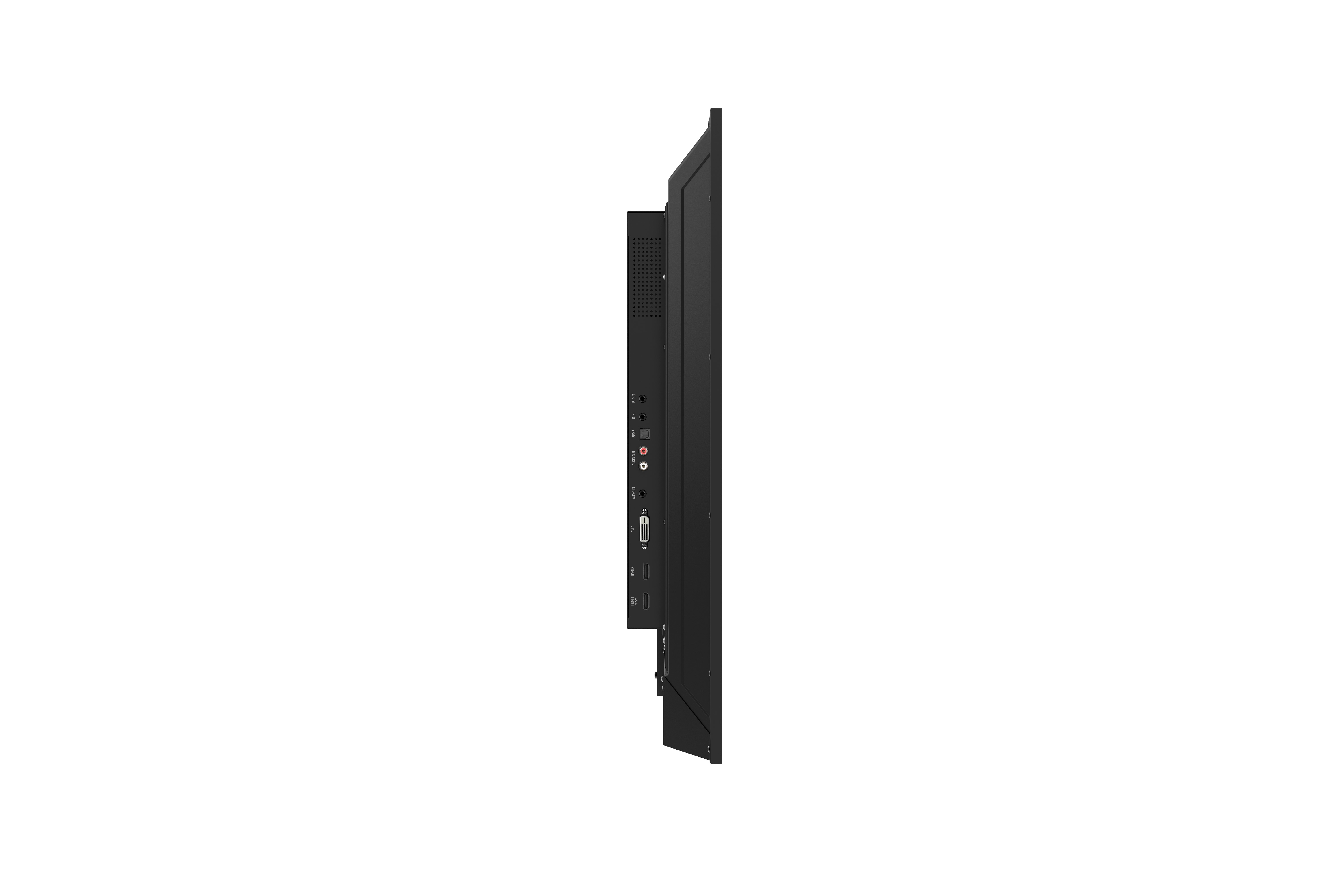

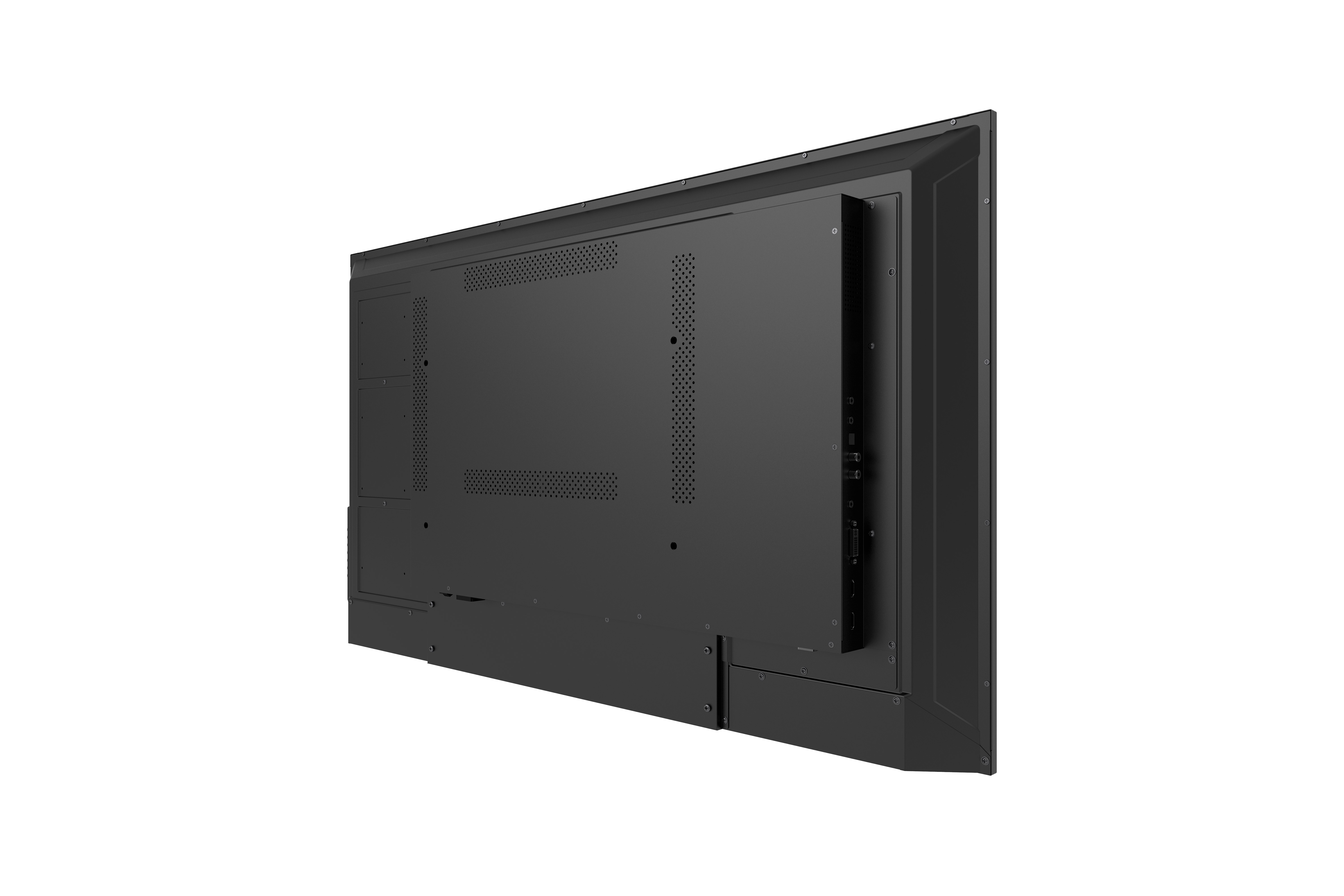

GALLERY

SPECIFICATIONS

Display
Panel Size: 43"
Type/ Tech: TFT LCD Module. IPS type, DLED backlight
Display Area (mm): 41.184 (H) x 529.416 (V) (42.51” diagonal)
Native Resolution: 16:09
Aspect Ratio: 3840 x 2160
Colors: 1.07B colors
Brightness: 350 nits (typ.)
Contrast Ratio: 1100:1 Typ.
Response Time: 6 ms
Viewing Angles: H = 178, V = 178 typ.
Backlight Life: 40,000 Hours Typ
Surface Treatment: Anti-Glare, 2H, Haze 3%
Bezel: Slim
Orientation: Landscape

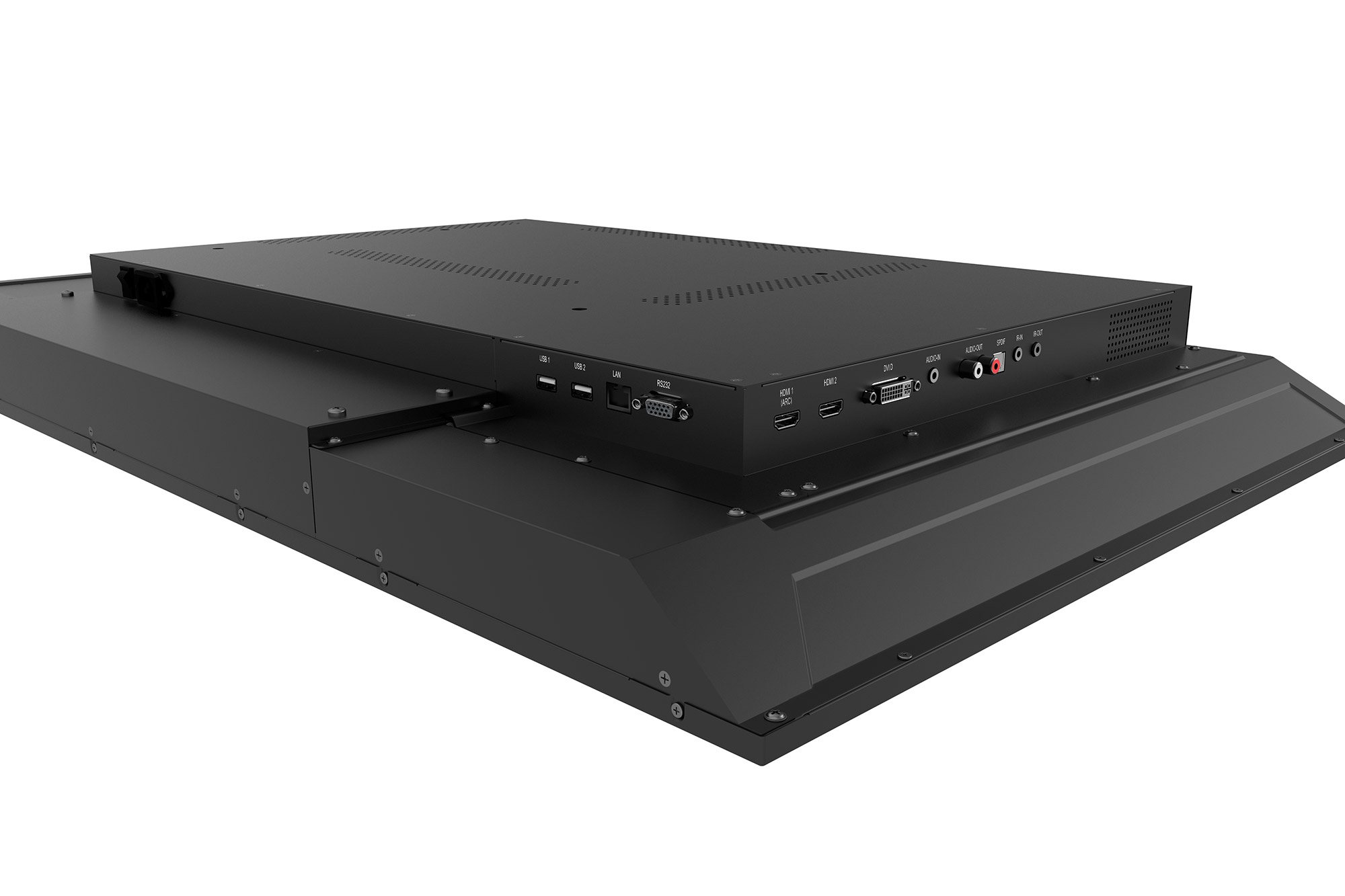

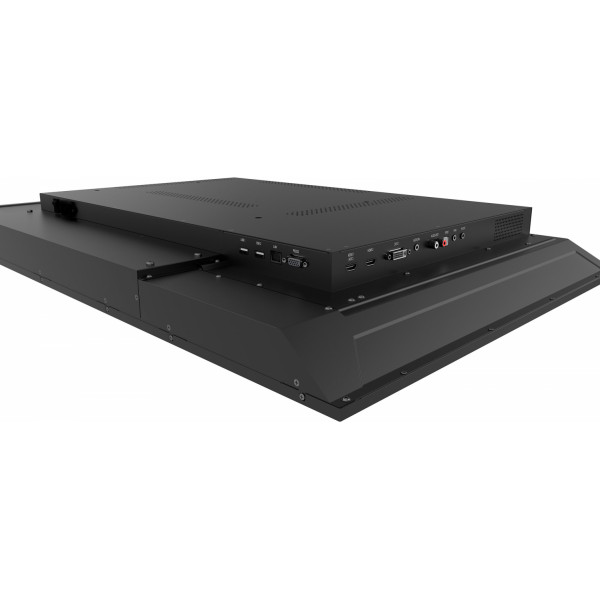

INPUT
HDMI: x2
DVI: x1
Audio: x1 (3.5mm)
RS-232: x1
IR Pass Thru: x1
OUTPUT
Audio: x1 (RCA)
SPDIF: x1 (Fiber)
IR Pass Thru: x1

LAN
RJ45: x1
USB
Type A: 2.0 Type A : x2 (USB Playback)
SPEAKERS
SPEAKERS: 10Wx2
COMPATIBILITY
RGB PC/HDMI PC: Up to 1920x1080@60Hz. Refer to timing table
HDMI: 480i, 480p,720p,1080i,1080p, 4K2K@60Hz
DVI: 480i, 480p,720p,1080i,1080p
Android Version: Android 8.0
POWER
Voltage: 100-240 VAC +/- 10% Wide Range
Consumption: Normal 70 W, Max 85 W
ERGONOMICS

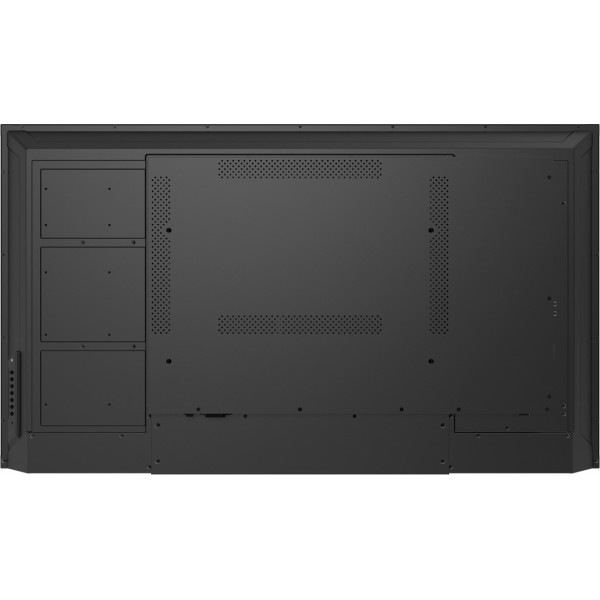

Wall Mount (VESA® ): 400x200 mm
OPERATING CONDITIONS
Temperature (º C): 0 to 40°C
Humidity: 20% ~ 80% non-condensing
DIMENSIONS (W x H x D)
Physical (inch / mm): 38.19 x 21.98 x 3.33 in/969.9 x 558.3 x 84.6 mm
Packaging (inch / mm): 42.13 x 26.10 x 6.02 in/1070 x 663 x 153 mm
WEIGHT
Net (lb / kg): 10.5 kg / 23.1 lbs (w/o stand); 11.1 kg / 24.47 lbs (with Stand)
Gross (lb / kg): 13.5 kg / 29.76 lbs
PACKAGE CONTENTS
PACKAGE CONTENTS: 1. CDE4320 presenation display
2. Remote Control with batteries
4. Quick Start Guide
5. Power Cables (1.8mm)
6. HDMI cable (1.8mm)
7. RS232 cable (1.8m)
