ePoster
EP5542
Key Features
- Slim, freestanding design for modern settings
- Exceptional picture quality
- Superb processing power with built-in quad-core media player
- Total remote control with RS232 commands within Local Area Network
- Effortless integrated device and content management
Product Description

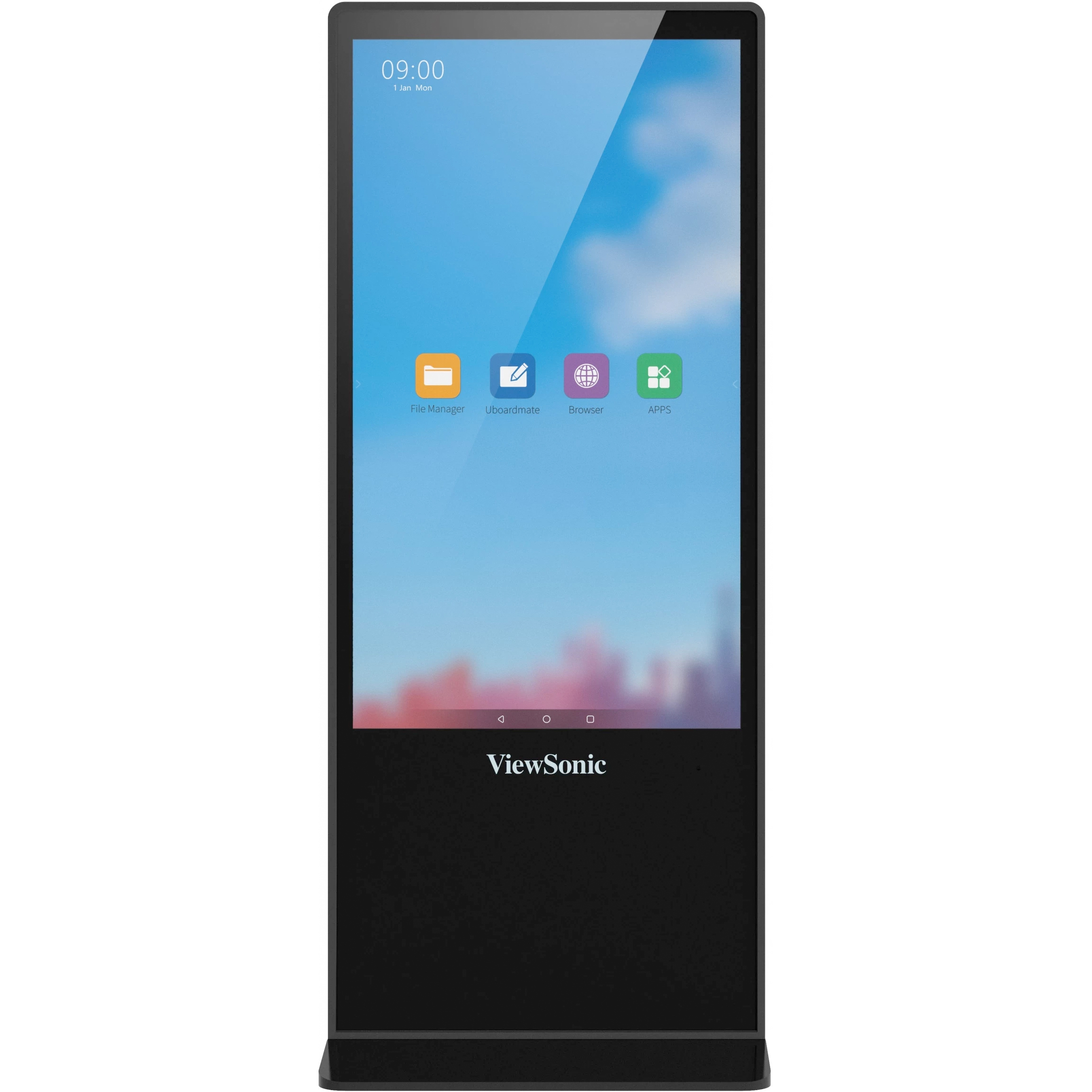

Uber-sleek and slim, the freestanding ViewSonic EP5542 is the ideal digital ePoster kiosk for high-impact visual messaging. Designed with a scratch-proof glass faceplate for added durability, it delivers unsurpassable visibility regardless of dust or ambient light. The 4K UHD IPS panel is equipped with dual 10W stereo speakers, 178° wide-angle viewing, and 450 nits of brightness, projecting crisp, vivid images and videos to engage the crowd. The EP5542 allows seamless multimedia playback with its embedded Quad-core media player and 16GB worth of internal memory. Made for effortless remote control, manage content and multiple devices wherever via the vController app integrated with RS232 and LAN command.
Visit Us
- www.viewsonic.com
-
DISPLAY
Panel Size: 55" Type/Tech: TFT LCD (VA type,DLED Backlight) Display Area (mm): 1209.6 (H) x 680.4 (V) Aspect Ratio: 9:16 Native Resolution: 2160 x 3840 Colors: 1.07B Brightness: 450 nits (typ.) Contrast Ratio: 1300:1 (typ.) Response Time: 9 ms (typ. G to G) Viewing Angles: H = 178, V = 178 typ. Backlight Life: 30,000 Hours Typ. Surface Treatment: Anti-Glare 3H, Haze = 2% Orientation: Portrait Operation Time: 16/7 -
INPUT
HDMI: (2.0) x 3 RGB / VGA: x1 DisplayPort: (1.2) x 1 Audio: x1 PC audio(3.5 mm) RS232: x1 -
OUTPUT
Audio: x1 (Earphone out) SPDIF: x1 -
LAN
RJ45: x1 -
USB
Type A: x3 (2.0) -
SPEAKERS
10W x 2 -
COMPATIBILITY
RGB PC/HDMI PC: 1920 x 1080 @60Hz HDMI: 2160 x 3840 @60Hz DisplayPort: 2160 x 3840 @60Hz -
ANDROID VERSION
8.0 -
MULTIMEDIA
Image: JPG, BMP, PNG;
Video: MP4, MOV, MKV, DAT, MPG, MPEG, AVI, TS, WMV,RM,RMVB;
Audio: MP3,WAV,AAC -
PRELOADED SOFTWARE*
Revel Digital, 42Gears SureMDM *Activation requires a separate subscription license, sold separately for Revel Digital and 42Gears SureMDM. -
POWER
Voltage: 100-240VAC +/- 10% Wide Range Consumption: 126 W (Normal), 149 W (Max.), < 0.5W (Off) -
OPERATING CONDITIONS
Temperature (º C): 0°C to 40°C Humidity: 20% ~ 80% non-condensing -
DIMENSIONS (W X H X D)
Physical (inch / mm): 30.26 x 73.62 x 17.72 in / 768.5 x 1870 x 450 mm Packaging (inch / mm): 38.19 x 80.08 x 23.98 in / 970 x 2034 x 609 mm -
WEIGHT
Net (lb / kg): 138.23 lbs / 62.7 kg Gross (lb / kg): 164.69 lbs / 74.7 kg -
REGULATIONS
cTUVus, FCC, Energy Star 8.0, CE, CB, RoHS, ErP, EEI, WEEE, BSMI -
PACKAGE CONTENTS
1. Power Cord;
2. Remote control with battery;
3. Quick Start Guide;
4. Key
*Actual content may differ from market to market
