Tính năng chính
  • Easy cast function
  • Wireless presentation across devices and rooms
  • USB flash drive plug-and-play for photos, music & video
  • Multitasking with powerful embedded player & OPS PC slot
  • 4K slim bezel commercial display

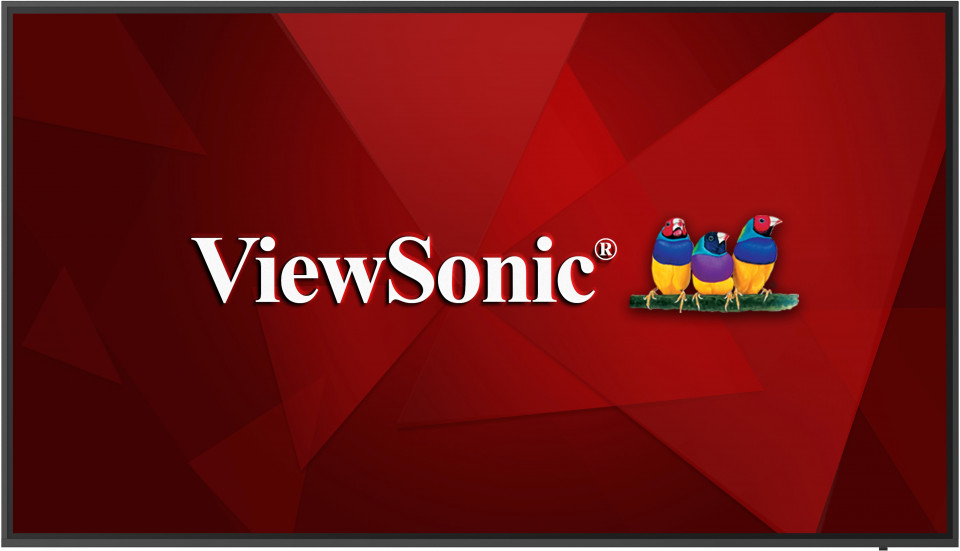

CDE6520
Sản phẩm Mô tả
The ViewSonic® CDE6520 is a 65” 4K display. The built-in screen sharing software*, ViewBoard® Cast and myViewBoard Display enable multiple users, whether onsite or online, to participate in conferences and share content simultaneously, transforming the CDE6520 into a dynamic content hub. This reliable commercial display is equipped with a quad-core processor and internal memory, allowing constant multimedia play from internal storage or a USB flash drive. Supporting remote configuration and content management systems, the ViewSonic® CDE6520 is also suitable for diverse signage applications.

*Chrome, Android, Windows, Mac OS, and iOS compliant
*Miracast, Chromecast, and AirPlay support

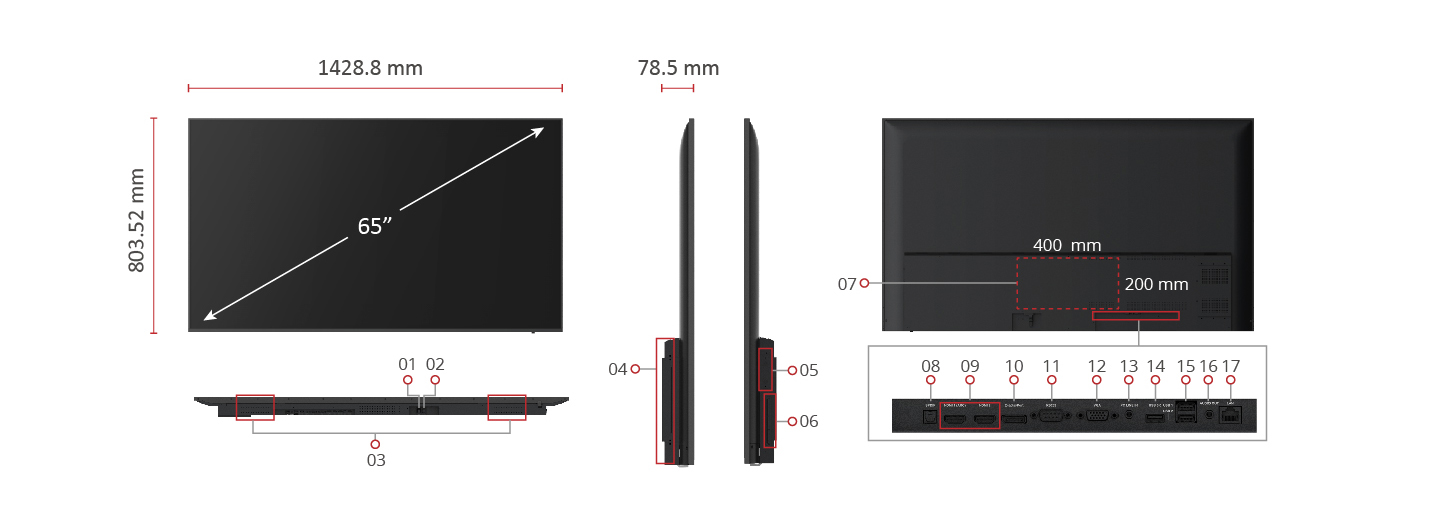

  1. AC In
  2. Power Switch
  3. Internal Speakers
  4. OPS Slot
  5. WiFi Slot
  6. Menu Controls
  7. VESA® Wall Mount 400x200mm
  8. SPDIF
  9. HDMI In x 2
  10. DisplayPort
  11. RS232
  12. VGA
  13. Audio In
  14. USB 3.0 Type A (USB Playback)
  15. USB 2.0 Type A x 2 (USB Playback)
  16. Audio Out
  17. LAN
Ghé thăm Chúng tôi
  • www.viewsonic.com
  • SYSTEM
    GPU: Dual-core MaliG51 MP2
    CPU: 2 Dual-core Processors - Cortex A73 + A53 1.4GHz
    Kỉ niệm: 3 GB DDR4
    Kho lưu trữ: 16 GB eMMC
    Sự bảo đảm: 3-year limited warranty on parts, labor and backlight, onsite warranty
  • HIểN THị
    Kích thước bảng điều khiển: 65"
    Loại / Công nghệ: TFT LCD Module. IPS type, DLED backlight
    Khu vực hiển thị (mm): 1428.48(H) × 803.52(V) (65" diagonal)
    Độ phân giải gốc: 3840 x 2160
    Tỷ lệ khung hình: 16:9
    Colors: 1.07G colors
    Công nghệ hình ảnh: Cinema SuperColor™
    Độ sáng: 450 nits (typ.)
    Độ tương phản: 1200:1 Typ. , 5000:1 Max.(DCR enable)
    Tần số quét: 120Hz
    Thời gian đáp ứng: 8 ms
    Góc nhìn: H = 178, V = 178 typ.
    Tuổi thọ đèn nền: 30,000 Hours (min)
    Bề mặt: Anti-glare, 3H hardness, Haze 25%
    Bezel: Slim
    Hướng: Landscape
  • INPUT
    HDMI: x2
    RGB / VGA: x1
    DisplayPort: x1
    Âm thanh: x1 (3.5mm)
    RS-232: x1
    OPS Slot: x1 (Optional Intel OPS VPC12-WPO)
    WiFi Slot: x1 (Optional WiFi module LB-WIFI-001)
  • OUTPUT
    Âm thanh: x1 (3.5mm)
    SPDIF: x1 (Fiber)
  • LAN
    RJ45: x1
  • USB
    Loại A: 2.0 Type A : x 2 (USB Playback)
    3.0 Type A : x 1 (USB Playback)
  • LOA
    Max. 16Wx2
  • COMPATIBILITY
    PC RGB / PC HDMI: Up to 1920x1080@60Hz. Refer to timing table
    HDMI: 480i, 480p,720p,1080i,1080p, 4K2K@60Hz
    DisplayPort: 480i, 480p,720p,1080i,1080p, 4K2K@60Hz
    Phiên bản Android: Android 8.0
  • POWER
    Vôn: 100V-240V,50/60Hz (AC)
    Sự tiêu thụ: Normal 97 W, Max 300 W
  • ERGONOMICS
    Giá treo tường (VESA®): 400x200 mm
  • OPERATING CONDITIONS
    Nhiệt độ (º C): 0 to 40°C
    Độ ẩm: 20% ~ 80% non-condensing
  • KÍCH THƯỚC (RộNG X CAO X DàY)
    Kích thước (inch / mm): 57.11 x 32.60 x 3.09 in/ 1450.6 x 828.1 x 78.5 mm
    Bao bì (inch / mm): 63.19 x 37.99 x 8.66 in/1605 x 965 x 220 mm
  • WEIGHT
    Khối lượng tịnh (lb / kg): 22.95 kg / 50.59 lbs (w/o stand)
    Tổng (lb / kg): 33.6 kg/74.07 lbs
  • REGULATIONS
    cULus, FCC, Energy Star, EPEAT,MX-CoC, Mexico Energy, CE, CB, RoHS, ErP, REACH, WEEE, Custom Union, UkrSEPRO, RCM, MEPS
  • NỘI DUNG GÓI
    1. CDE6520 presentation display
    2. Remote control with batteries
    3. Quick start guide
    4. Power cables (1.5M)
    5. HDMI cables x2 (1.5M/3M)
    6. Wall mount screw
    7. RS232 adapter
