VG2709U-2K
27” QHD 100Hz USB-C Docking Monitor with Dual Speakers and Daisy Chain
- SuperClear® IPS panel with QHD 2560 X 1440 resolution
- 100Hz Variable refresh rate delivers fluid visuals
- Integrated docking station with Ethernet, Daisy Chain capability and delivers up to 100W charging via USB-C connection
- Ergonomic tilt, swivel, pivot and height adjustment capabilities
- TCO, EnergyStar, EPEAT Silver certified for sustainability
نظرة عامة
The ViewSonic VG2709U-2K is a 27” QHD monitor featuring HDMI, DisplayPort, DisplayPort out, USB-C, Ethernet, USB Type-B upstream and USB Type-A downstream inputs for business and home use. Simplify your work with just one cable that provides audiovisual, data and up to 100W power transfer. The 100hz variable refresh rate, Eye ProTech technology, and various ViewMode presets cater for optimal screen performance and comfortable viewing without tearing or stuttering. Expand your workspace and experience truly seamless, comprehensive ergonomic multitasking on just one screen with a VESA-compatible mount at low energy consumption.Ergonomic Workstation
Discover a monitor designed to overcome the challenges of the modern work setup

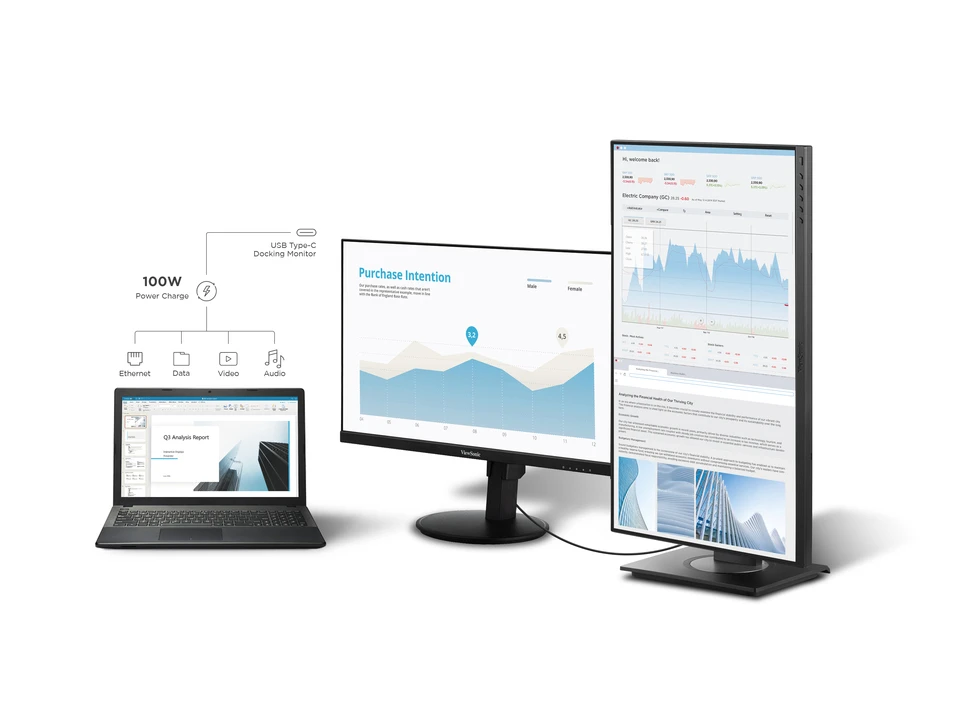

Integrated Docking Station with Daisy Chain
Simplify your workflow with a docking monitor. Enjoy smooth transfers of data, video, and audio, along with up to 100W fast charging, all through a single USB-C cable. Boost productivity with a dual monitor setup by daisy-chaining through the DisplayPort output. USB Type-C, 100W Power Charge, Audiovisual and Data Transfer
Extraordinary Wide-angle Vision
Enjoy vivid colors with consistent brightness and amazing accuracy no matter the vantage point. SuperClear® IPS monitor features ultra-wide 178-degree vertical and horizontal viewing angles that deliver the same image quality with true color accuracy and consistency from screen to print. SuperClear® IPS
QHD 2560x1440
This 27” diagonal screen with QHD 2560 X 1440 resolution doubles the number of pixels offered by FHD 1080p, providing unparalleled work quality for detail-minded professionals. QHD 2560x1440
Smooth Visuals With 100Hz Variable Refresh Rate
With a fast 100Hz screen variable refresh rate, you can experience a truly fluid visual display. This results in improved viewing clarity, reduced screen stutter during fast-moving action scenes, and benefits work-related tasks, reducing eye strain and increasing productivity. 100Hz Variable Refresh Rate
Connection Flexibility
HDMI, DisplayPort, DisplayPort out and Ethernet (RJ45) inputs give you the freedom to connect your monitor to a wide range of devices. Simplify your workspace, expand your connectivity options, and streamline data transfer with our monitor's integrated USB hub via USB-C, USB-A downstream and USB-B upstream ports.
Note:The USB-C port supports video, data transfer, and up to 100W power delivery; actual functionality depends on your device’s USB-C specifications. For proper operation, please ensure your device supports DisplayPort Alt Mode and USB Power Delivery (PD), and avoid using USB-C charging and DC power on the laptop at the same time.
HDMI/ DP/ USB-C/ DP Out/ RJ45
USB-A downstream/ USB-B upstream
Complete Ergonomic Flexibility
Effortlessly swivel the display up to 360° degrees, tilt up to -3.5°~28° degrees, raise up to 130 mm, and pivot up to 180° degrees for portrait viewing. The VG2709U-2K offers a full range of convenient flexibility for all tasks and workflows. Swivel, Tilt, Pivot and Height Adjustment
Built-in Speakers
Integrated with dual 2.5-watt stereo speakers as well as incredible screen performance, this monitor provides complete multi-sensory immersion.
Eye ProTech for Comfortable Viewing
Reduce your eye strain and maintain fresh-feeling eyes with ViewSonic Eye ProTech. The Flicker-Free technology eliminates screen flickering, while the Blue Light Filter minimizes harmful blue light from extended viewing periods, ensuring comfortable screen viewing. Flicker-Free & Blue Light Filter
Color Rendering Options
ViewSonic’s ViewMode offers “Game”, “Movie”, “Web”, “Text”, and “Mono” presets. These presets enhance gamma curve, color temperature, contrast, and brightness to deliver optimized, satisfactory viewing. ViewMode: Game/Movie/Web/Text/Mono
Certified Environmental Sustainability
The VG2709U-2K is Energy Star-certified for sustainability, reducing energy costs and greenhouse gases. The display is also TCO certified for sustainability and registered as an EPEAT product.*Energy savings may vary based on actual usage and other factors.
*Certifications and safety regulations dependent on the purchase area.
Energy Star, EPEAT, TCO
Dimension & I/O Ports
Conveniently mount the monitor to your preference by utilizing the 100mm x 100mm VESA-compatible mount design. 100mm x 100mm VESA mount
المواصفات
- الشاشةحجم الشاشة (بوصة): 27
المساحة المرئية (بوصة): 27
نوع اللوحة: IPS Technology
الدقة: 2560 x 1440
نوع الدقة: QHD (Quad HD)
نسبة التباين الثابت: 1,000:1 (typ)
نسبة التباين الديناميكي: 50M:1
النطاق الديناميكي العالي (HDR): HDR10
مصدر الضوء: LED
السطوع: 350 cd/m² (typ)
الألوان: 16.7M
مساحات الألوان المدعومة: 8 bit true
الابعاد المتزنة: 16:9
زمن الاستجابة (GTG النموذجي): 4ms
زمن الاستجابة (GTG مع OD): 4ms
زوايا النظر: 178º horizontal, 178º vertical
عمر الإضاءة الخلفية (ساعات): 30000 Hrs (Min)
صلابة الزجاج: 3H
انحناء: Flat
معدل التحديث (هرتز): 100
تقنية معدل التحديث المتغير: Yes
فلتر الضوء الأزرق: Yes
إضاءة زرقاء منخفضة: Software solution
خالٍ من الوميض: Yes
نطاق الألوان: NTSC: 72% size (Typ)
sRGB: 104% size (Typ)
حجم البكسل: 0.233 mm (H) x 0.233 mm (V)
معالجة السطح: Anti-Glare, Hard Coating (3H) - التوافقدقة الكمبيوتر (الحد الأقصى): 2560x1440
دقة Mac® (الحد الأقصى): 2560x1440
نظام تشغيل الكمبيوتر: Windows 10/11 certified; macOS tested
دقة Mac® (الحد الأدنى): 2560x1440 - موصلUSB 3.2 Type A تدفق هابط: 2
USB 3.2 Type B تدفق صاعد: 1
USB 3.2 Type C تدفق صاعد؛ وضع DisplayPort البديل: 1 (98W power charger)
مخرج صوت 3.5 ملم: 1
HDMI 2.1: 1
منفذ الشاشة: 1
خرج DisplayPort: 1
دخل الطاقة: 3-pin Socket (IEC C14 / CEE22)
شبكة Ethernet LAN (RJ45): 1
- الصوتمكبرات صوت داخلية: 2.5Watts x2
- الطاقةالوضع الاقتصادي (توفير): 16.2W
الوضع الاقتصادي (مُحسّن): 19.1W
الاستهلاك (نموذجي): 22.3W
الاستهلاك (الحد الأقصى): 36W
الجهد: AC 100-240V
وضع الاستعداد: 0.5W
مصدر الطاقة: Internal Power Supply - أجهزة إضافيةفتحة قفل Kensington: 1
تنظيم الكابلات: Yes - ادواة التحكمأزرار التحكم المادية: Key 1 (favorite), Key 2, Key 3, Key 4, Key 5 (power)
قائمة العرض على الشاشة (OSD): Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu - ظروف التشغيلدرجة الحرارة: 32°F to 104°F (0°C to 40°C)
الرطوبة (بدون تكثّف): 20% to 90% - Wall Mount متوافق مع VESA: 100 x 100 mm
- إشارة الإدخالالتردد الأفقي: HDMI (v2.1): 31 ~ 184KHz, DisplayPort (v1.4): 30 ~ 152KHz, Type C: 30 ~ 152KHz
التردد الرأسي: HDMI (v2.1): 48 ~ 100Hz, DisplayPort (v1.4): 48 ~ 100Hz, Type C: 48 ~ 100Hz - دخل الفيديومزامنة رقمية: TMDS - HDMI (v2.1), Micro-Packet - DisplayPort (v1.4), Micro-Packet - Type C
- التصميم المريحضبط الارتفاع (مم): 130
الدوران الجانبي: 360º
الإمالة (للأمام/للخلف): -3.5º / 28º
التدوير (يمين/يسار): 90º / 90º - الوزن (إمبراطوري)الوزن الصافي (رطل): 14.8
الوزن الصافي بدون الحامل (رطل): 9.7
الوزن الإجمالي (رطل): 17.9 - Weight (metric) الوزن الصافي (كجم): 6.7
الوزن الصافي بدون الحامل (كجم): 4.4
الوزن الإجمالي (كجم): 8.1 - المقاسات (عرض × ارتفاع × عمق)العبوة (بوصة): 30.5 x 18.3 x 5.5
الأبعاد الفعلية (بوصة): 24.17 x 16.06~21.18 x 9.18
الأبعاد الفعلية بدون الحامل (بوصة): 24.17 x 14.4 x 2.01 - المقاسات (متري) (عرض × ارتفاع × عمق)العبوة (مم): 775 x 465 x 140
الأبعاد الفعلية (مم): 613.8 x 408~538 x 233.29
الأبعاد الفعلية بدون الحامل (مم): 613.8 x 365.8 x 51 - عاماللوائح التنظيمية: Energy Star, EPEAT, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, TCO 10.0, EAC, UkrSEPRO, RCM, BIS
محتويات العبوة: VG2709U-2K x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v2.0; Male-Male) x1, USB Type-C Cable (Male-Male) x1, USB A/B Cable (v3.2; Male-Male) x1, Quick Start Guide x1
إعادة التدوير/التخلص: Please dispose of in accordance with local, state or federal laws.
الضمان: *Warranty offered may differ from market to market
إدارة الطاقة: Energy Star standards, EPEAT
