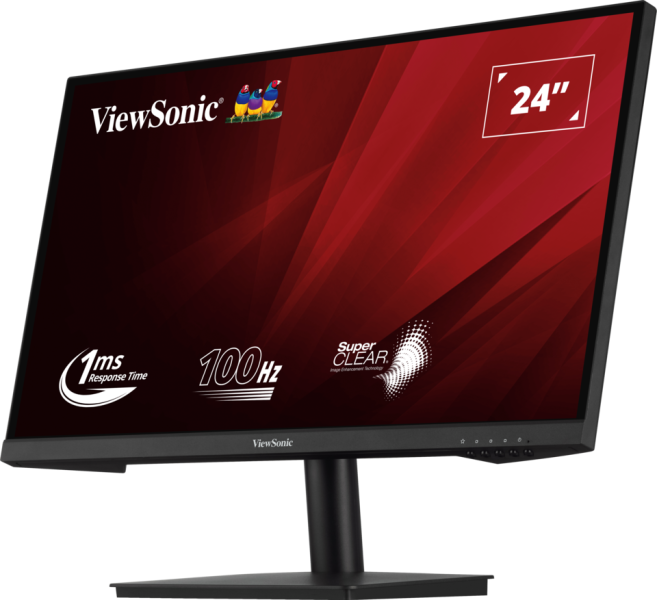

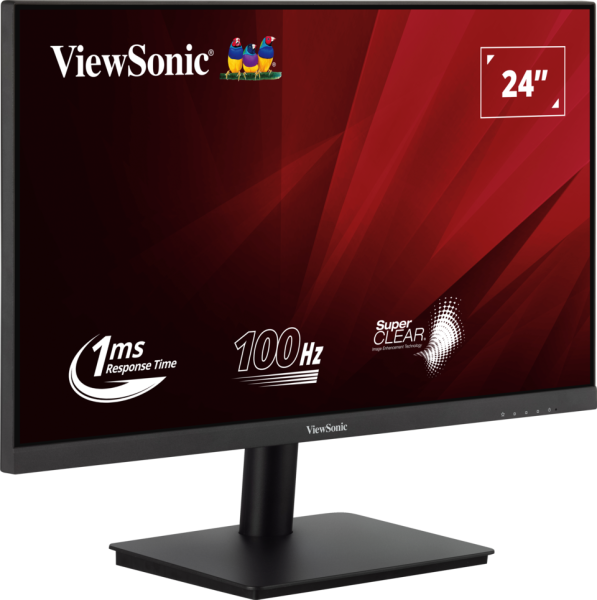

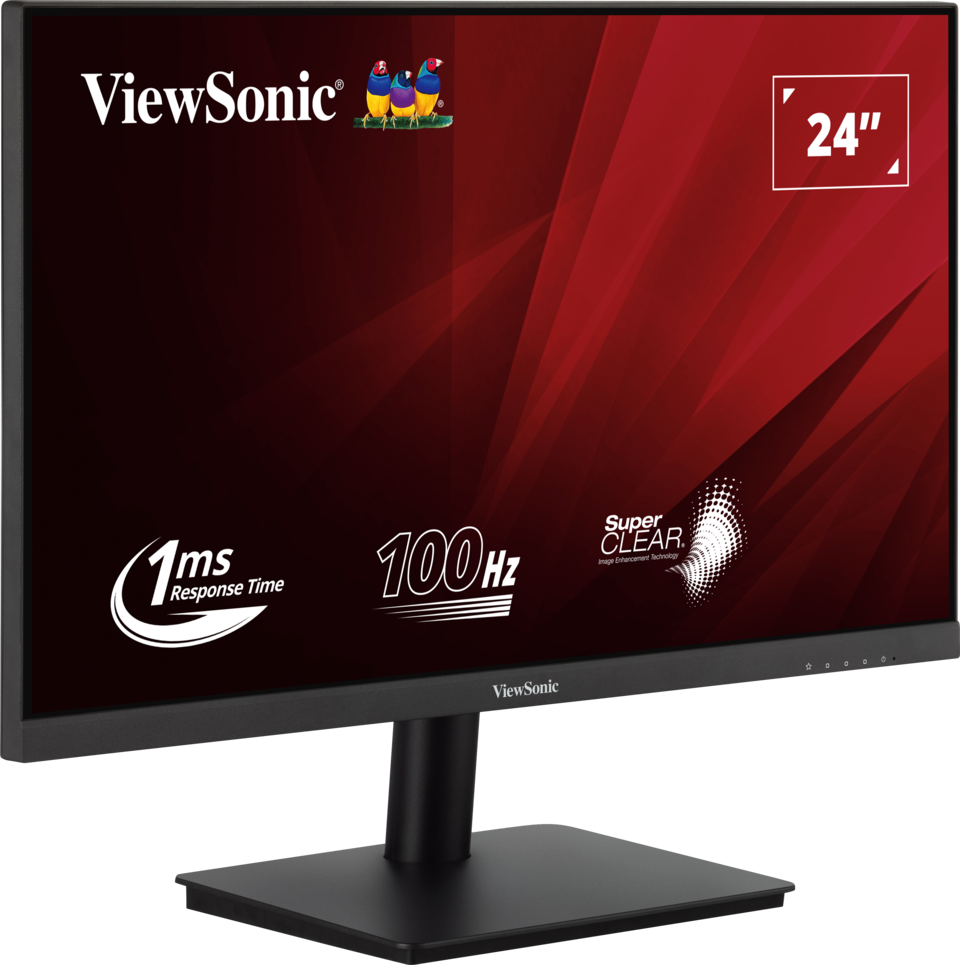

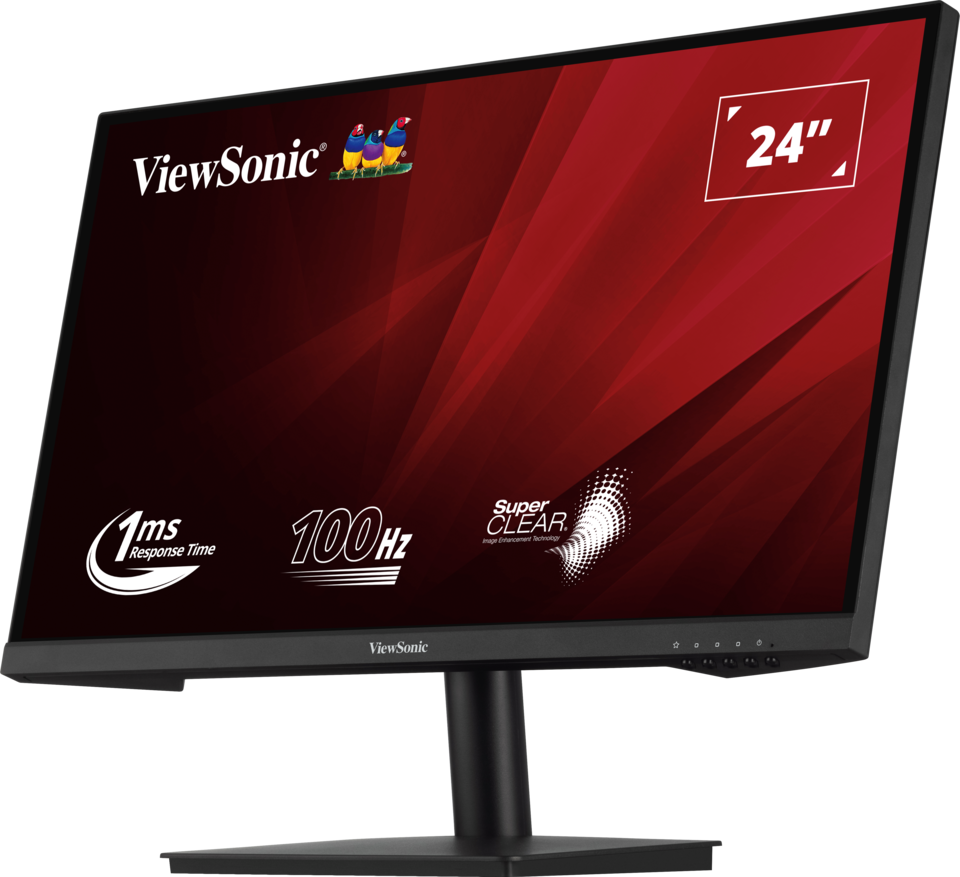

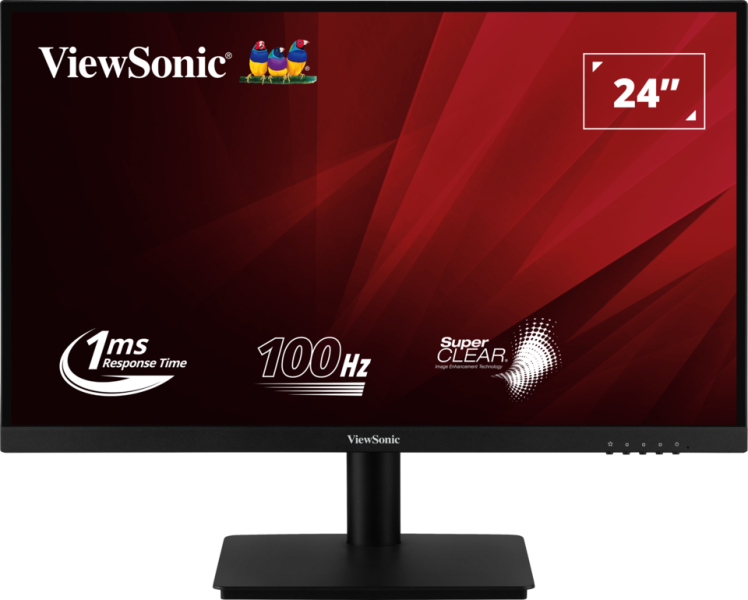

VA2406-h
24” Full HD Monitor
- SuperClear® VA panel
- Eye-care technology for comfortable viewing
- Eco-mode for low energy consumption
- ViewMode color rendering options
- HDMI and VGA inputs for connectivity
نظرة عامة
The ViewSonic VA2406-h is a 24” Full HD monitor with HDMI and VGA input for business or home usage. Delivering a stunning image quality with low power consumption, this monitor provides six ViewMode presets that deliver optimized screen performance based on your needs. The eye care technology that comes standard with all VA monitors helps to eliminate eyestrain from extended viewing periods. A VESA-compatible mount makes this monitor is easy to setup on the wall or with a wide range of industry-standard mounts.Viewing Clarity from Wide Angles
Enjoy superb performance and better viewing quality from horizontal to vertical angles. With SuperClear® Vertical Alignment panel technology, the monitor remains clear and in good contrast color from 178° all around, whether you are looking at the screen from above, below, the front, or the side.SuperClear® 178°/178°

Full HD 1080p
Full HD 1920x1080 resolution creates unbelievably clear pixel-by-pixel image performance. Experience amazing clarity and detail while working, gaming, or enjoying the latest entertainment.
Comfortable Viewing
Flicker-Free technology and a Blue Light Filter help to eliminate eye strain from extended viewing periods.Flicker Free
Blue Light Filter

Color Rendering Options
ViewSonic’s ViewMode feature offers “Game”, “Movie”, “Web”, “Text”, and “Mono” presets. These presets enhance gamma curve, color temperature, contrast, and brightness to deliver an optimized viewing experience for different uses.ViewMode: Game/Movie/Web/Text/Mono/Mac

Low Energy Consumption
Designed for energy efficiency in mind, ViewSonic’s Eco Mode results in a smaller carbon footprint and reduced office overhead costs.Eco-Mode

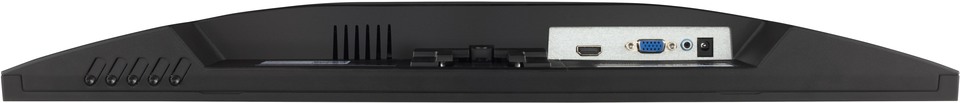

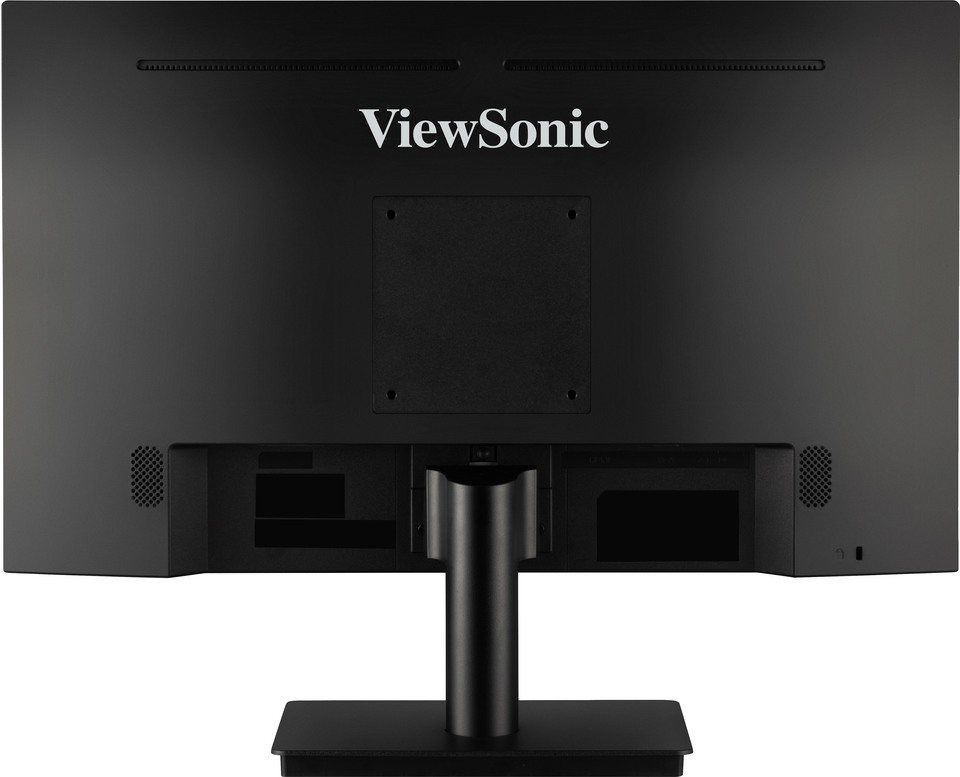

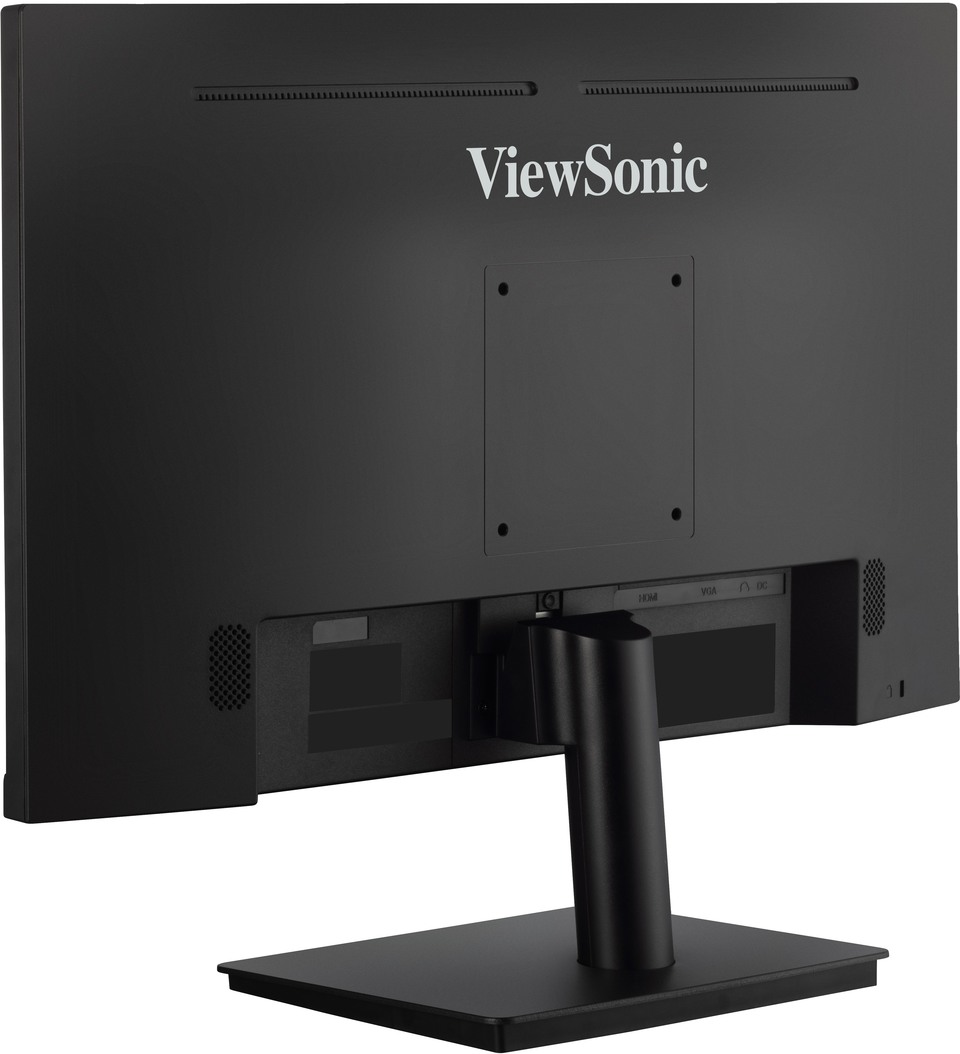

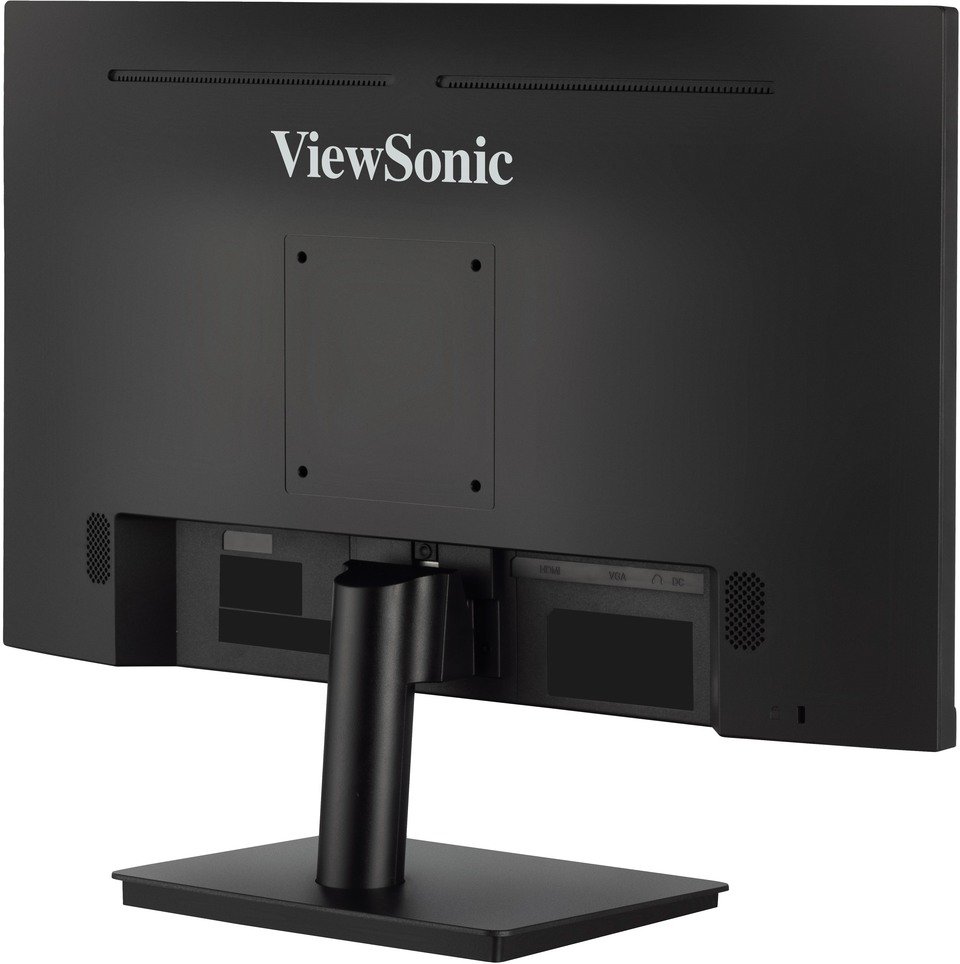

Dimensions & I/O Ports

- Menu Control Panel
- VESA Compatible
(Wall Mount 100 x 100mm) - HDMI
- VGA
- Earphone
- DC in
المواصفات
- الشاشةحجم الشاشة (بوصة): 24
المساحة المرئية (بوصة): 23.8
نوع اللوحة: VA Technology
الدقة: 1920 x 1080
نوع الدقة: FHD (Full HD)
نسبة التباين الثابت: 4,000:1 (typ)
نسبة التباين الديناميكي: 50M:1
مصدر الضوء: LED
السطوع: 250 cd/m² (typ)
الألوان: 16.7M
مساحات الألوان المدعومة: 8 bit true
الابعاد المتزنة: 16:9
زمن الاستجابة (MPRT): 1ms
زوايا النظر: 178º horizontal, 178º vertical
عمر الإضاءة الخلفية (ساعات): 30000 Hrs (Min)
صلابة الزجاج: 3H
انحناء: Flat
معدل التحديث (هرتز): 100
تقنية معدل التحديث المتغير: Yes
فلتر الضوء الأزرق: Yes
إضاءة زرقاء منخفضة: Software solution
خالٍ من الوميض: Yes
نطاق الألوان: NTSC: 72% size (Typ)
sRGB: 104% size (Typ)
حجم البكسل: 0.275 mm (H) x 0.275 mm (V)
معالجة السطح: Anti-Glare, Hard Coating (3H) - التوافقدقة الكمبيوتر (الحد الأقصى): 1920x1080
دقة Mac® (الحد الأقصى): 1920x1080
نظام تشغيل الكمبيوتر: Windows 10/11 certified; macOS tested
دقة Mac® (الحد الأدنى): 1920x1080 - موصلVGA: 1
مخرج صوت 3.5 ملم: 1
HDMI 1.4: 1
دخل الطاقة: DC Socket (Center Positive)
- الطاقةالوضع الاقتصادي (توفير): 18W
الوضع الاقتصادي (مُحسّن): 22W
الاستهلاك (نموذجي): 25W
الاستهلاك (الحد الأقصى): 27W
الجهد: AC 100-240V
وضع الاستعداد: 0.3W
مصدر الطاقة: External Power Adaptor - أجهزة إضافيةفتحة قفل Kensington: 1
- ادواة التحكمأزرار التحكم المادية: Key 1 (favorite), Key 2, Key 3, Key 4, Key 5 (power)
قائمة العرض على الشاشة (OSD): Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu - ظروف التشغيلدرجة الحرارة: 32°F to 104°F (0°C to 40°C)
الرطوبة (بدون تكثّف): 20% to 90% - Wall Mount متوافق مع VESA: 100 x 100 mm
- إشارة الإدخالالتردد الأفقي: RGB Analog: 24 ~ 86KHz, HDMI (v1.4): 30 ~ 115KHz
التردد الرأسي: RGB Analog: 48 ~ 75Hz, HDMI (v1.4): 48 ~ 100Hz - دخل الفيديومزامنة رقمية: TMDS - HDMI (v1.4)
المزامنة التناظرية: Separate - RGB Analog - التصميم المريحالإمالة (للأمام/للخلف): -3º / 20º
- الوزن (إمبراطوري)الوزن الصافي (رطل): 7.5
الوزن الصافي بدون الحامل (رطل): 6.6
الوزن الإجمالي (رطل): 10.6 - Weight (metric) الوزن الصافي (كجم): 3.4
الوزن الصافي بدون الحامل (كجم): 3
الوزن الإجمالي (كجم): 4.8 - المقاسات (عرض × ارتفاع × عمق)العبوة (بوصة): 24.5 x 16.5 x 5.7
الأبعاد الفعلية (بوصة): 21.2 x 16.6 x 7.4
الأبعاد الفعلية بدون الحامل (بوصة): 21.2 x 12.7 x 2 - المقاسات (متري) (عرض × ارتفاع × عمق)العبوة (مم): 622 x 420 x 144
الأبعاد الفعلية (مم): 540 x 423 x 189
الأبعاد الفعلية بدون الحامل (مم): 540 x 323 x 51 - عاماللوائح التنظيمية: CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BSMI, TGM, RCM, GEMS, BIS
محتويات العبوة: VA2406-H x1, HDMI Cable (v1.4; Male-Male) x1, AC/DC Adapter x1, Quick Start Guide x1
إعادة التدوير/التخلص: Please dispose of in accordance with local, state or federal laws.
الضمان: *Warranty offered may differ from market to market
