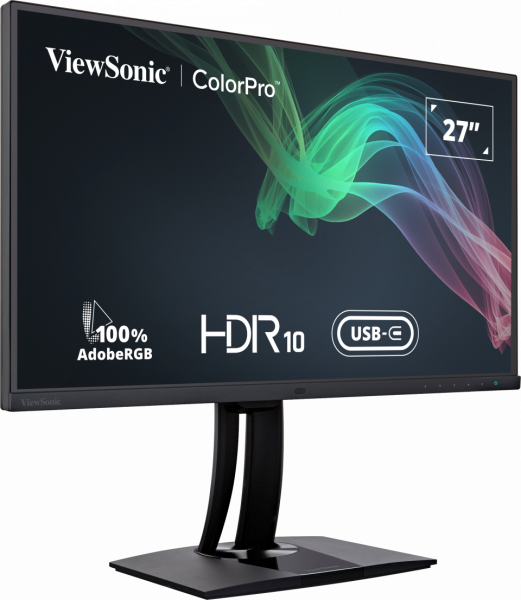

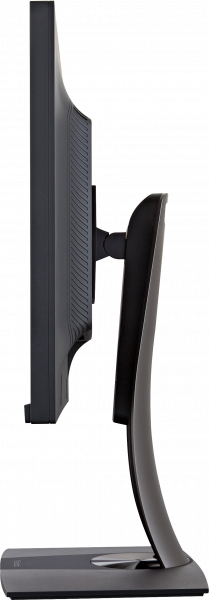

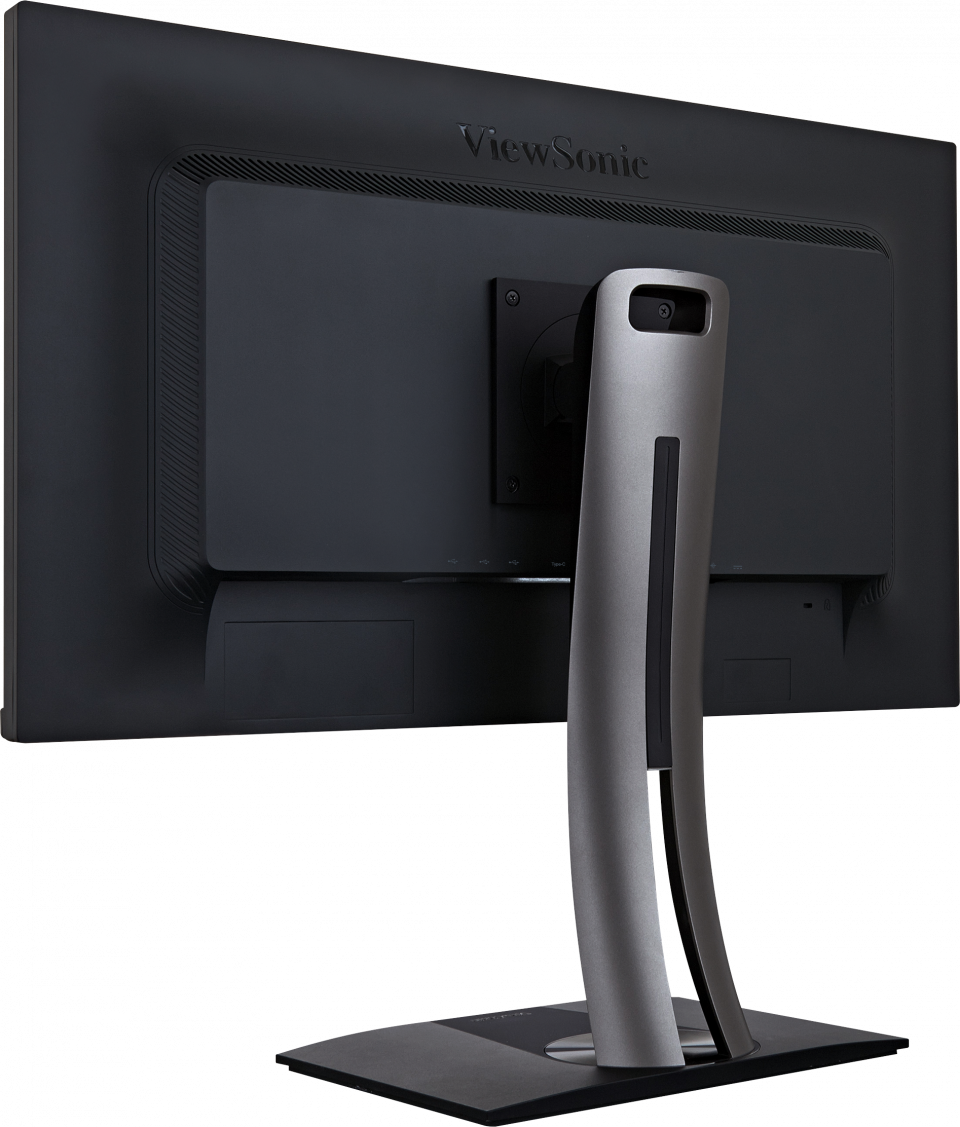

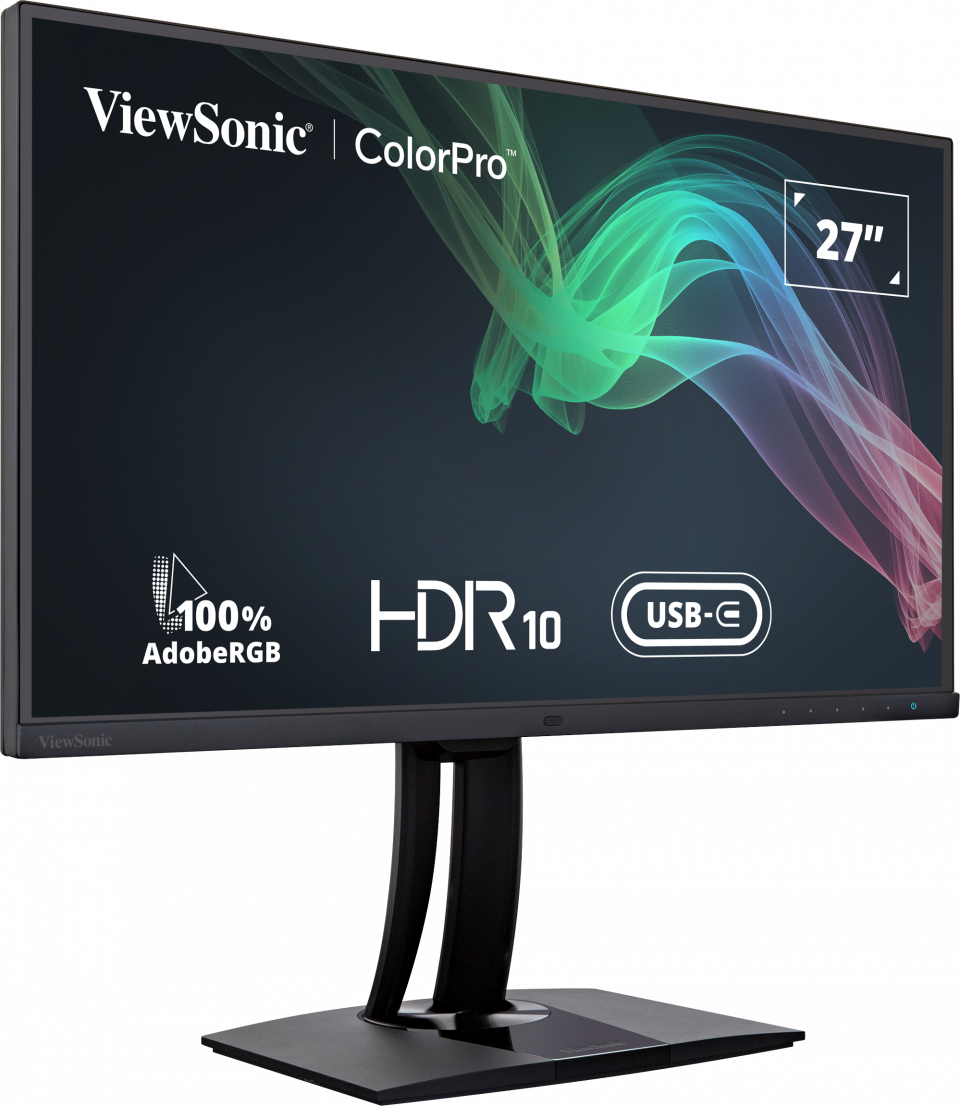

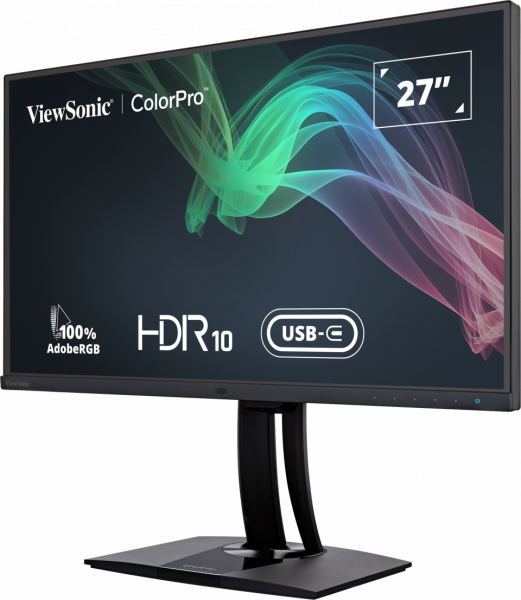

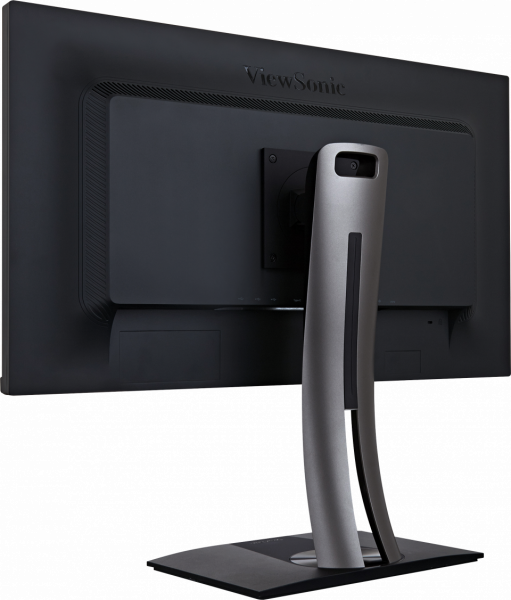

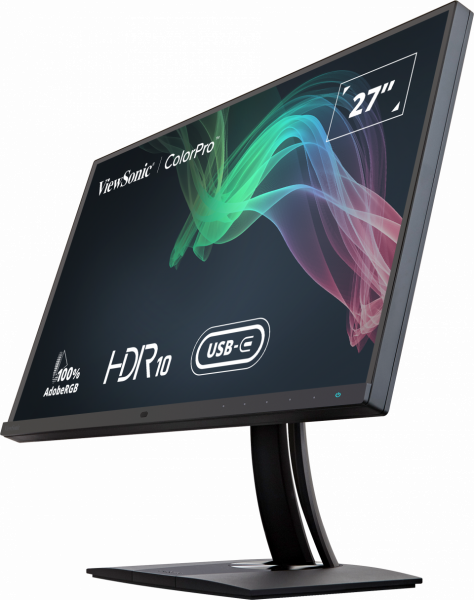

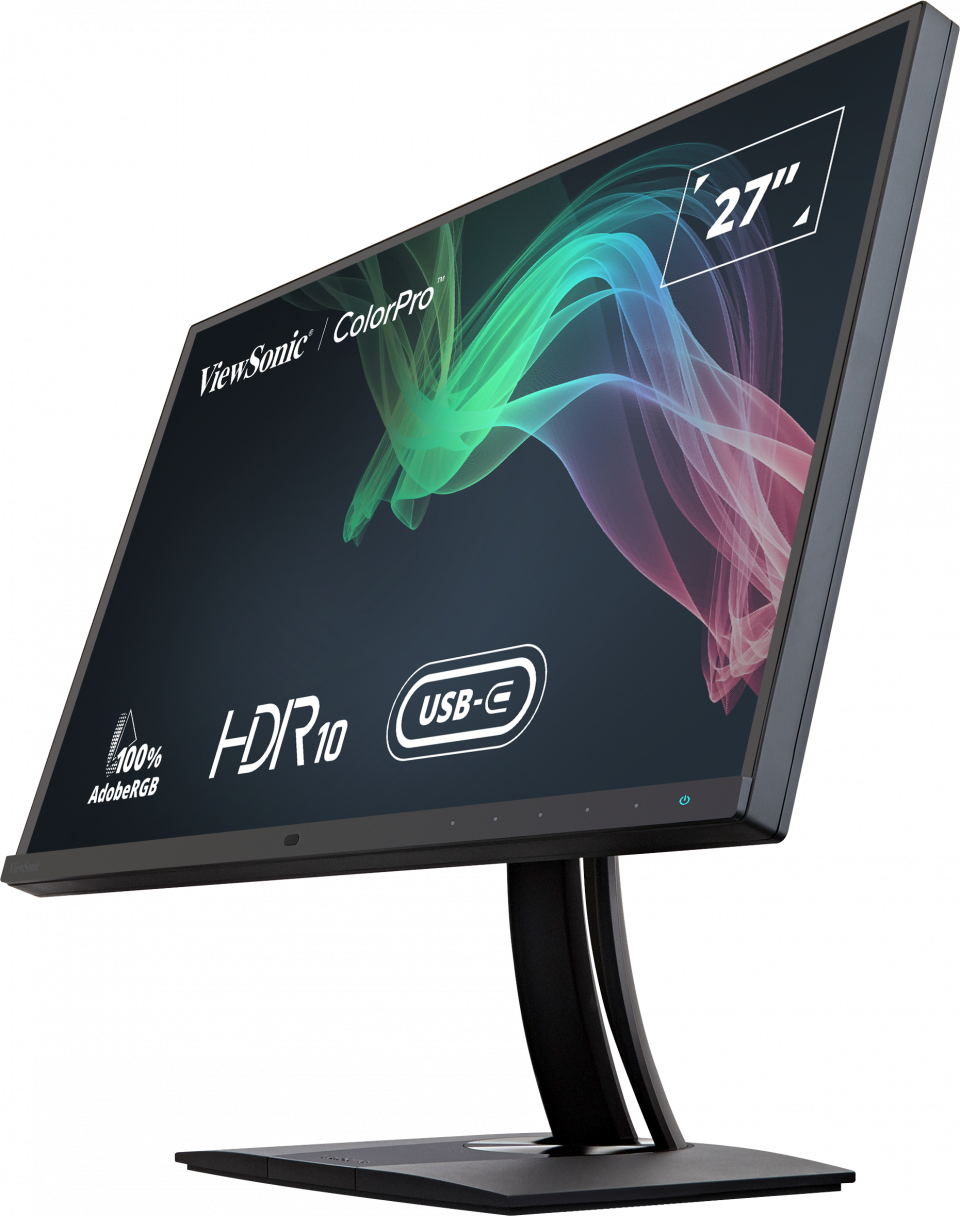

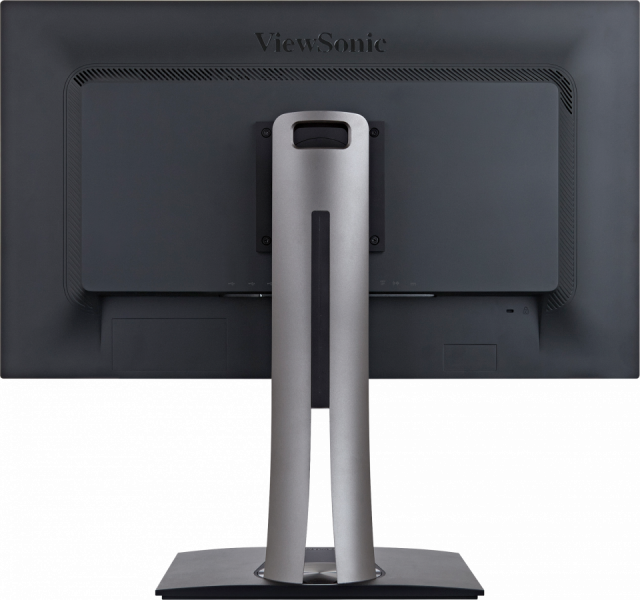

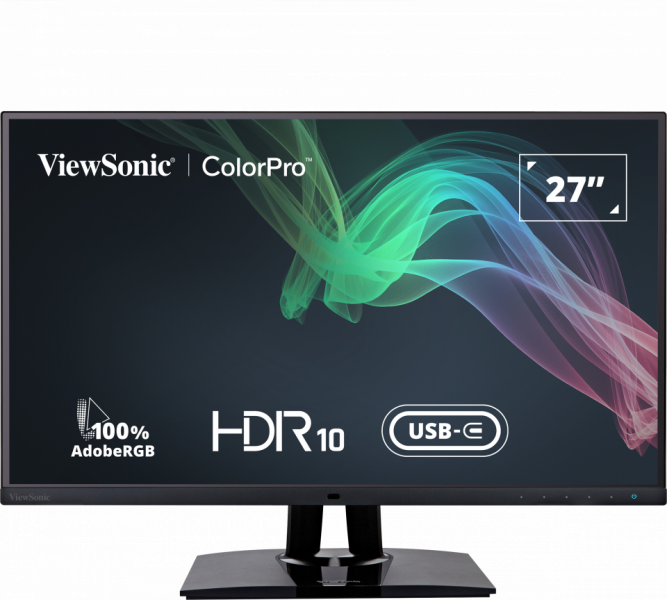

VP2785-4K

27" 100% Adobe RGB Professional Monitor

4K Ultra HD resolution
Backlight sensor
KVM Switch technology with USB Type-C 60W Charging

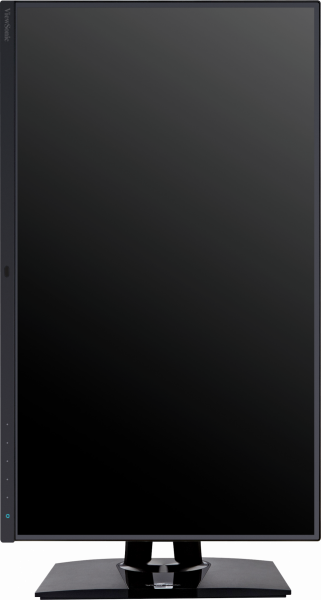

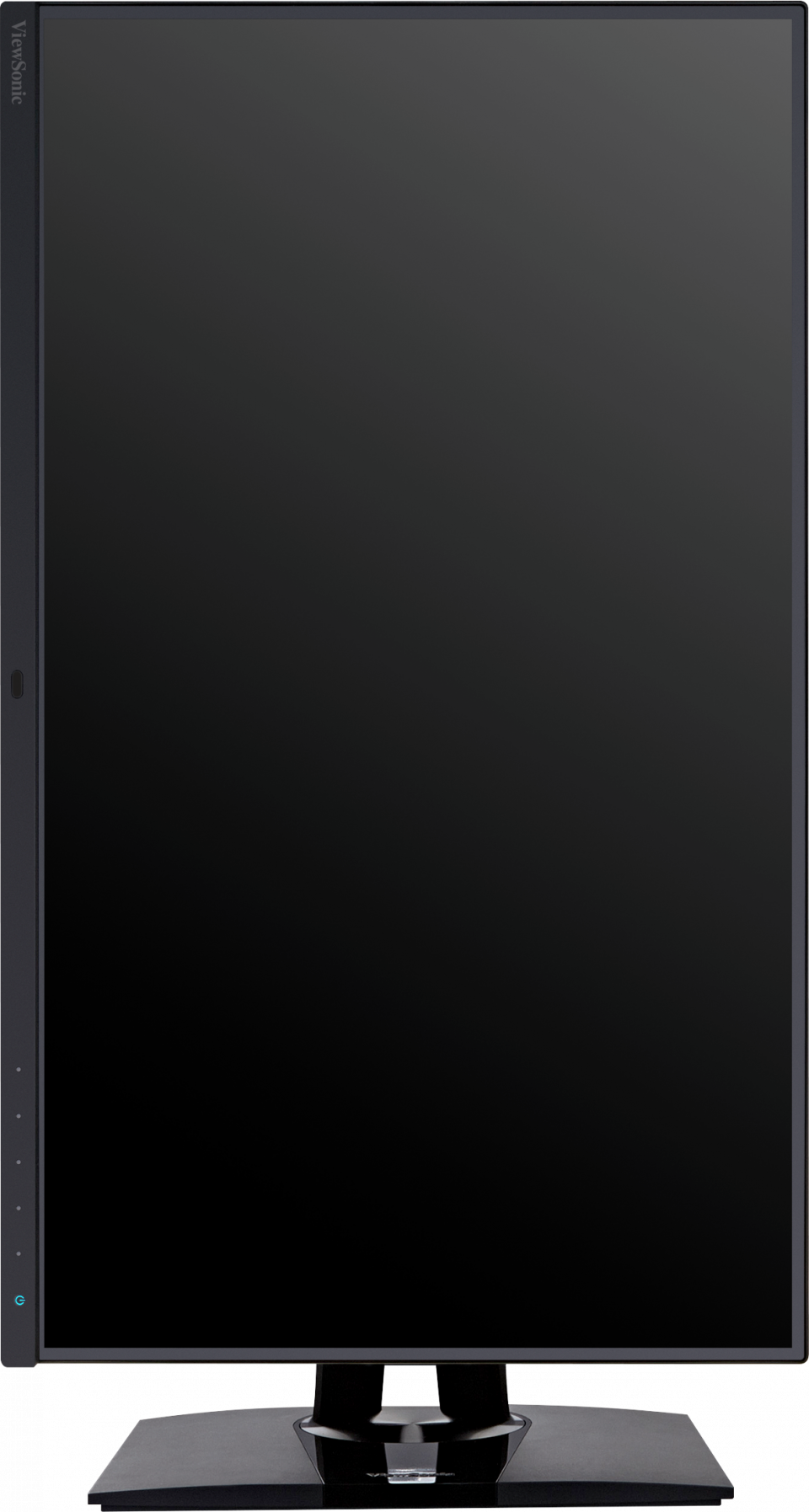

Ergonomic stand with auto pivot
Hardware colour calibration

شراء

المراجعات

PCMag Editors' Choice Award

“While it is very similar to the ViewSonic VP2780-4K, which earned our Editors' Choice way back in 2015, the VP2785-4K offers some distinct improvements. It adds a USB Type-C port, which can charge a laptop that's connected to it, as well as letting you take advantage of an unusual KVM-switch feature.”

قراءة الاستعراض

Viewsonic VP2785-4K Professional Monitor

“Viewsonic has been a known and respected name in the monitor domain and I had the pleasure to use their wide-gamut VP2785-4K monitor for a month so I noted a few things after rigorous use.”

قراءة الاستعراض

Vimal Chintapatla - Unboxing

“My Most Expensive Monitor has arrived !!”

قراءة الاستعراض

ViewSonic VP2785-4K – Ultra-HD-Monitor für anspruchsvolle Fotografen, Grafikdesigner und Videoeditoren

“The VP2785-4K combines ergonomic and meaningful design with modern techniques. He has all the usual color profiles, so that photographers, graphic artists, videographers and editors can pursue their work without restrictions.”

قراءة الاستعراض

Análisis monitor ViewSonic VP2785-4K

قراءة الاستعراض

المواصفات

الشاشة
حجم الشاشة (بوصة): 27
Viewable Area (in.): 27
Panel Type: IPS Technology
Resolution: 3840 x 2160
Resolution Type: UHD (Ultra HD)
Static Contrast Ratio: 1,000:1 (typ)
Dynamic Contrast Ratio: 20M:1
High Dynamic Range: HDR10
Light Source: LED
السطوع: 350 cd/m² (typ)
Colors: 1.07B
Color Space Support: 10 bit (8 bit + A-FRC)
الابعاد المتزنة: 16:9
Response Time (Typical GTG): 5ms
Response Time (GTG w/OD): 5ms
زوايا النظر: 178º horizontal, 178º vertical
عمر الإضاءة الخلفية (ساعات): 30000 Hrs (Min)
Glass Hardness: 3H
انحناء: Flat
Refresh Rate (Hz): 60
فلتر الضوء الأزرق: Yes
Low Blue Light: Software solution
Flicker-Free: Yes
Color Gamut: Adobe RGB: 109% size / 99% coverage (Typ)
DCI-P3: 108% size / 95% coverage (Typ)
EBU: 145% size / 100% coverage (Typ)
REC709: 147% size / 100% coverage (Typ)
SMPTE-C: 166% size / 100% coverage (Typ)
NTSC: 104% size (Typ)
sRGB: 147% size / 100% coverage (Typ)
Pixel Size: 0.155 mm (H) x 0.155 mm (V)
Surface Treatment: Anti-Glare, Hard Coating (3H)
التوافق
PC Resolution (max): 3840x2160
Mac® Resolution (max): 3840x2160
PC Operating System: Windows 7/8/8.1/10/11 certified; macOS tested
Mac® Resolution (min): 3840x2160
موصل
USB 3.2 Type A Down Stream: 3
USB 3.2 Type B Up Stream: 1
USB 3.2 Type C Up Stream; DisplayPort Alt mode : 1 (60W power charger)
مخرج صوت 3.5 ملم: 1
HDMI 2.1: 2
منفذ الشاشة: 1
Mini DisplayPort: 1
Power in: DC Socket (Center Positive)

Power
Eco Mode (Conserve): 45W
Eco Mode (optimized): 55W
الاستهلاك (نموذجي): 67W
الاستهلاك (الحد الأقصى): 70W
Voltage: AC 100-240V
Stand-by: 0.5W
Power Supply: External Power Adaptor
أجهزة إضافية
Kensington Lock Slot: 1
Cable Organization: Yes
ادواة التحكم
Physical Controls: Key 1, Key 2, Key 3, Key 4, Key 5, Key 6 (power)
On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu
Operating Conditions
Temperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90%
Wall Mount
VESA Compatible: 100 x 100 mm
Input Signal
Frequency Horizontal: 15 ~ 204KHz
Frequency Vertical: 24 ~ 120Hz
Video Input
مزامنة رقمية: TMDS - HDMI (v2.1), PCI-E - DisplayPort (v1.4), PCI-E - mini DisplayPort (v1.4), Micro-Packet - Type C
Ergonomics
Height Adjust (mm): 130
Swivel: 120º
Tilt (Forward/Back): -5º / 21º
Pivot (Right/Left): 90º / 90º
Weight (imperial)
Net (lbs): 13.8
Net Without Stand (lbs): 8.5
Gross (lbs): 21.1
Weight (metric)
Net (kg): 6.3
Net Without Stand (kg): 3.8
Gross (kg): 9.6
المقاسات (عرض × ارتفاع × عمق)
Packaging (in.): 28.3 x 18.1 x 10.6
Physical (in.): 24.1 x 16.35~21.47 x 8.5
Physical Without Stand (in.): 24.1 x 14.3 x 2.2
المقاسات (متري) (عرض × ارتفاع × عمق)
Packaging (mm): 720 x 460 x 268
Physical (mm): 612 x 415.51~545.51 x 215
Physical Without Stand (mm): 612 x 363 x 57
General
PACKAGE CONTENTS: VP2785-4K x1, 3-pin Mickey Mouse Plug (IEC C5) x1, mini DisplayPort to DisplayPort Cable (v1.2; Male-Male) x1, USB A/B Cable (v3.2; Male-Male) x1, USB Type-C Cable (Male-Male) x1, AC/DC Adapter x1, Quick Start Guide x1
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
