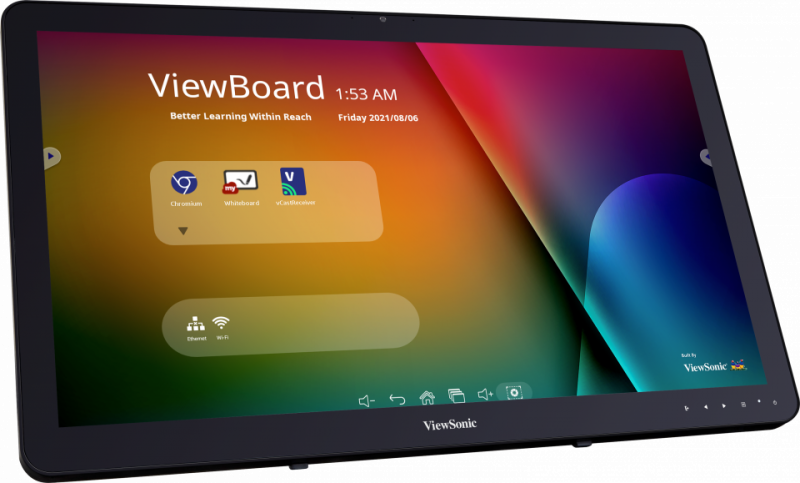

ViewBoard Mini IFP2410

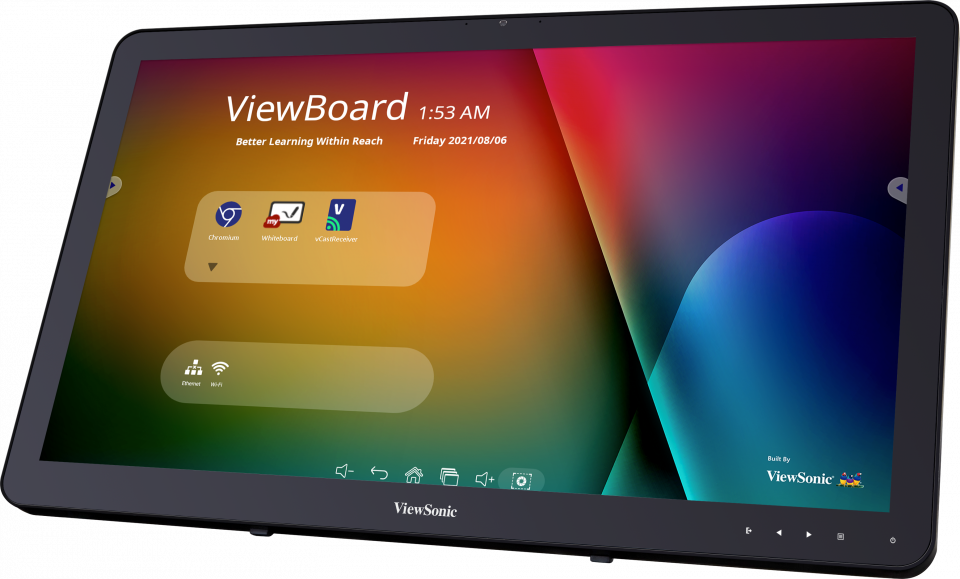

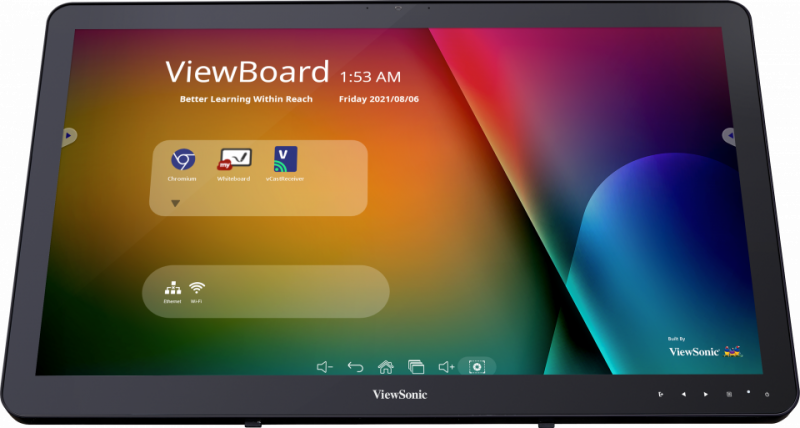

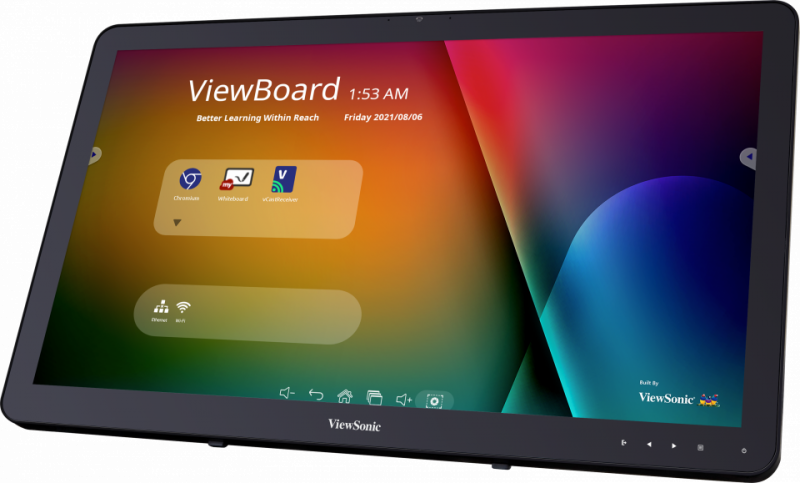

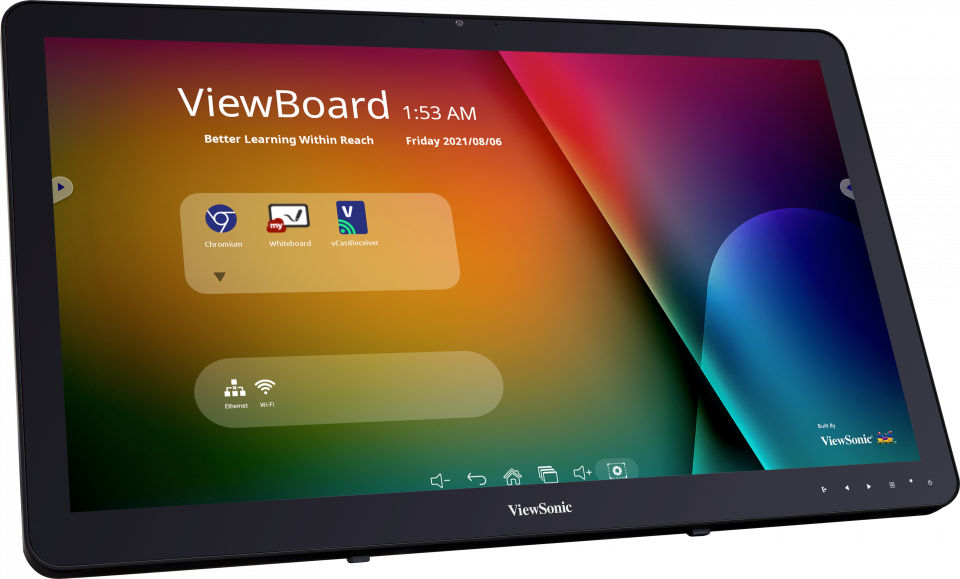

ViewBoard® Mini 24'' Interactive Display

الشاشة
Panel Size: 23.6"
Panel Type: IPS
الابعاد المتزنة: 16:9
Resolution: 1920 x 1080
السطوع: 250 nits (typ.)
نسبة التباين: 3000:1 Typ.
زوايا النظر: H = 178, V = 178 typ.
عمر الإضاءة الخلفية: 40,000 Hours Typ.
Orientation: Landscape
Platform
Processor: ARM based SoC
RAM: 2GB DDR3
Storage: 16GB EMMC iNand
Touch
Type/ Tech: PCAP Touch Technology
Touch Point: 10 points touch, 10 points writing

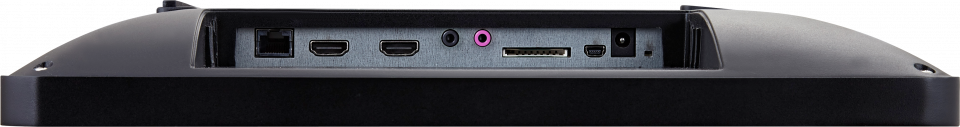

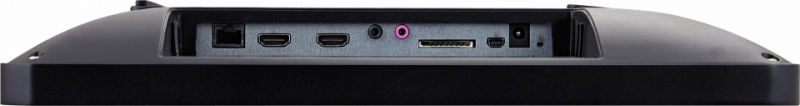

INPUT
HDMI: x1
الصوت: x1 PC audio (3.5 mm)
SD/SDHC: Yes
OUTPUT
HDMI: x1
LAN
RJ45: x1

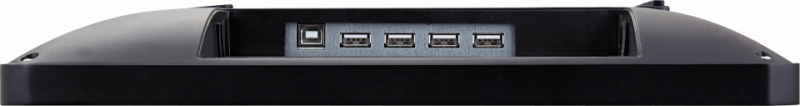

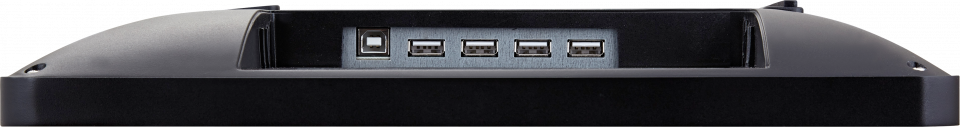

USB
Type A: USB 2.0 x4
Type B: x1 for touch
Mini USB: x1 ( for OTG)
WEBCAM
x1, 5 MP
MICROPHONE
x1, Echo Cancelling
COMPATIBILITY
HDMI: 480i, 480p, 720p, 1080i, 1080p
Embedded OS
Android 8.1
حزمة البرامج
برنامج الشرح الأساسي: myViewBoard for Android
Wireless Presentation with Touch Feedback: Viewboard Cast: vCastReceiver
Power
Voltage: 100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz
الاستهلاك: 35W (typ), 40W (max), < 0.5W (""Off"")
ERGONOMICS

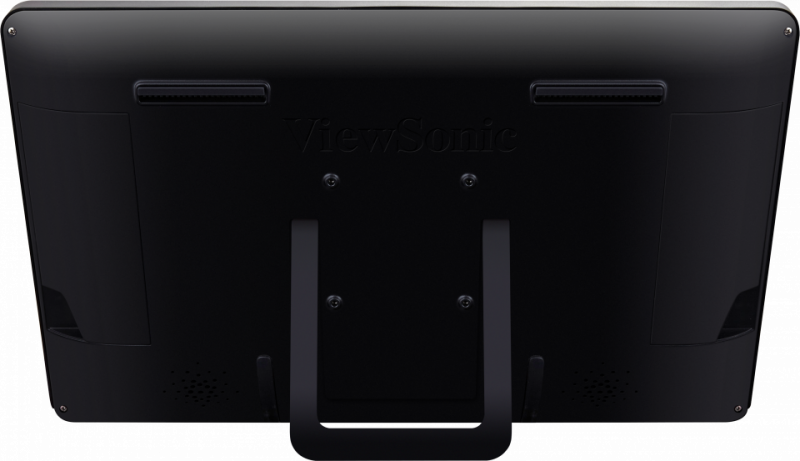

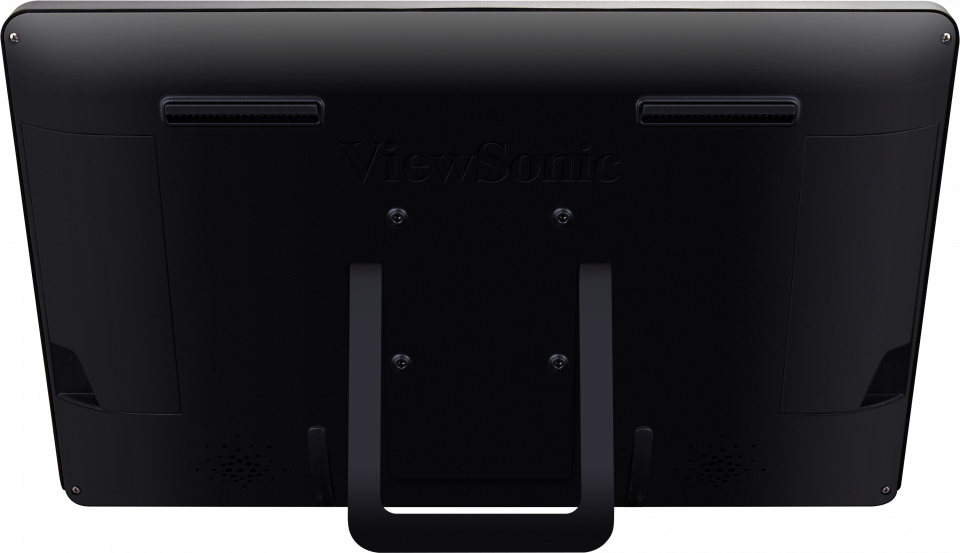

Wall Mount (VESA® ): 100 x 100
OPERATING CONDITIONS
Temperature (º C): 5°C to 40°C (Landscape only)
Humidity: 20% ~ 90% non-condensing
المقاسات (العرض × الارتفاع × العمق)
Physical (inch / mm): 572.9 x 351.8 x 47mm ( 22.6 x 13.9 x 1.9 inches)
Packaging (inch / mm): 643 x 435 x 140 mm ( 25.32 x 17.13 x 4.93 inches)
WEIGHT
Net (lb / kg): 5.64 kg (12.43 lb)
Gross (lb / kg): 7.56 Kg (16.65 lb)
PACKAGE CONTENTS
1. IFP2410 , 2. Power adapter , 3. Power cord* (*Applicable power cord is shipped with the product base on the country power type), 4. Quick Start Guide
