UMB202

TeamJoin™ 4K Video Bar System

  • Sony 4K Ultra HD camera sensor for advanced image processing
  • Intelligent auto framing and DOA voice tracking technology
  • 6-mic array beamforming soundbar with an 11W speaker

نظرة عامة

The UMB202 TeamJoin™ 4K Video Bar System is part of the ViewSonic TeamJoin™ solutions for Microsoft Teams Rooms, optimizing collaboration in meeting rooms of diverse sizes. Boasting a 4K Sony camera sensor, 5x digital zoom, auto-framing, and DOA voice tracking, it delivers a premium visual experience. Complemented by six beamforming microphones, which cover an expansive 8-meter range, and an 11W speaker, the camera ensures crystal-clear audiovisual quality for seamless communication.
TeamJoin

From Boardroom to Every Room. Videoconferencing for All.

Elevate Your Presence in Every Interaction

The UMB202 TeamJoin 4K Video Bar System's intelligent auto-framing and Direction-of-Arrival (DOA) voice tracking technology accurately detect individuals and their voices, while the 5x digital zoom with electronic pan and tilt ensures your presence is felt in every interaction, fostering inclusivity and collaboration in every meeting.

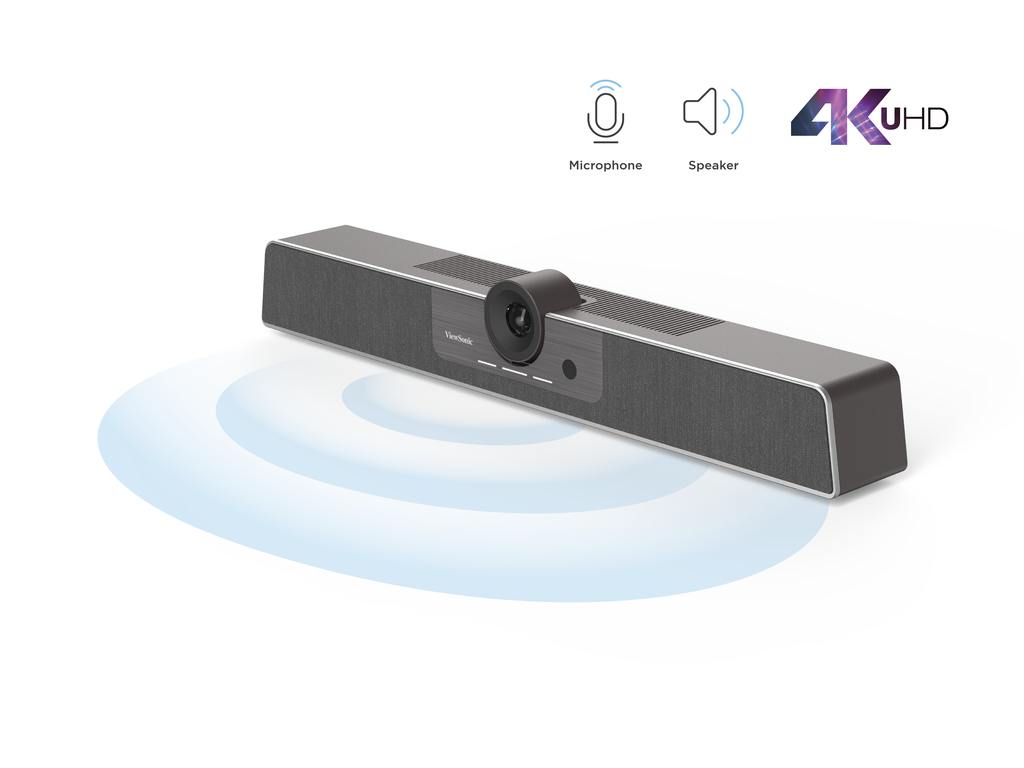

See and Hear Everyone Clearly

Ensure everyone is seen and heard with the UMB202 TeamJoin 4K Video Bar System, equipped with a built-in 6-microphone array, an 8W+3W front-facing speaker, and an Ultra HD 4K camera featuring an advanced Sony sensor..

Dimension & I/O Ports

  1. K-Slot
  2. Mic Mute
  3. Audio Out
  4. DC in
  5. C-type USB Port
  6. Power input via RJ45

المواصفات


  • الكاميرا
    الدقة: H.264/MJ: @30FPS
    (1)3840×2160 (2)2560×1440
    (3)1920×1080 (4)1280×720
    (5)1024×576 (6)960×540
    (7)800×600 (8)640×480
    (9)640×360 (10)480×270
    (11)352×288 (12)320×240
    NV12 / YUY2: @30FPS
    (1)1920×1080(2)1280×720
    (3)640×360
    المستشعر: IMX577 1/2.3 inch, CMOS, 12M pixel
    مجال الرؤية (FOV): 117.8° (DFOV) ,109° (HFOV),74.4° (VFOV)
    PTZ (تحريك/إمالة/تكبير): EPTZ (5X digital Zoom)
    تقليل الضوضاء الرقمي: Yes
    توازن اللون الأبيض: Yes
    التعريض الضوئي: Yes
  • الصوت
    مصفوفة الميكروفونات: 6 element, 8 meters pickup range
    مكبر الصوت: mid-bass modulex1, treble module x1 in one box
    (Maximum output 8W + 3W)
    قدرة الإخراج: 80 dBA @ 1000 Hz @ 1 meter at maximum volume
  • المنافذ (الإدخال/الإخراج)
    USB Type-C: 1
    خرج الصوت: 1
    طاقة DC 2.0: 1
    RJ45: 1 (Only for power supply)
    IEEE 802.3 at,25.50W (max)
    زر التشغيل: Power Button: In startup mode, press the power button to mute.
    In standby mode, press the power button to power on.
    زر كتم الميكروفون: Yes

متوافق مع: SKU
