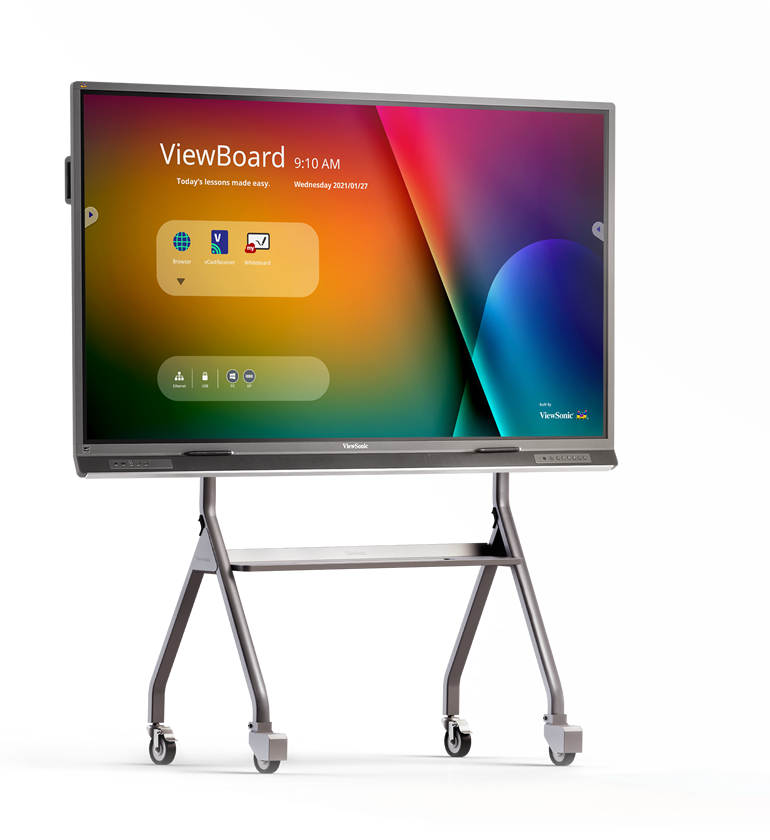

ViewBoard IFP7552

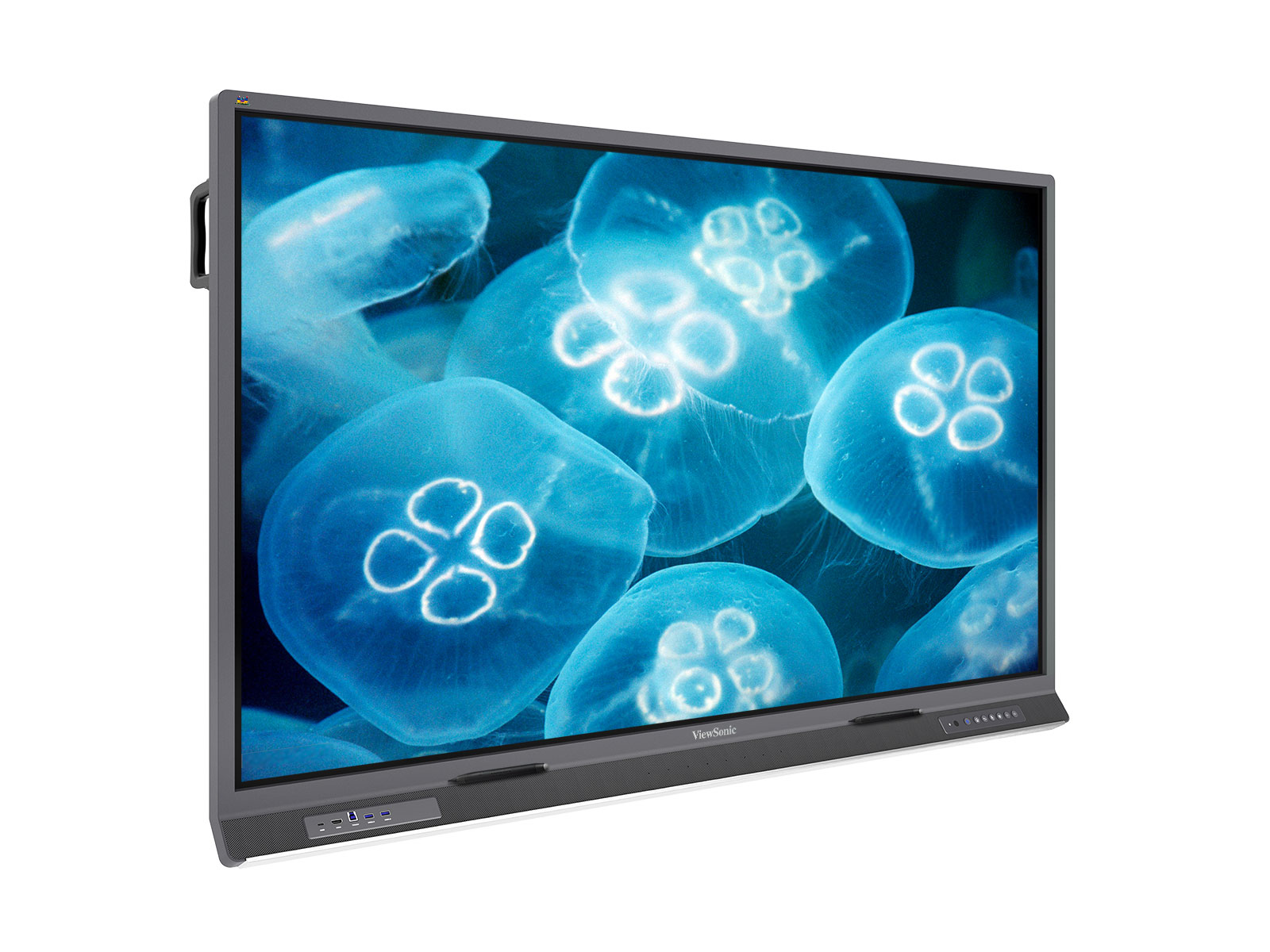

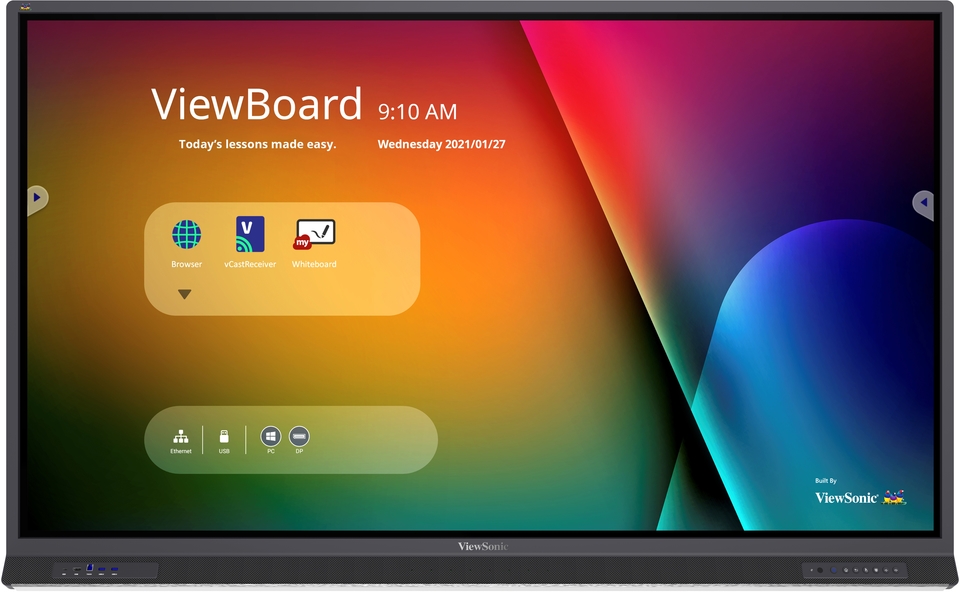

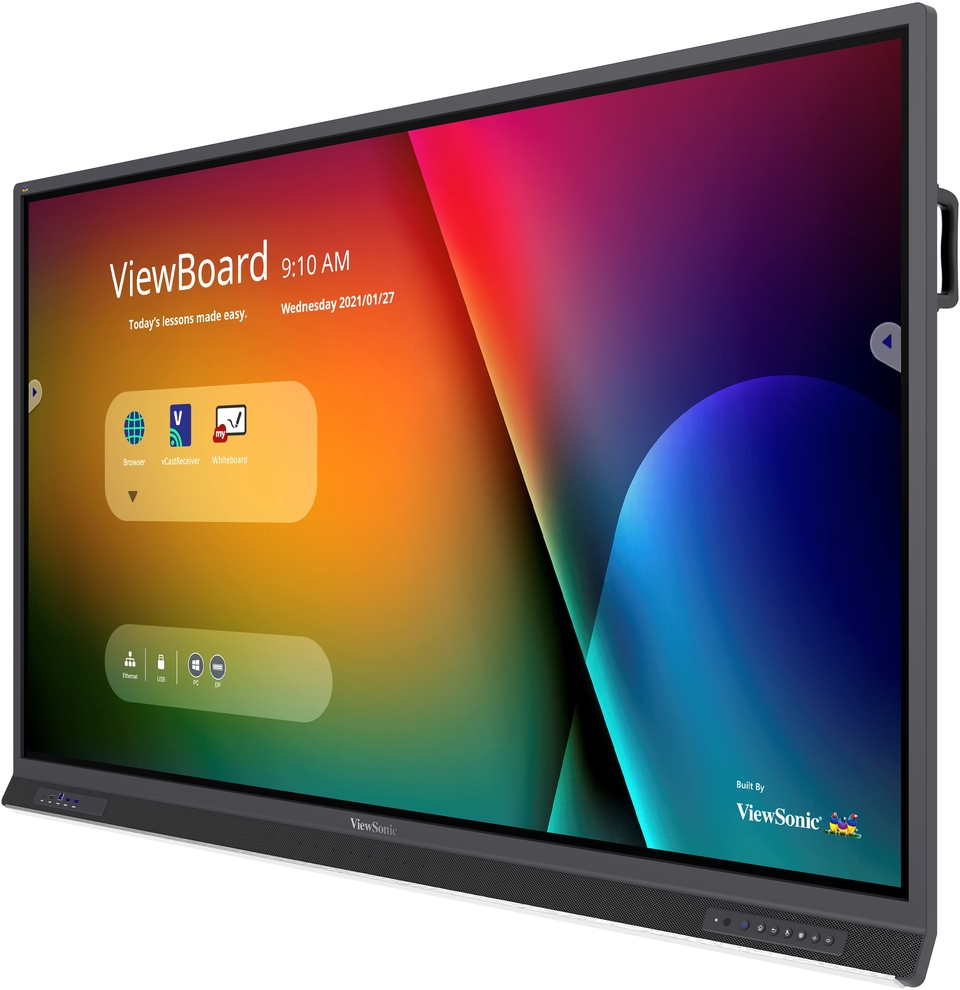

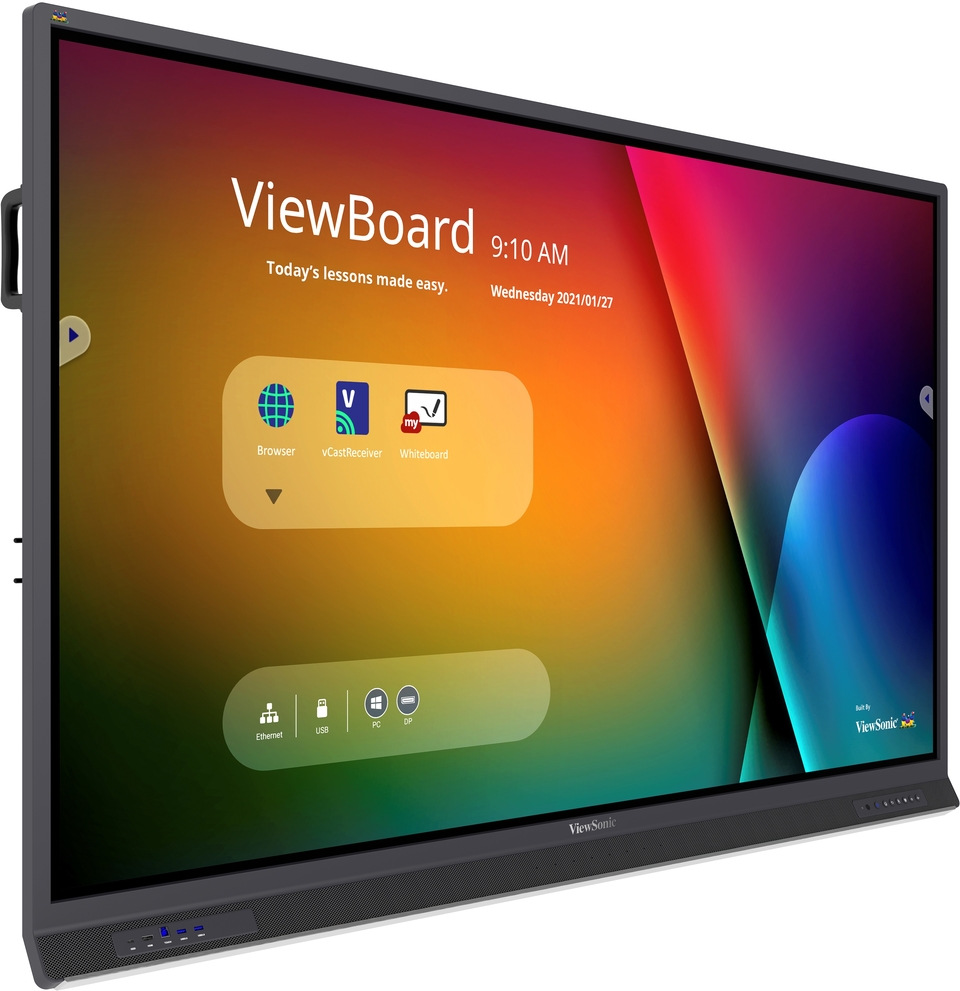

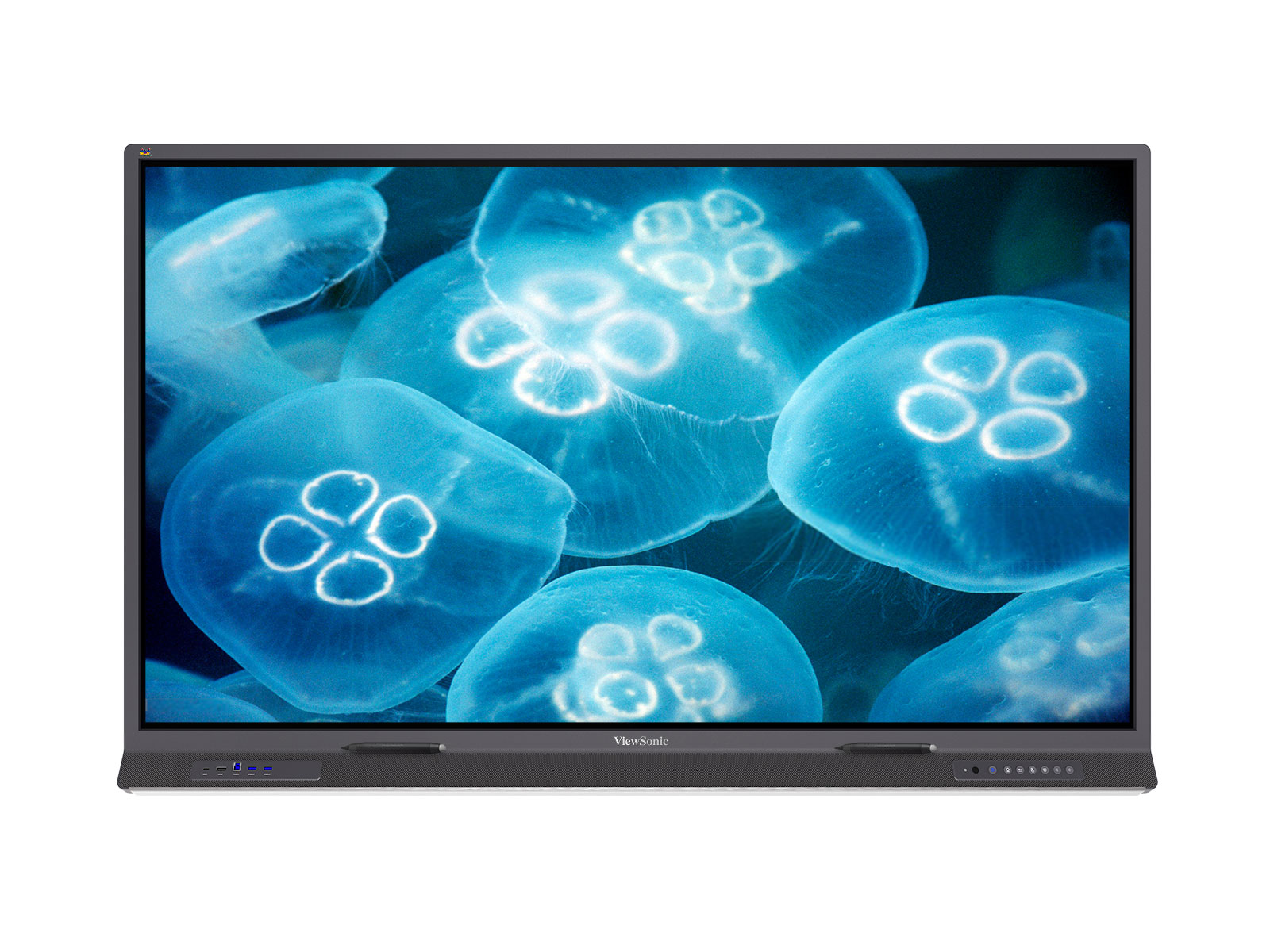

ViewBoard® 75" 4K Interactive Display

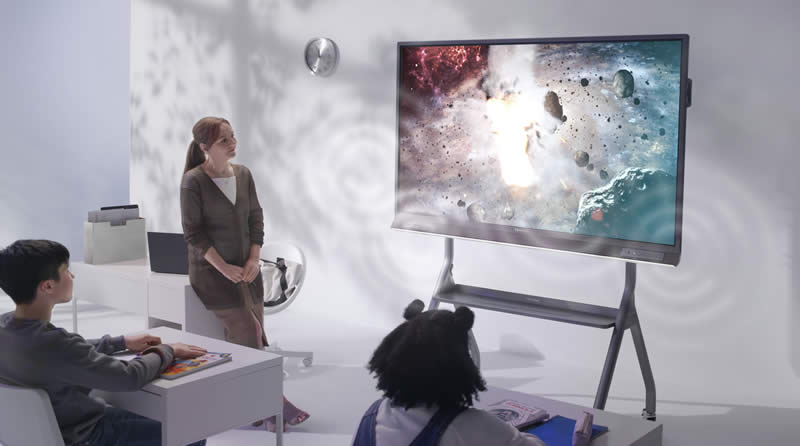

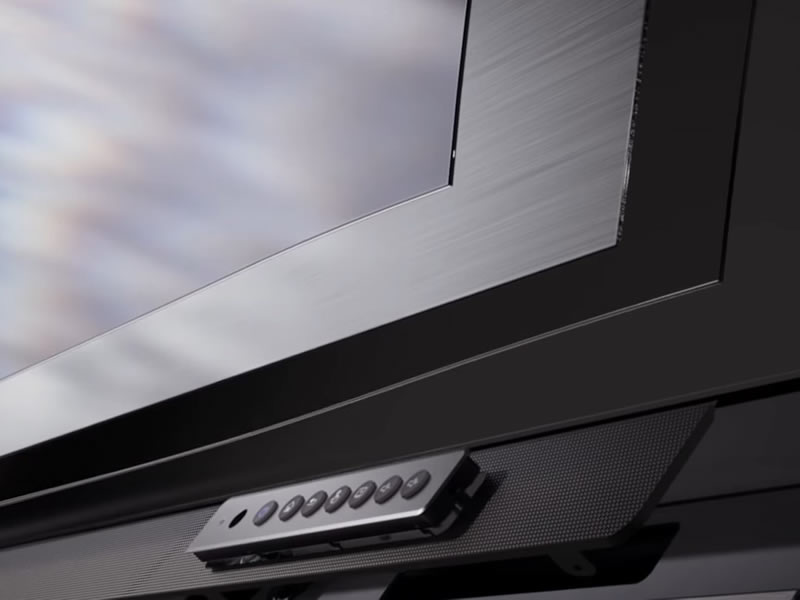

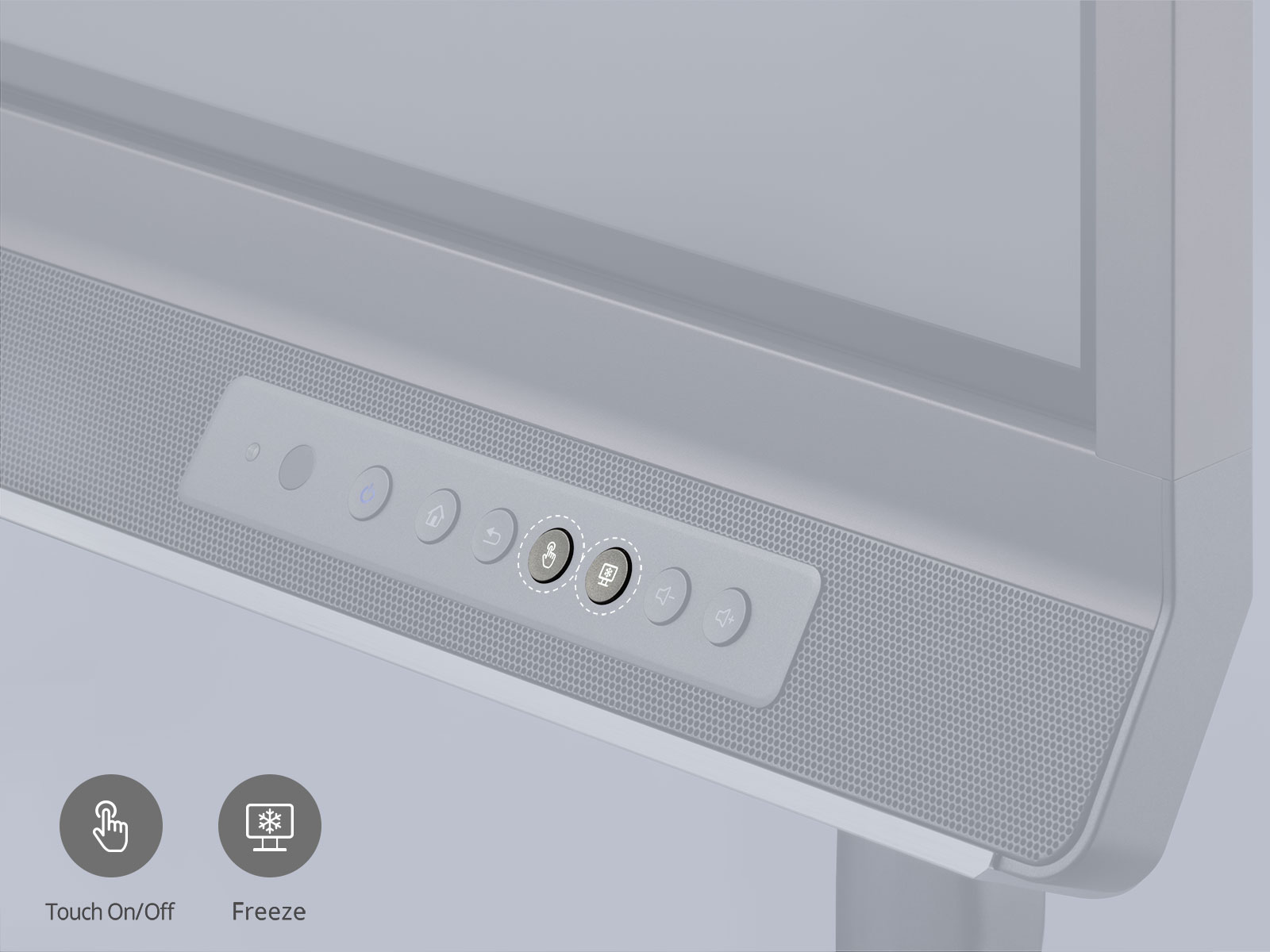

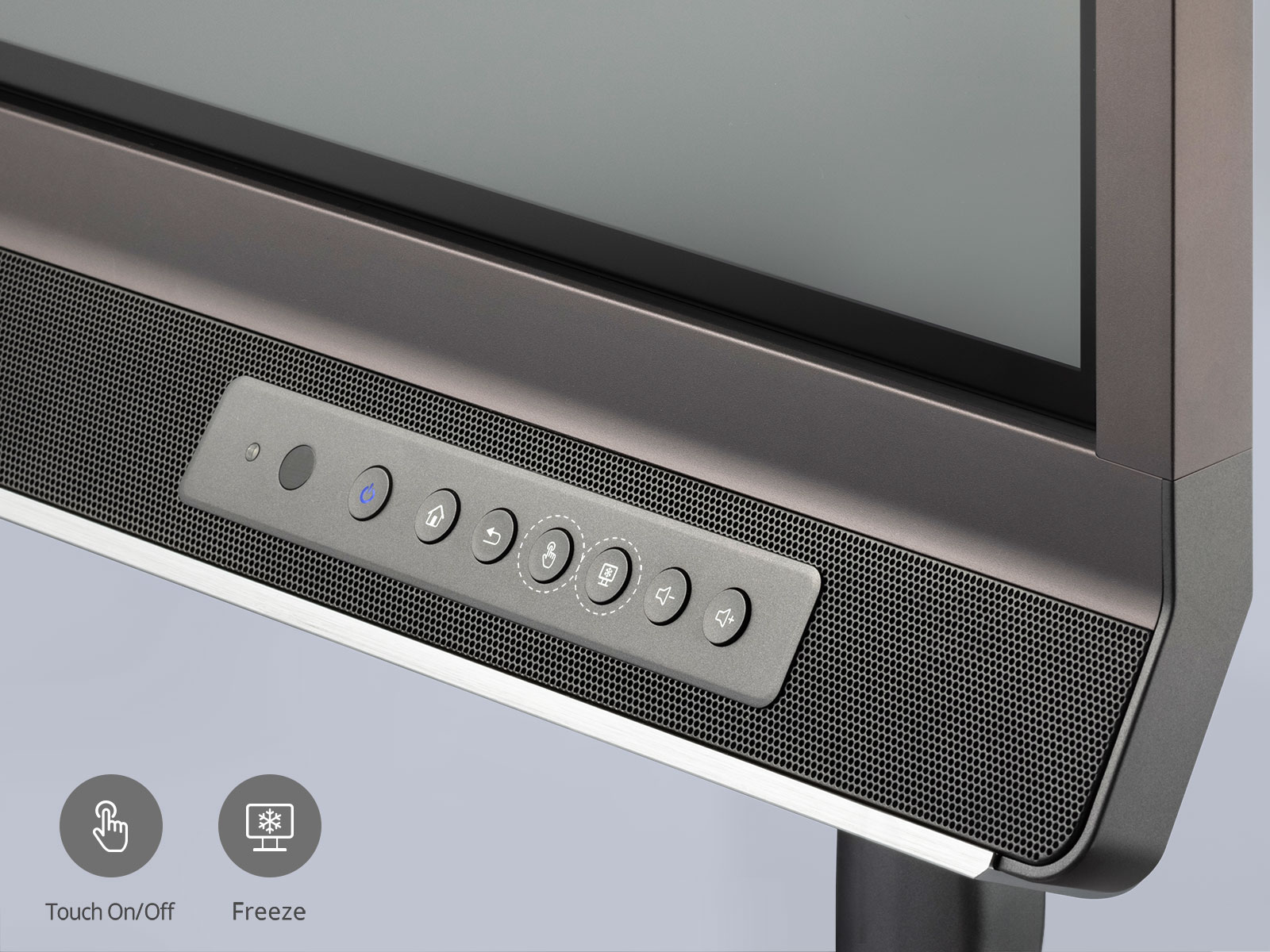

New Exterior Design with Innovative Multimedia Sound Bar

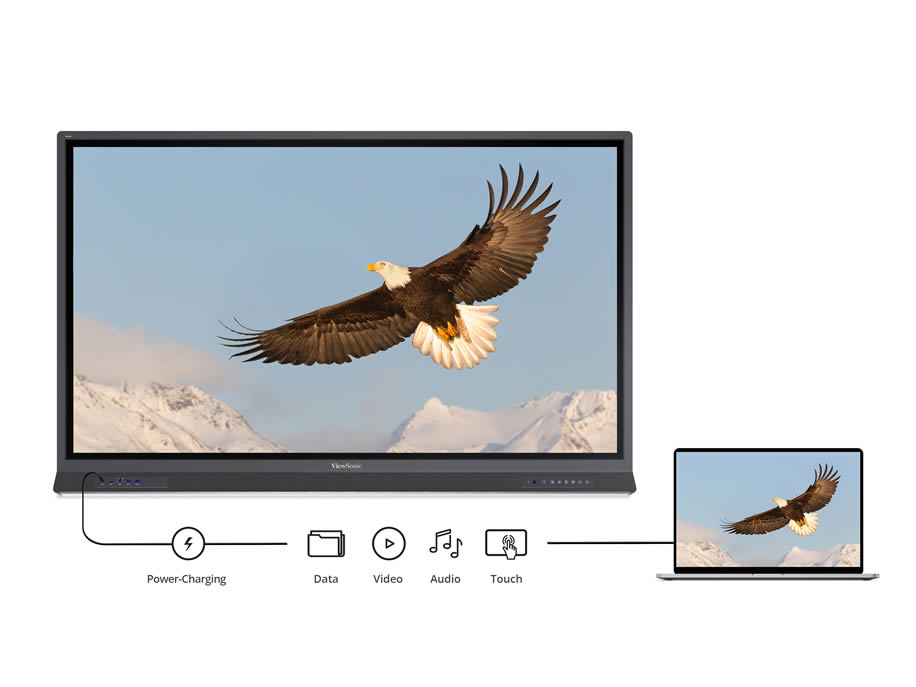

USB-C for plug-and-play connectivity via a single cable
Dual-pen, 33-point touch with naturally smooth writing experience
Industry-leading audio and advanced eye-care technology

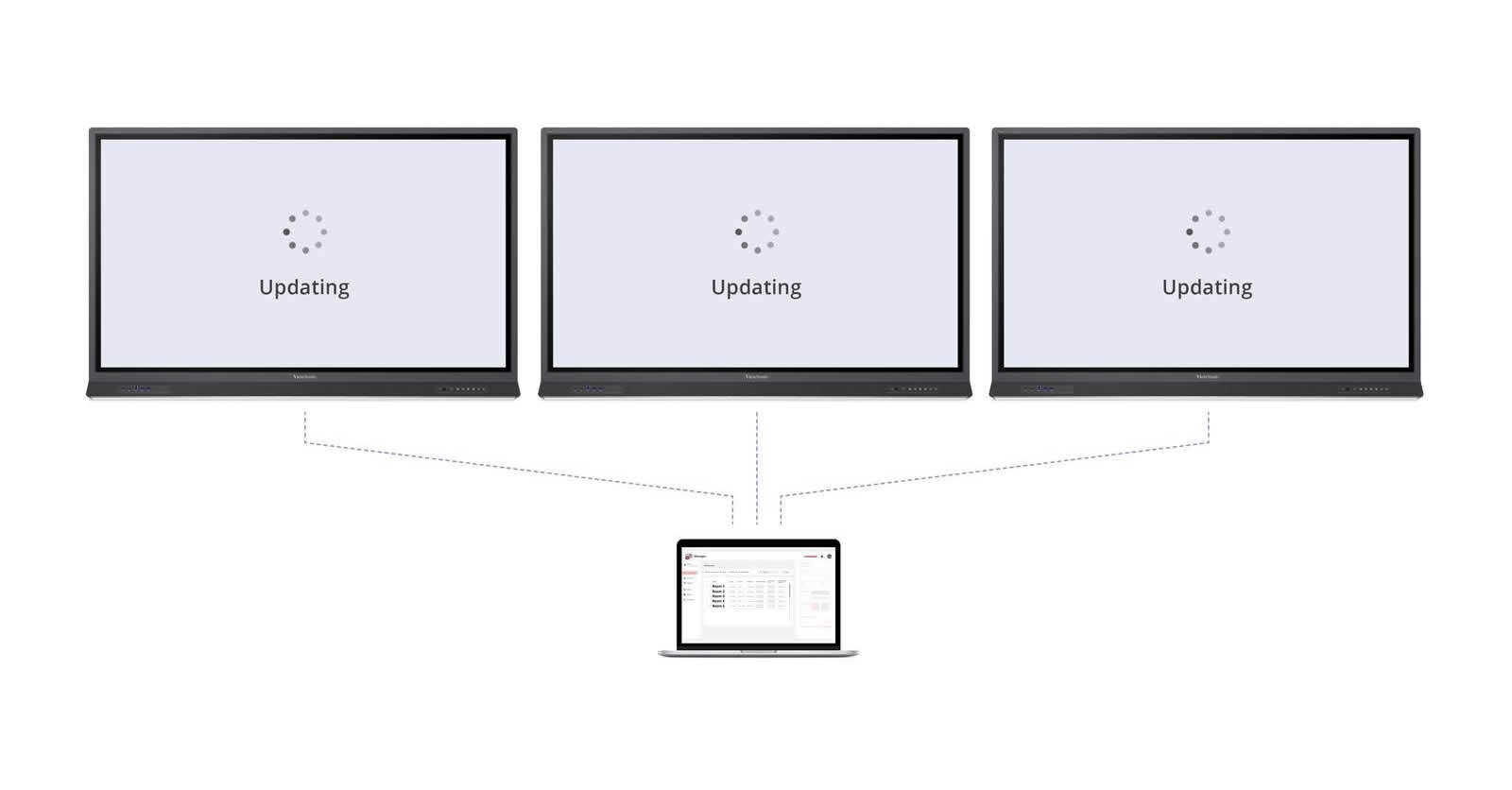

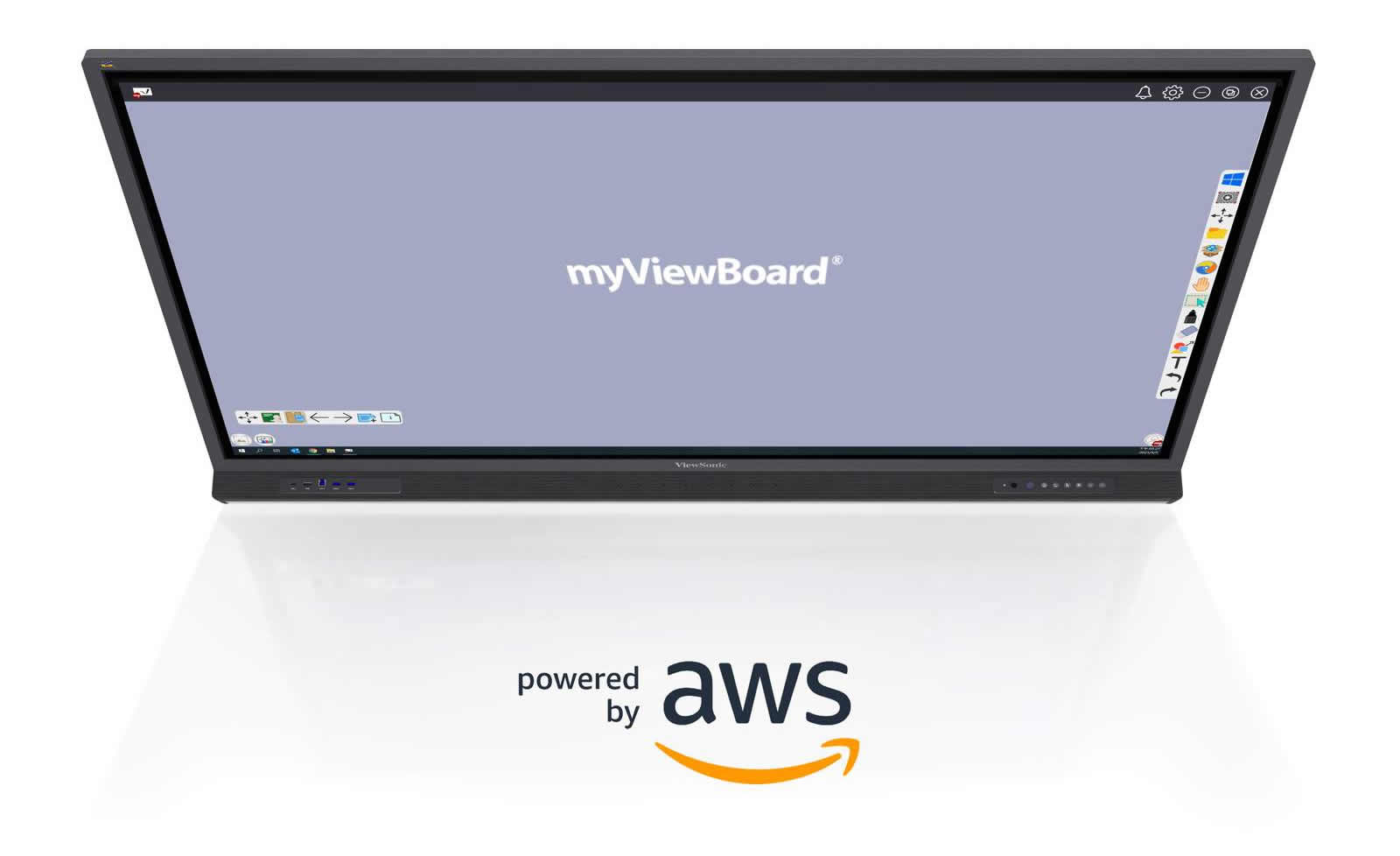

Centralized remote management system via myViewBoard Manager

SPECIFICAȚII

Display
Dimensiune Panel: 75"
Tip Panel: TFT LCD Module with DLED Backlight.
Suprafață Display (mm): 1649.644(H) x 927.936(V)
Aspect Ratio: 16:9
Rezoluție: UHD 3840x2160(Pixels)
Colors: 1.07B colors (10bit)
Luminozitate: 450 nits (typ.)
Rată de contrast: 1200:1 Typ. , 5000:1 Max.(DCR enable)
Timp de răspuns: 8ms
Unghiuri de vizualizare: H = 178, V = 178 typ.
Durată de viață sursă de lumină fundal: 50,000 Hours (Typ.)
Tratament pentru protecția suprafeței: Hardness: 9H with Anti-Fingerprint coating & Anti-Glare coating
Disclaimer: 50,000 hours backlight life at 8 hours of use per day
Platformă
Procesor: ARM Cortex A73*4
Memorie RAM: 4GB (IFP7552-1A), 8GB (IFP7552-1B)
Stocare: 32GB (IFP7552-1A), 64GB (IFP7552-1B)
Touch
Tipul/ Tehnologia: UFT (Ultra Fine Touch) Technology
Rezoluție Touch: 32767 x 32767
Touch Point: Windows: 33 points touch, Android: 20 points touch

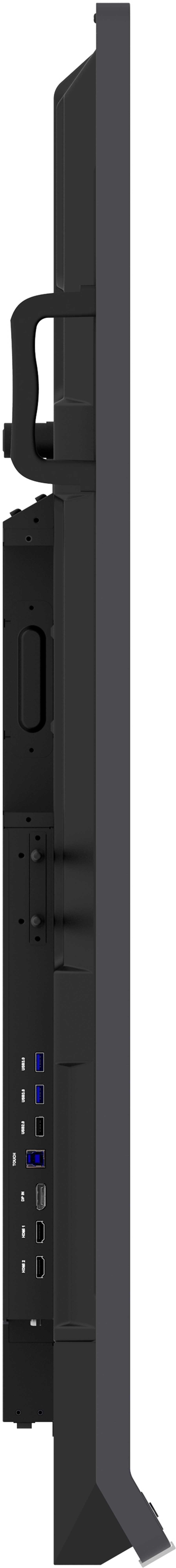

INPUT
HDMI: x2 (3840x2160@60Hz, HDCP2.2, CEC, Front x1, Side x1), x1 (3840x2160@60Hz, HDCP2.2, CEC, ARC, Side x 1)
RGB/ VGA: x1 (1920x1080 @60Hz)
Display Port: x1 (3840x2160 @60Hz)
Audio: x1 (PC audio in)
RS232: x1
OPS: module slot x 1

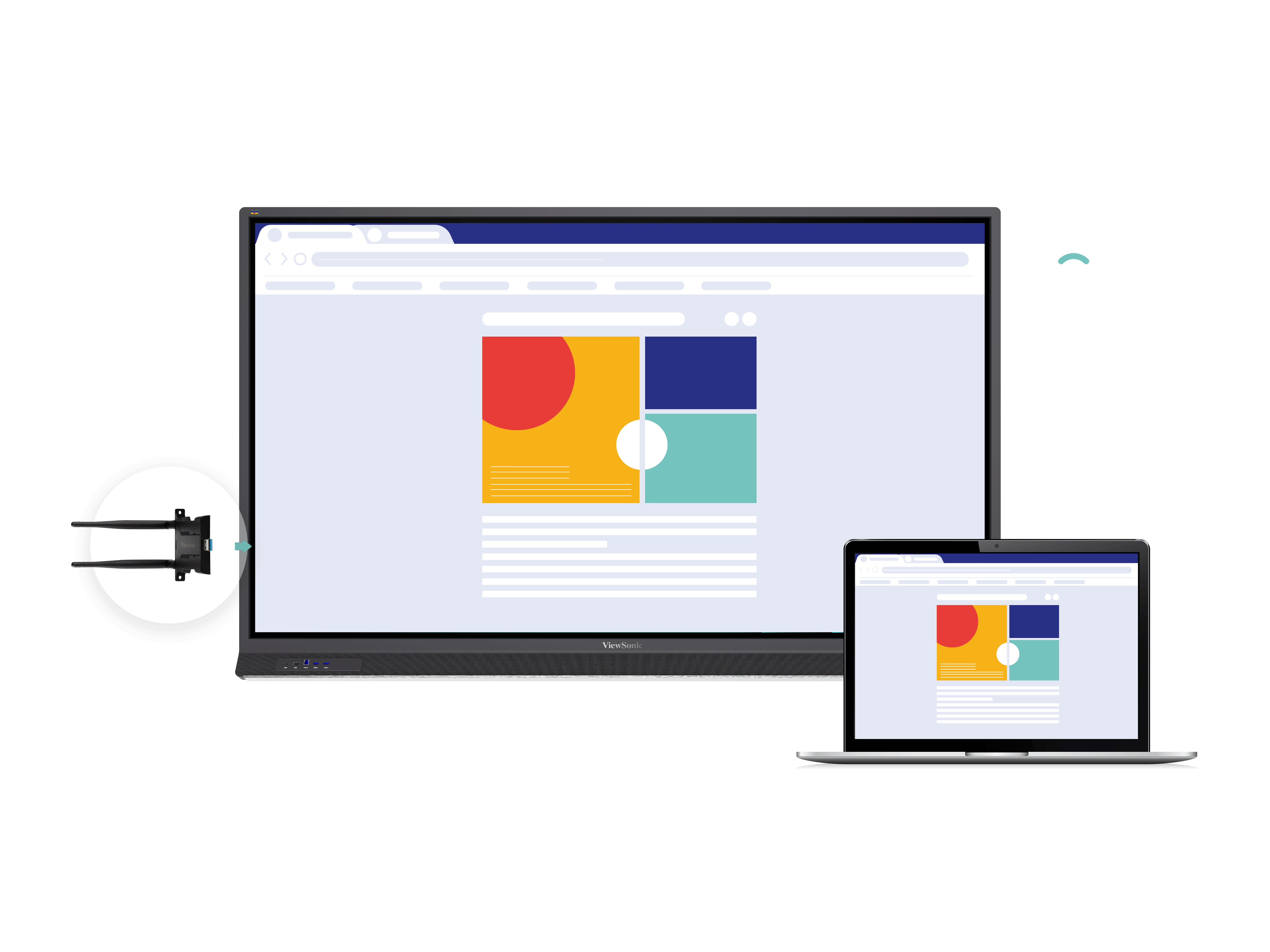

WiFi: module slot x 1
OUTPUT
HDMI: x1 (on demand)
Audio: x1 (Earphone out)
SPDIF: x1 (optical)
LAN
RJ45: x1
USB
Tip A: USB 2.0 x1(Side x1), USB 3.0 x4 (Front x2, Side x2, SmartPort™ USB)
Tip B: x2, for touch
Tip C: x1 (USB3.0, DP1.2 Alt Mode, 100M Ethernet, 60W PD)
DIFUZOARE
15W x 2 + 15W x 1 subwoofer
MICROPHONE

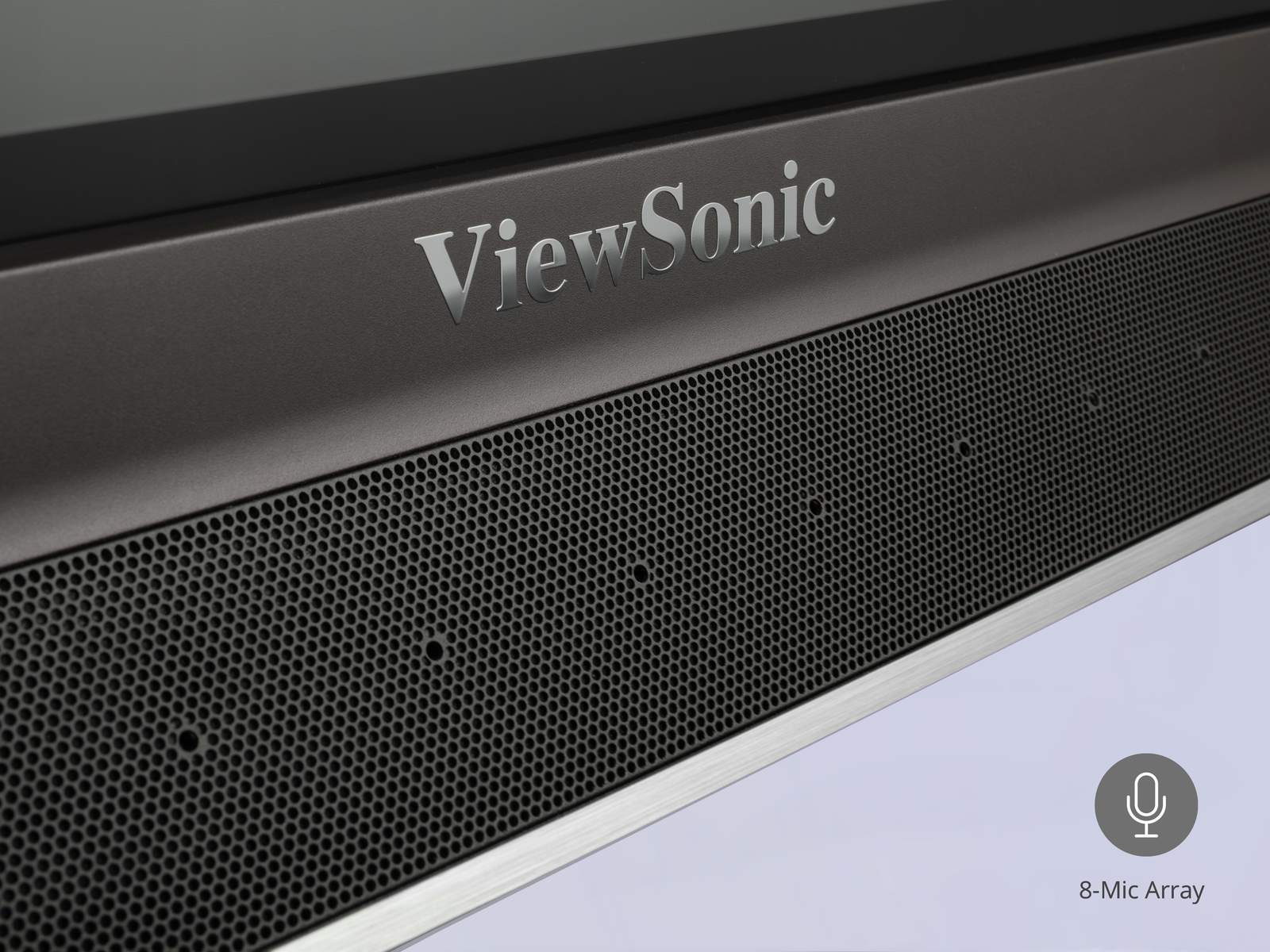

built-in 8-array microphone
Top Camera Plate
Yes
Sistem de operare incorporat
Android 11
Pachet Software
Software Basic Annotation: myViewBoard WhiteBoard for Android
Software Pro Annotation: myViewBoard WhiteBoard for Windows (embedded in VPC)

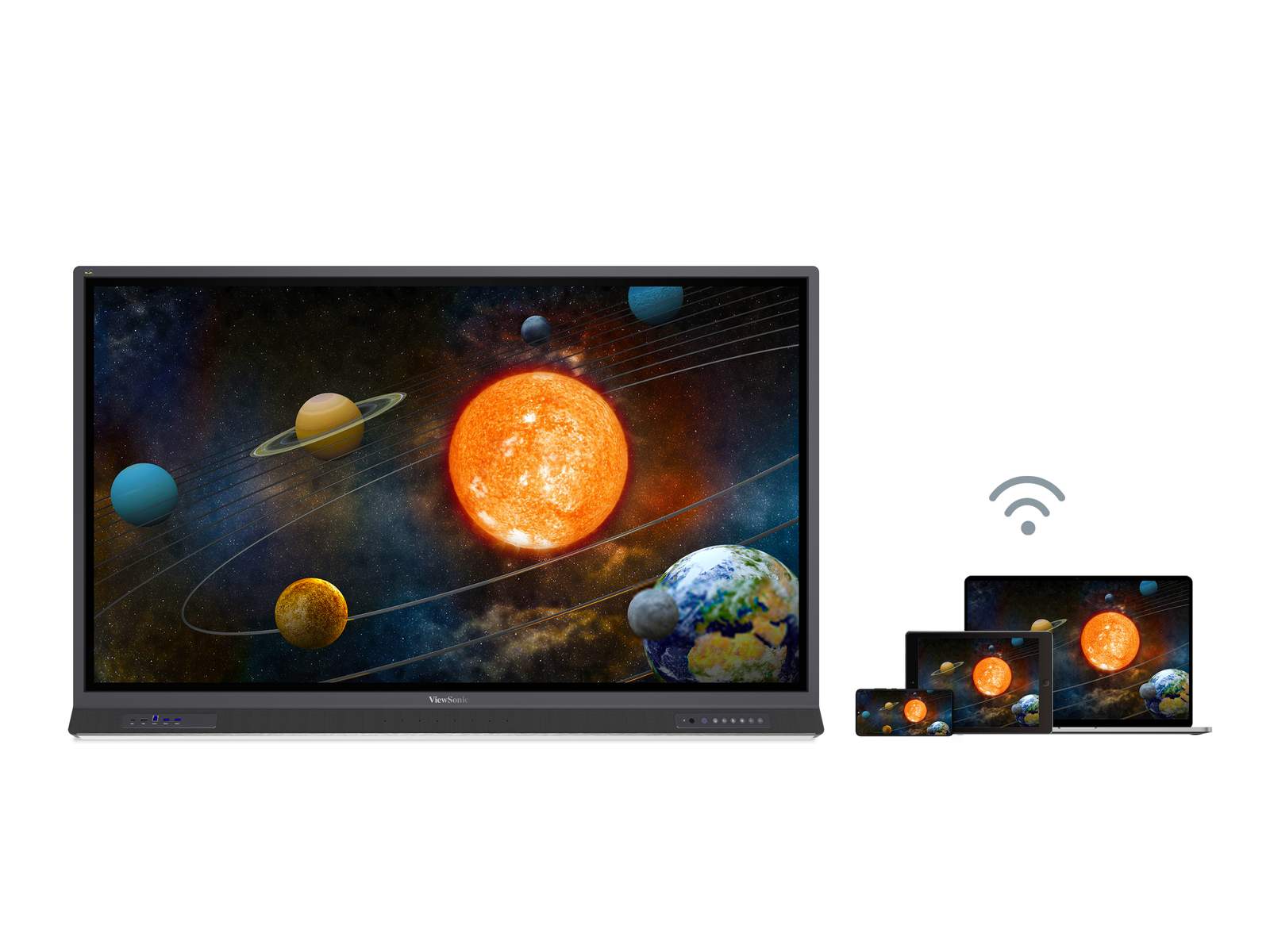

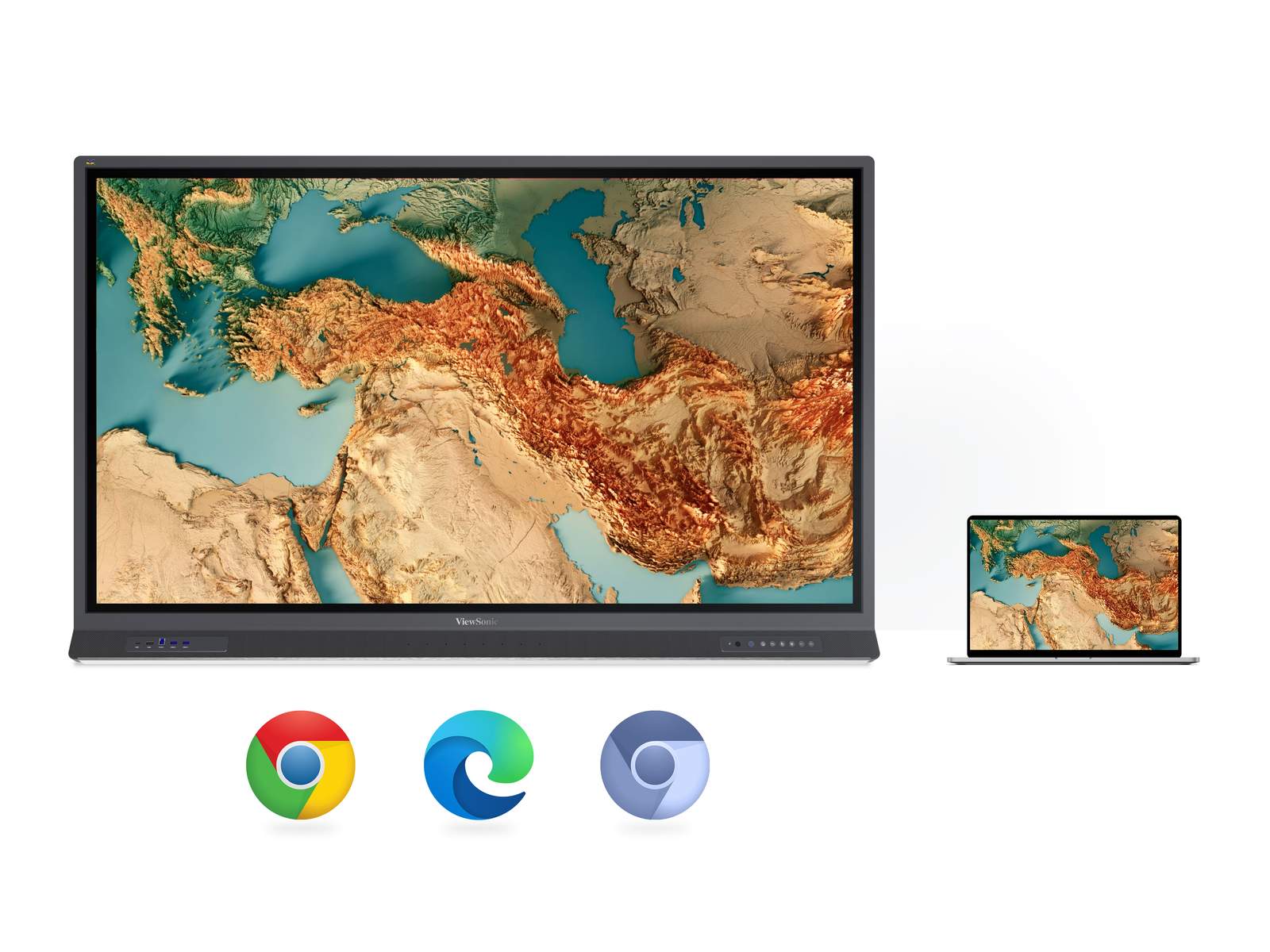

Prezentare wireless: ViewBoard Cast & myViewBoard Display
Caracteristici speciale
All-in-one USB port: USB 3.0 x 4
Partajare simplă LAN între IFP și dispozitivul cu slot-in: 10/100/1000M for Android and PC
Light Sensor: Yes
Putere
Voltaj: 100-240VAC +/- 10% Wide Range
Consum: 159.4W (Typ.) < 0.5 W (""Off"")
ERGONOMICS

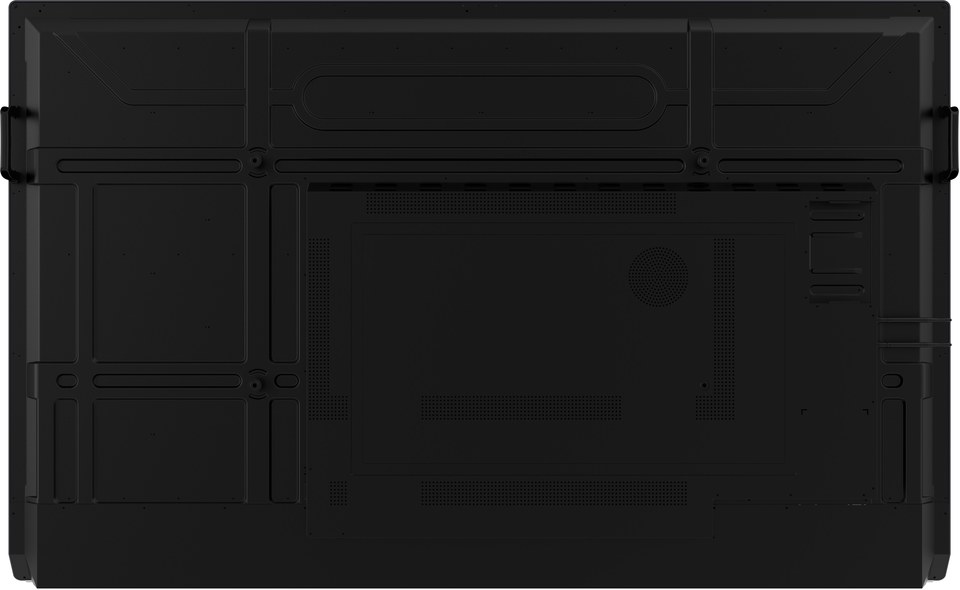

Montare pe perete (VESA® ): 800 x 400
OPERATING CONDITIONS
Temperatură (º C): 0°C to 40°C
Umiditate: 20% ~ 80% RH Non-Condensing
DIMENSIUNU (D x Î x A)
Dimensiuni (inch/ mm): 1720.1 (W) x 1069.6 (H) x 118.4 (D) mm, 67.72 (W) x 42.11 (H) x 4.66 (D) inch
Ambalare (inch/ mm): 1880 (W) x 1160 (H) x 280 (D) mm, 74.02 (W) x 45.67 (H) x 11.02 (D) inch
WEIGHT
Masă (Ib/ kg): 125.22 lb / 56.8 kg
Greutate (Ib/ kg): 158.95 lb / 72.1 kg
CONȚINUT PACHET
1. Power cable(3 meters) 2. Remote control 3. USB Type-C cable (1.5 meters) 4. USB Touch cable (3 meters, USB2.0) 5. Touch pen x 2 6. Quick Start Guide + Compliance statement 7. RS232 adapter 8. Clamp x 5 9. Camera Plate 10. Screw x 8 (camera 2+2, wall mount 4) 11. HDMI cable (3 meters) 12. Eraser 13. 13. AAA Battery x 2
Compatibil Slot intrare PC
VPC12 & VPC25/27-O & VPC25/27-O-B series
