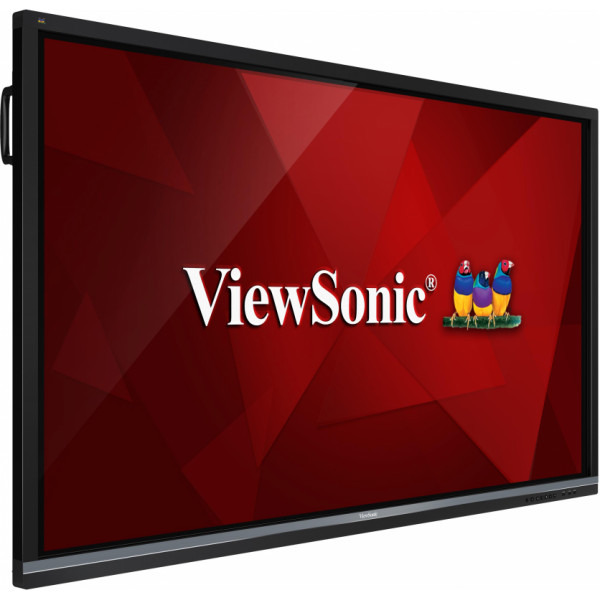

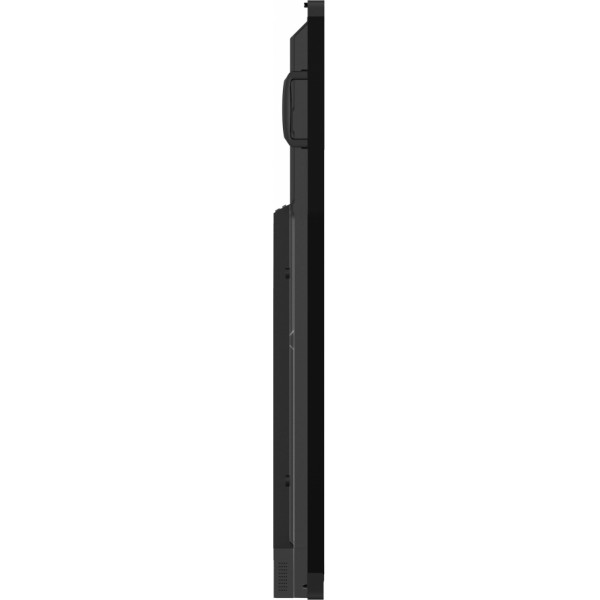

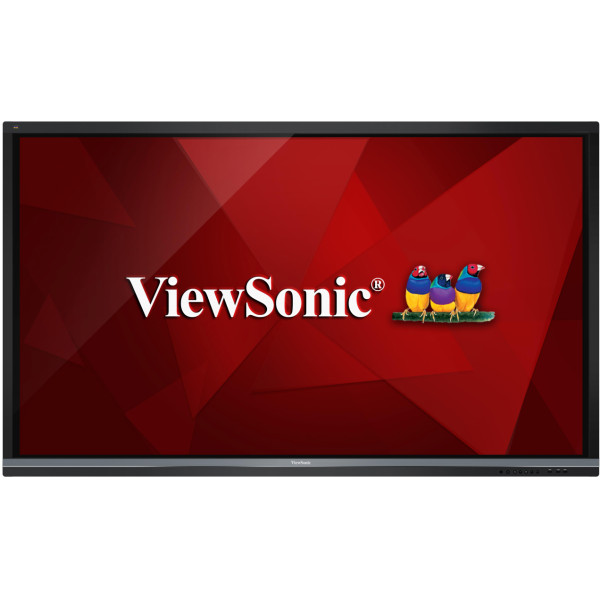

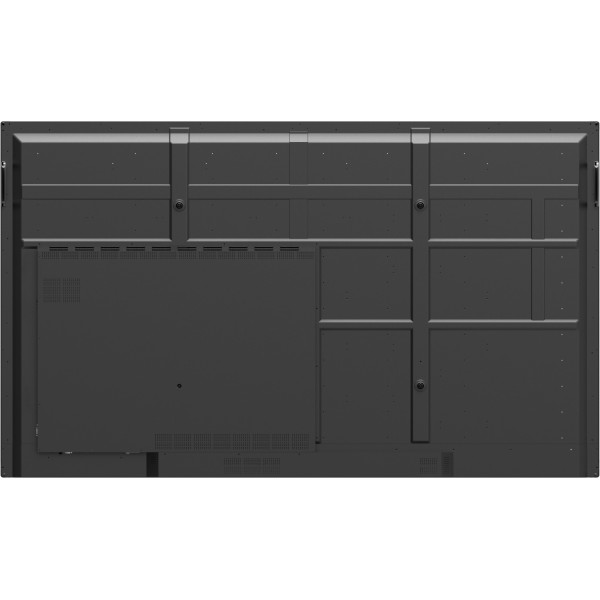

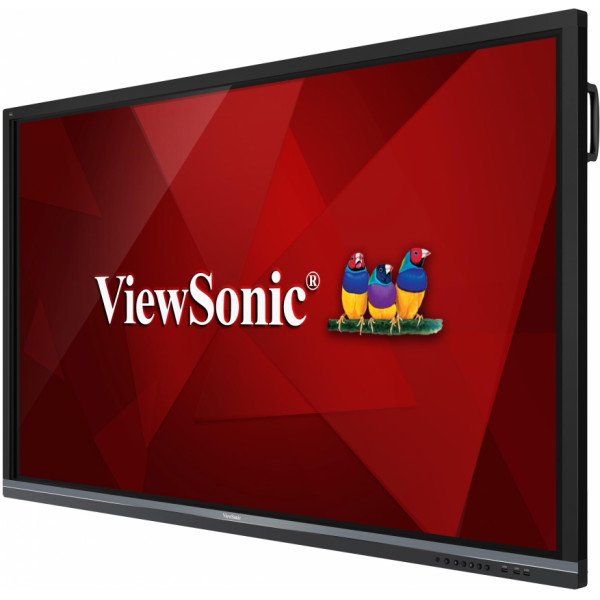

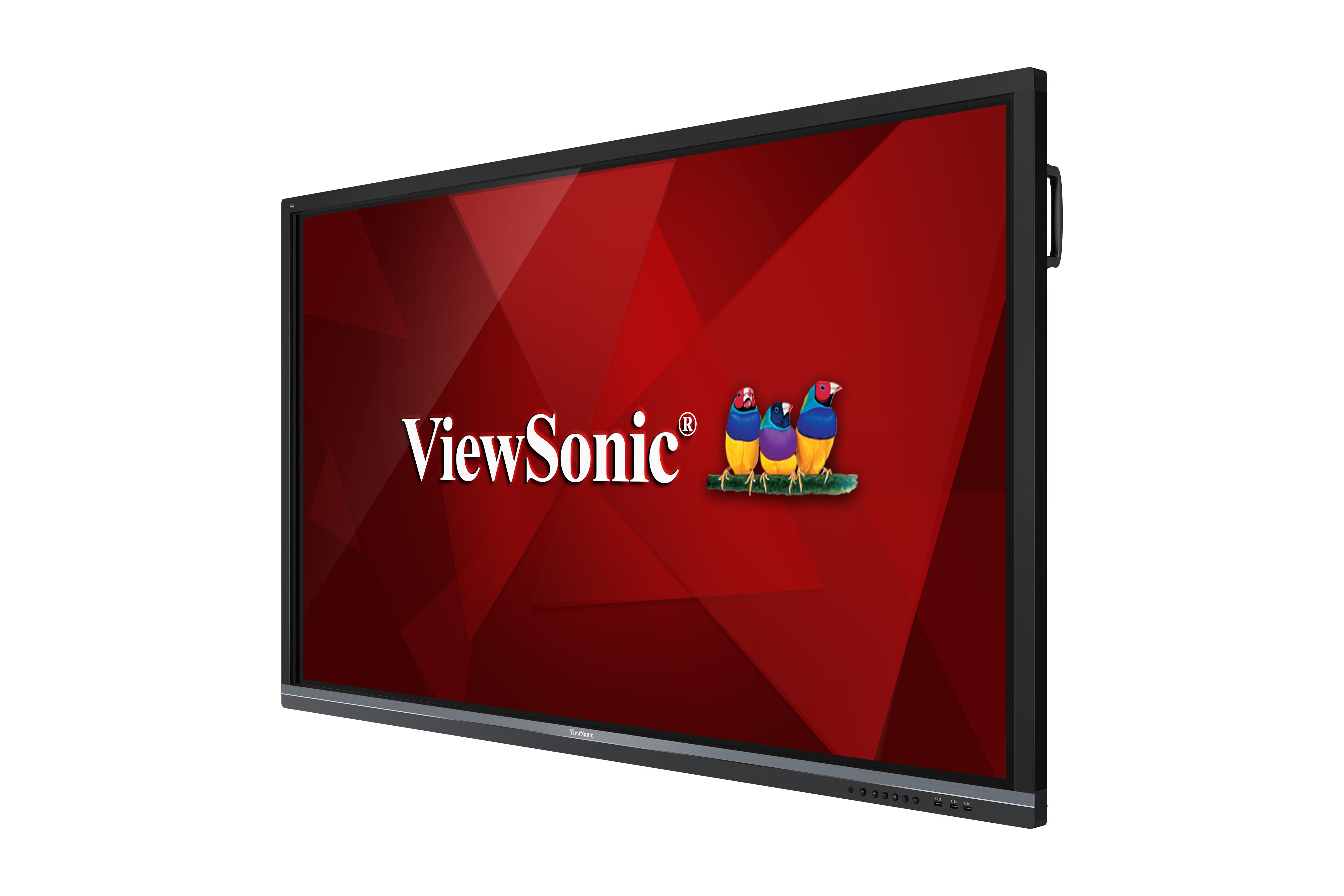

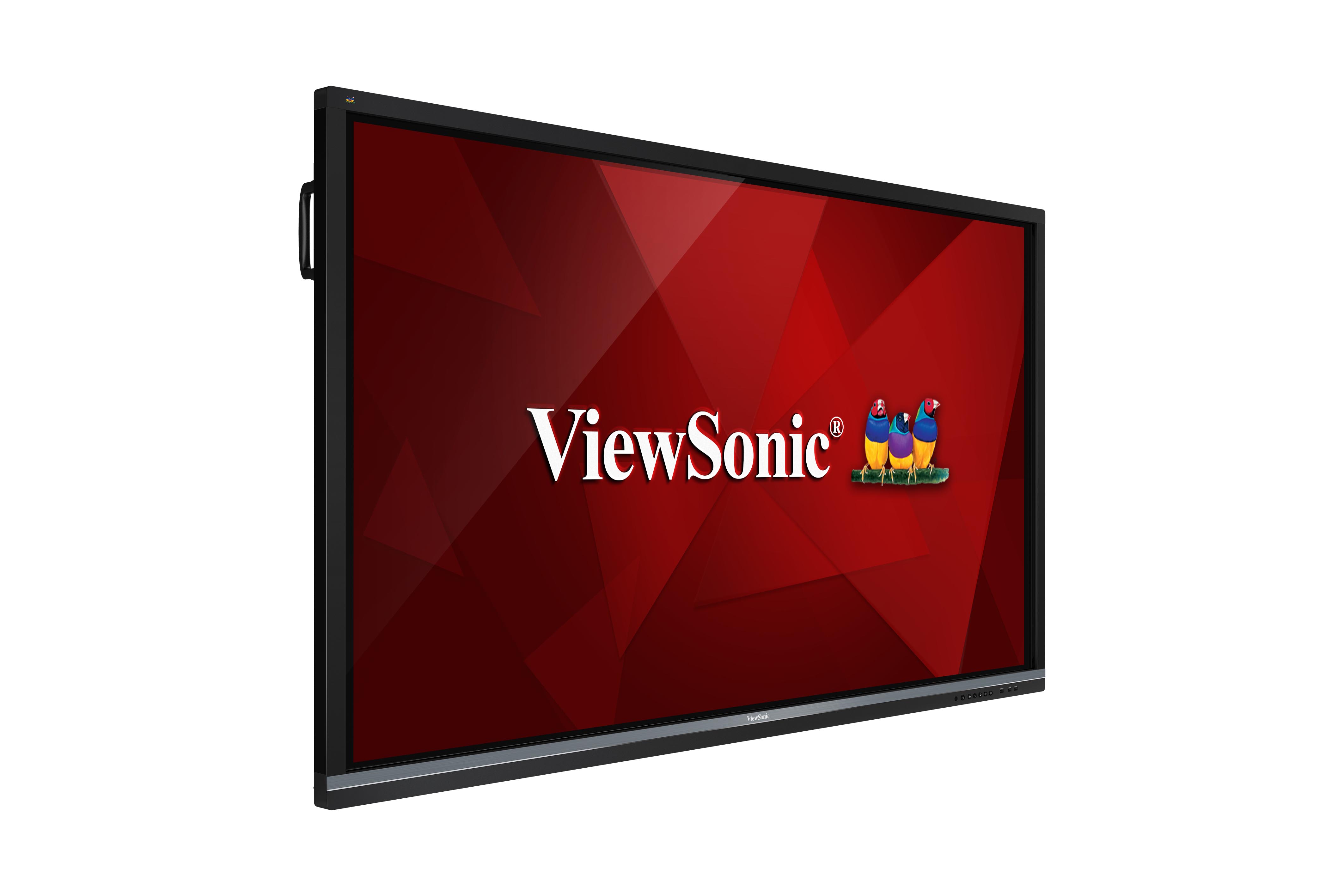

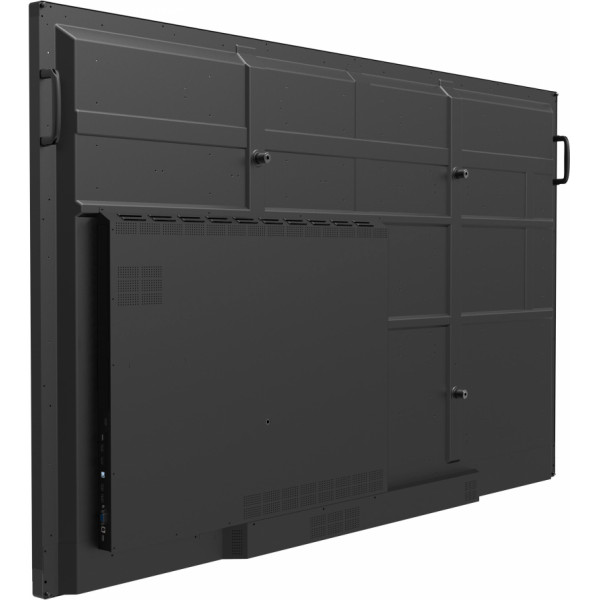

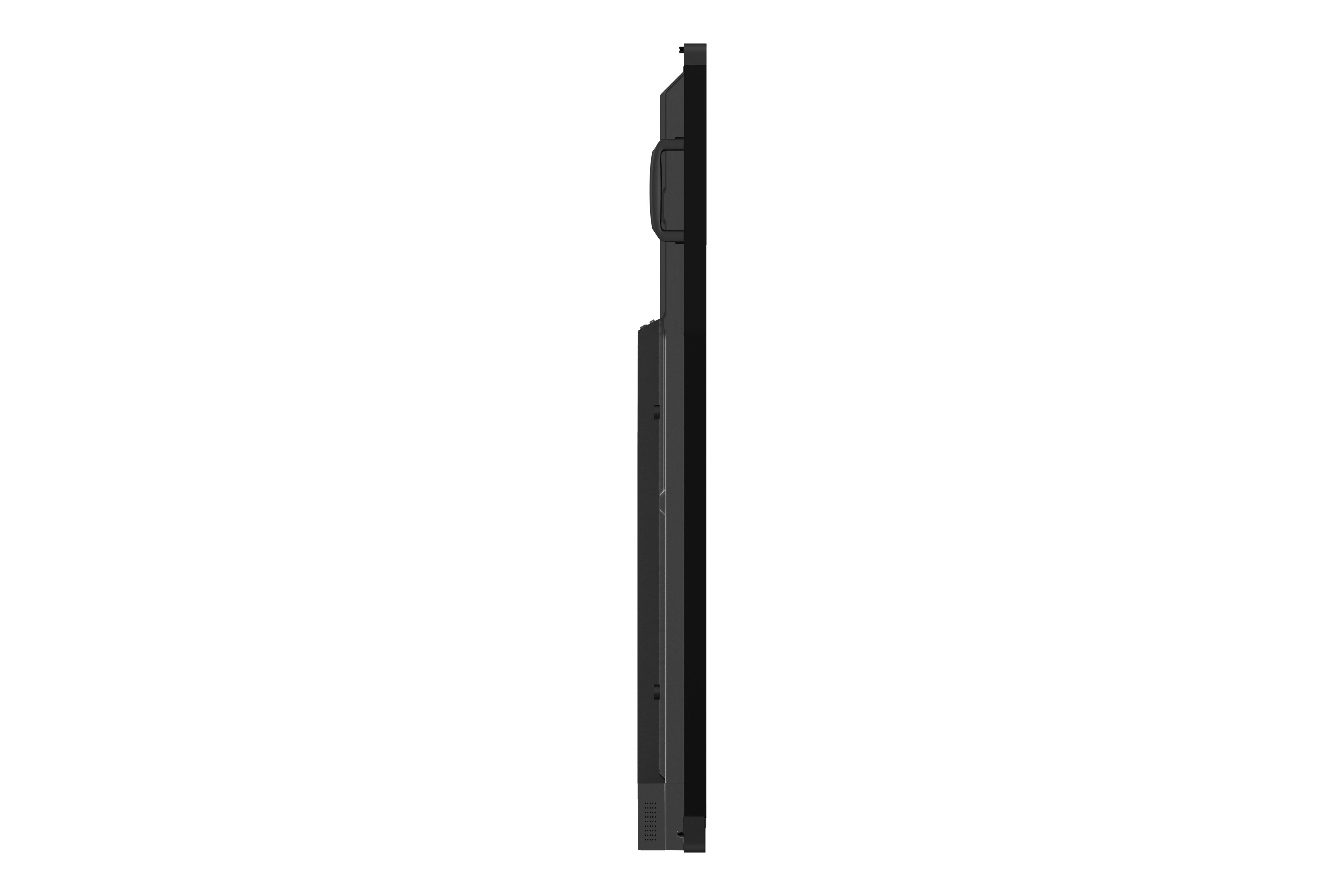

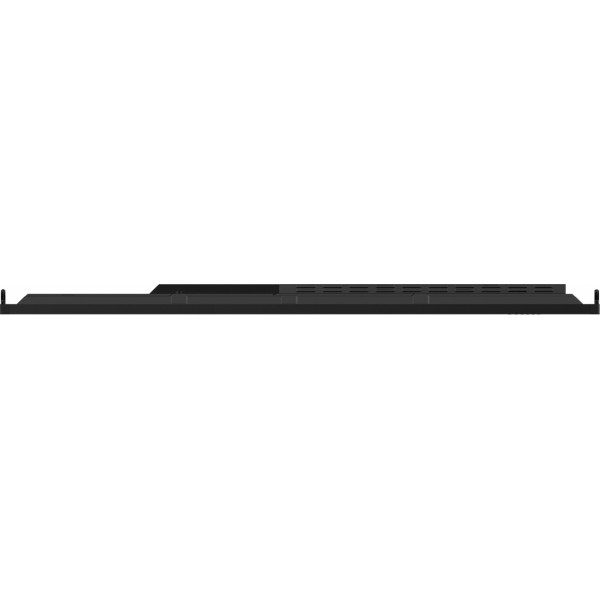

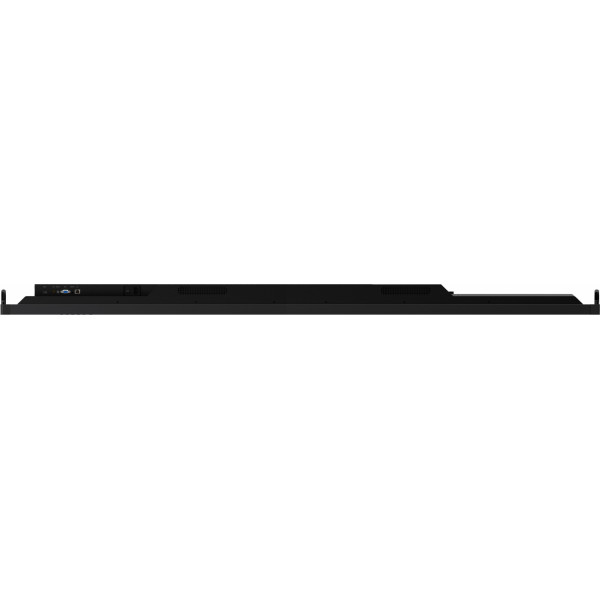

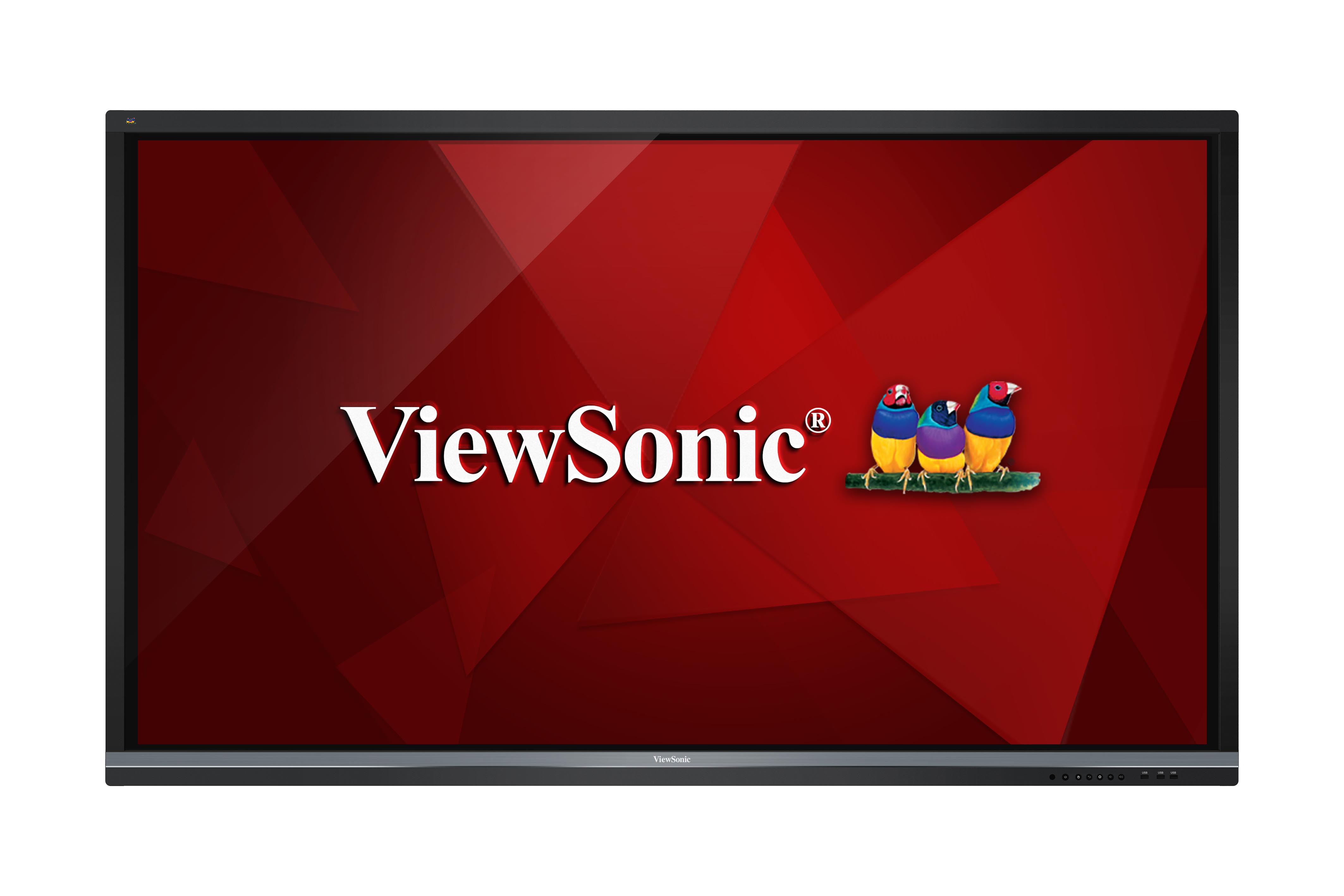

ViewSonic ViewBoard IFP8650

IFP8650

86" 4K Interactive Flat Panel

20-Point Multi-Touch
Floating Pen - Annotation on Demand
ViewBoard^® Cast Content Sharing Software
Built-in ARM Quad-core CPU with 16GB Storage
Out-of-Box Collaboration

SPECIFICAȚII

LCD PANEL
Dimensiune Panel: 86"
Tipul/ Tehnologia: TFT LCD Module with DLED Backlight
Suprafață Display (mm): 1895.04 (H) x 1065.96 (V) (85.6” diagonal)
Aspect Ratio: 16:09
Rezoluție: 3840 x 2160
Colors: 1.07B colors (10bit)
Luminozitate: 350 nits (typ.) 300 nits (min.)
Rată de contrast: 1200:1 (typ.)
Timp de răspuns: 8 ms
Unghiuri de vizualizare: H = 178, V = 178 (typ.)
Backlight: DLED
Durată de viață sursă de lumină fundal: 30,000 Hours Min.
Hardness: 7H
TOUCH
Tipul/ Tehnologia: IR Recognition
Rezoluție Touch: 32767 x 32767
Touch Point: 20 points touch, 10 points writing
Timp de răspuns: <15ms
System: Windows 10 / Windows 8 / Windows 7 / Windows XP / Vista / Linux / Mac / Android / Wince / Chrome
Life Time: 80,000hrs

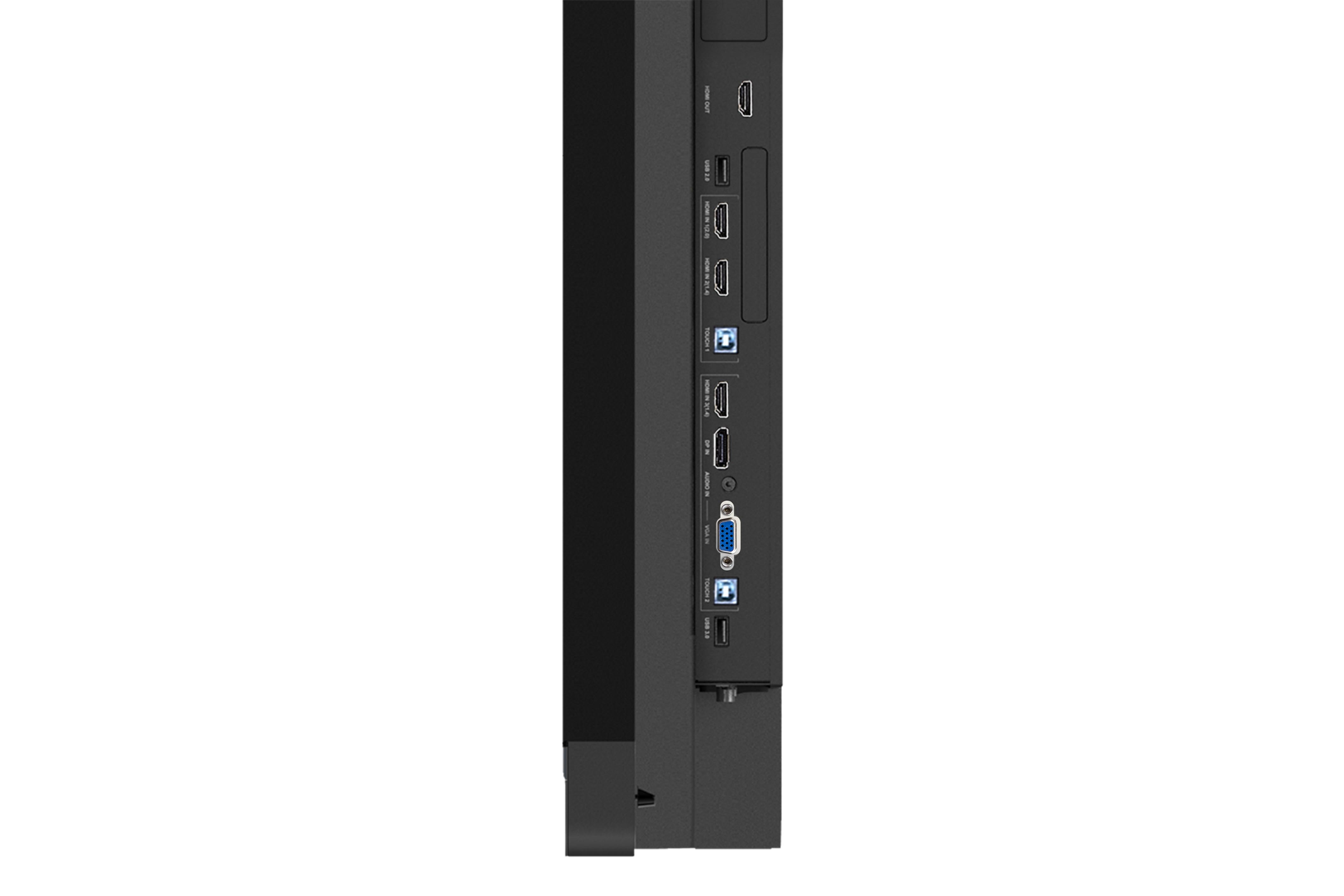

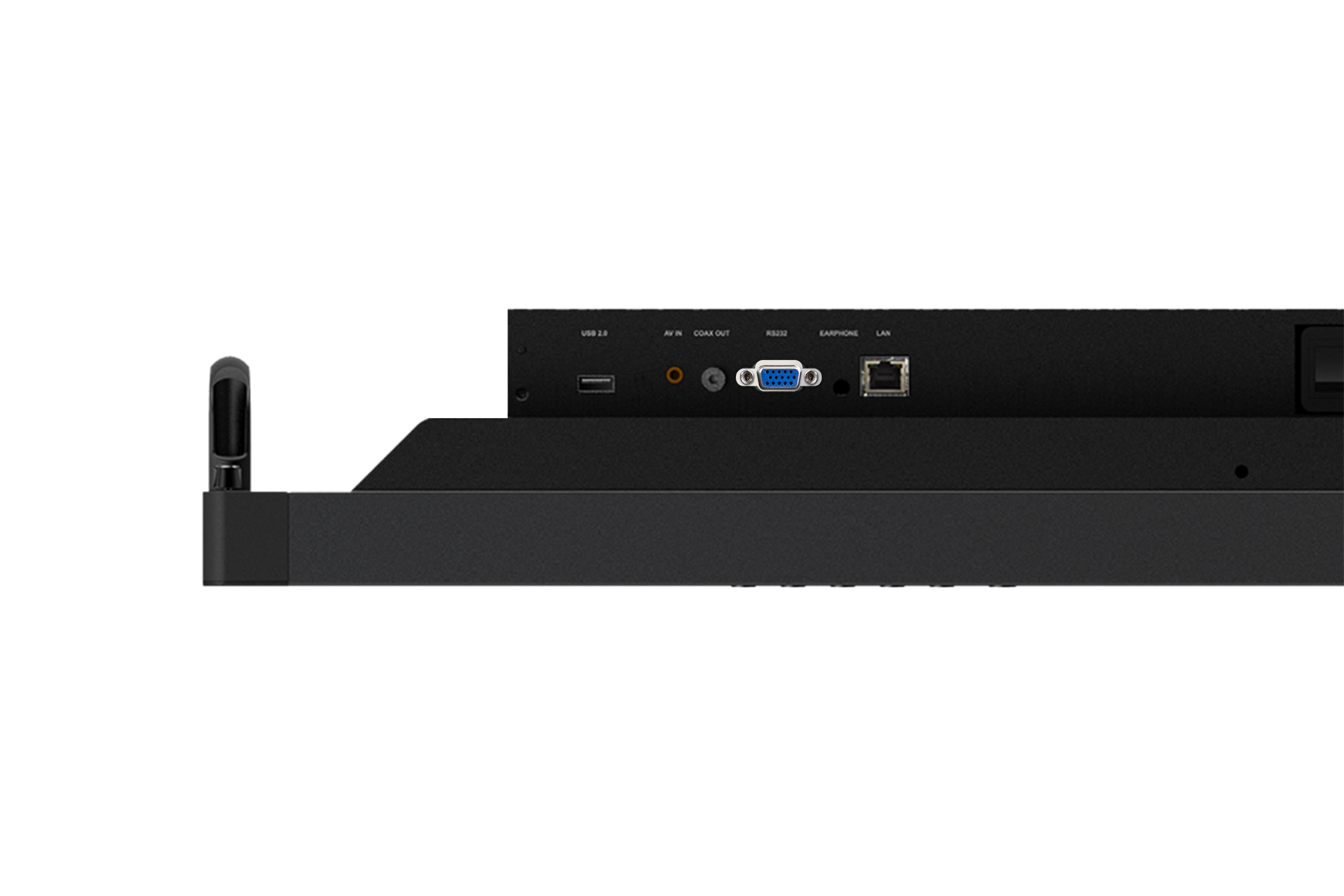

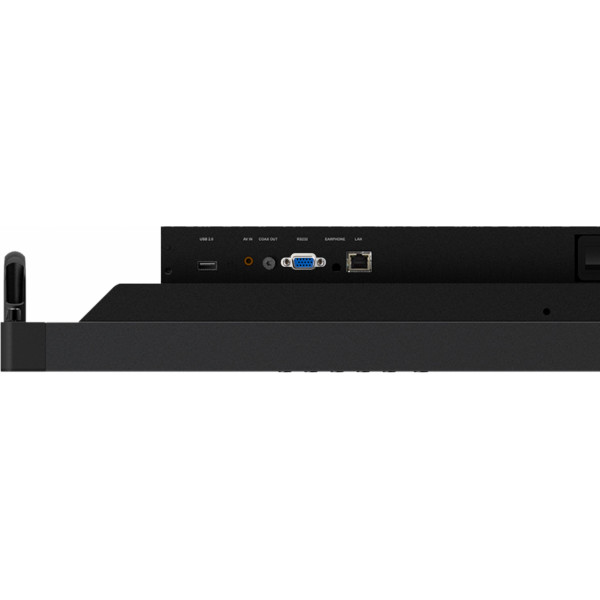

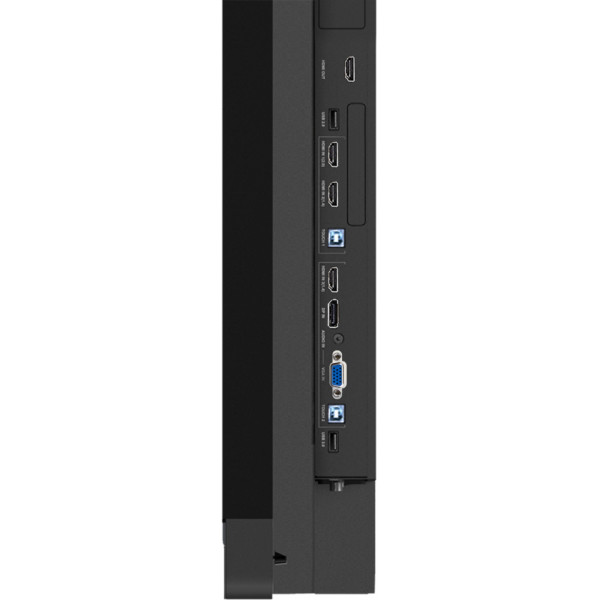

INPUT
HDMI: x 3
RGB/ VGA: x 1
Display Port: x 1
Audio: x 1
CVBS (AV): x 1
RS232: x 1
PC Slot: x 2

OUTPUT
HDMI: x 1 (for all sources)
Audio (Earphone out): x 1
SPDIF: x 1
LAN
RJ45: x 1
USB
2.0 Type A: x 3 (front x 1, for both embedded player and slot-in PC)
3.0 Type A: x 3 (front x 2, for both embedded player and slot-in PC)
2.0 Type B (For touch): x 2
DIFUZOARE
2 x 20W
BUILT-IN PC
Procesor: ARM Cortex A53 Quad Core 1.2G Hz CPU
Graphic: ARM Mali-450 Quad Core
Memorie: 2GB DDR3
Stocare: 16GB eMMC
Networking: 10/100M auto-identification and DHCP
COMPATIBILITY
VGA: Refer to timing table
HDMI: 3840x2160
DP: 3840x2160
CVBS: 480i
POWER
Voltaj: 100-240VAC +/- 10% Wide Range
Consum: 361W(Typ, without Slot-In PC); 456W(Typ, Including Slot-In PC)
ERGONOMICS

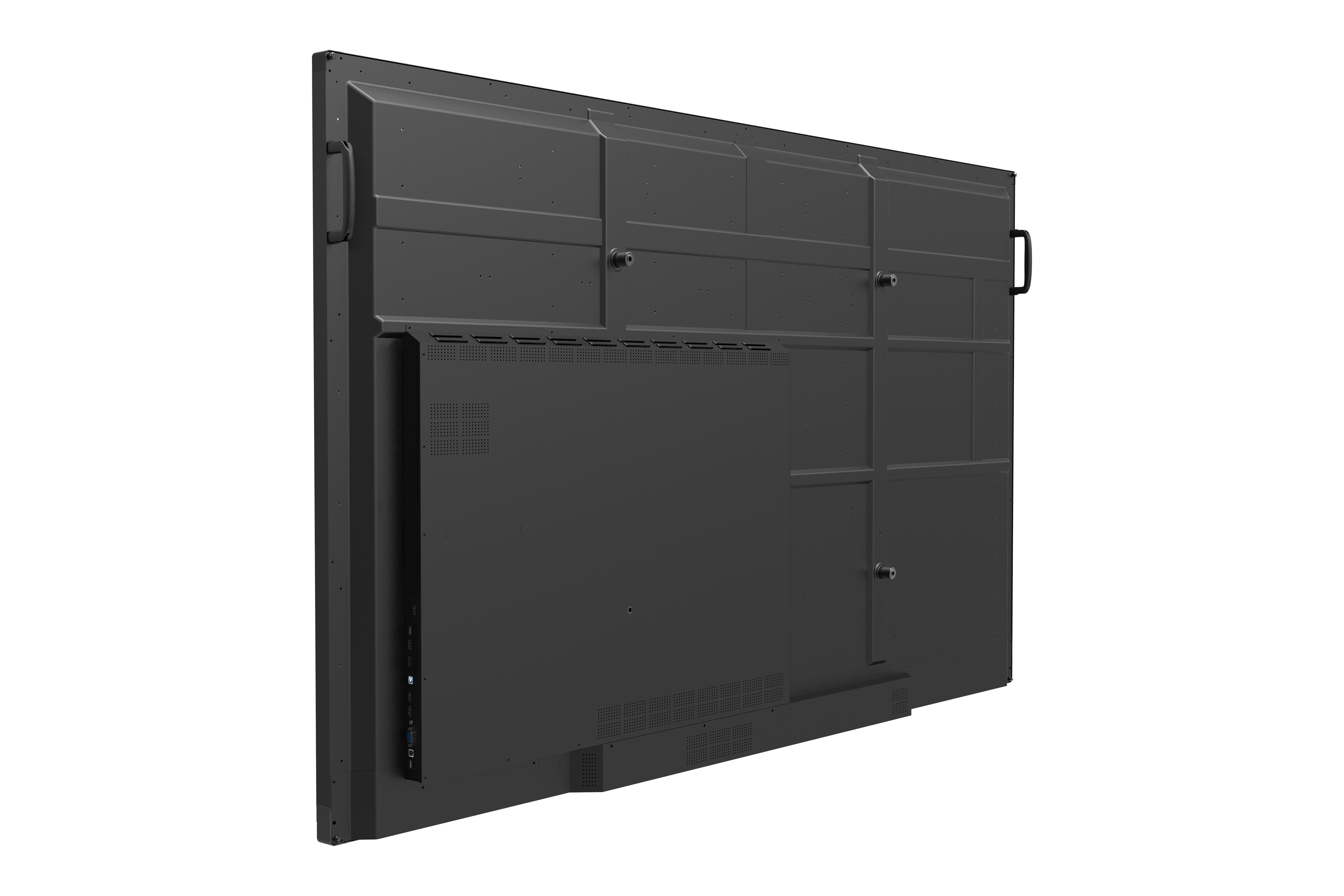

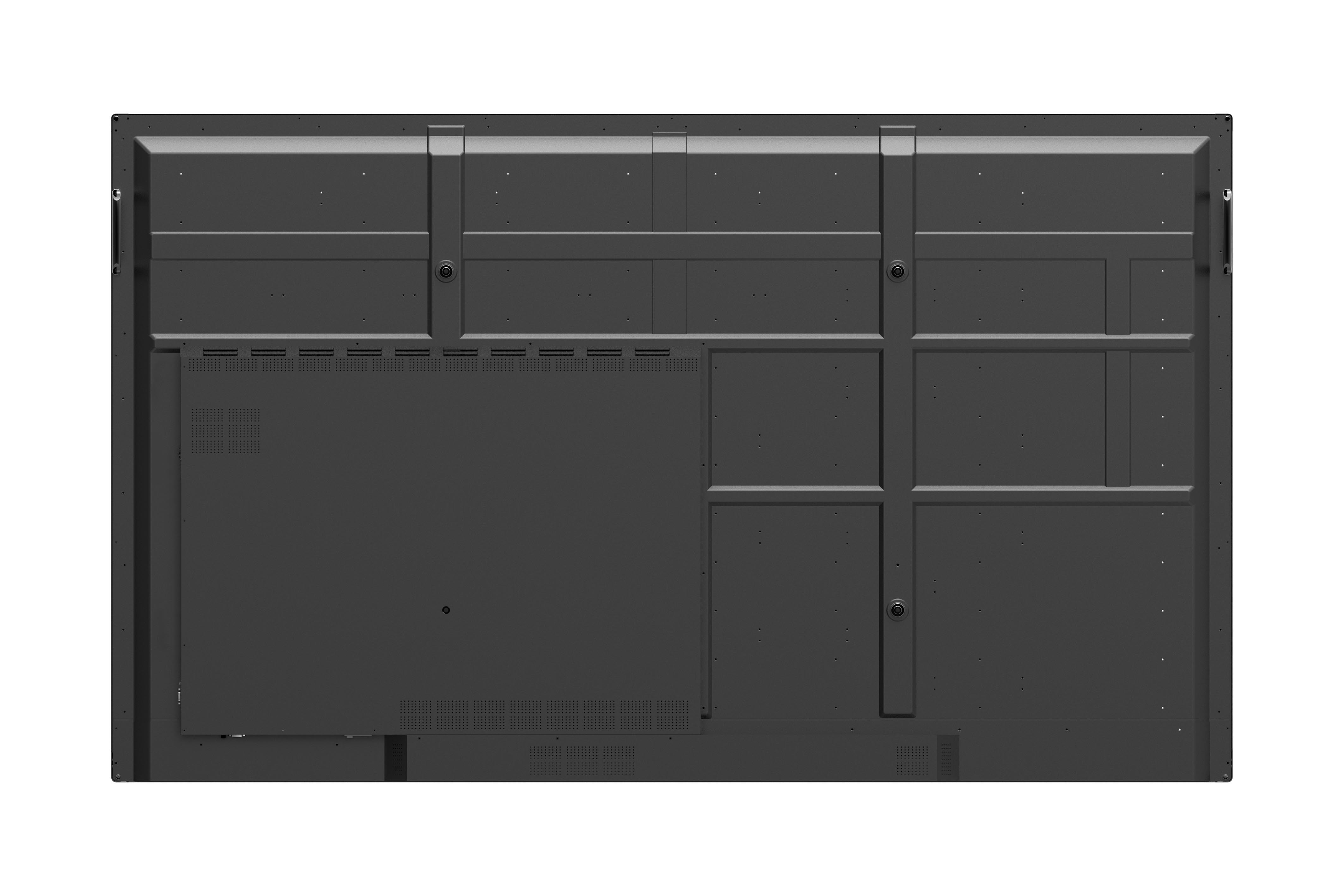

Montare pe perete (VESA® ): 800 x 600mm; Screw: M8 x 25mm
OPERATING CONDITIONS
Temperatură (º C): 32°F to 104°F (0°C to 40°C)
Umiditate: 10% ~ 90% non-condensing
DIMENSIONS (W X H X D)
Physical W/o Stand (mm / Inch): 1988 x 1186 x 100 mm / 78.3 x 46.7 x 3.9 inch
Packaging (mm / Inch): 2211 x 1380 x 280 mm / 87.0 x 53.1 x 11.0 inch
WEIGHT
Net (kg / lb): 78kg / 171.96lbs
Gross (kg / lb): 105kg / 231.49lbs
What's in the box?
1.VGA cable(5 meters)
2.Power cable(3 meters) x 4
3.Remote control
4.USB cable(5 meters)
5.Audio cable(5 meters)
6.AV cable
7.Touching pen x 3
8.User manual CD wizard
9.Quick Start Guide
10.RS232 adapter
11.Clamp x 5
12.Plate
13.Screw x 3
