TD2223-2

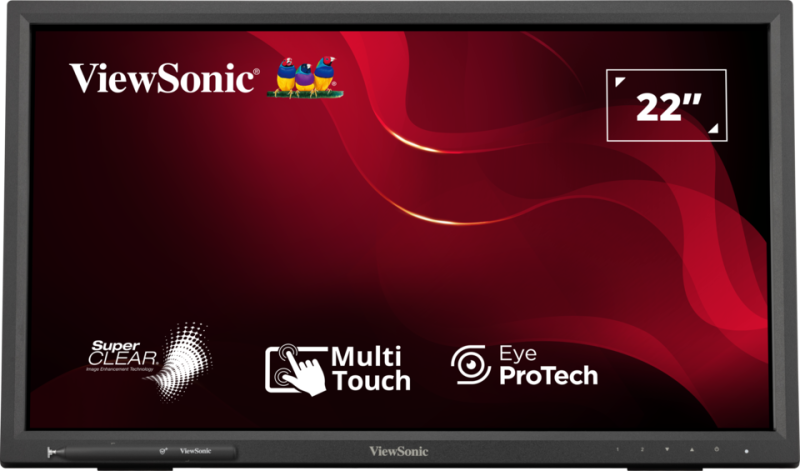

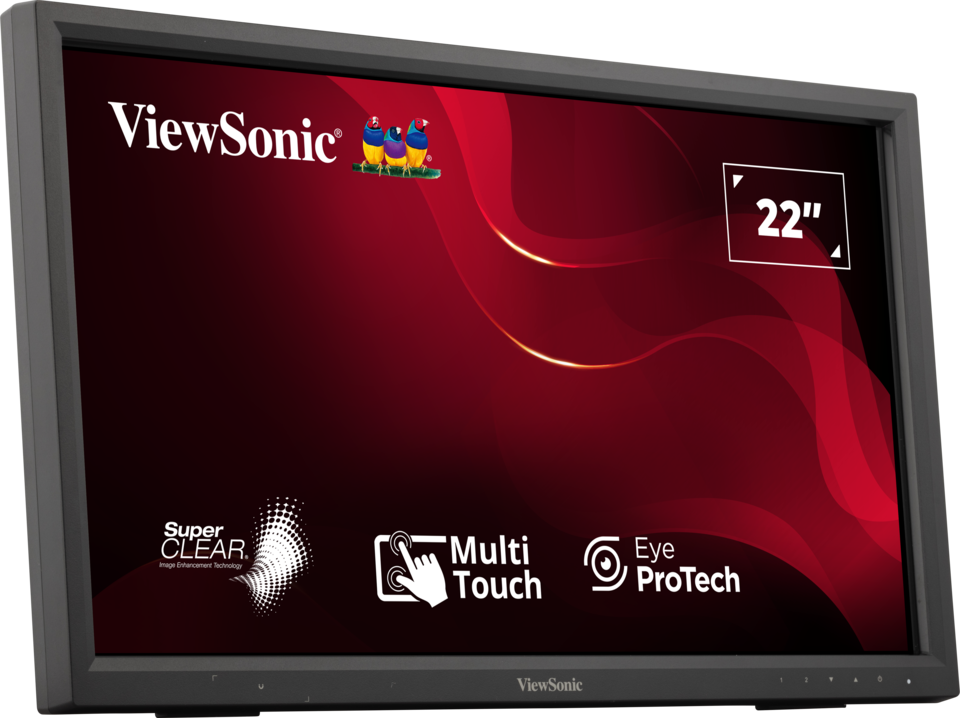

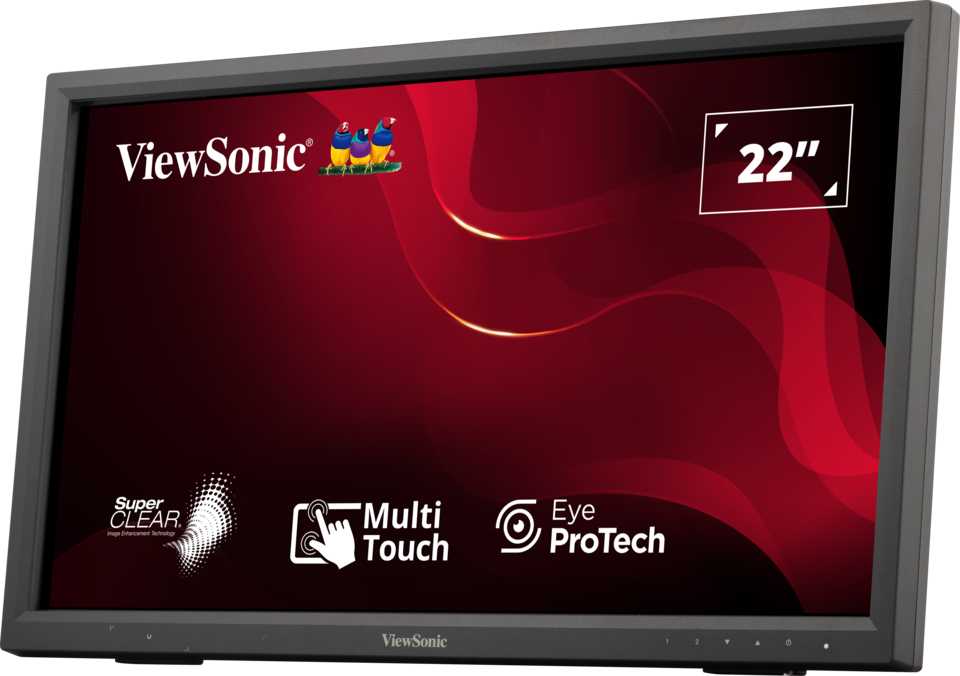

TD2223 22” IR Touch Monitor
- Intuitive 10-point touchscreen
- Finger, stylus, and glove touch compatible
- Magnetic pen placeholder
- Adjustable back tilt up to 40-degrees
- Scratch-resistant 7H hardness screen
نظرة عامة

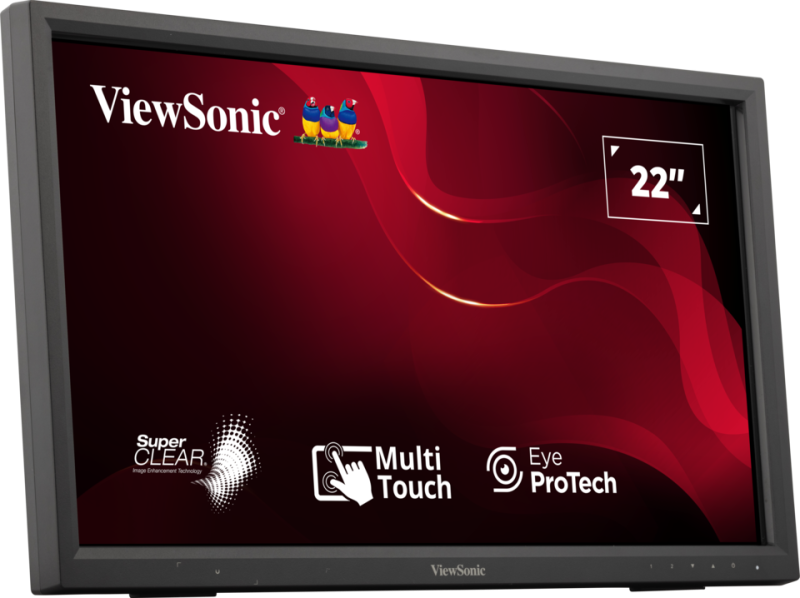

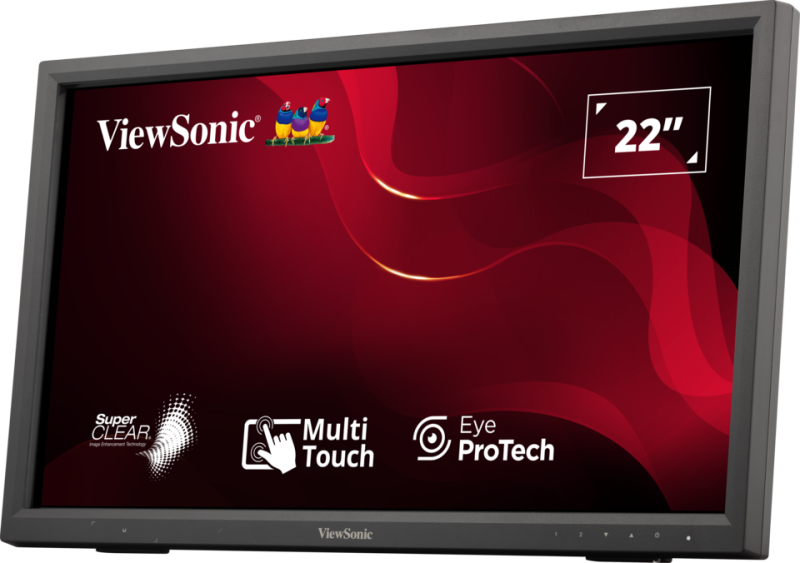

The ViewSonic® TD2223 is a 22” IR touch display designed for intuitive multi-touch use. Infrared (IR) touchscreen can detect up to 10 points of contact compared to optical touchscreens and can be operated by a stylus, fingers and gloved hands. The multi-touch input is more accurate, and the display is faster. Coupled with an adjustable tilt, you can easily interact with the TD2223 at an ideal position. This monitor features Full HD resolution to give you clear images and is built with scratch-resistant 7H hardness screen to surface damage. To support your work, the TD2223 is equipped with VGA, HDMI, DVI and USB connectivity.Intuitive Multi-touch Experience
An infrared touchscreen that can detect up to 10 points of contact under Windows compared to optical touchscreens, the TD2223-2 delivers an intuitive multi-touch experience with every tap, pinch, and swipe.IR Touch Technology

Operating System Support
This monitor supports the main operating systems being Windows, macOS, Android, Chrome OS, Linux and Raspberry Pi.*Learn more about multi touch for macOS

Simple and Safer Way to Interact
This monitor can be operated by stylus* and gloved hands, which improves hygiene and is effective for selection, dragging, and drawing. What’s more, there is a magnetic pen placeholder on the base.*The stylus is an optional accessory. The minimum diameter of the stylus pen tip must be at least 6mm or above.

Anti-scratch Touchscreen
With a built-in 7H hardness screen, it’s resistant to surface damage caused by sharp objects.7H Hardness Screen

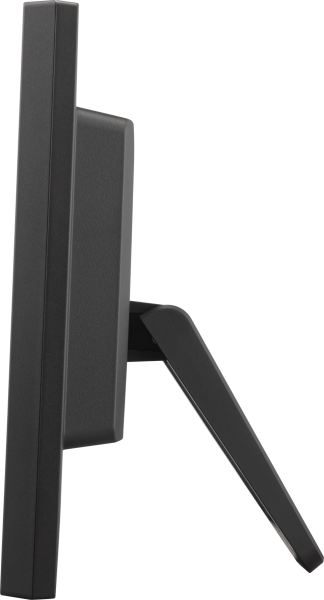

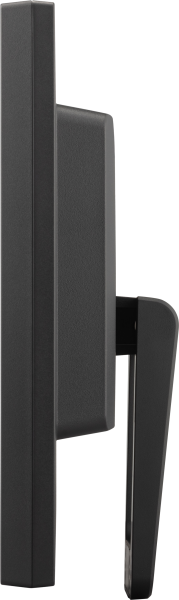

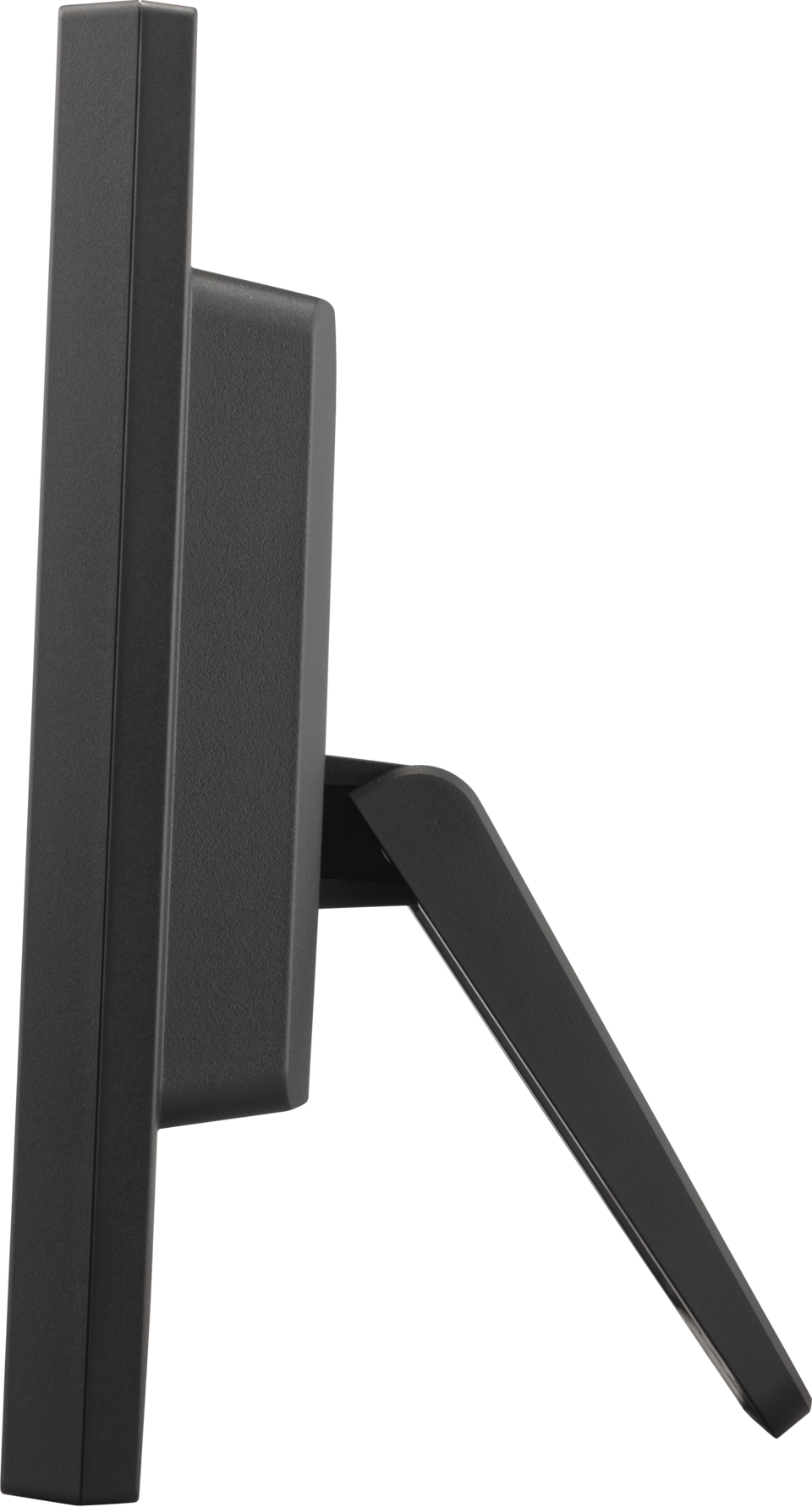

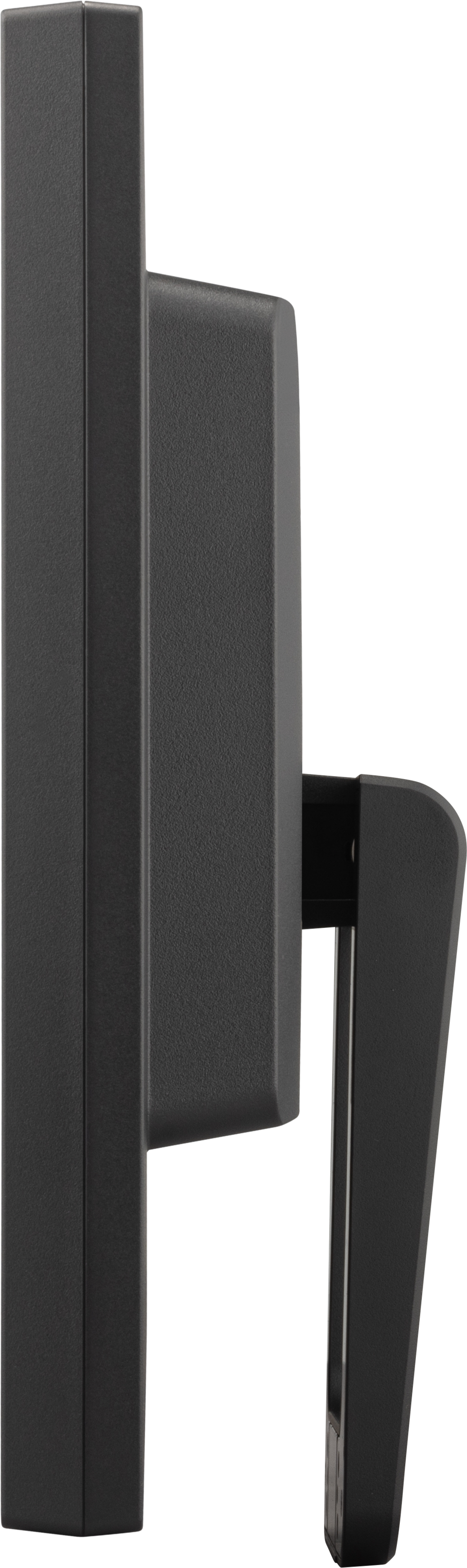

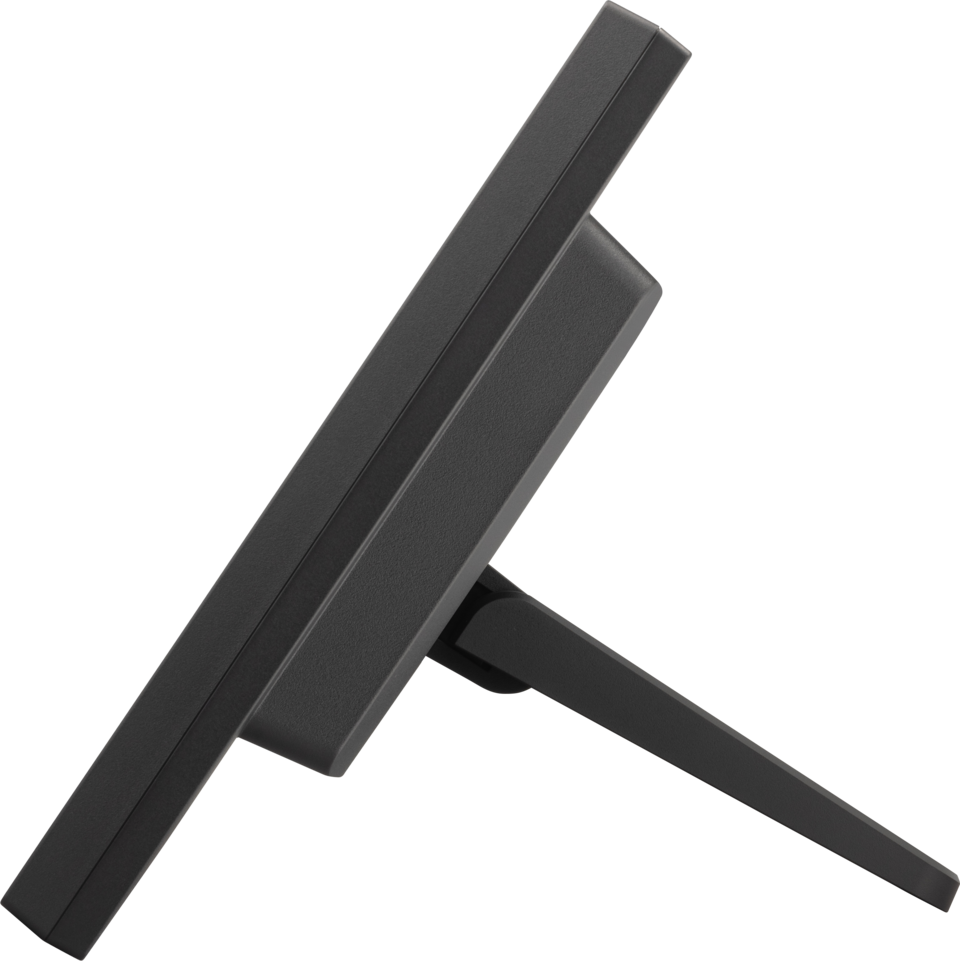

Adjustable Tilt

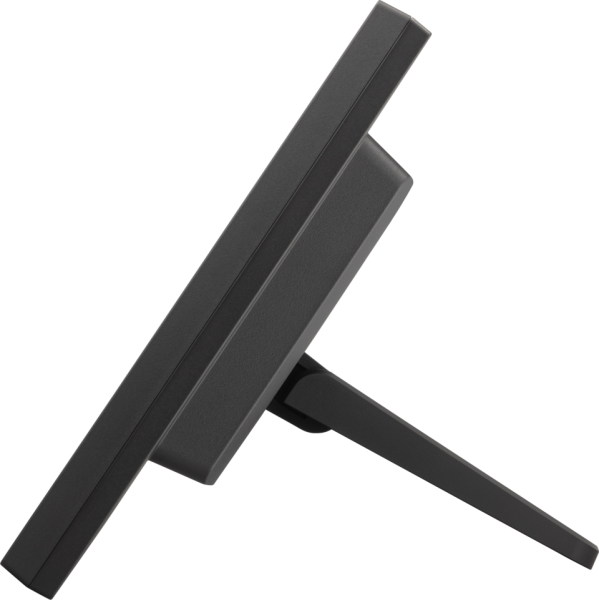

This monitor includes an adjustable tilt, which allows you to easily tilt back up to 40-degrees, making it a good fit for anyone.
Full HD 1080p
Full HD 1920x1080 resolution creates unbelievably clear pixel-by-pixel image performance. Experience mind-blowing clarity and detail while working, gaming, or enjoying the latest show premieres.Full HD 1080P

Dual Integrated Speakers
With built-in 2-watt speakers, this monitor provides you a better audiovisual experience.
Relieve your Eyes from Strain
Reduce your eye strain and keep your eyes feeling fresh. Flicker-Free technology and a Blue Light Filter eliminate screen flickering from extended viewing periods.Flicker-Free & Blue Light Filter

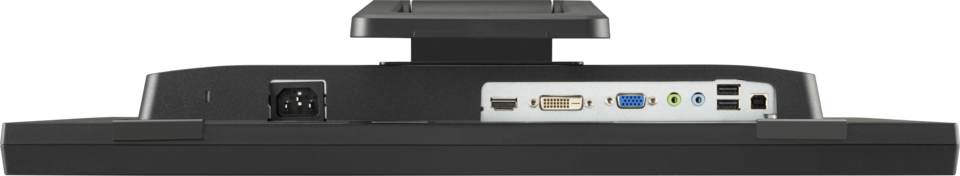

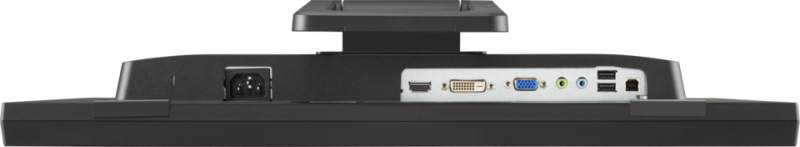

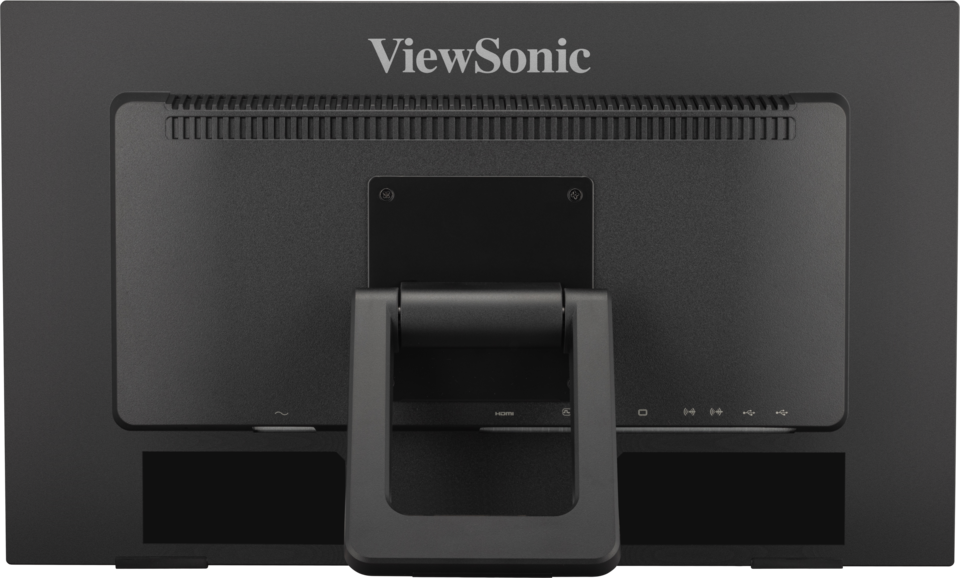

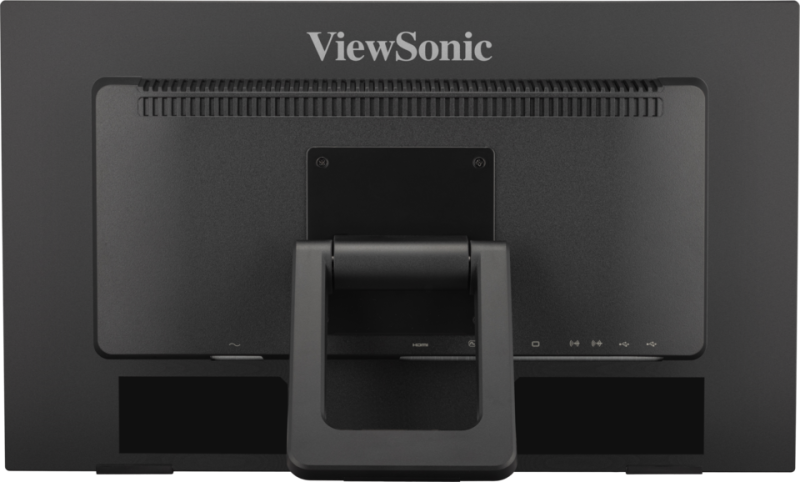

Dimension & I/O Ports

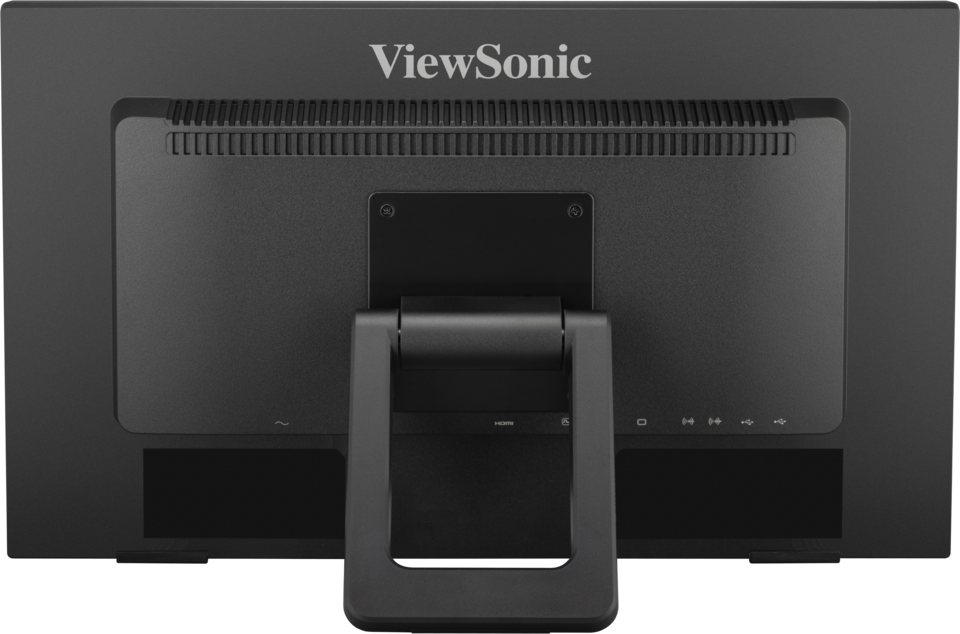

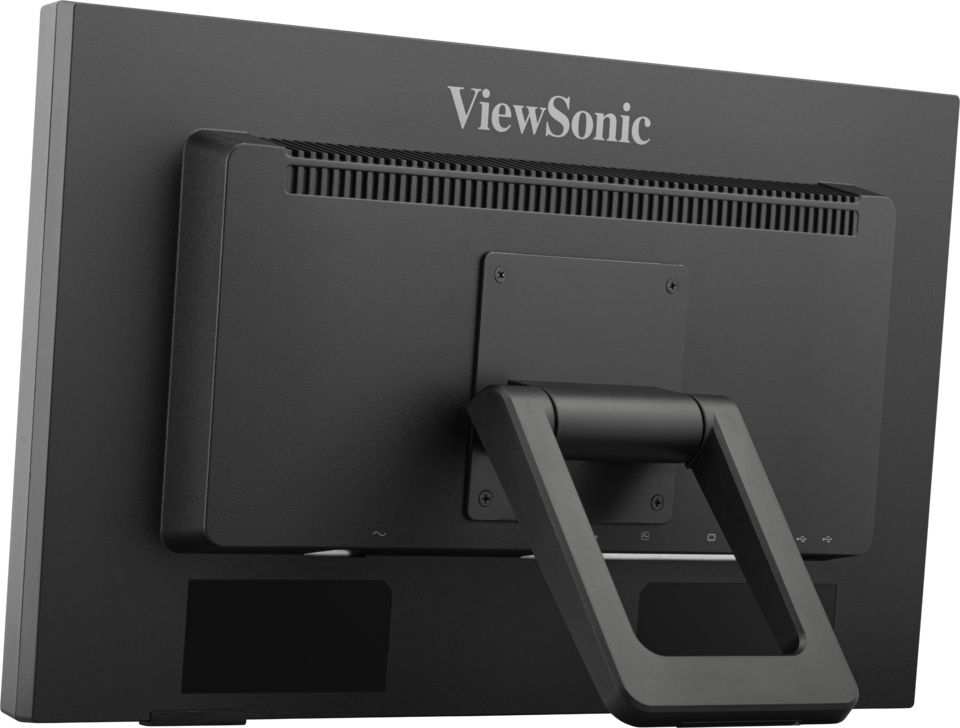

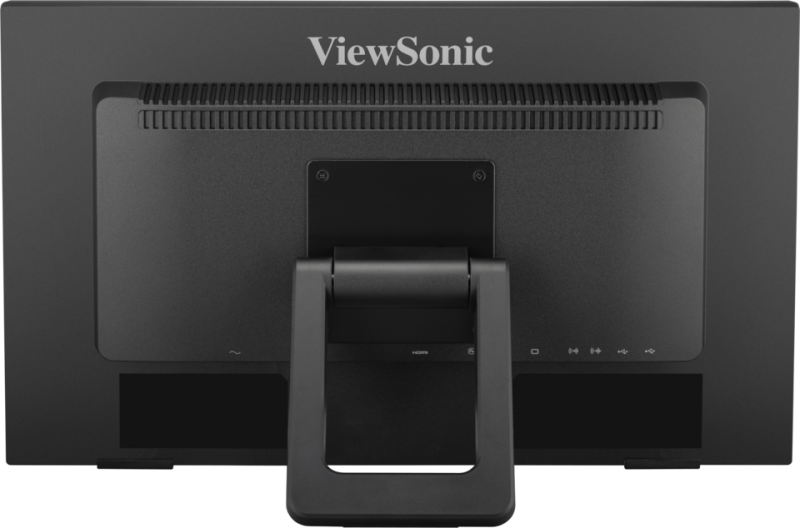

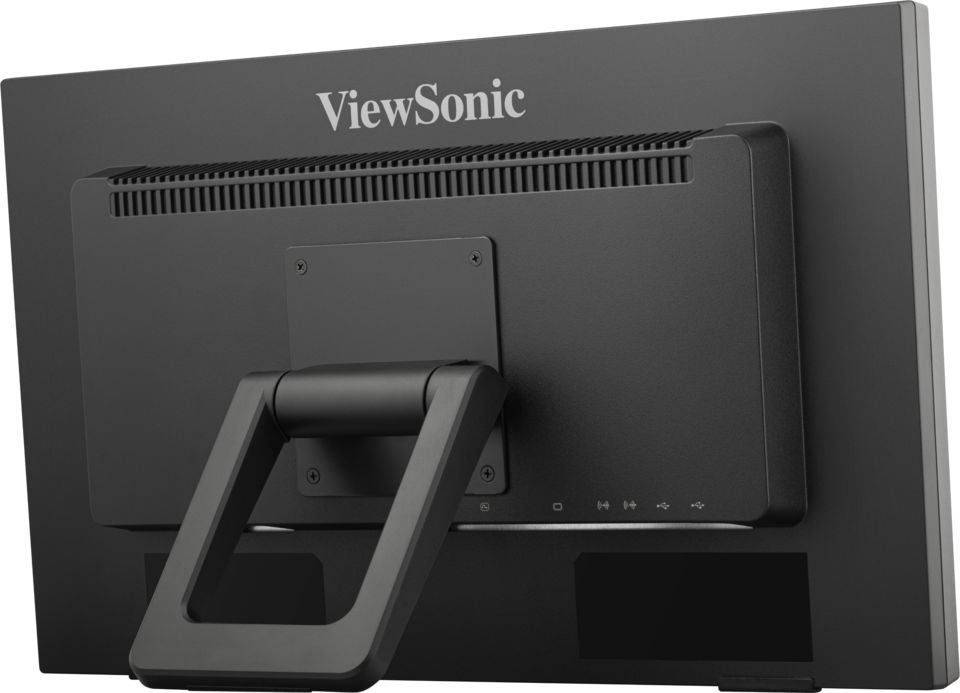

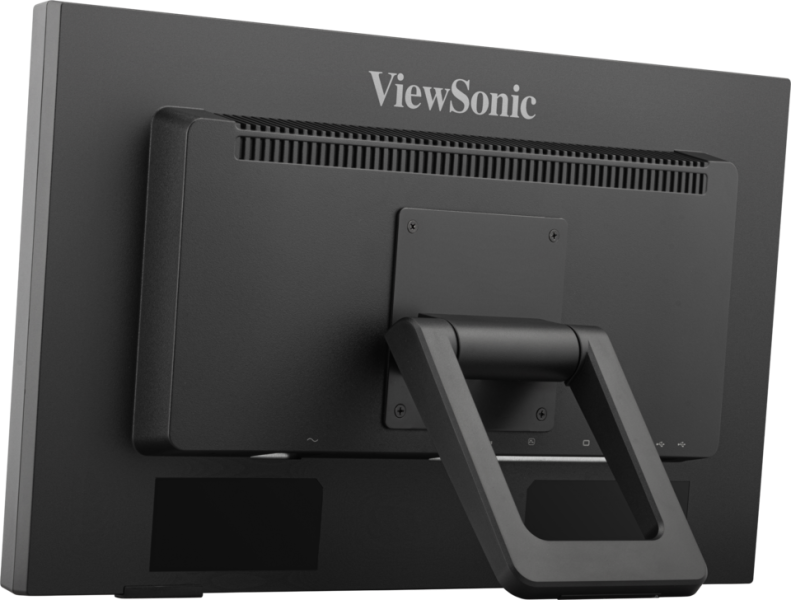

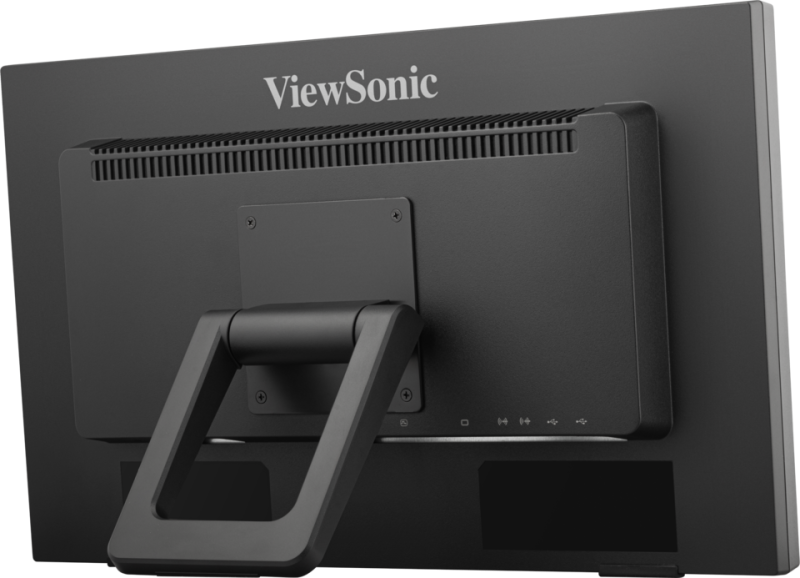

Conveniently mount the monitor to your preference by utilizing the 100mm x 100mm VESA-compatible mount design.100mm x 100mm VESA mount

- Menu Control Panel
- Power In
- VESA Compatible
(Wall Mount 100 x 100mm) - HDMI
- DVI
- VGA
- Audio In
- Audio Out
- USB Downstream
- USB Upstream
المواصفات
- الشاشةحجم الشاشة (بوصة): 22
المساحة المرئية (بوصة): 21.5
نوع اللوحة: VA Technology
الدقة: 1920 x 1080
نوع الدقة: FHD (Full HD)
نسبة التباين الثابت: 3,000:1 (typ)
نسبة التباين الديناميكي: 20M:1
مصدر الضوء: LED
السطوع: 250 cd/m² (typ)
الألوان: 16.7M
مساحات الألوان المدعومة: 8 bit true
الابعاد المتزنة: 16:9
زمن الاستجابة (GTG النموذجي): 6.5ms
زمن الاستجابة (GTG مع OD): 6.5ms
زوايا النظر: 178º horizontal, 178º vertical
عمر الإضاءة الخلفية (ساعات): 30000 Hrs (Min)
سُمك الزجاج: 2mm
صلابة الزجاج: 7H
انحناء: Flat
معدل التحديث (هرتز): 75
فلتر الضوء الأزرق: Yes
إضاءة زرقاء منخفضة: Software solution
خالٍ من الوميض: Yes
نطاق الألوان: NTSC: 72% size (Typ)
sRGB: 104% size (Typ)
حجم البكسل: 0.249 mm (H) x 0.241 mm (V)
شاشة اللمس: IR, 10-point multi-touch
معالجة السطح: Glossy, Hard Coating (7H)
سُمك الزجاج الواقي: 2mm - التوافقدقة الكمبيوتر (الحد الأقصى): 1920x1080
دقة Mac® (الحد الأقصى): 1920x1080
نظام تشغيل الكمبيوتر: Windows 10/11 certified; macOS tested
دقة Mac® (الحد الأدنى): 1920x1080 - موصلVGA: 1
USB 2.0 Type A: 2
USB 2.0 Type B: 1
دخل صوت 3.5 مم: 1
مخرج صوت 3.5 ملم: 1
HDMI 1.4: 1
DVI-D: 1
دخل الطاقة: 3-pin Socket (IEC C14 / CEE22)
- الصوتمكبرات صوت داخلية: 2Watts x2
- الطاقةالوضع الاقتصادي (توفير): 13W
الوضع الاقتصادي (مُحسّن): 16W
الاستهلاك (نموذجي): 18.5W
الاستهلاك (الحد الأقصى): 21.8W
الجهد: AC 100-240V
وضع الاستعداد: 0.5W
مصدر الطاقة: Internal Power Supply - أجهزة إضافيةفتحة قفل Kensington: 1
تنظيم الكابلات: Yes - ادواة التحكمأزرار التحكم المادية: 1, 2, Up, Down, Power
قائمة العرض على الشاشة (OSD): Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall - ظروف التشغيلدرجة الحرارة: 32°F to 104°F (0°C to 40°C)
الرطوبة (بدون تكثّف): 20% to 90% - Wall Mount متوافق مع VESA: 100 x 100 mm
- إشارة الإدخالالتردد الأفقي: RGB Analog: 24 ~ 82KHz, DVI-D: 24 ~ 82KHz, HDMI (v1.4): 25 ~ 85KHz
التردد الرأسي: RGB Analog: 50 ~ 75Hz, DVI-D: 50 ~ 75Hz, HDMI (v1.4): 50 ~ 75Hz - دخل الفيديومزامنة رقمية: TMDS - DVI-D, TMDS - HDMI (v1.4)
المزامنة التناظرية: Separate/Composite/SOG - RGB Analog - التصميم المريحالإمالة (للأمام/للخلف): 20º / 40º
- الوزن (إمبراطوري)الوزن الصافي (رطل): 9.3
الوزن الصافي بدون الحامل (رطل): 8
الوزن الإجمالي (رطل): 12.6 - Weight (metric) الوزن الصافي (كجم): 4.2
الوزن الصافي بدون الحامل (كجم): 3.7
الوزن الإجمالي (كجم): 5.7 - المقاسات (عرض × ارتفاع × عمق)العبوة (بوصة): 22.8 x 15.9 x 6.4
الأبعاد الفعلية (بوصة): 20.4 x 12.9 x 4
الأبعاد الفعلية بدون الحامل (بوصة): 20.4 x 12.1 x 2.4 - المقاسات (متري) (عرض × ارتفاع × عمق)العبوة (مم): 580 x 405 x 162
الأبعاد الفعلية (مم): 519 x 329 x 101
الأبعاد الفعلية بدون الحامل (مم): 519 x 308 x 61 - عاماللوائح التنظيمية: cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, NOM, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BSMI, RCM, GEMS, VCCI, PSE, KC, K-MEPS, BIS, CCC, China RoHS, China Energy Label, CECP
محتويات العبوة: TD2223-2 x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v1.4; Male-Male) x1, USB A/B Cable (v2.0; Male-Male) x1, Audio Cable (Male-Male) x1, Quick Start Guide x1
إعادة التدوير/التخلص: Please dispose of in accordance with local, state or federal laws.
الضمان: *Warranty offered may differ from market to market
إدارة الطاقة: Energy Star standards, EPEAT
