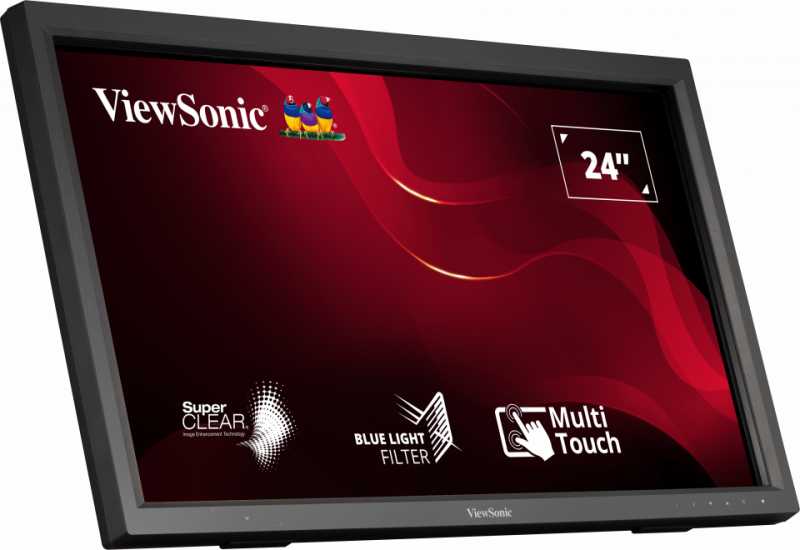

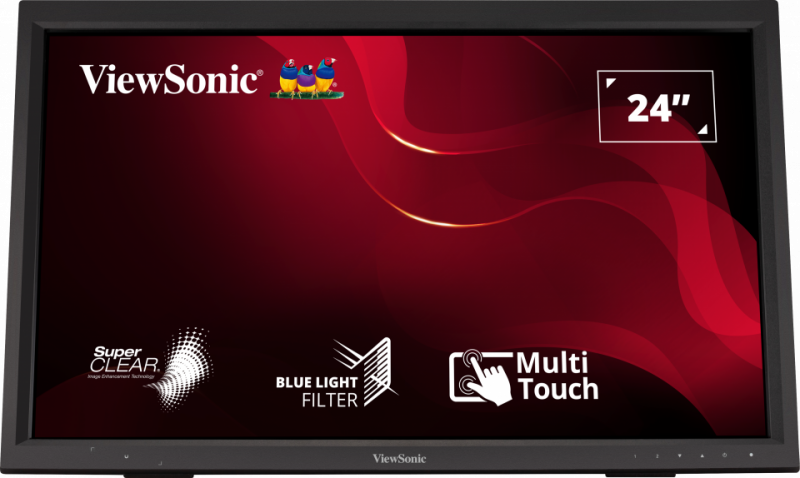

TD2423
24” IR Touch Monitor
- Intuitive 10-point touchscreen
- Finger, stylus, and glove touch compatible
- Magnetic pen placeholder
- Adjustable back tilt up to 40-degrees
- Scratch-resistant 7H hardness screen
نظرة عامة

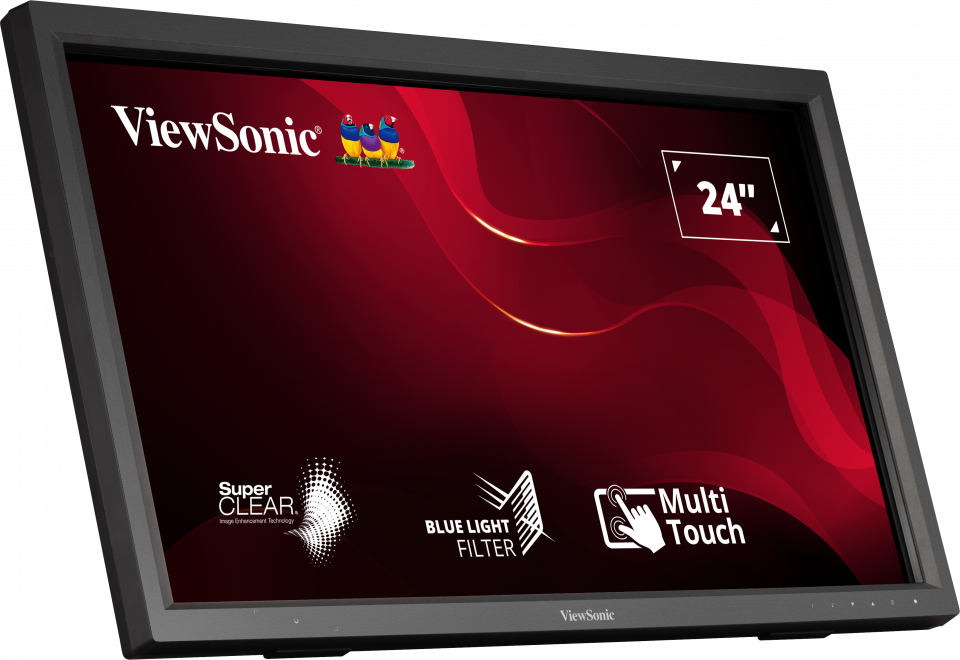

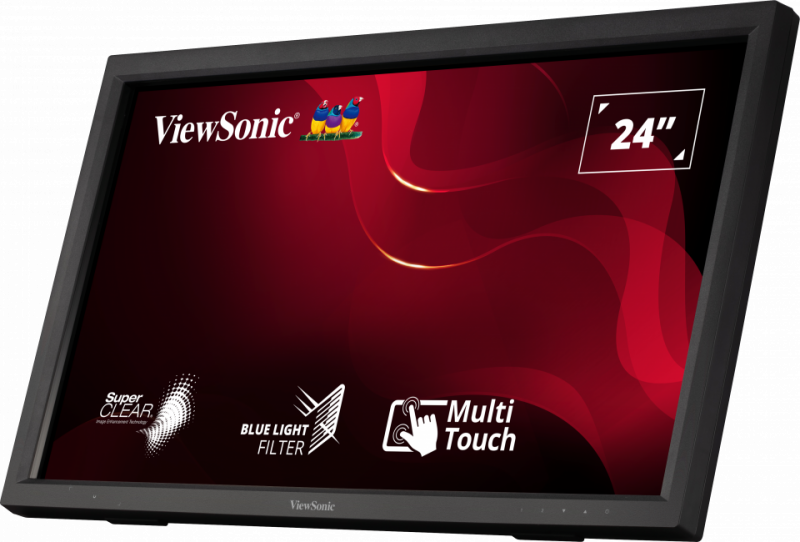

The ViewSonic® TD2423 is a 24” IR touch display designed for intuitive multi-touch use. Infrared (IR) touchscreen can detect up to 10 points of contact compared to optical touchscreens and can be operated by a stylus, fingers and gloved hands. The multi-touch input is more accurate, and the display is faster. Coupled with an adjustable tilt, you can easily interact with the TD2423 at an ideal position. This monitor features Full HD resolution to give you clear images and is built with scratch-resistant 7H hardness screen to surface damage. To support your work, the TD2423 is equipped with VGA, HDMI, DVI and USB connectivity.Intuitive Multi-touch Experience
An infrared touchscreen that can detect up to 10 points of contact under Windows compared to optical touchscreens. The TD2423 delivers an intuitive multi-touch experience with every tap, pinch, and swipe with the finger touch, gloved touch, and stylus inputs.*The stylus pen only shown for reference and excluded from the package.
IR Touch Technology

Operating System Support
This monitor supports the main operating systems being Windows, macOS, Android, Chrome OS, Linux and Raspberry Pi.*Learn more about multi touch for macOS
*TD2423 does not support USB Type-C for output video, audio, and touch feedback through mobile phone and tablet on Android OS, but it can support other Android devices.

Simple and Safer Way to Interact
This monitor can be operated by stylus* and gloved hands, which improves hygiene and is effective for selection, dragging and drawing. What’s more, there is a magnetic pen placeholder on the base.*The stylus is an optional accessory. The minimum diameter of the stylus pen tip must be at least 6mm or above.

Anti-scratch Touchscreen
With a built-in 7H hardness screen, it’s resistant to surface damage caused by sharp objects.7H Hardness Screen

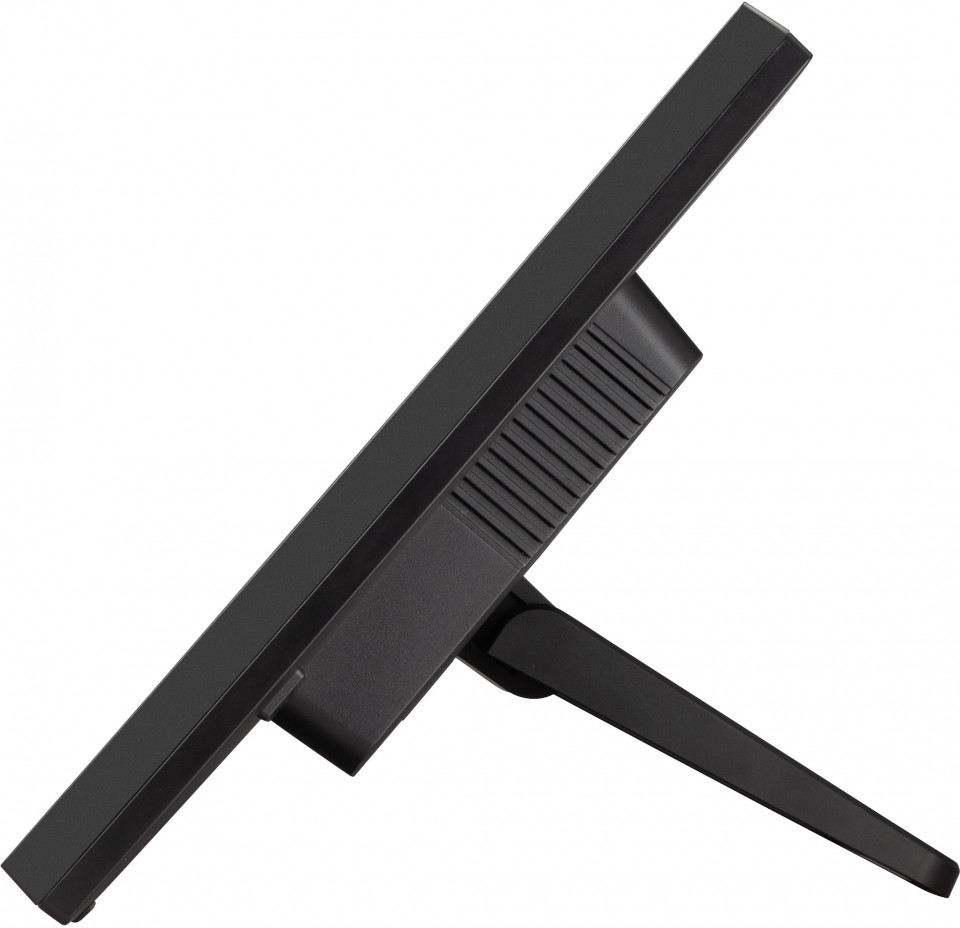

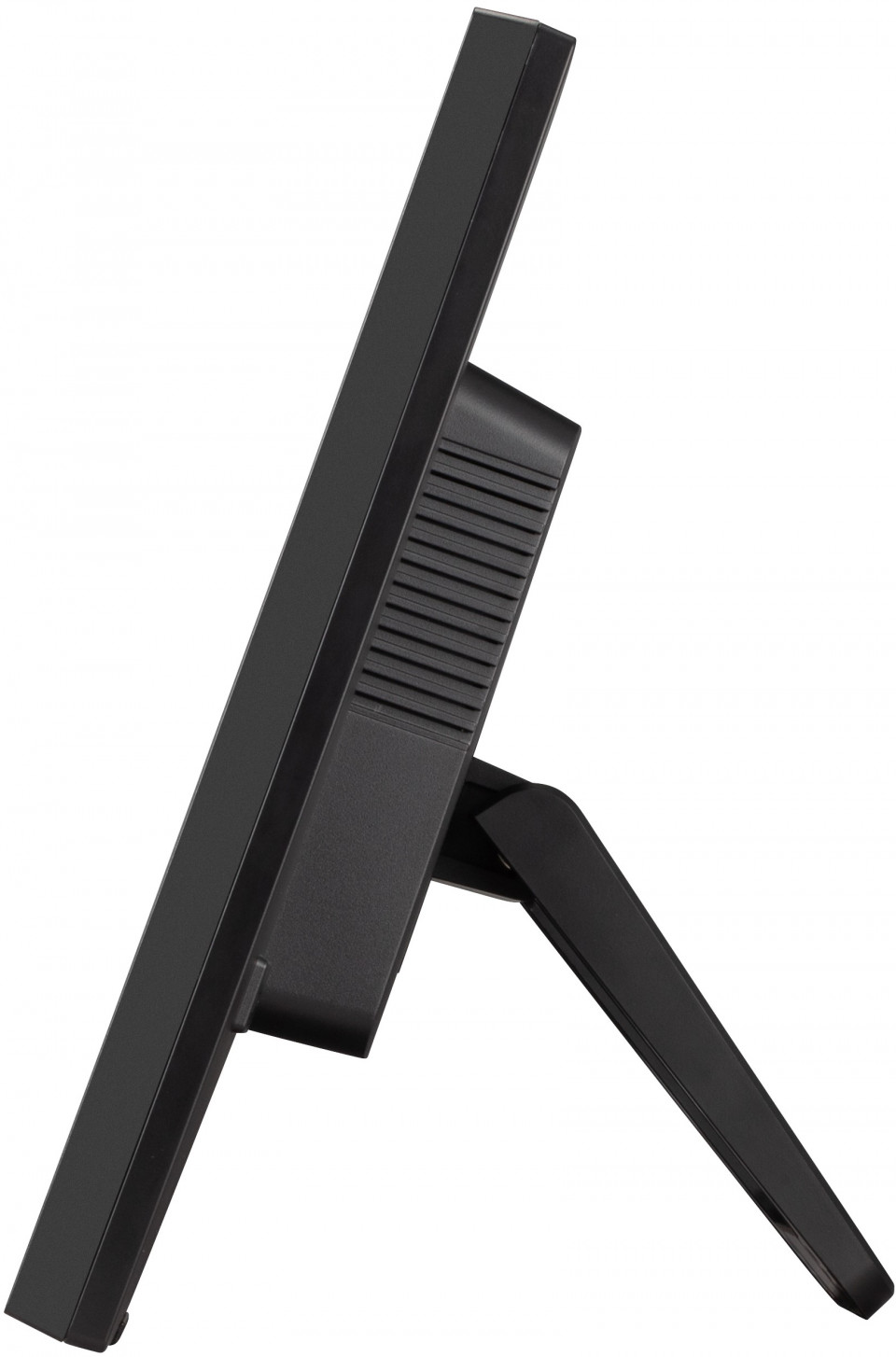

Adjustable Tilt
This monitor includes an adjustable tilt, which allows you to easily tilt back up to 40-degrees, making it a good fit for anyone.
Clear Images
This monitor features Full HD 1920x1080 resolution to benefit you with greater image details and more displayable on-screen contents.Full HD 1080p Resolution

Dual Integrated Speakers
With built-in 2-watt speakers, this monitor provides you a better audiovisual experience.
Enhanced Viewing Comfort
This monitor is built with Flicker-Free technology and a Blue Light Filter to reduce eye fatigue after a long day of use.
Certified Environmental Sustainability
The TD2423 is an ENERGY STAR and EPEAT-certified product that can save on energy costs while reducing greenhouse gases.*Energy savings may vary based on actual usage and other factors.
*Certifications and safety regulations are dependent on the purchase area.
Energy Star & EPEAT

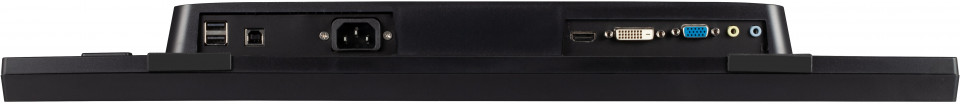

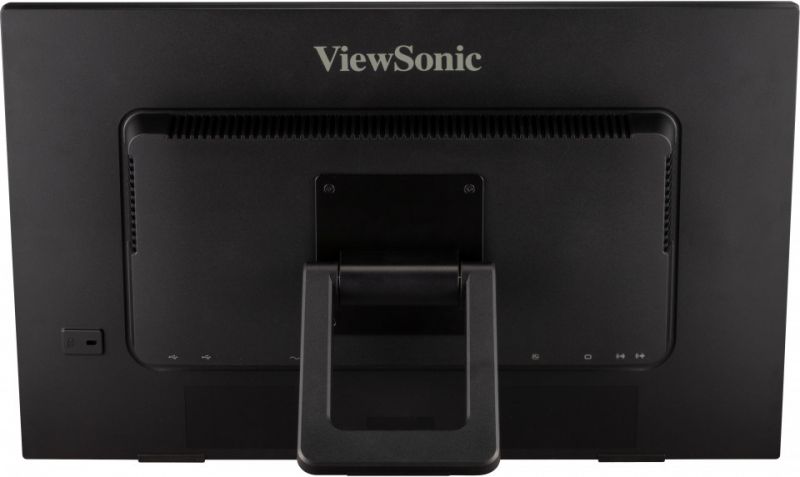

Dimension & I/O Ports

- Menu Control Panel
- USB Down Stream x 2
- USB UP Stream
- AC In
- HDMI

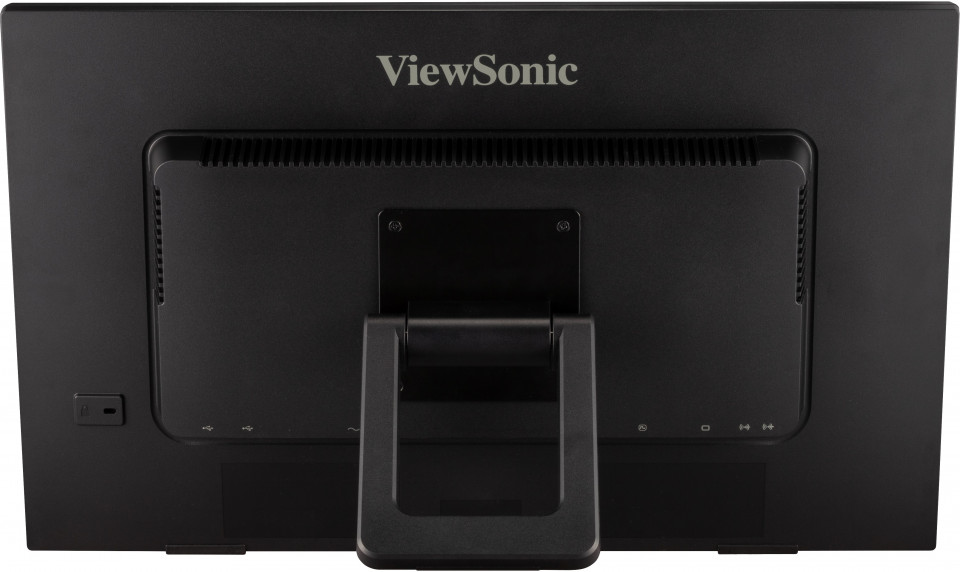

- VESA Compatible
(Wall Mount 100 x 100mm) - Earphone Out
- Audio In
- VGA
- DVI
المواصفات
- الشاشةحجم الشاشة (بوصة): 24
المساحة المرئية (بوصة): 23.6
نوع اللوحة: VA Technology
الدقة: 1920 x 1080
نوع الدقة: FHD (Full HD)
نسبة التباين الثابت: 3,000:1 (typ)
نسبة التباين الديناميكي: 20M:1
مصدر الضوء: LED
السطوع: 250 cd/m² (typ)
الألوان: 16.7M
مساحات الألوان المدعومة: 8 bit (6 bit + Hi-FRC)
الابعاد المتزنة: 16:9
زمن الاستجابة (GTG النموذجي): 7ms
زمن الاستجابة (GTG مع OD): 7ms
زمن الاستجابة (Tr+Tf النموذجي): 25ms
زوايا النظر: 178º horizontal, 178º vertical
عمر الإضاءة الخلفية (ساعات): 40000 Hrs (Min)
سُمك الزجاج: 1.85mm
صلابة الزجاج: 7H
انحناء: Flat
معدل التحديث (هرتز): 75
فلتر الضوء الأزرق: Yes
إضاءة زرقاء منخفضة: Software solution
خالٍ من الوميض: Yes
نطاق الألوان: NTSC: 72% size (Typ)
sRGB: 104% size (Typ)
حجم البكسل: 0.272 mm (H) x 0.272 mm (V)
شاشة اللمس: IR, 10-point multi-touch
معالجة السطح: Glossy, Hard Coating (7H)
سُمك الزجاج الواقي: 1.85mm - التوافقدقة الكمبيوتر (الحد الأقصى): 1920x1080
دقة Mac® (الحد الأقصى): 1920x1080
نظام تشغيل الكمبيوتر: Windows 7/8.1/10/11 certified; macOS tested
دقة Mac® (الحد الأدنى): 1920x1080 - موصلVGA: 1
USB 2.0 Type A: 2
USB 2.0 Type B: 1
دخل صوت 3.5 مم: 1
مخرج صوت 3.5 ملم: 1
HDMI 1.4: 1
DVI-D: 1
دخل الطاقة: 3-pin Socket (IEC C14 / CEE22)
- الصوتمكبرات صوت داخلية: 2Watts x2
- الطاقةالوضع الاقتصادي (توفير): 11.5W
الوضع الاقتصادي (مُحسّن): 13.5W
الاستهلاك (نموذجي): 15.5W
الاستهلاك (الحد الأقصى): 16.5W
الجهد: AC 100-240V
وضع الاستعداد: 0.5W
مصدر الطاقة: Internal Power Supply - أجهزة إضافيةفتحة قفل Kensington: 1
تنظيم الكابلات: Yes - ادواة التحكمأزرار التحكم المادية: 1, 2, Up, Down, Power
قائمة العرض على الشاشة (OSD): Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall - ظروف التشغيلدرجة الحرارة: 32°F to 104°F (0°C to 40°C)
الرطوبة (بدون تكثّف): 20% to 90% - Wall Mount متوافق مع VESA: 100 x 100 mm
- إشارة الإدخالالتردد الأفقي: 24 ~ 82KHz
التردد الرأسي: 50 ~ 75Hz - دخل الفيديومزامنة رقمية: TMDS - DVI-D, TMDS - HDMI (v1.4)
المزامنة التناظرية: Separate/Composite/SOG - RGB Analog - التصميم المريحالإمالة (للأمام/للخلف): 20º / 40º
- الوزن (إمبراطوري)الوزن الصافي (رطل): 11.5
الوزن الصافي بدون الحامل (رطل): 10.3
الوزن الإجمالي (رطل): 15.4 - Weight (metric) الوزن الصافي (كجم): 5.2
الوزن الصافي بدون الحامل (كجم): 4.7
الوزن الإجمالي (كجم): 7 - المقاسات (عرض × ارتفاع × عمق)العبوة (بوصة): 25.4 x 16.6 x 6.5
الأبعاد الفعلية (بوصة): 22.5 x 13.7 x 4
الأبعاد الفعلية بدون الحامل (بوصة): 22.5 x 13.7 x 2.4 - المقاسات (متري) (عرض × ارتفاع × عمق)العبوة (مم): 645 x 422 x 166
الأبعاد الفعلية (مم): 571 x 348 x 101
الأبعاد الفعلية بدون الحامل (مم): 571 x 348 x 61 - عاماللوائح التنظيمية: cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, RCM, GEMS, VCCI, PSE, BIS
محتويات العبوة: TD2423 x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v1.4; Male-Male) x1, USB A/B Cable (v2.0; Male-Male) x1, Audio Cable (Male-Male) x1, Quick Start Guide x1
إعادة التدوير/التخلص: Please dispose of in accordance with local, state or federal laws.
الضمان: *Warranty offered may differ from market to market
إدارة الطاقة: Energy Star standards, EPEAT
