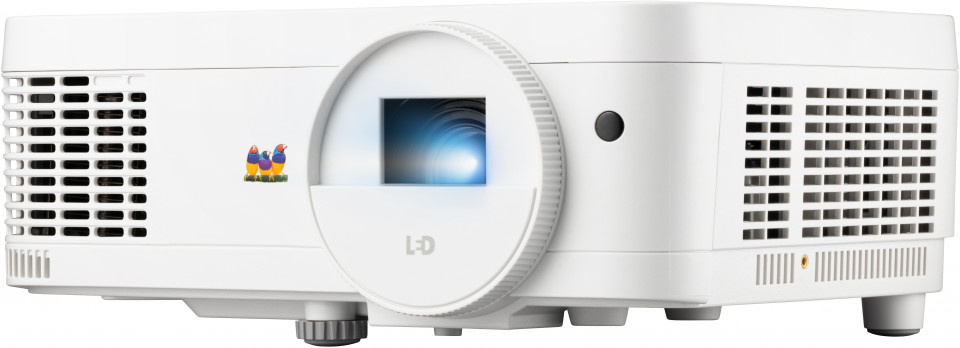

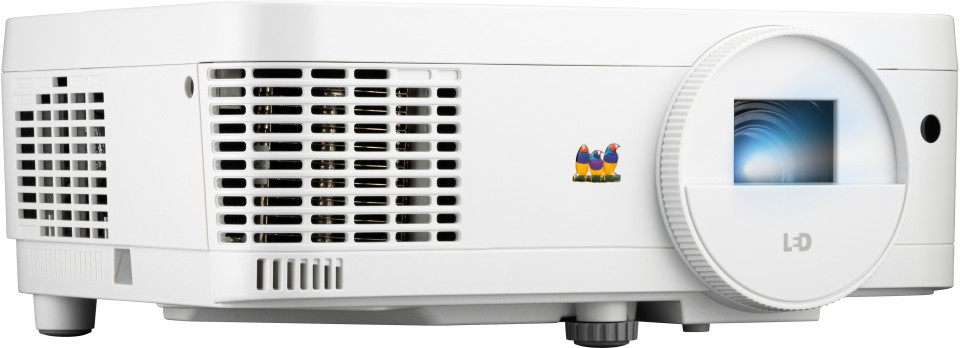

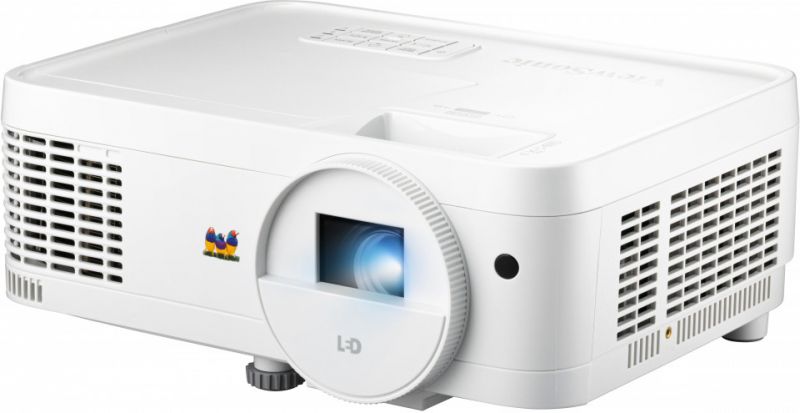

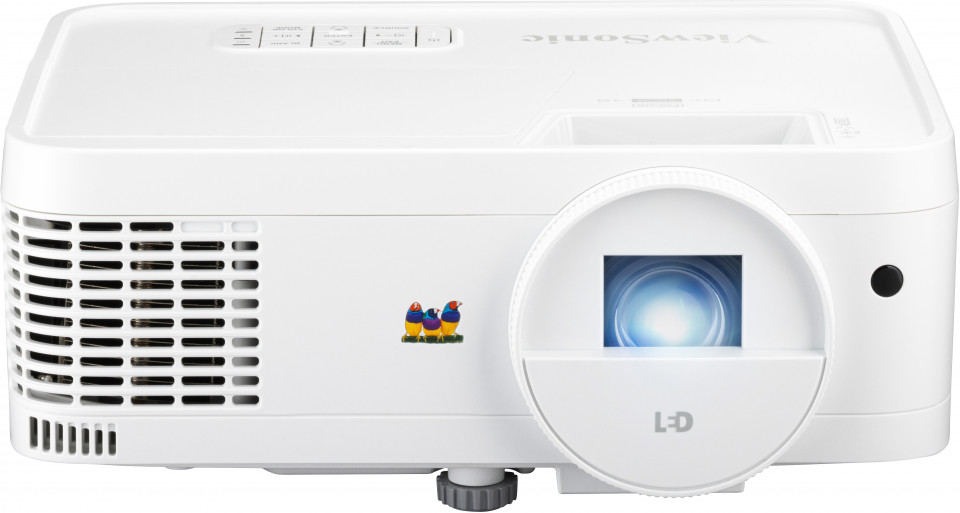

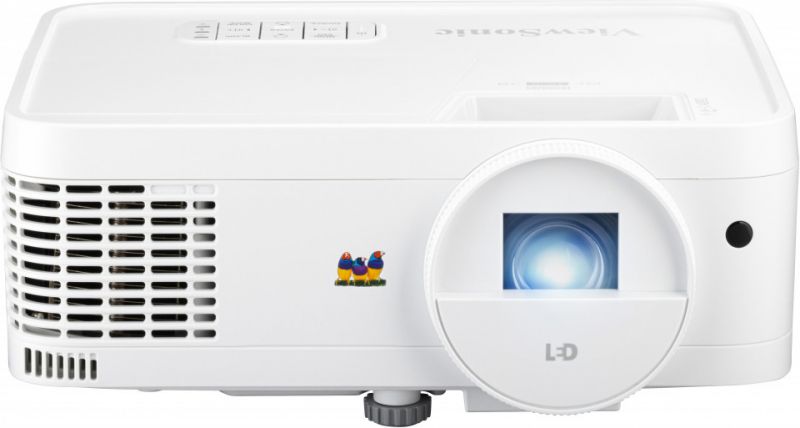

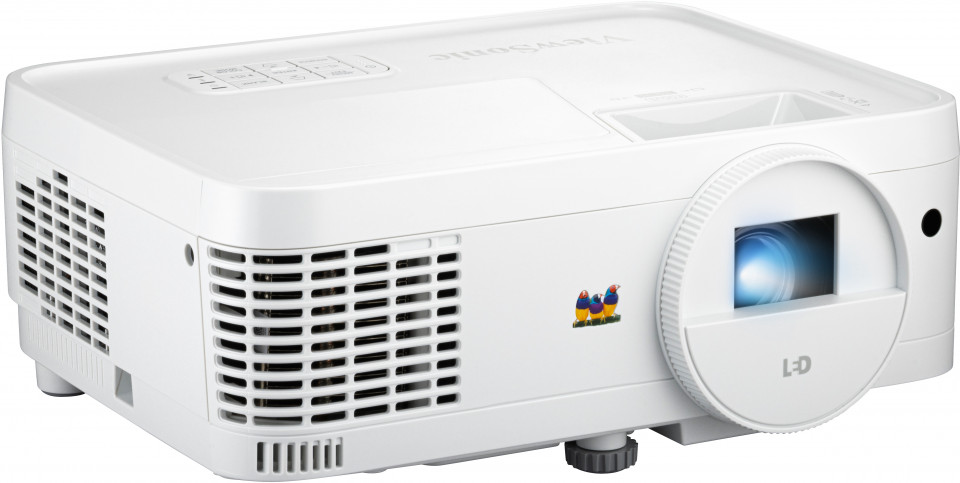

LS510WE
3,800 ANSI Lumens WXGA LED Business/Education Projector
- 3rd generation LED technology for greater sustainability
- Maintenance free: 30,000-hour light source life and less power consumption
- 3,800 ANSI Lumens offering bright images in any environment
- Ease of use: instant power on/off and convenient software update
- Wide color gamut to present the best
نظرة عامة
The LS510WE is ViewSonic’s lamp-free high brightness WXGA projector for business and education. Adopting industry-leading 3rd generation LED technology, the LS510WE delivers 3,800 ANSI Lumens while eliminating the use of toxic mercury, reducing the cost and effort of frequent lamp replacement and lowering the total cost of ownership. The lamp-free light source offers enhanced sustainability for a greener environment while delivering a wider color gamut for bright and vivid images in a meeting room, classroom, or any other environment. The projector boasts efficient use with instant power on/off, convenient projector software update, and vertical keystone correction along with 360° tilt angle projection for flexible applications. 3rd Generation LED Technology for Greater Sustainability
With the 3rd generation LED technology, the LS510WE frees users from frequent lamp replacement and toxic mercury. Offering consistently impressive brightness for 30,000 hours, the projector saves the cost of time, manpower and money for maintenance, while providing a greener and more sustainable future. Lamp-free, Mercury-free, Maintenance-free

Saving More with the Advanced LED Technology
Adopting ams OSRAM’s Ostar Projection Power LED technology, the LED projector is both energy saving and cost efficient, consuming less energy than competing lamp-based projectors.Less Power Consumption

Enhanced Brightness for Business/Education Environments
Thanks to the latest LED technology, the LS510WE achieves a major brightness breakthrough to 3,000 ANSI Lumens. With extreme-high contrast ratio of 3,000,000:1, the projector ensures bright and detailed images in dim or lit environments.3,800 ANSI Lumens


Present the Best with Vibrant Colors
Impress any audience with ViewSonic’s exclusive color technology, covering wide color gamut, Bring your presentation with a true-to-life color experience.
Efficient Instant Power On/Off
Eliminate waiting times before and after use with instant power on/off capability, delivering immediate full brightness for timely starts with no cooling period required.

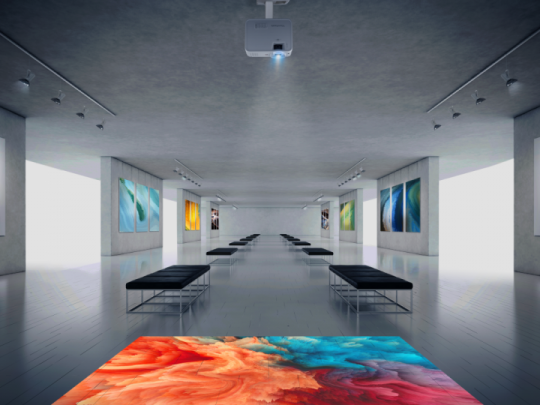

Versatile Application
The projector can freely rotate at any angle vertically to aid with creative applications, allowing projection onto ceilings, walls, or floors.360° Projection

A Simpler Way to Update Projector Software
Skip trips to the service center by keeping software up to date easily via USB cable connection with your laptop.Learn more: https://youtu.be/irlhJLpDHas
*The latest projector software update can be found in the download section at the bottom of the page when available.

USB Type A Power Supply
The built-in 5V/2A USB output conveniently delivers power to HDMI wireless dongles, eliminating the need for separate power adapters when streaming multimedia content.
Non-stop 24/7 Operation
The advanced cooling design enables 24/7 operation without degradation of image quality or work performance, making the projector ideal for applications that require continuous use.
Sealed Optical Engine with IP5X
Maintain crystal-clear image quality and product longevity with an advanced sealed optical engine that prevents dust from entering and affecting the thermal system.IP5X

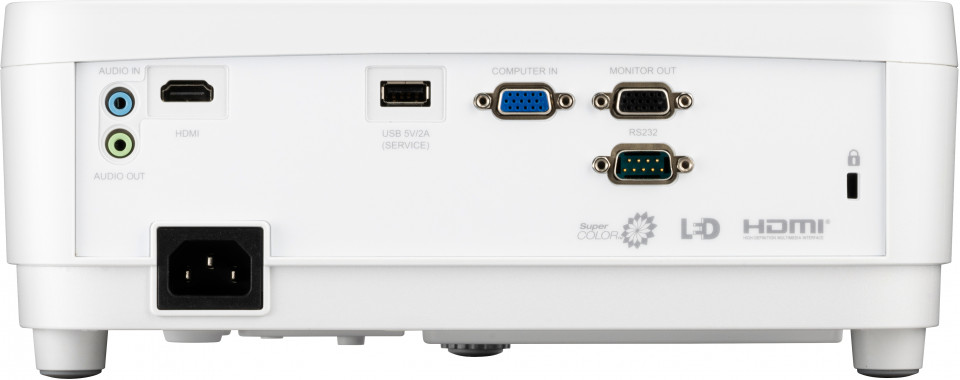

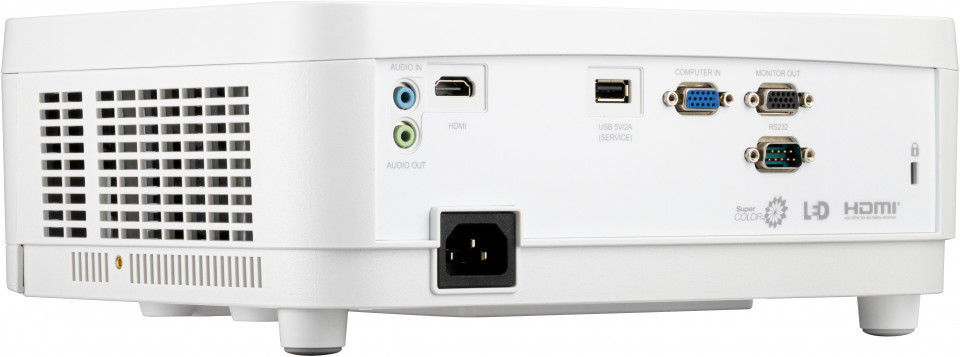

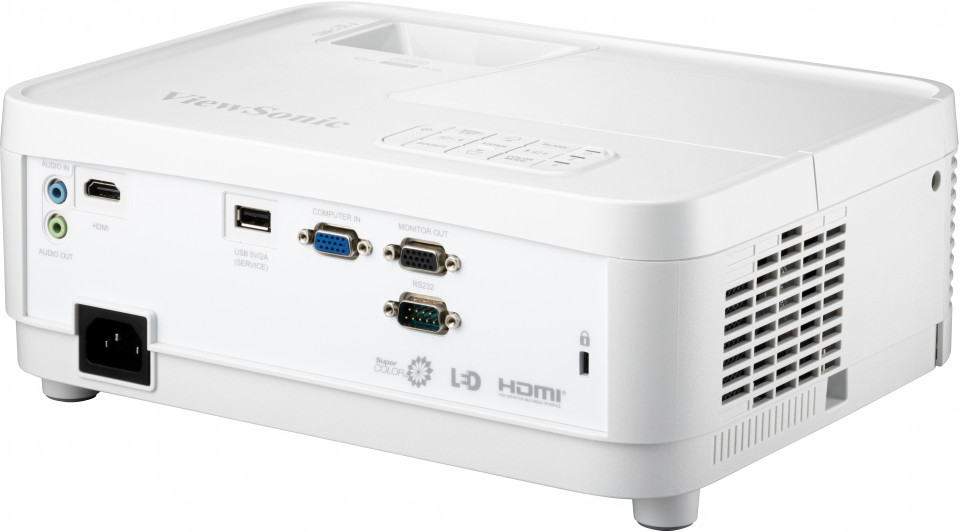

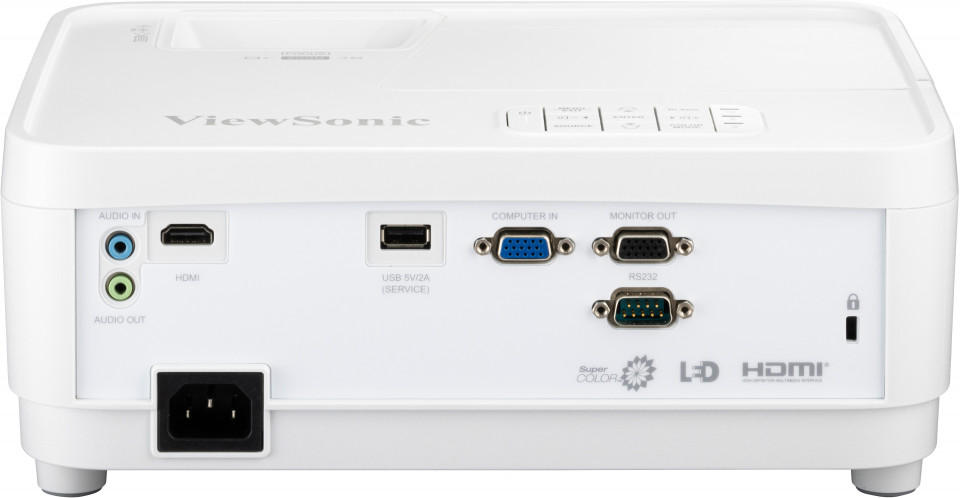

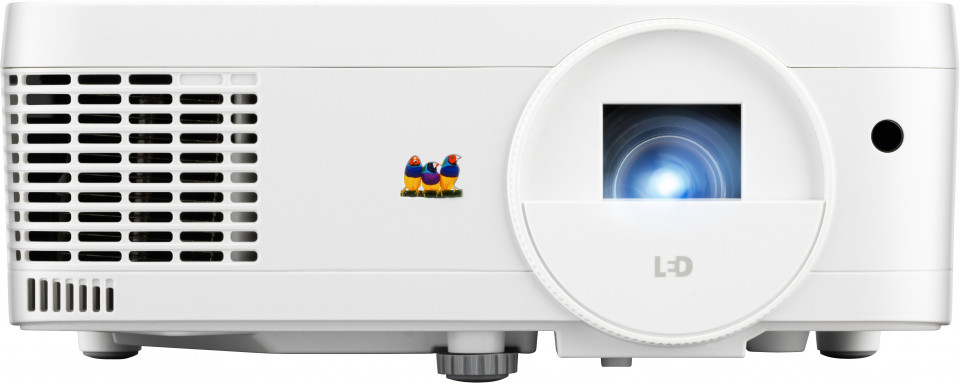

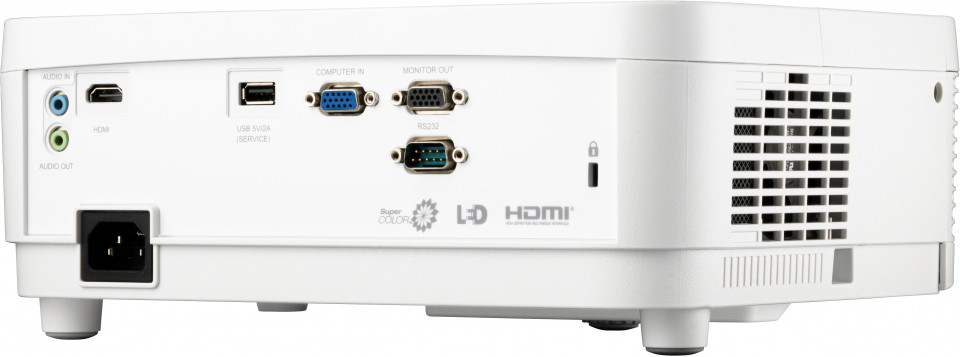

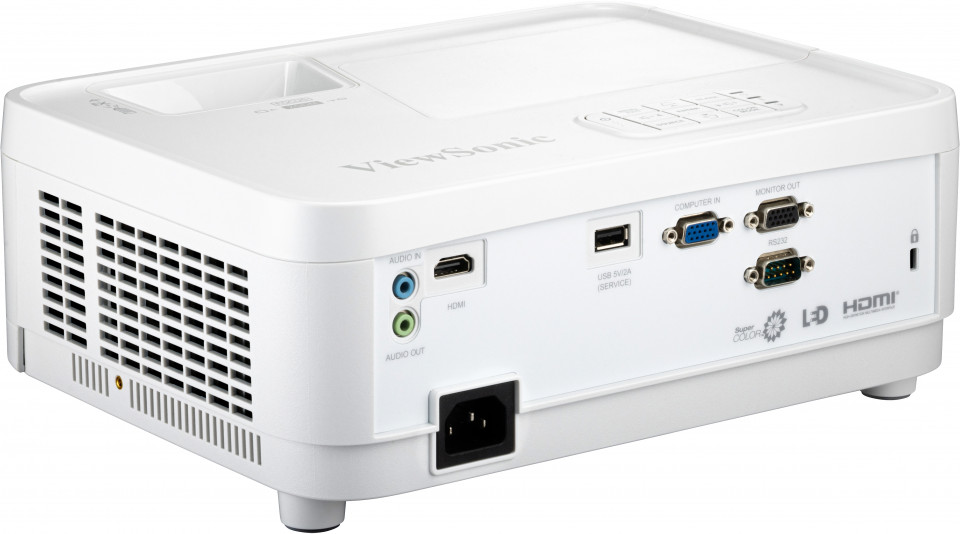

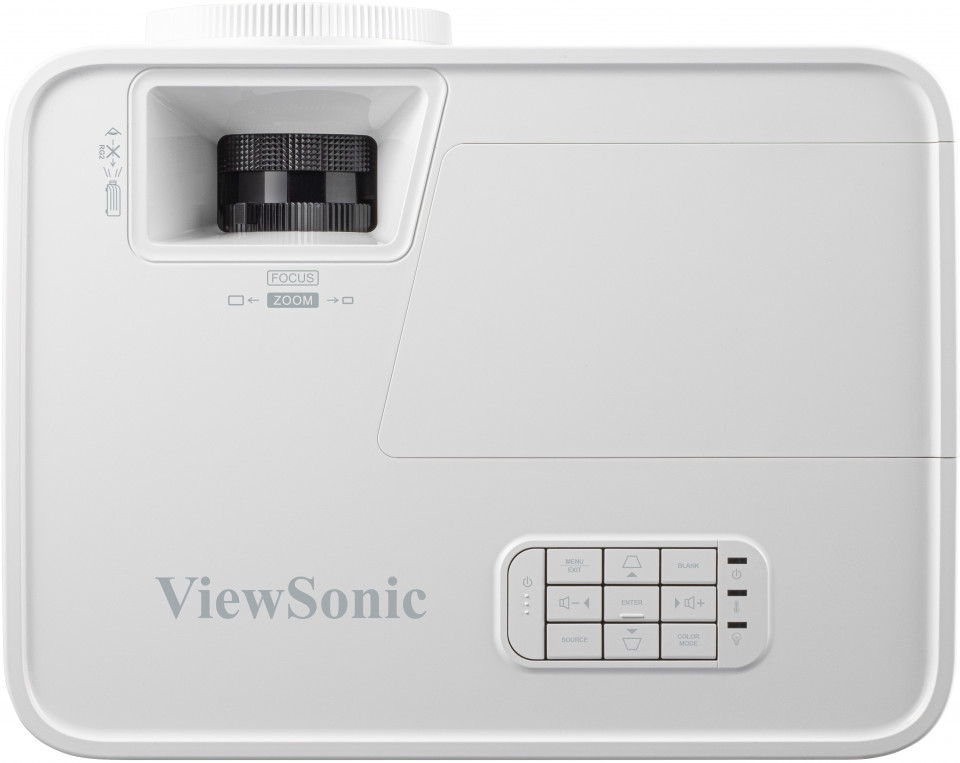

Dimension & I/O Ports

- LED Indicator
- Keypad
- Power Button
- Zoom/Focus Ring
- Front IR
- Lens
- Audio In
- Audio Out
- HDMI
- USB-A (5V/2A, Service)
- Computer In
- Monitor Out
- RS232
المواصفات
- المواصفاتنظام الإسقاط: 0.65'' WXGA
الدقة الأصلية: 1280x800
نوع DMD: DC3
السطوع: 3800 (ANSI Lumens)
نسبة التباين: 3000000:1
ألوان العرض: 1.07 Billion Colors
نوع مصدر الضوء: LED
عمر مصدر الضوء (ساعات) في الوضع العادي: 30000
العدسة: F=2.56-2.68, f=22-24.1mm
إزاحة الإسقاط: 100%+/-5%
نسبة الإسقاط: 1.55-1.70
التكبير البصري: 1.1X
تقريب رقمي: 0.8x-2.0x
حجم الصورة: 30"-300"
مسافة الإسقاط: 1m-10.98m
(100"@3.34m)
تصحيح شبه المنحرف (Keystone): +/- 40° (V)
ضوضاء مسموعة (عادية): 34dB
مستوى الضوضاء المسموعة (الوضع الاقتصادي): 28dB
تأخر الإدخال: 16ms
الدقة المدعومة: VGA(640 x 480) to FullHD(1920 x 1080)
التوافق مع HDTV: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
التردد الأفقي: 15K-102KHz
معدل المسح الرأسي: 23-120Hz - الإدخالالكمبيوتر في (مشاركة مع المكون): 1
HDMI: 1
(HDMI 1.4/ HDCP 1.4)
مدخل الصوت (3.5 ملم): 1 - الإخراجخرج الشاشة: 1
خرج الصوت (3.5 مم): 1
مكبر الصوت: 2W
USB Type A (طاقة): 1 (5V/2A)
- التحكمRS232 (DB ذو 9 سنون - ذكر): 1
USB Type A (للصيانة): 1
(share with USB A Output) - أخرىجهد مصدر الطاقة: 100-240V+/- 10%, 50/60Hz
(AC in)
استهلاك الطاقة: Normal: 240W
Standby: <0.5W
درجة حرارة التشغيل: 0~40℃
الكرتونة: Brown
الوزن الصافي: 2.65kg
الوزن الإجمالي: 3.85kg
المقاسات (عرض × ارتفاع × عمق) مع تعديل القاعدة: 293x221x115mm
أبعاد التغليف: 365x300x188mm
لغة قائمة OSD: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese, Greek, Hungarian. Total 24 languages
لغة دليل المستخدم: English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, total 20 languages - الملحقات القياسيةسلك الطاقة: 1

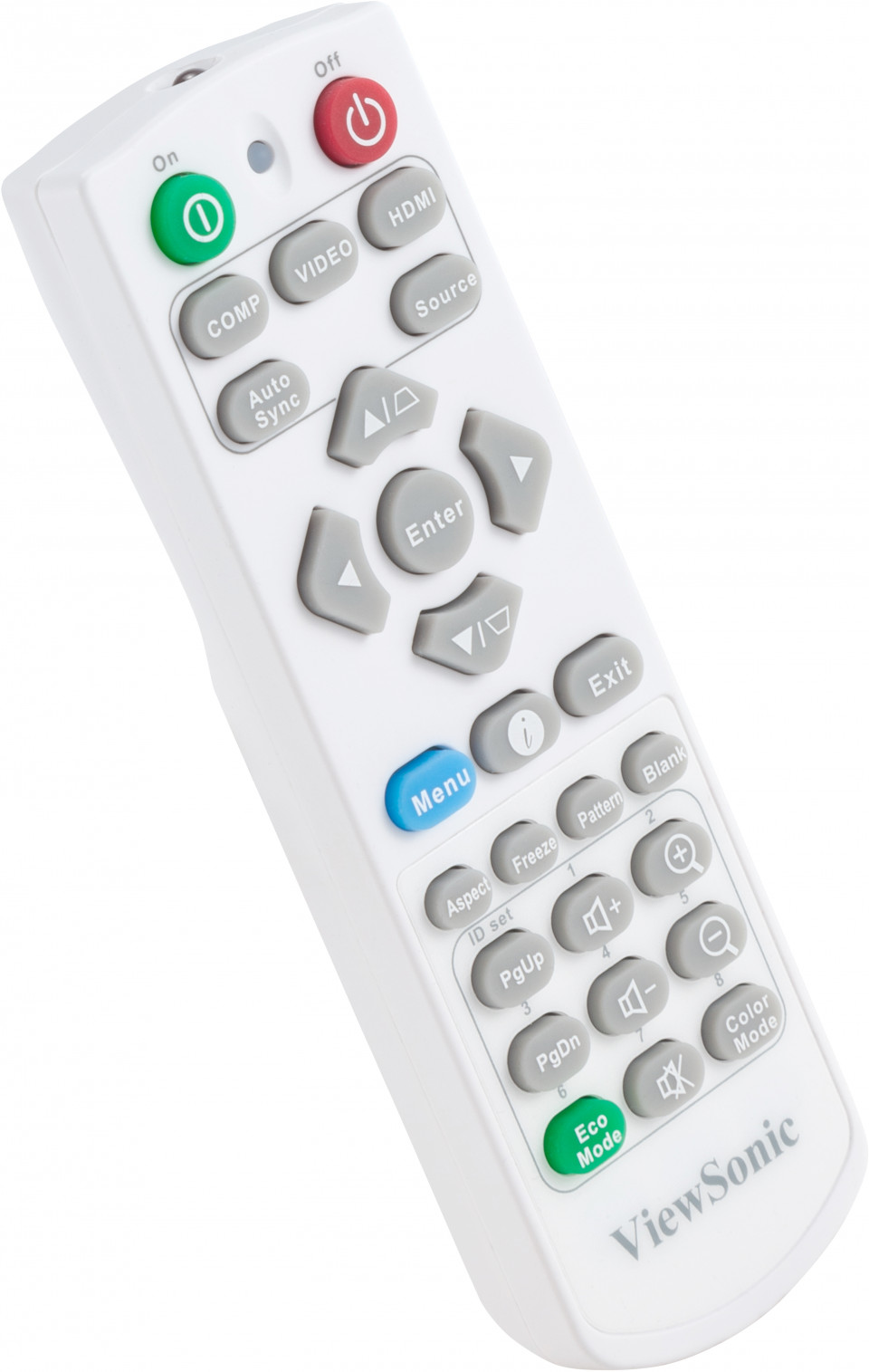

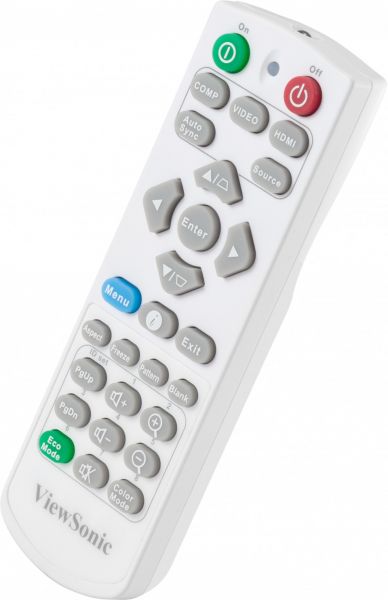

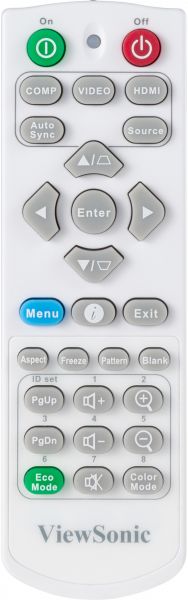

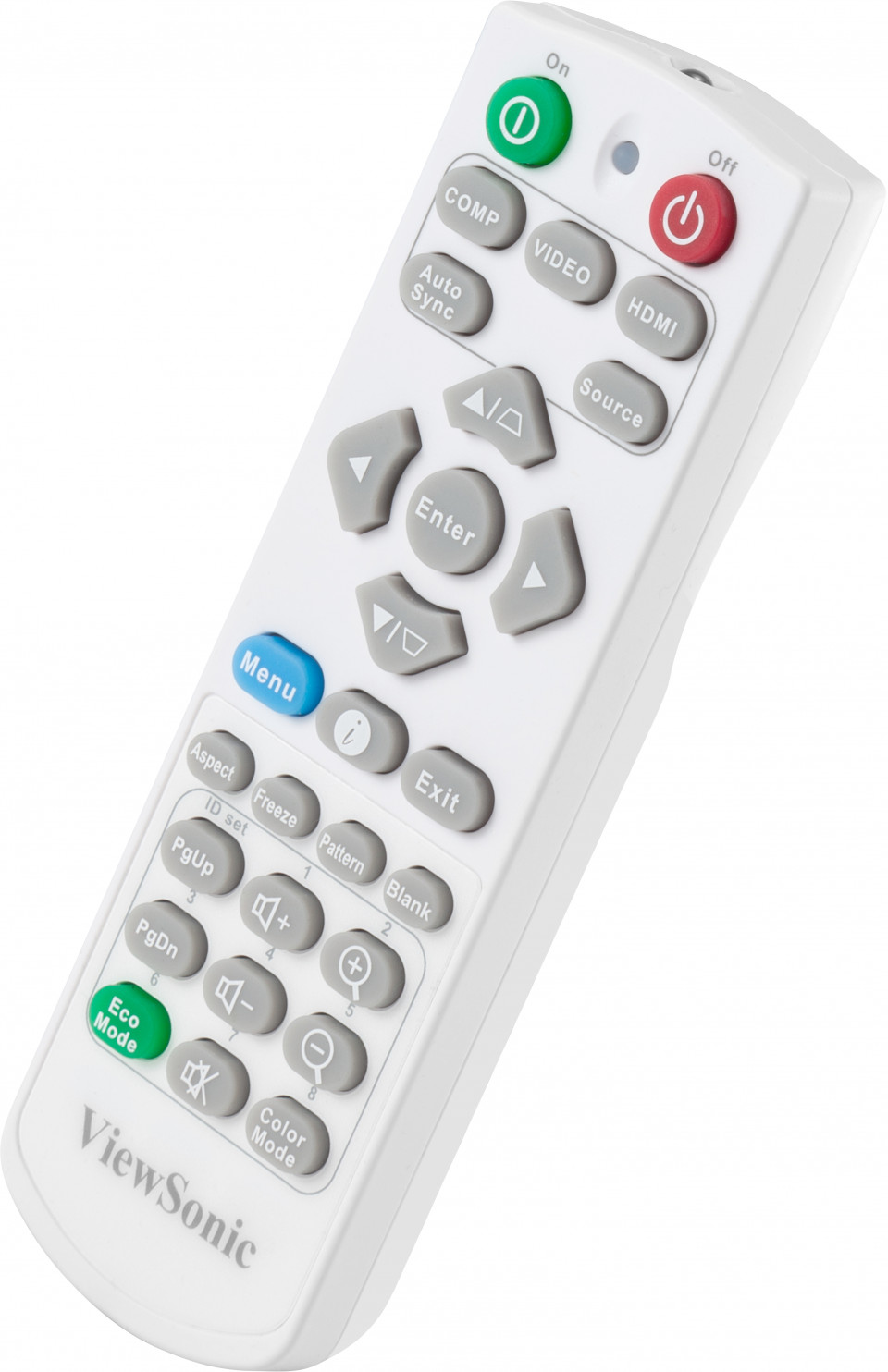

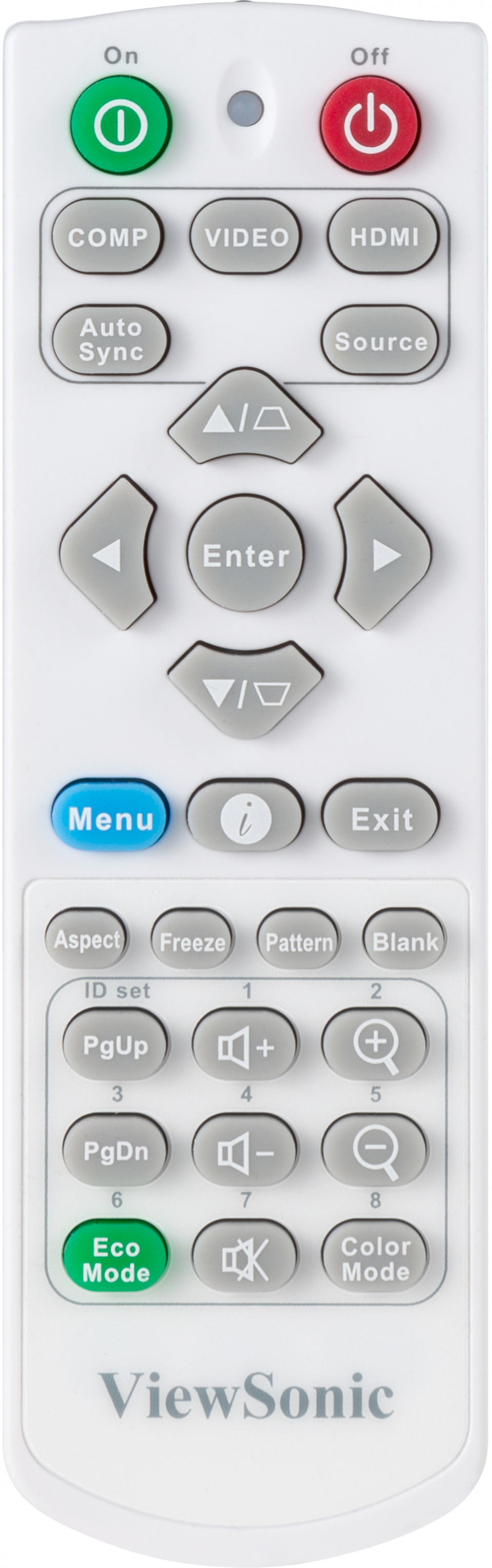

جهاز التحكم عن بُعد: 1
دليل البدء السريع (QSG): Yes
بطاقة الضمان: Yes (CN Only) - ملحق اختياريالتثبيت على الحائط/السقف: PJ-WMK-007
حقيبة الحمل: PJ-CASE-008
