CDE4302

43" Full HD Presenation Display

DISPLAY
Panel Size: 43"
Type/ Tech: TFT LCD Module. with LED Backlight
منطقة العرض (مم): 940.9(H) x 529.25 (V) (43" diagonal)
الابعاد المتزنة: 16:9
Native Resolution: 1920x1080
Colors: 16.7M
السطوع: 350 nits (typ.)
نسبة التباين: 3000:1 (typ.)
Response Time: 6.5 ms
زوايا النظر: H = 178, V = 178 (typ.)
عمر الإضاءة الخلفية: 30,000 Hours (typ.)
Surface Treatment: Hard coating (3H)
Orientation: Landscape / Portrait

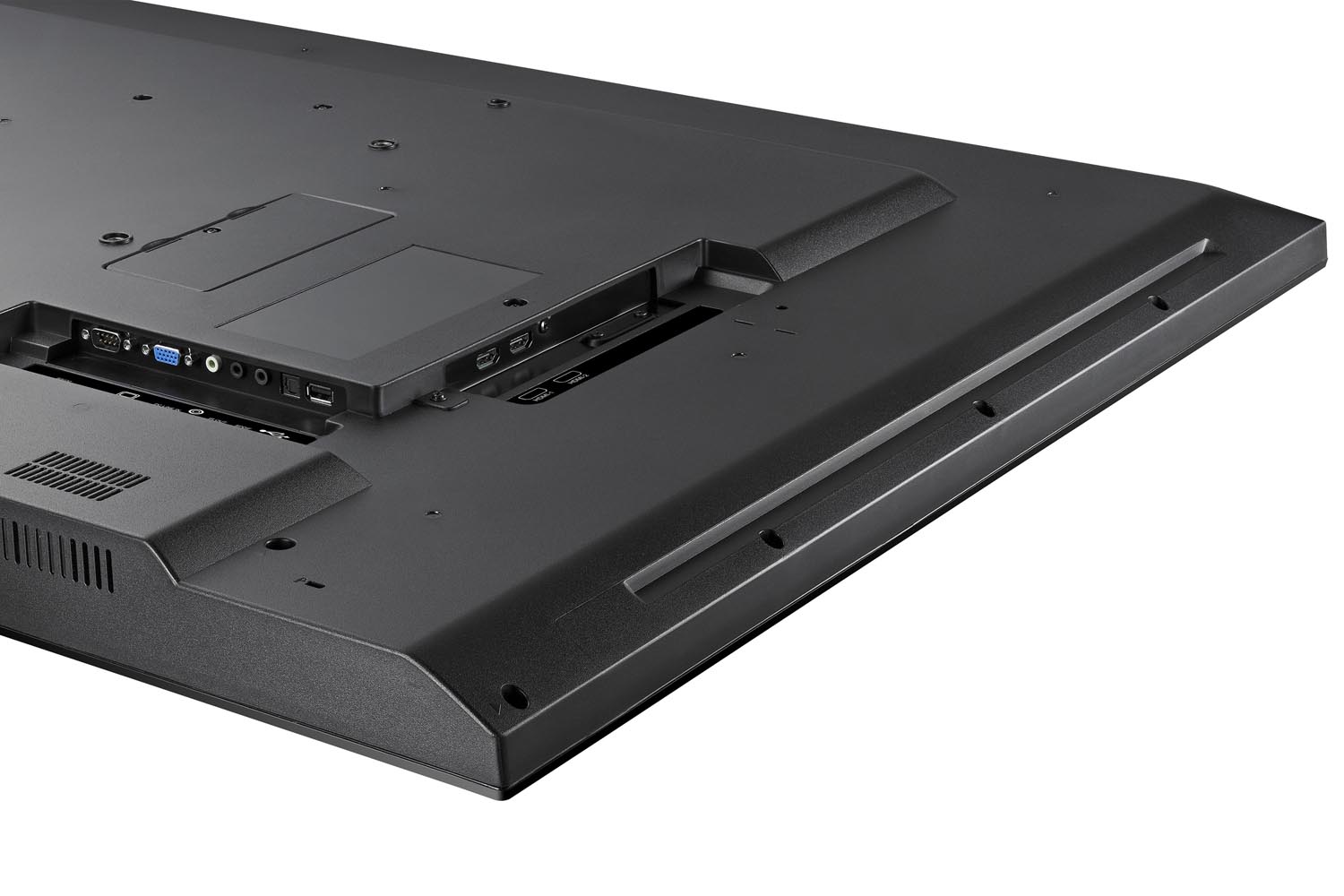

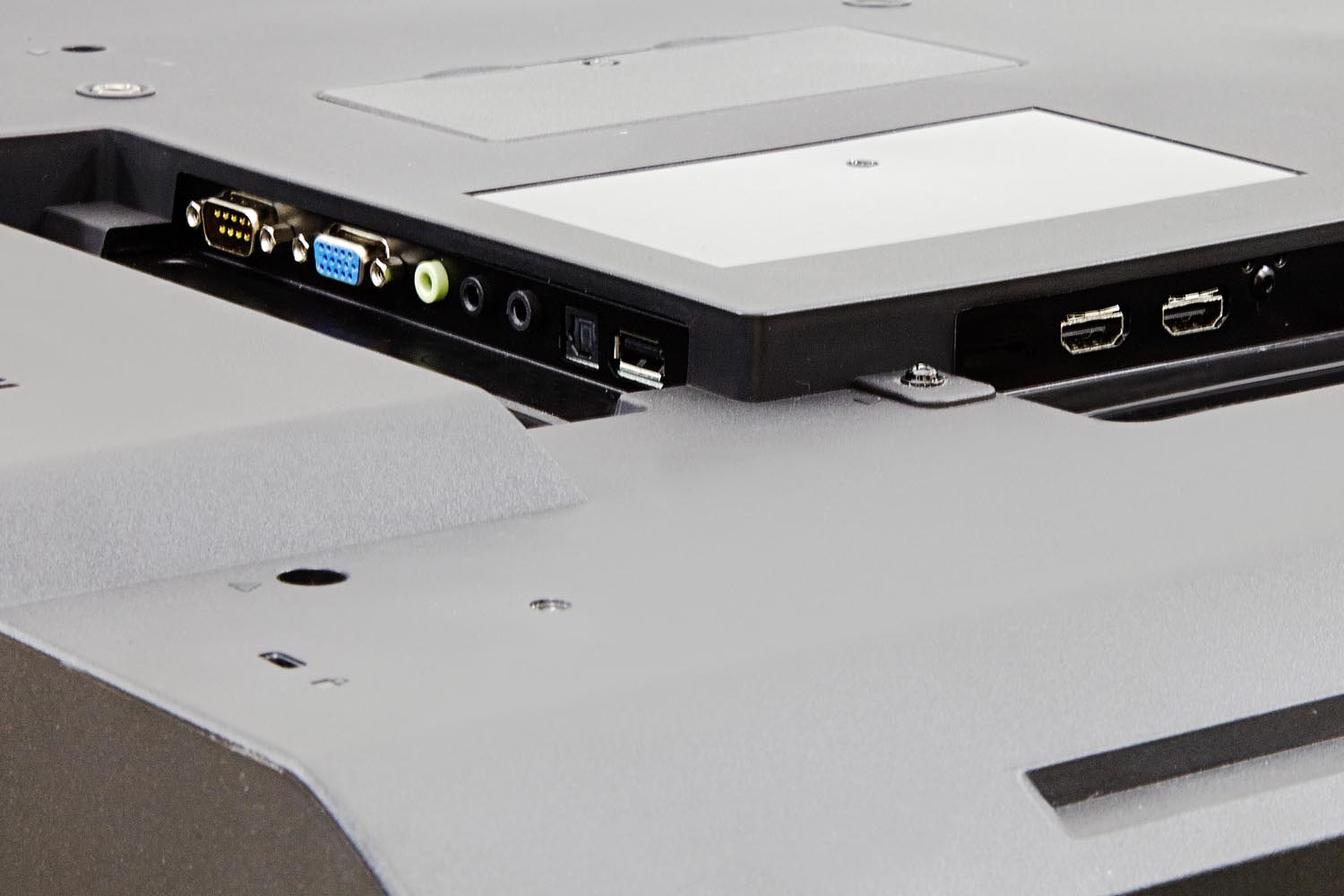

INPUT
HDMI: x2
RGB / VGA: x1
الصوت: x1 PC audio(3.5mm)
RS232: x1
OUTPUT
الصوت: x1 (Earphone Out)
SPDIF: x1
IR Pass Thru: x1

USB
Type A: x1
SPEAKERS
10W x2
COMPATIBILITY
RGB PC/HDMI PC: 480i, 480p,720p,1080i,1080p
HDMI: 480i, 480p,720p,1080i,1080p
CONTROLS
Physical- Top OSD: PICTURE: POWER, MUTE, INPUT, VOL -/+, UP, DOWN, MENU Auto Picture, Brightness, Contrast, Color, Adanced settings, Reset picture setting
SOUND: Auto sound, Equalizer, Balance, Reset sound settings
CLOCK: Sleep timer, Date/Time.
FREATURES: Language, PC settings, Button lock, Remote lock, Monitor ID, Current software info, Reset AV & features
USB MENU: Photo, Music, Movie
Multimedia: PICTURE: BMP, JPG, JPEG, PNG
VIDEO: MP4, AVI, MKV, DAT, VOB, MPG, MPEG, TS
AUDIO: MP3
POWER
Voltage: 100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz
الاستهلاك: 105W (typ), 125W (max), < 0.5 W ("Off")
ERGONOMICS
Wall Mount (VESA® ): 200x200mm / 400x400mm
OPERATING CONDITIONS
Temperature: 0°C to 40°C
Humidity: 20%~80% @40℃ non-condensing
المقاسات (العرض × الارتفاع × العمق)
Physical (inch / mm): 38.12 x 23.59 x 12.98 / 968.2 x 599.1 x 329.6 (w/ Stand)38.12 x 22.02 x 2.36 / 968.2 x 559.4 x 59.9 (w/o Stand)
Packaging (inch / mm): 42.13 x 27.40 x 6.26 / 1070 x 696 x159 (w/o Stand)
WEIGHT
Net (lb / kg): 19.18 / 8.70 (w/o stand); 23.30 / 10.57 (with Stand)
Gross (lb / kg): 26.90 / 12.20
PACKAGE CONTENTS
1. CDE4302 presenation display 2. Remote Control with batteries 3. User manual CD wizard 4. Quick Start Guide 5. Power Cables 6. VGA cable 7. RS232 cable

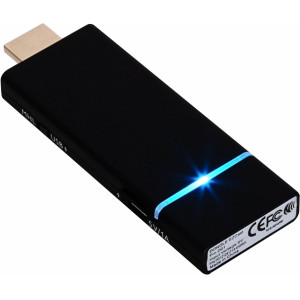

Wireless Presentation Dongle
