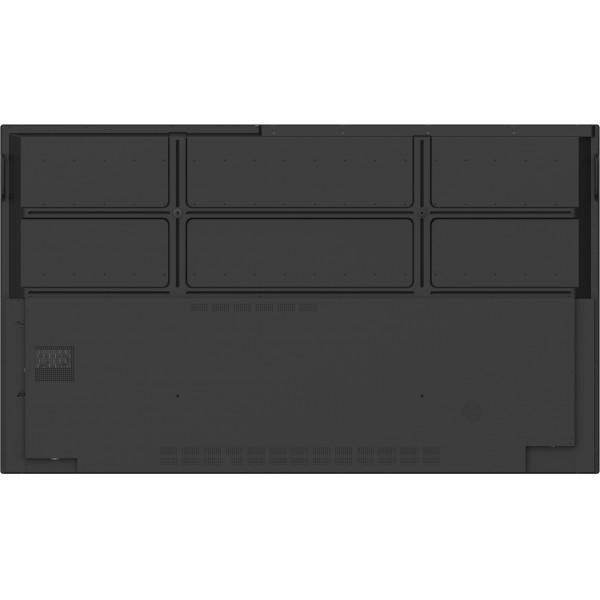

IFP8670

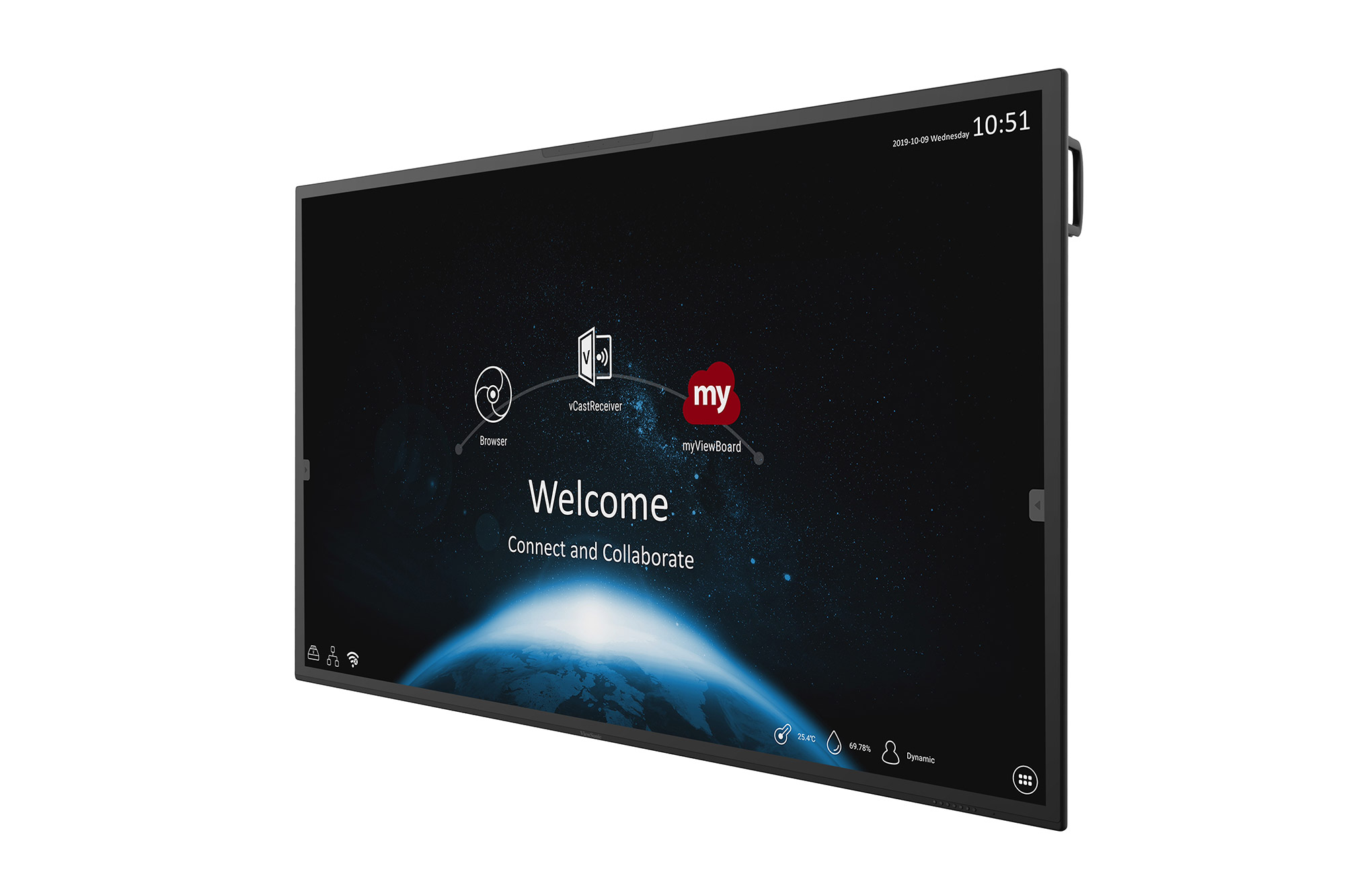

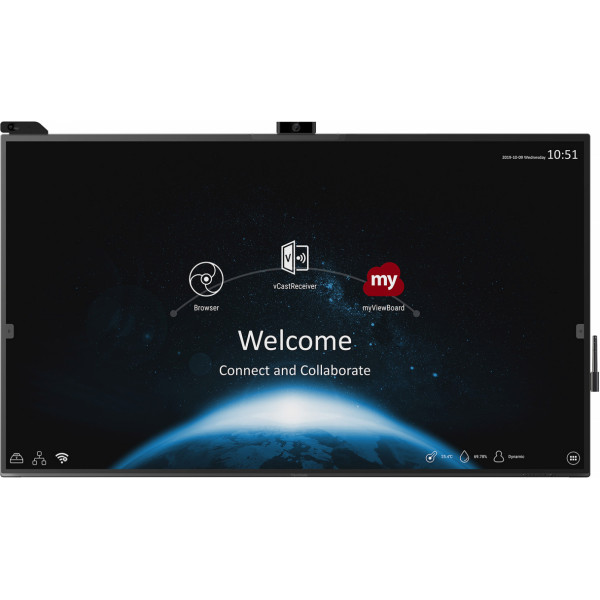

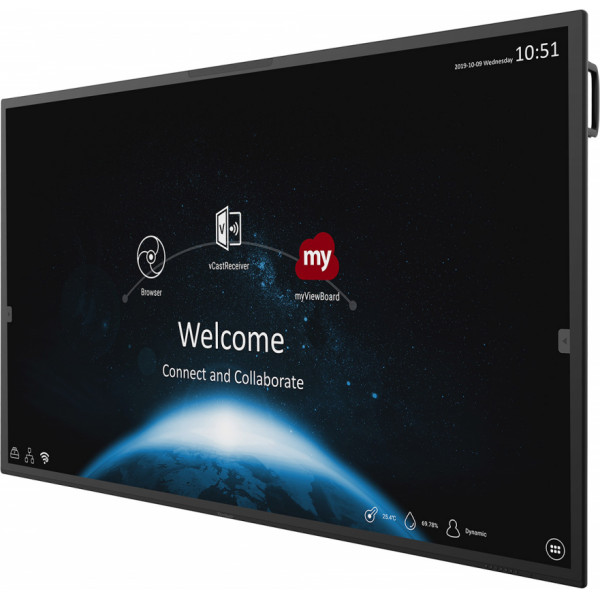

ViewBoard® 86'' 4K Flagship Interactive Display

Advanced Projected Capacitive (PCAP) touch technology

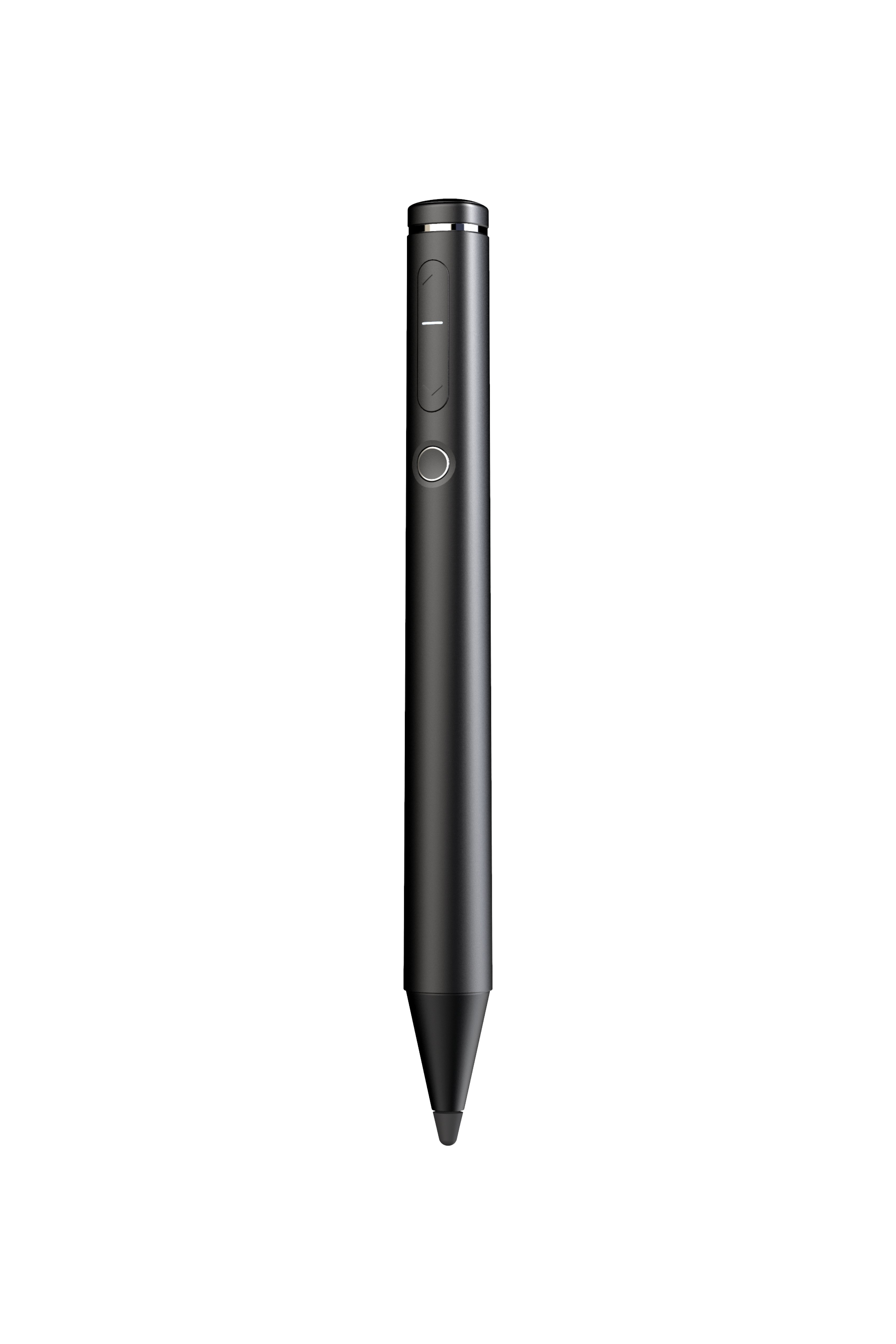

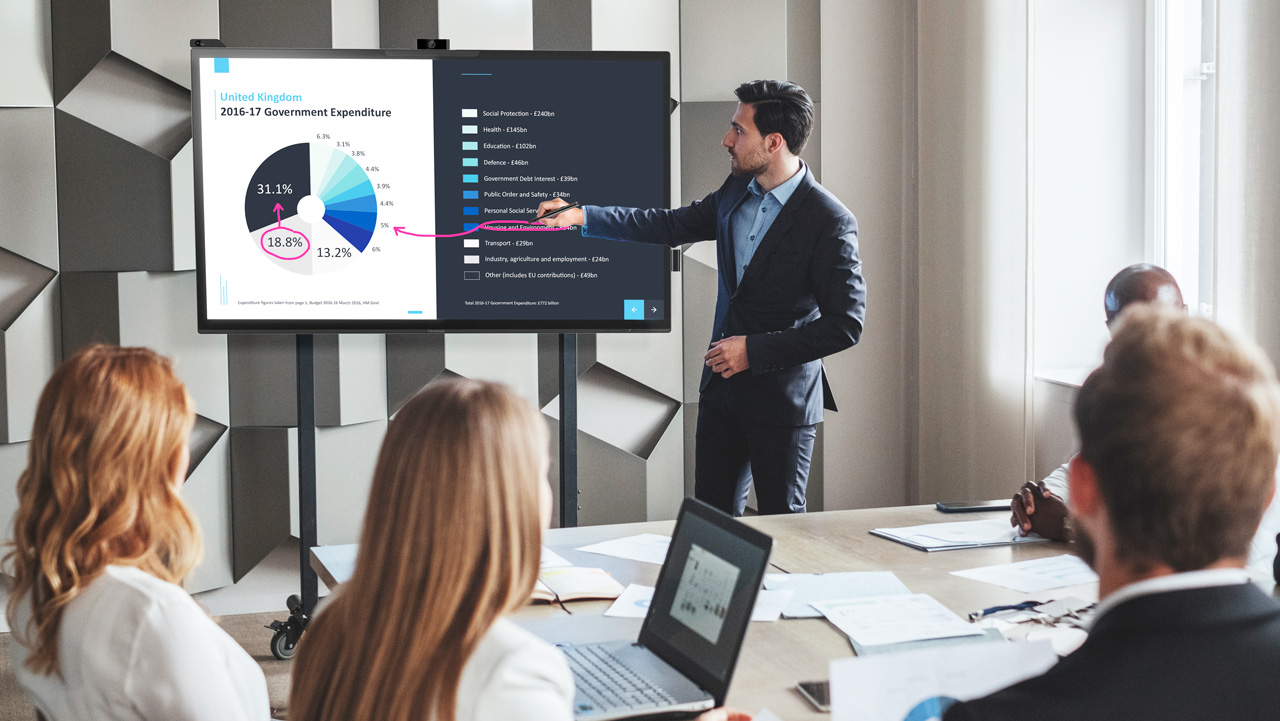

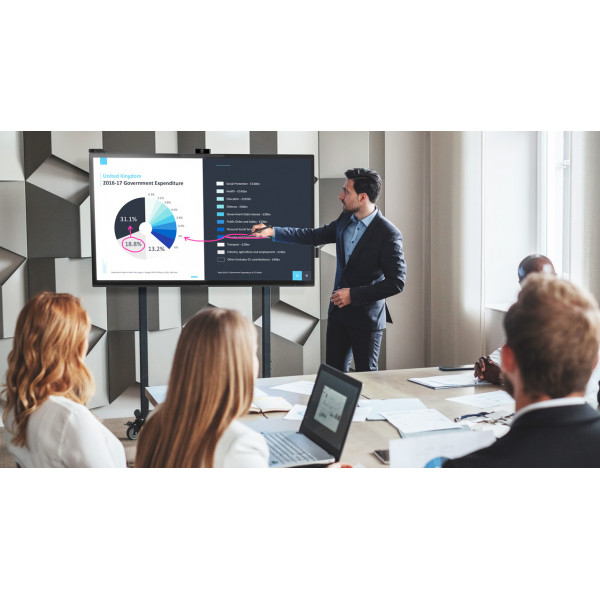

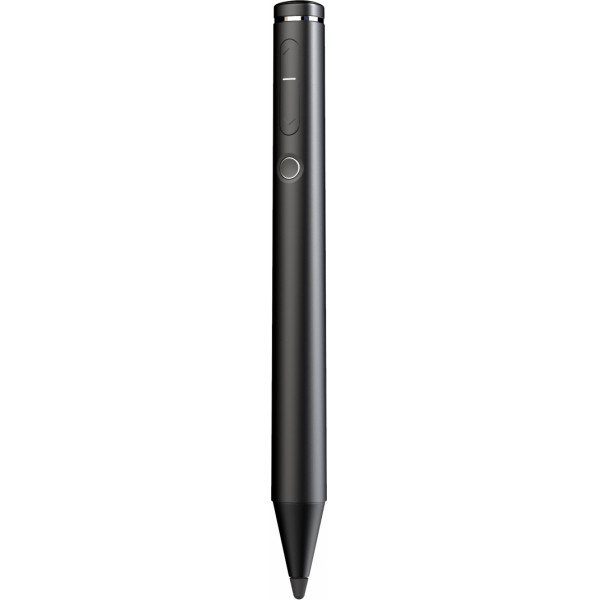

Write Naturally and Accurately with Smart Active Pen

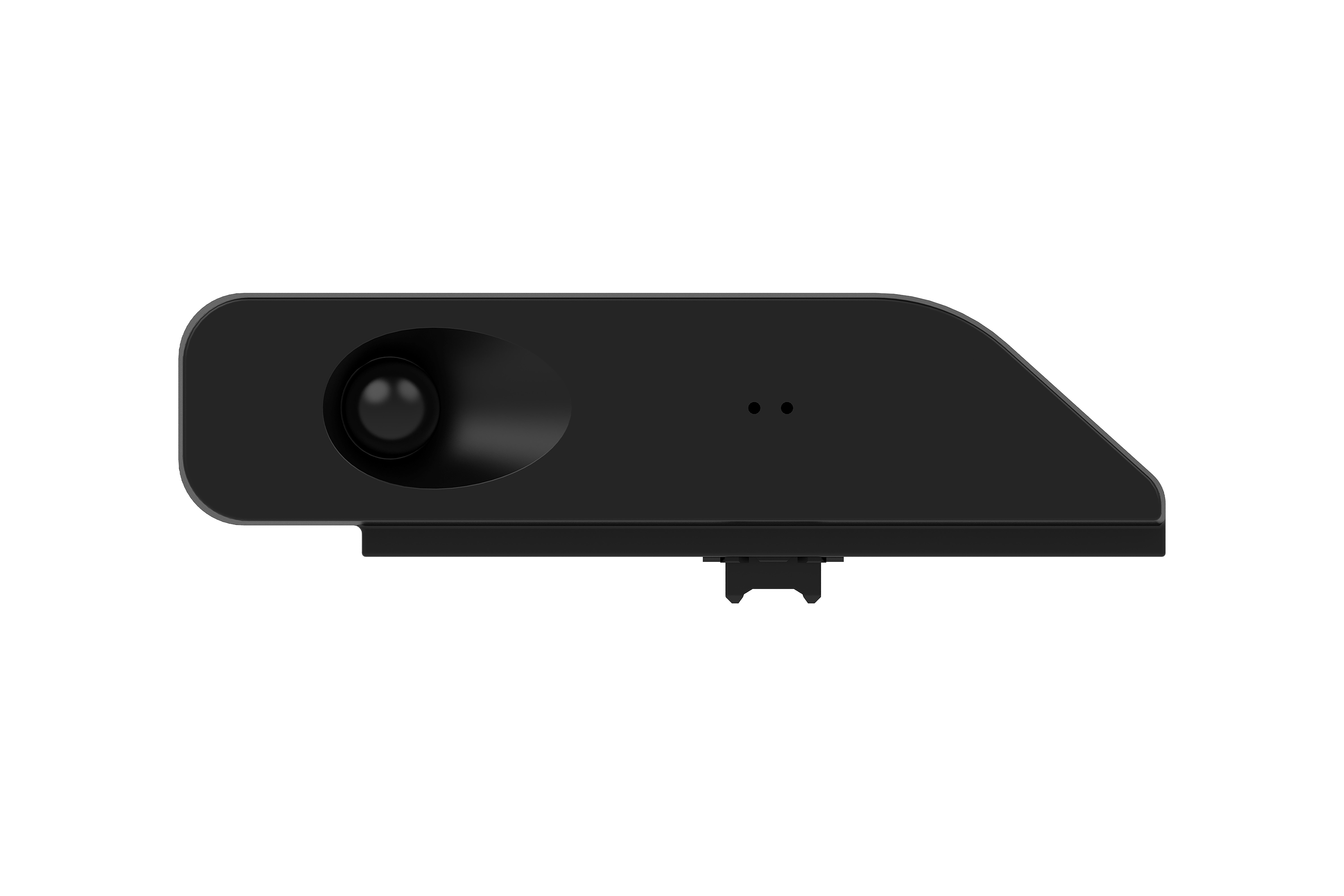

Azure certified IoT sensor hub for workplace management

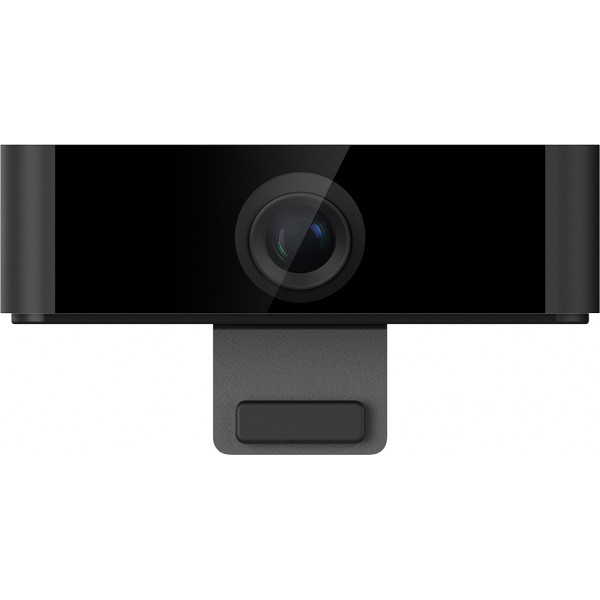

Skype for Business certified FHD camera
Single cable content sharing through USB Type C

معرض

المراجعات

[Video] Đức Pháp Technology

“Màn hình tương tác cao cấp ViewSonic Series IFP70 thiết bị nên đầu tư cho doanh nghiệp văn phòng 4.0”

قراءة الاستعراض

المواصفات

الشاشة
Panel Size: 86"
Type/Tech: TFT LCD Module with DLED Backlight.
منطقة العرض (مم): 1895.04 (H) x 1065.96 (V) (85.6”diagonal)
الابعاد المتزنة: 16:9
Native Resolution: UHD 3840x2160(Pixels)
الألوان: 1.07B colours (10bit)
السطوع: 350 nits (typ.)
نسبة التباين: 1200:1 Typ.
Response Time: 8ms
زوايا النظر: H = 178, V = 178 typ.
عمر الإضاءة الخلفية: 30,000 Hours (Min)
Surface Treatment: Anti-Glare/anti finger print
الحافة: Slim
Orientation: Landscape
Platform
Processor: Dual core A73+Dual core A53
RAM: 4GB DDR4
Storage: 32GB
Touch
Type/ Tech: PCAP
Touch Resolution: 32767 x 32767
Touch Point: 20 points touch, 10 points writing

INPUT
HDMI: 2.0 x1 (3840x2160 @60Hz)
منفذ الشاشة: X1 1.4
RS232: x1
OPS: x1 PC Slot (proprietary)
OUTPUT
HDMI: X1(4K2K@60Hz)
الصوت: x1 (Earphone out)
SPDIF: 1(optical)
LAN
RJ45: x1
USB
Type A: USB 3.0 x3
Type B: USB 3.0 x2, for touch
Type C: x1 USB3.0, DP1.4 Alternate mode, Ethernet, PD 60W
SPEAKERS
SPEAKERS: 10W x 2 + 15W x 1 subwoofer
لوحة الكاميرا في الأعلى لتثبيت كاميرا الويب ببراغي
لوحة الكاميرا في الأعلى لتثبيت كاميرا الويب ببراغي: Yes
COMPATIBILITY
CVBS: 480i
HDMI: 3840x2160
Embedded OS
Embedded OS: Android 8
USB SUPPORTED FILE FORMAT
USB SUPPORTED FILE FORMAT: Picture -
BMP, JEPG, PNG

Video -
Codec: MPEG1, MPEG2, MPEG2-PS, MPEG4, MKV
Container: MPG, MP4, MOV, VOB, DAT, MKV

Audio -
Codec: AAC, HEAAC, MPEG1, MPEG2
Container: AAC, M4A, MP3
حزمة البرامج
برنامج الشرح الأساسي: myViewBoard for android
Pro Annotation Software: myViewBoard for windows (Embedded in Windows Slot-in PC)
Wireless Presentation with Touch Feedback: Viewboard Cast: Yes
Zoom: Yes
ViewSonic Launcher: Embedded
Special Features
منفذ USB متعدد الإمكانات (يجمع بين منفذ Windows / Android USB ؛ لا داعي للتمييز بينهما بعد الآن): Yes
Simple LAN sharing between IFP and slot-in device: Yes
Power
Voltage: 100-240VAC +/- 10% Wide Range
الاستهلاك: On:176.6W(Typ.)
Off: <0.5W
ERGONOMICS
Wall Mount (VESA® ): 800 x 600
OPERATING CONDITIONS
Temperature (º C): 0°C to 40°C
Humidity: 10% ~ 90% RH non-condensing
المقاسات (العرض × الارتفاع × العمق)
Physical (inch / mm): 1962X1146X84(mm)
77.24x45.11x3.3(inch)
Packaging (inch / mm): 2123X1345X280(mm)
83.8X52.9X11(inch)
WEIGHT
Net (lb / kg): 160.93/73Kg
Gross (lb / kg): 209.43/95Kg
Energy Star version
Energy Star version: Under proceed apply to ES8.0
EEI rating
EEI rating: A+
PACKAGE CONTENTS
PACKAGE CONTENTS: 1. Power cable x 4
2. Remote control
3. AAA battery X2
4. USB cable Type C
5. activeTouch pen x 2
6. Pen Charger X1
7. Quick Start Guide
8. RS232 adapter
9. Clamp x 7

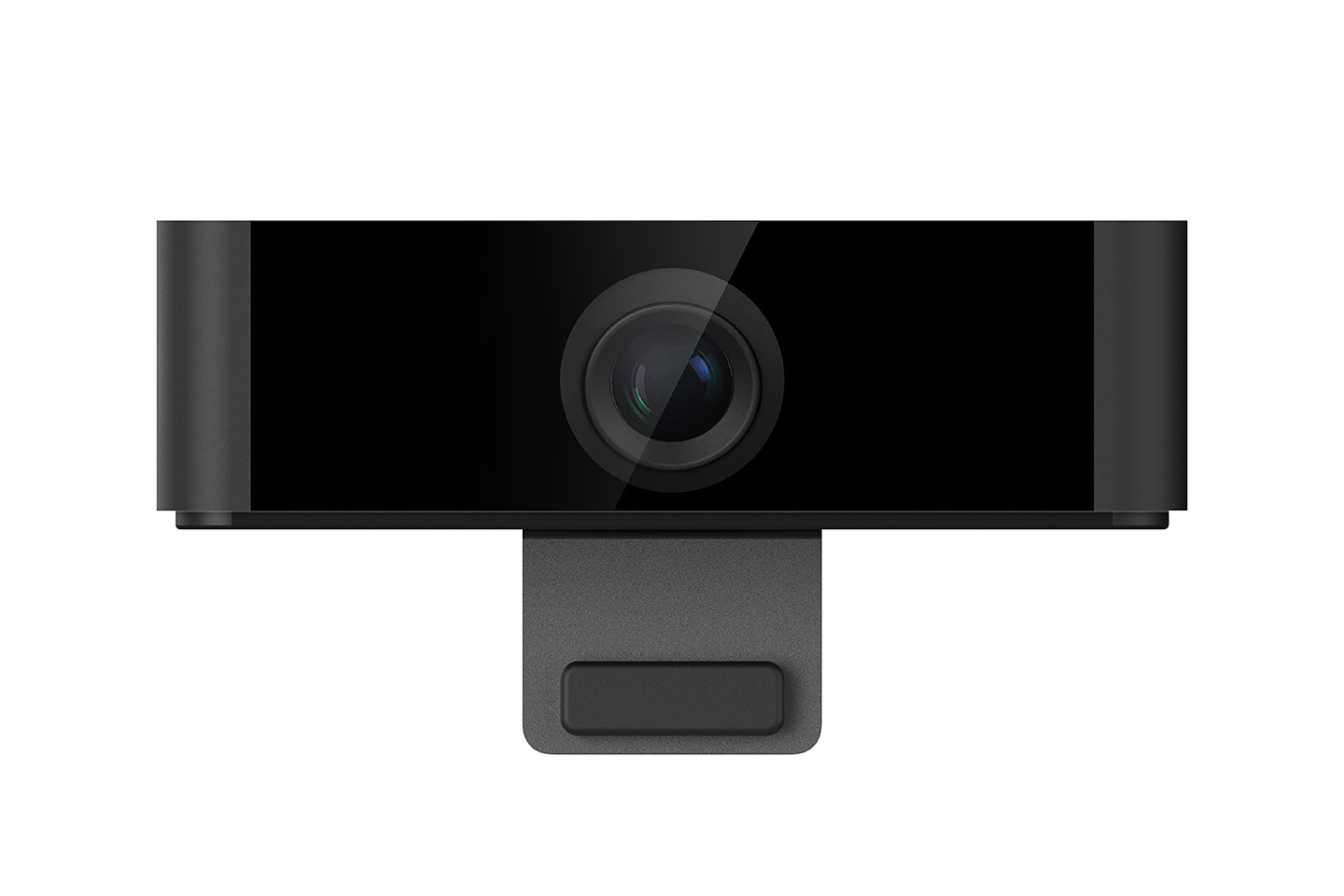

10. Camera
11. Screw x 6 (4 for wall mount ,2 for sensor hub)
12. HDMI cable

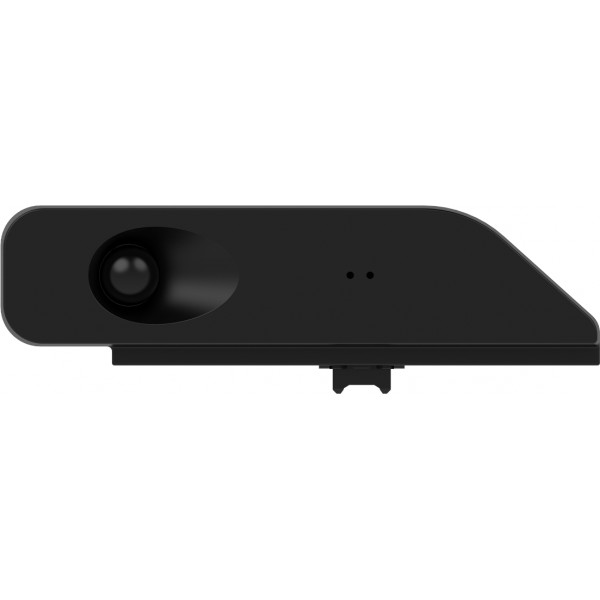

13. Sensor hub
14 .Touch USB cable
15. Micro USB cable for camera

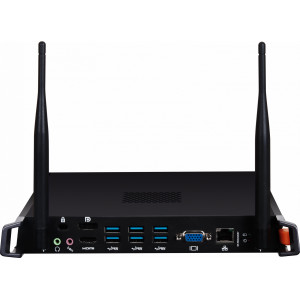

جهاز كمبيوتر متوافق مع فتحة

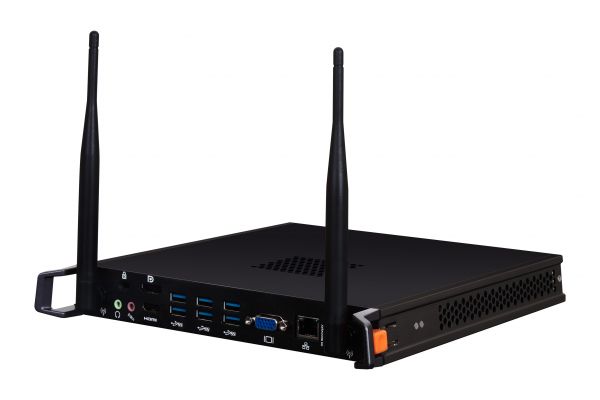

جهاز كمبيوتر متوافق مع فتحة: VPC14-WP series
VPC10-WP series
VPC15-WP series
VPC16-WP series
VPC17-WP series
